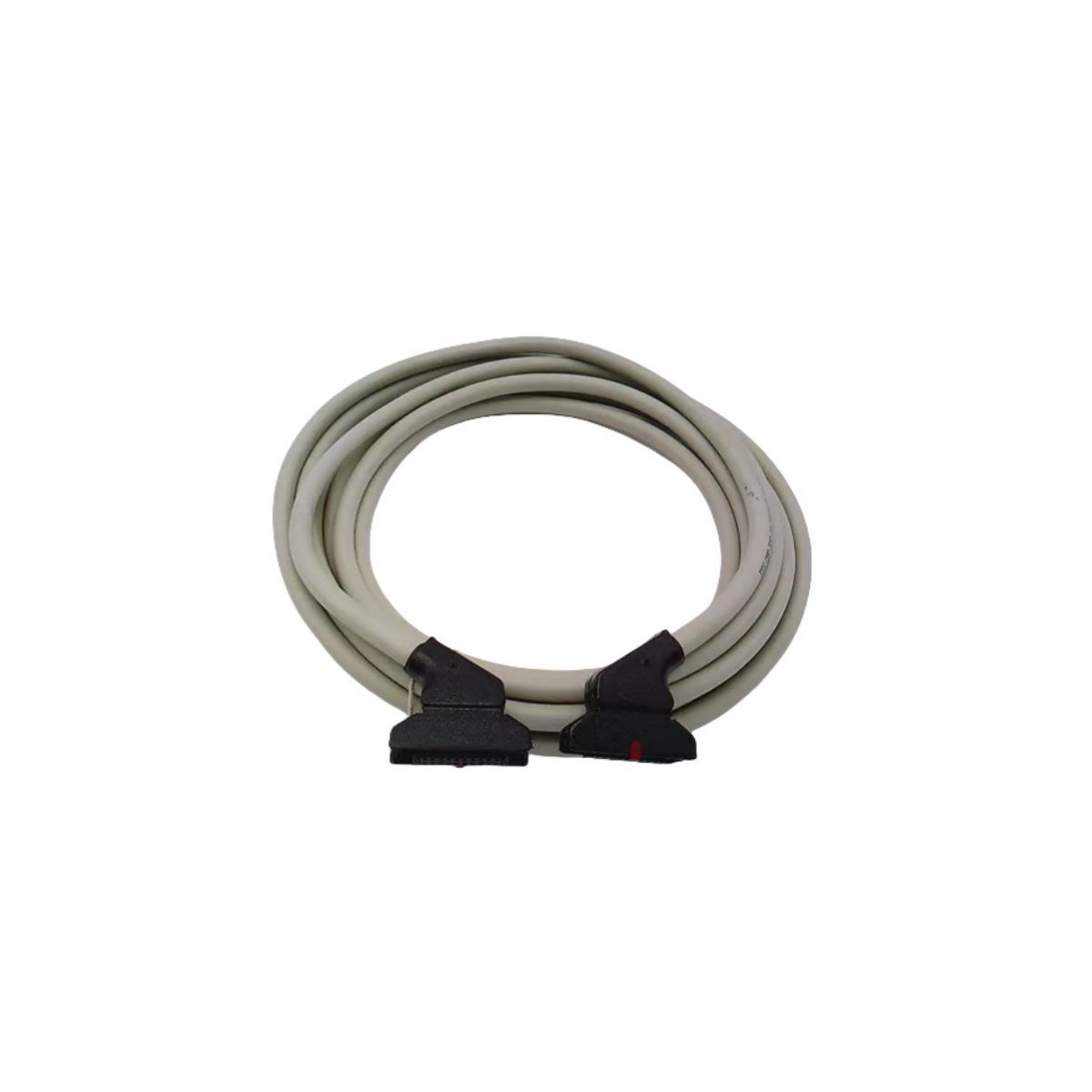

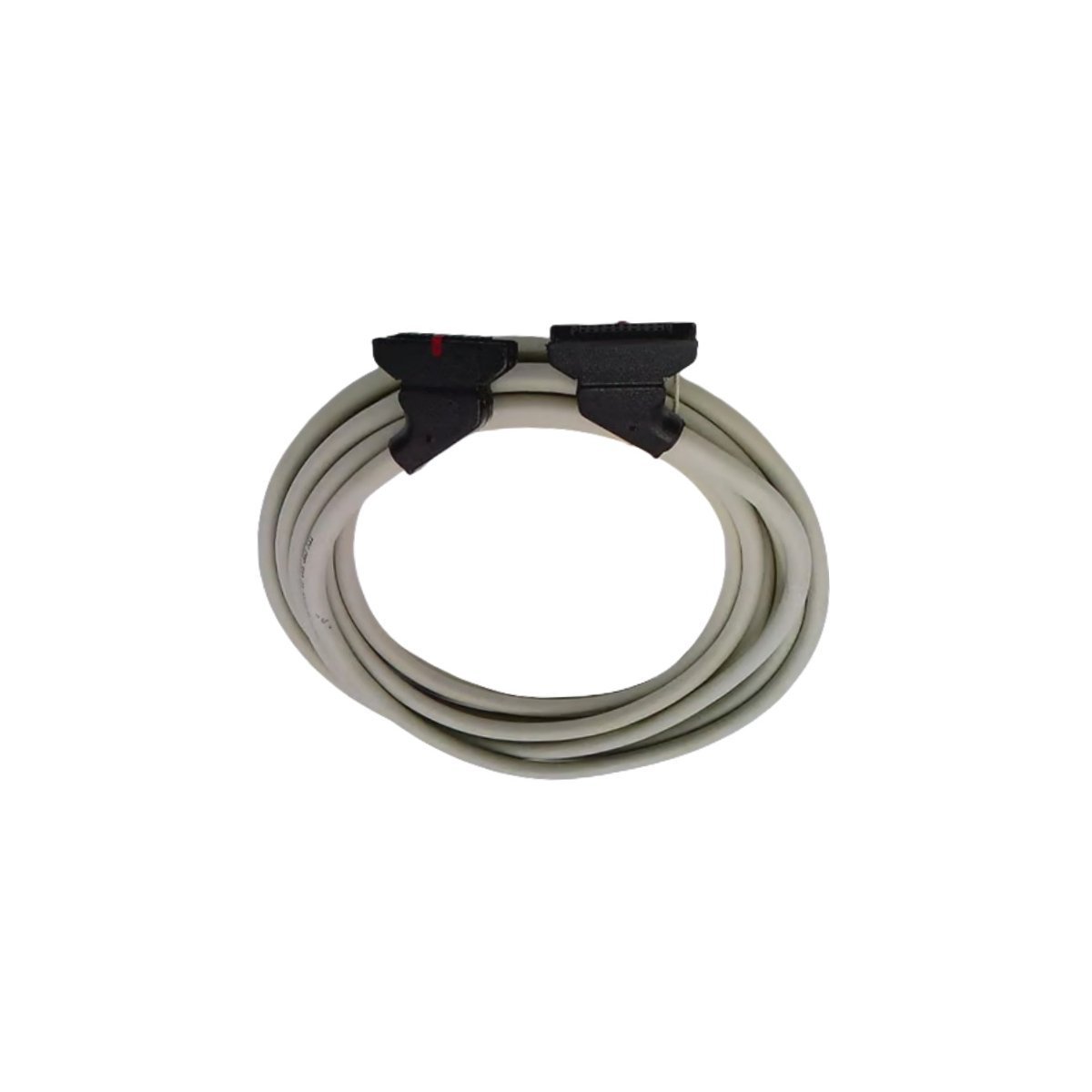

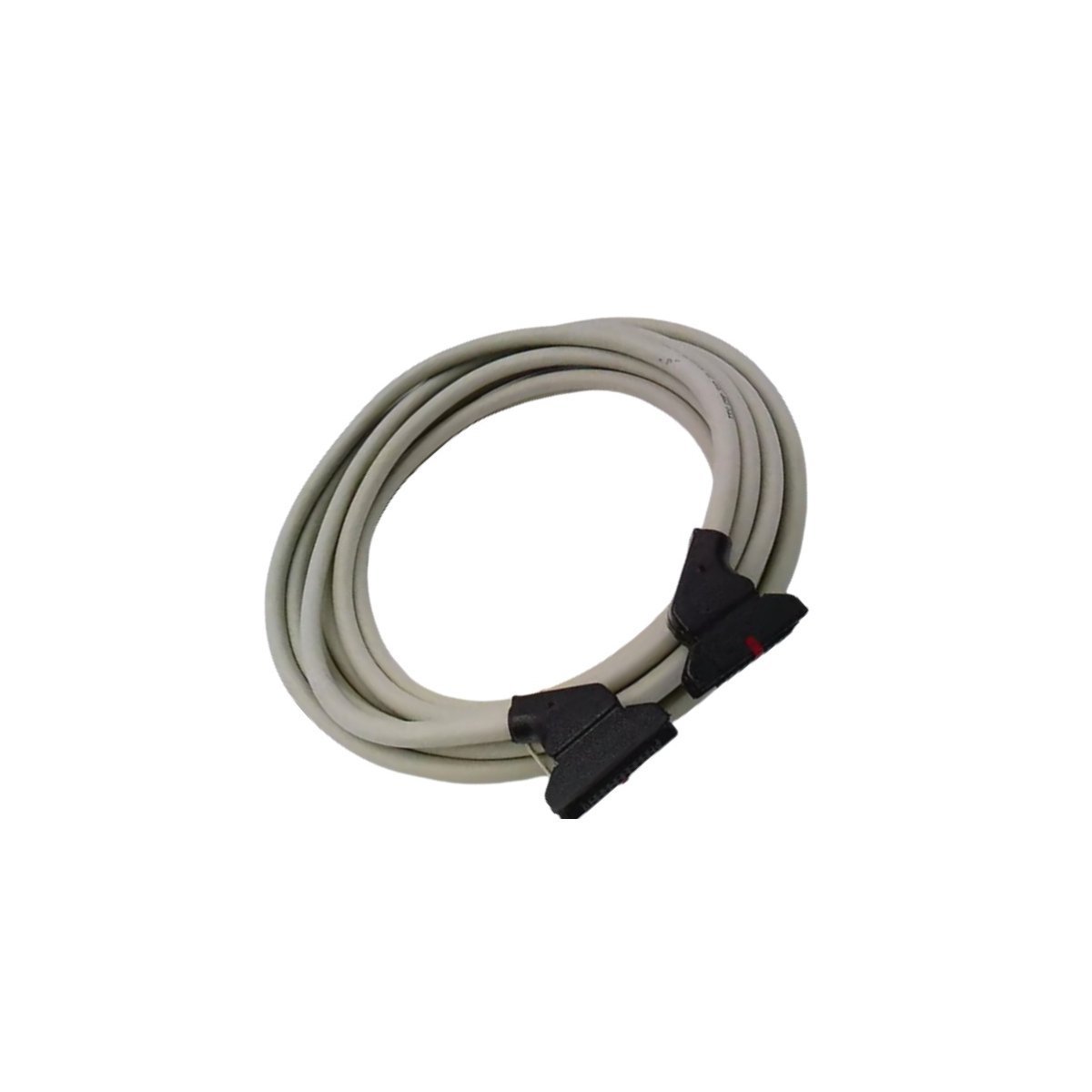

Schneider TSXCDP503 Connecting Cable

The Schneider Electric TSXCDP503 serves as a dedicated interconnectivity solution for the Modicon Premium automation platform. This five-meter shielded cable facilitates high-speed data transfer between PLC modules and Telefast sub-bases. It features specialized HE10 20-pin connectors on both ends to ensure secure and repeatable electrical contact. Engineers designed this accessory to maintain signal integrity within complex industrial control architectures.

Functional Capabilities and Signal Integrity

The TSXCDP503 utilizes 22 AWG gauge conductors to support reliable low-voltage DC transmission. While the internal wires handle power and data, the integrated shielding protects against electromagnetic interference in factory environments. This cable supports RS-485 communication protocols and maintains stable performance up to 115.2 kbps. Furthermore, the outer jacket remains flexible with a minimum bending radius of 50 mm for easy routing through dense cable trays.

Hardware Compatibility and Integration

This connection assembly integrates seamlessly with various Schneider Electric Modicon Premium components. It specifically links discrete I/O or counting modules to sub-bases like the ABE7H16R20. Common compatible modules include:

• TSXCTY2A and TSXCTY4A counting modules
• TSXCFY21 and TSXCFY11 motion control units
• TSXCCY1128 communication modules
• Various discrete I/O modules with HE10 interfaces

Technical Specifications

Environmental Resilience

The TSXCDP503 performs consistently across a broad temperature spectrum from -25°C to +70°C. Robust molding on the HE10 connectors prevents accidental disconnection during vibration or mechanical stress. Consequently, this cable minimizes maintenance requirements and reduces potential points of failure in automated systems. This reliability makes it a standard choice for mission-critical PLC installations.
