ABB NTDI01 Bailey Net 90 Infi 90 Termination Unit Module

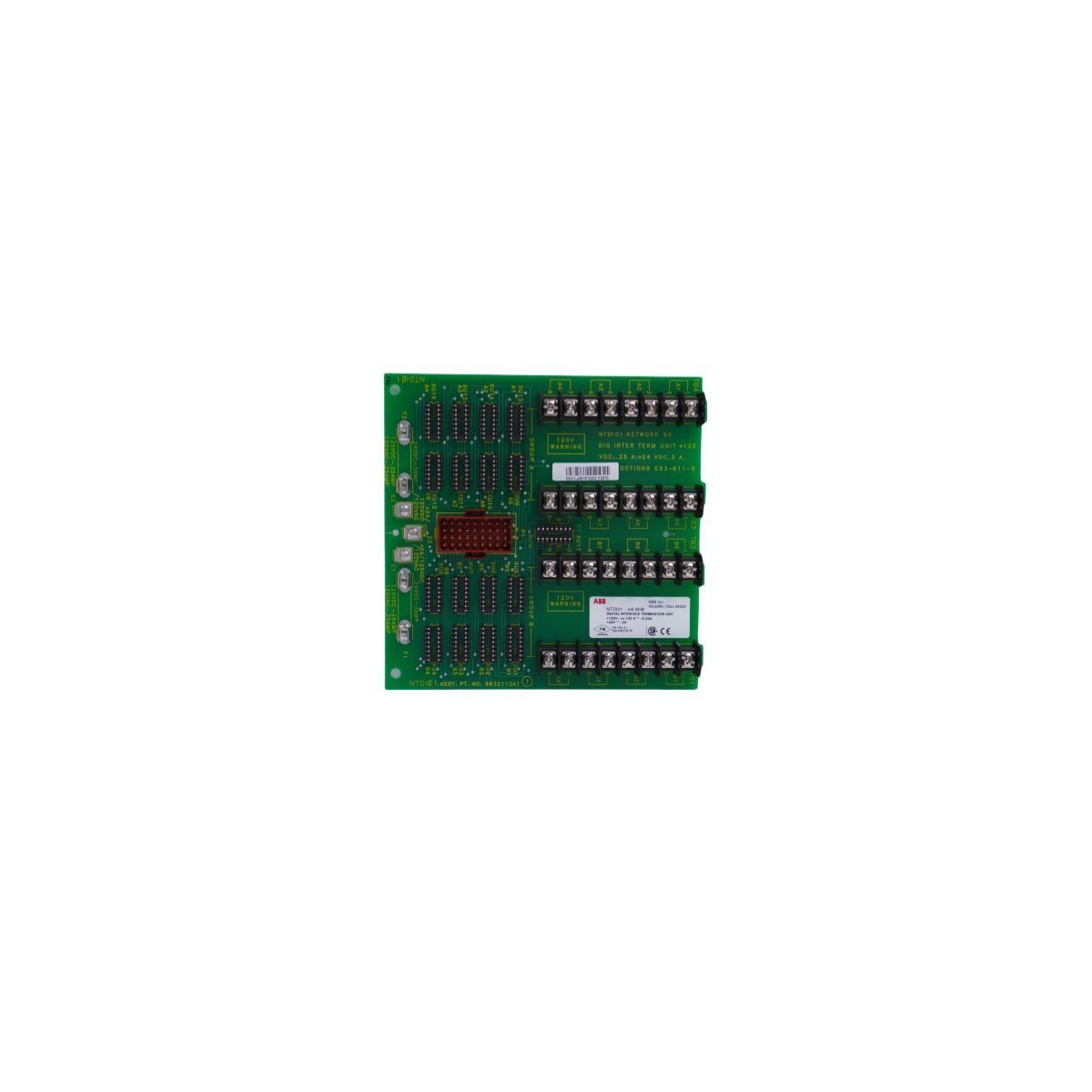

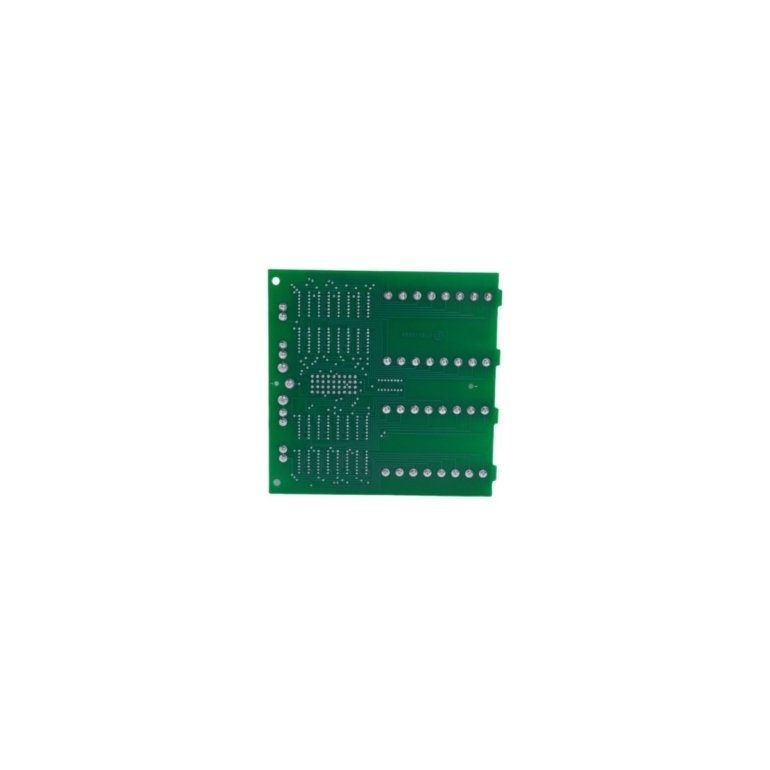

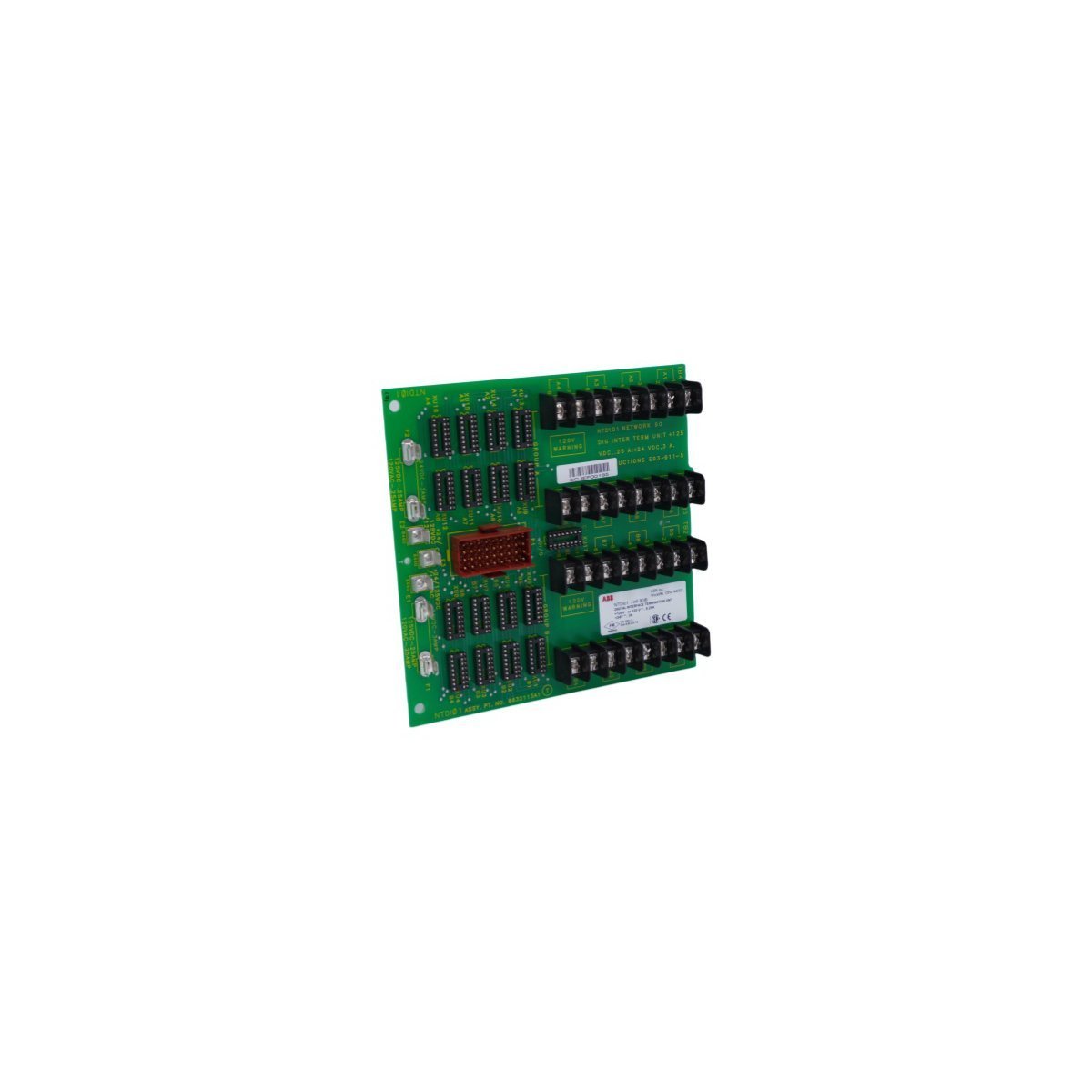

ABB NTDI01 Termination Unit

The ABB NTDI01, also cataloged as the NTDI01 Termination Unit, operates as a dedicated hardware component for field signal interconnection and signal routing within Bailey Net 90 and Infi 90 DCS platforms.

Hardware Specifications

Industrial Process Control and Connectivity

The ABB NTDI01 manages signal transition between field wiring and the DCS I/O backplane. It facilitates 4-20 mA HART loop protocol compatibility and provides necessary channel-to-channel isolation to mitigate electromagnetic interference in high-density control cabinets. The unit supports FOUNDATION Fieldbus or Profibus PA connectivity, depending on the specific system I/O card mapping. Designers utilize this component to maintain signal integrity through cold junction compensation (CJC) for thermocouple inputs, ensuring accurate process variable acquisition across the DCS network.

Frequently Asked Questions

Q: Does the NTDI01 require external power for signal conditioning?

A: No, the NTDI01 functions as a passive termination unit; it routes field signals to the I/O interface without active signal conditioning or local power consumption.

Q: Is this unit compatible with high-vibration industrial environments?

A: The chassis mounts via standard cabinet rails, providing structural stability. Operators must ensure terminal screws maintain torque specifications to prevent intermittent contact resistance due to mechanical vibration.

Field Installation Guidelines

1. Verify that the I/O loop power is isolated before initiating installation.
2. Align the unit on the cabinet mounting rail and secure it to ensure a stable electrical ground path through the chassis.
3. Terminate field signal conductors according to the specific wiring diagram provided in the system documentation.
4. Verify signal continuity using a multimeter prior to commissioning the I/O channel.
5. Inspect all terminal connections after 48 hours of initial operation to ensure terminal blocks remain secure.
