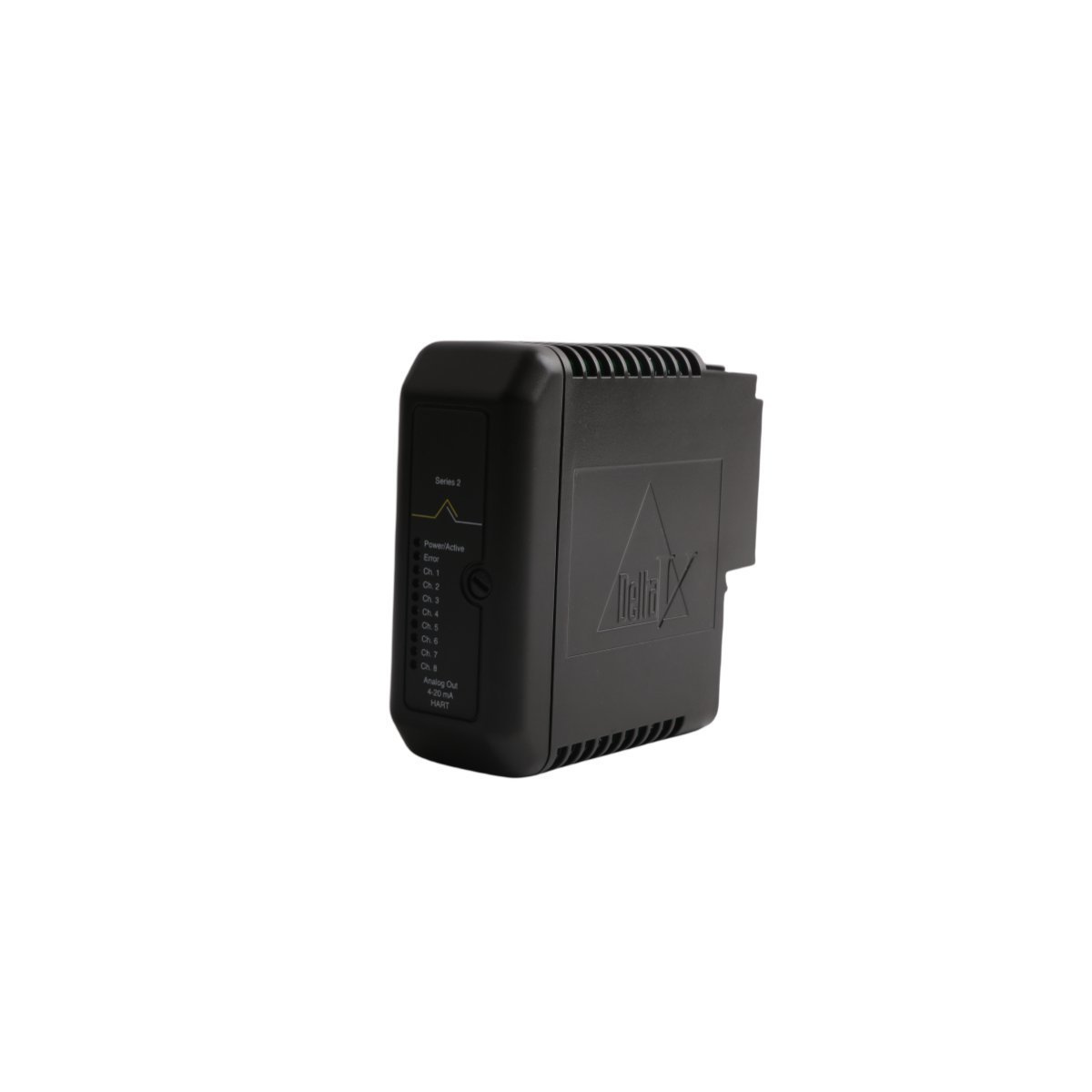

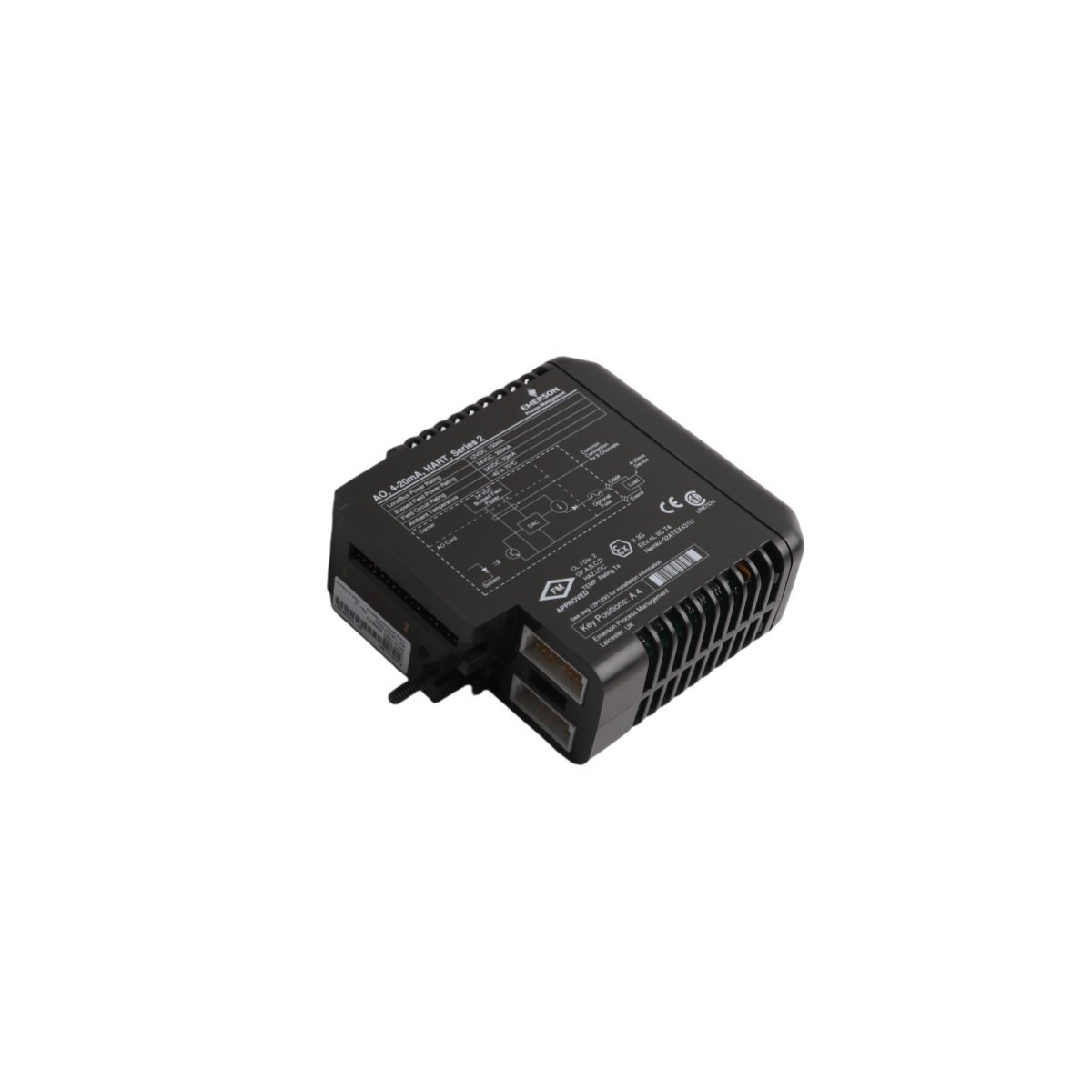

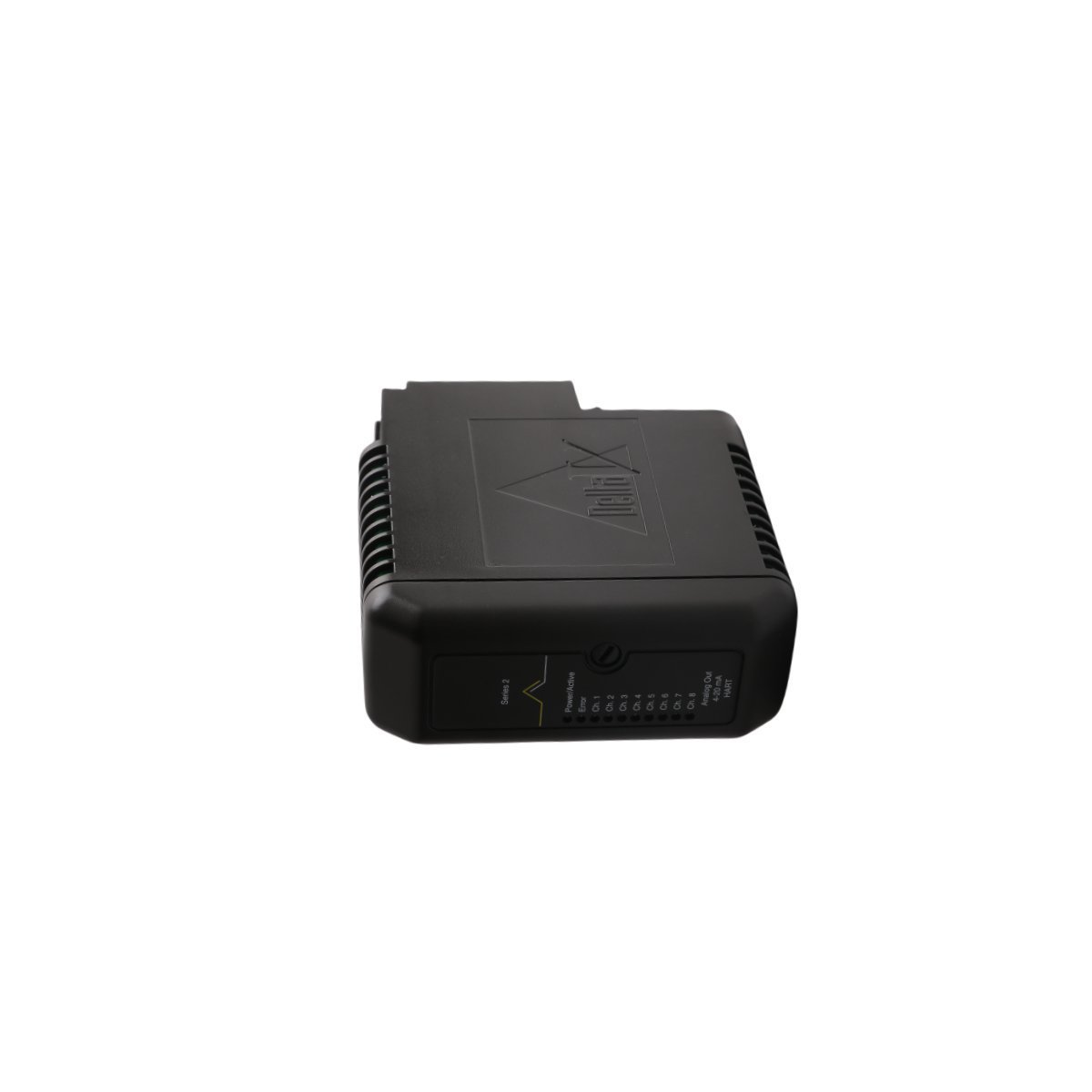

DeltaV DCS Emerson Redundant Module KJ3221X1-BA1 12P2531X062 Analog Output 8-Channel HART

Technical Overview and Module Functionality

The Emerson KJ3221X1-BA1 serves as a cornerstone for high-availability process automation within the DeltaV Distributed Control System architecture. As a Series 2 redundant analog output module, it manages eight independent 4-20mA channels, allowing for the precise command of final control elements such as control valves and variable speed drives.

Redundancy is the primary driver for this module’s design. When paired with a compatible redundant terminal block, two KJ3221X1-BA1 modules work in tandem. If the active module encounters an internal hardware failure, the standby module assumes control without bumping the process signal. This seamless transition prevents costly process trips and maintains production continuity in hazardous or high-stakes environments.

Technical Specifications

Core Features and Industrial Applications

This module incorporates advanced digital HART communication, enabling the control system to access secondary variables and device health data from the field. Furthermore, the 12P2531X062 features ruggedized internal components to withstand the thermal and electrical stresses typical of industrial control rooms.

The redundant architecture specifically targets industries where downtime is not an option. Key applications include:

• Petrochemical and Refinery operations requiring fail-safe valve positioning.
• Power Generation facilities managing critical boiler or turbine control loops.
• Pharmaceutical manufacturing where batch consistency relies on uninterrupted signal output.
• Continuous chemical processing plants requiring high-integrity I/O subsystems.

By utilizing this Series 2 module, plant engineers benefit from enhanced diagnostics. The system identifies loop faults and internal errors immediately, providing actionable data to maintenance teams. This proactive monitoring approach significantly reduces MTTR (Mean Time To Repair) and secures the overall stability of the DCS infrastructure.

Installation and Compatibility

The KJ3221X1-BA1 installs directly into the DeltaV M-series I/O carrier. While Emerson discontinued the official manufacture of these units on December 31, 2018, they remain essential components for maintaining and expanding legacy M-series installations. The module facilitates hot-swapping under power, ensuring that hardware updates do not compromise the active control strategy.
