ICS Triplex T9432 Analog Input Module

The T9432 module provides 16 high-integrity isolated channels for precise analog signal acquisition. This module primarily interfaces with industrial sensors operating within a standard 0 mA to 24 mA current range. Because each channel remains electrically isolated, the unit prevents ground loops from compromising data accuracy. The T9432 simultaneously delivers digitized status updates and high-resolution analog values to the system processor. Consequently, it supports both real-time process control and historical data logging in mission-critical applications.

Configurable Thresholds and Line Diagnostics

This Analog Input Module offers extensive customization through the AADvance Workbench software environment. Users can define five separate voltage bands for every input channel to match specific sensor profiles. Additionally, the module features eight adjustable switching thresholds with integrated hysteresis to prevent signal chatter. These settings facilitate advanced line monitoring to detect field wiring faults or device failures. Therefore, maintenance teams can distinguish between a legitimate process alarm and a hardware malfunction instantly.

System Diagnostics and Visual Indicators

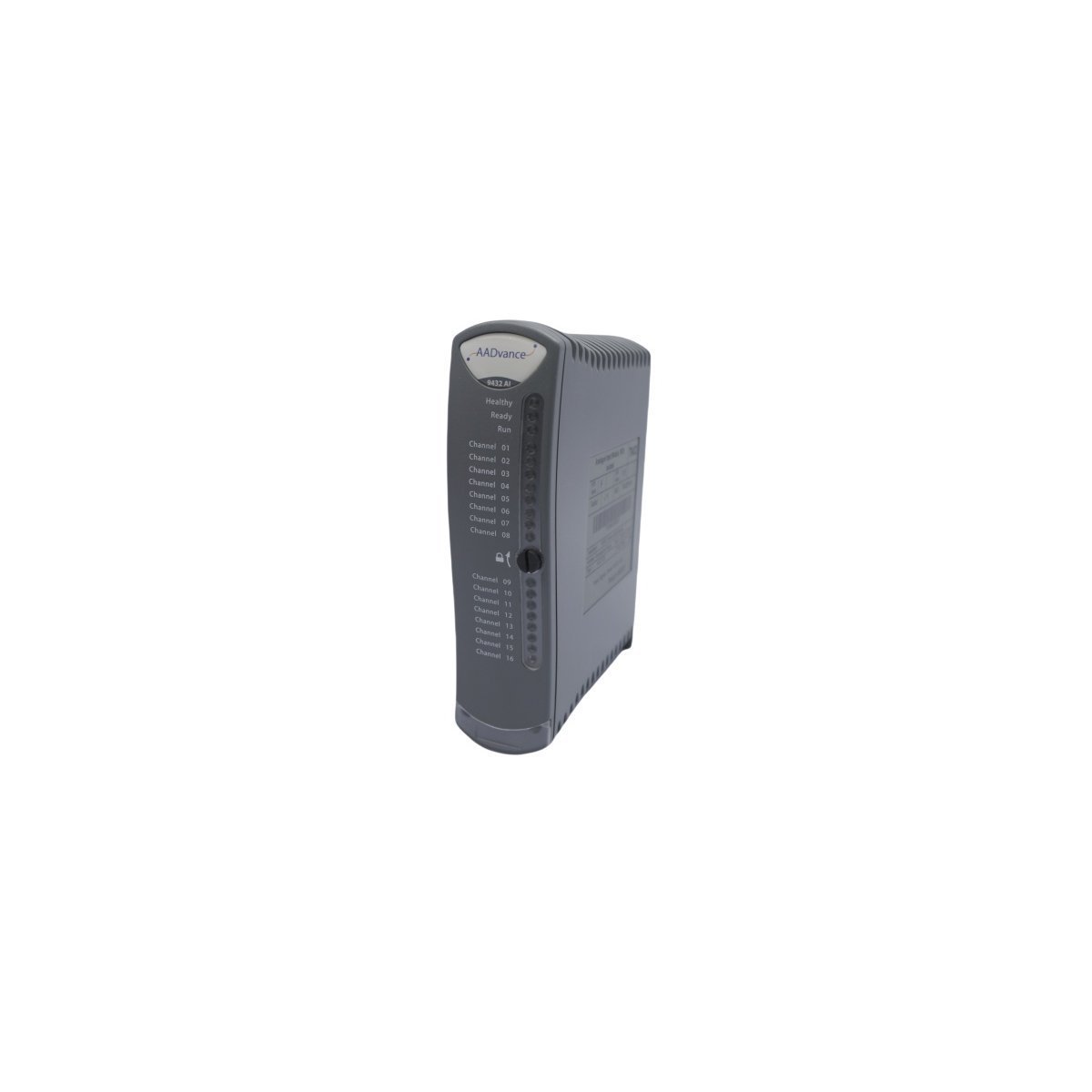

The T9432 incorporates comprehensive self-testing features at both the module and individual channel levels. Front-panel LED indicators provide immediate visual feedback regarding the operational health of the unit. These hardware statuses also map directly to software variables for remote monitoring via the control network. Because the module supports hot-swapping, technicians can replace units without interrupting the broader control process. This design maximizes system availability while simplifying routine maintenance procedures in complex industrial facilities.
