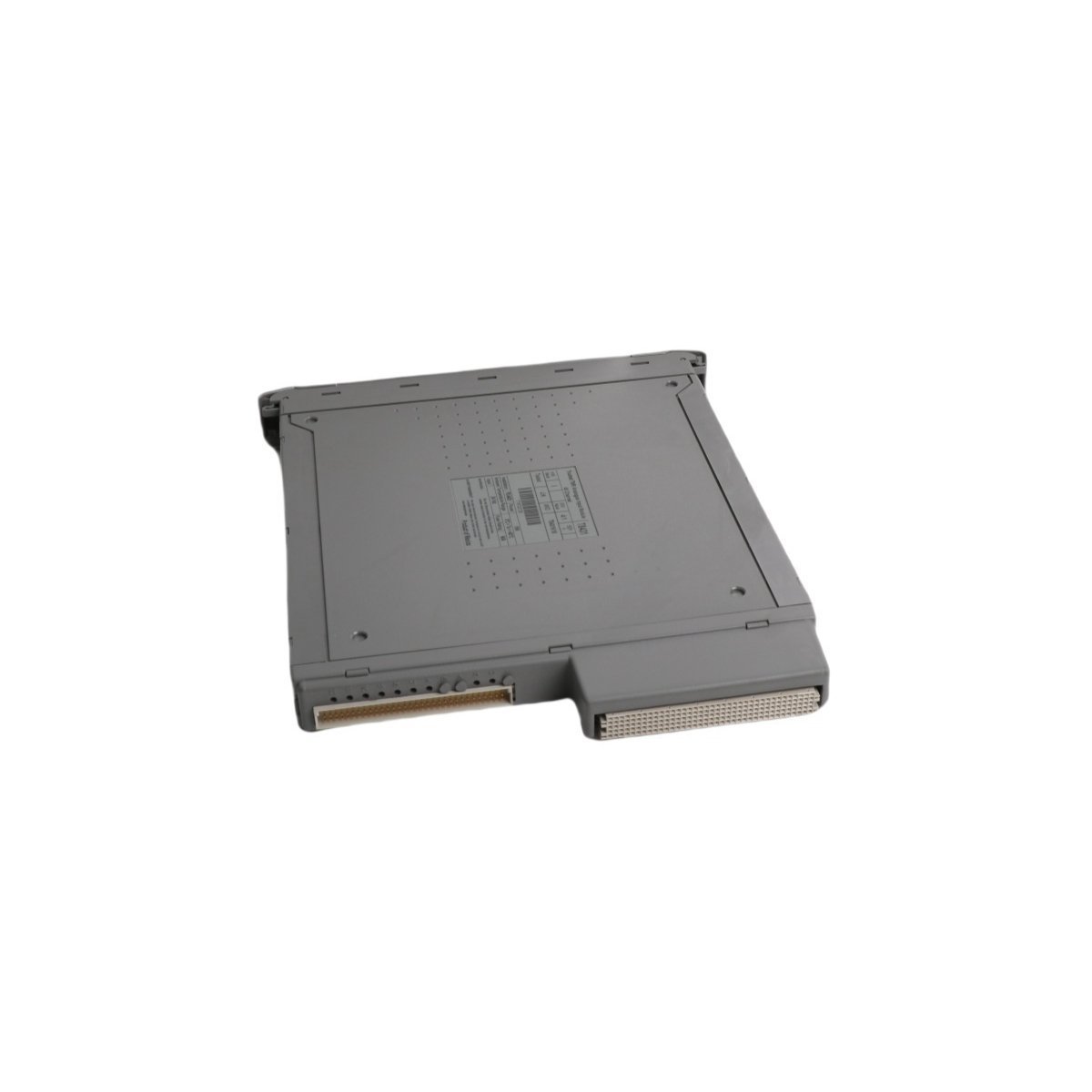

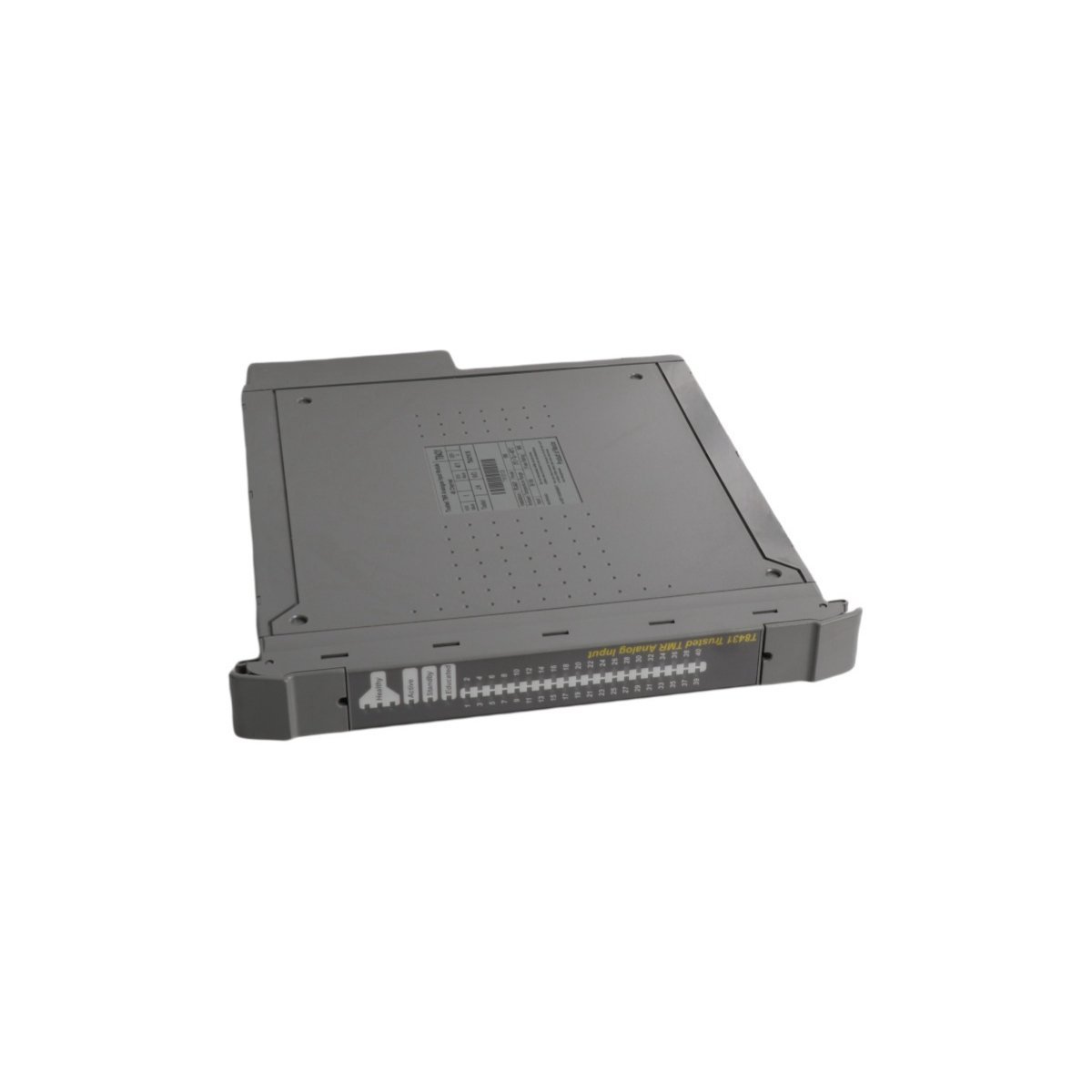

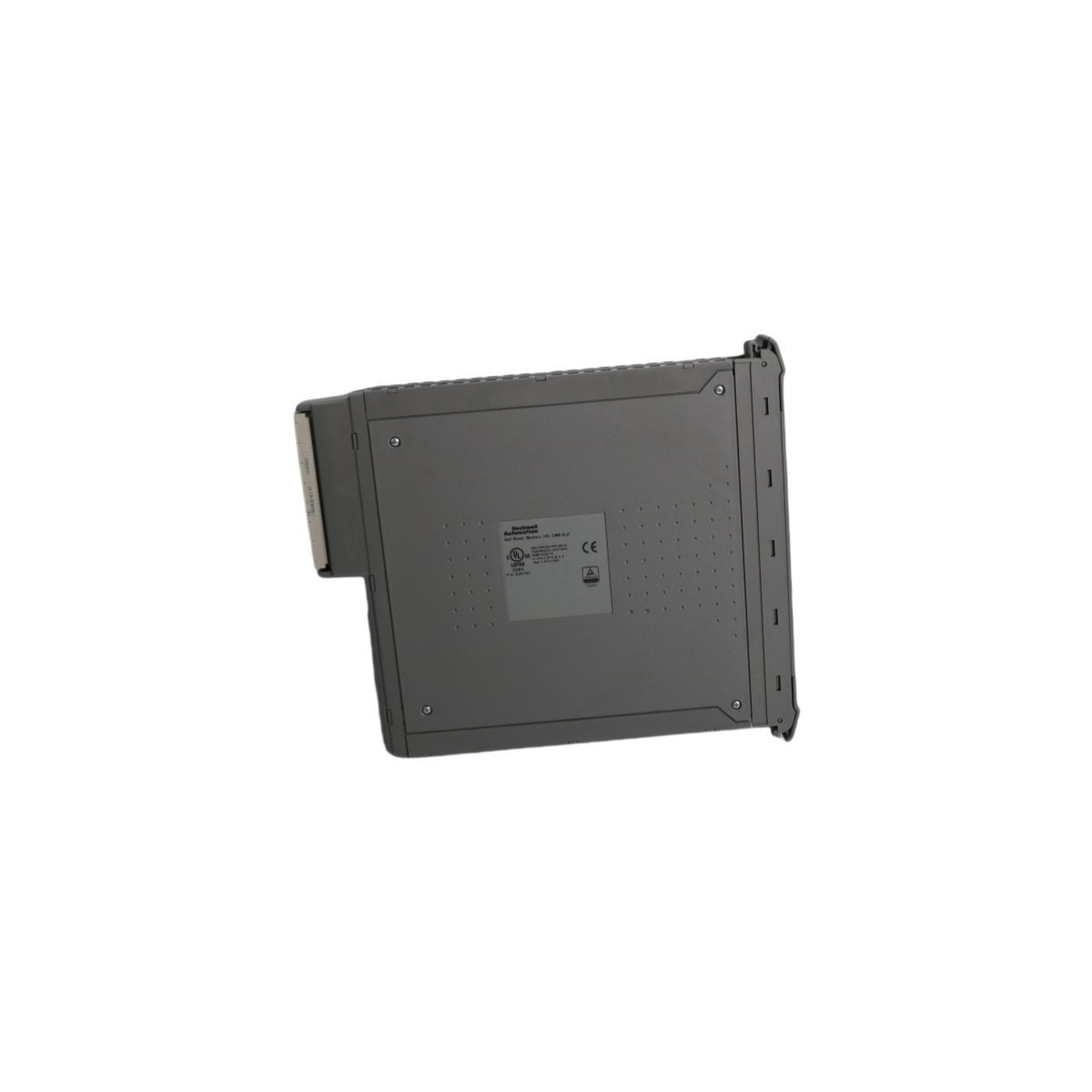

The ICS Triplex T8431 is a high-density Analog Input Module designed for the Trusted Triple Modular Redundant (TMR) platform. This module provides 40 isolated channels for interfacing with diverse field sensors in safety-critical environments. It utilizes a sophisticated 3-2-0 voting architecture to ensure maximum system availability and fault tolerance. By cross-referencing three independent processing paths, the T8431 eliminates single points of failure. Consequently, the module maintains precise process monitoring even during internal component malfunctions.
Hardware Specifications
| Attribute | Technical Details |
| Manufacturer | ICS Triplex (Rockwell Automation) |
| Model Number | T8431 |
| Module Type | Analog Input (TMR) |
| Channel Density | 40 Independent Channels |
| Isolation | Opto-galvanic Isolation per Channel |
| System Compatibility | Trusted TMR Controller |
| Physical Weight | 1.18 kg |
| Dimensions | 3.0 x 30.3 x 26.4 cm |
| Safety Rating | SIL 3 Capable |
Functional Capabilities
The T8431 module excels at processing multiple complex signals simultaneously with millisecond precision. It supports a wide array of field instruments, including pressure transducers, flow meters, and temperature sensors. Furthermore, the integrated line monitoring features detect field wiring issues like open circuits or short circuits. This proactive diagnostic capability reduces manual inspection requirements in hazardous zones.
Reliability remains a core feature of the T8431 design. The module incorporates 2500V opto-isolation to protect the control backplane from external electrical surges. Meanwhile, the hot-swap functionality allows technicians to replace units without interrupting the active control process. These features collectively ensure that the Safety Instrumented System (SIS) remains online during routine maintenance.
Industrial Applications
Engineers typically specify the T8431 for mission-critical infrastructure protection. It serves as a primary input interface for Emergency Shutdown (ESD) and Fire and Gas (F&G) systems. Common deployment areas include offshore oil platforms, chemical processing plants, and nuclear power facilities. Because it provides high-resolution data and extreme durability, it thrives in high-vibration and variable-temperature environments. The T8431 sets the standard for high-availability analog signal acquisition in the automation industry.
