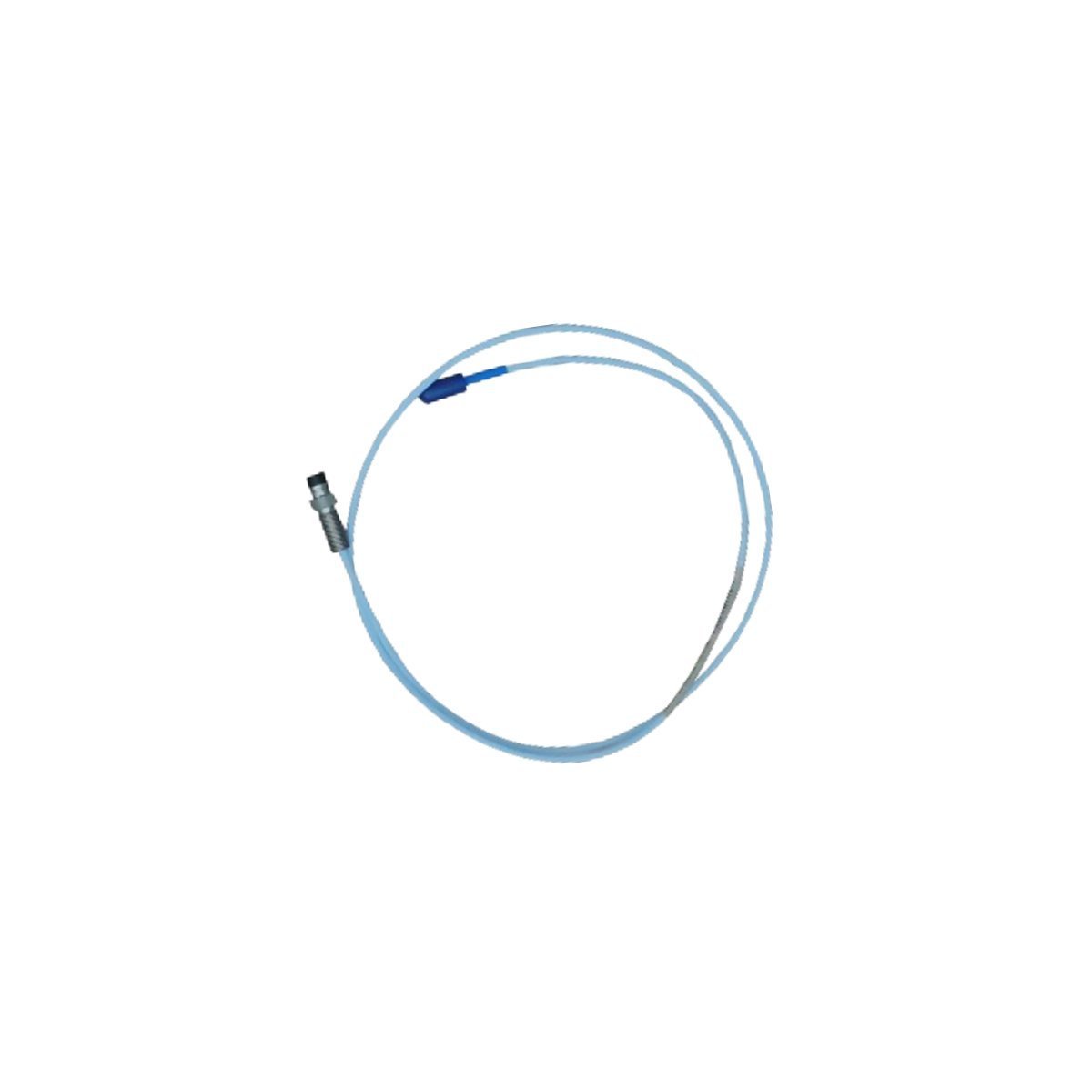

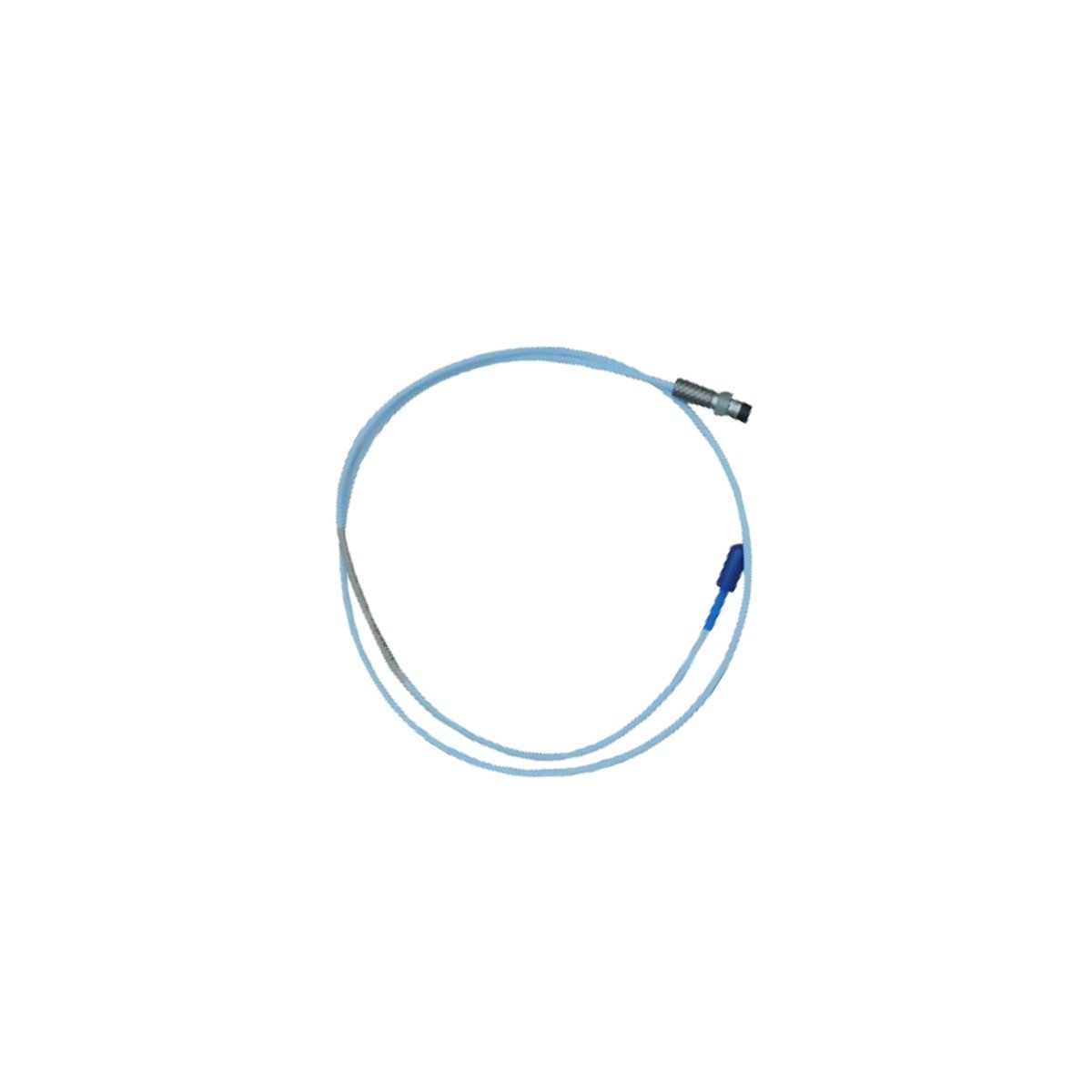

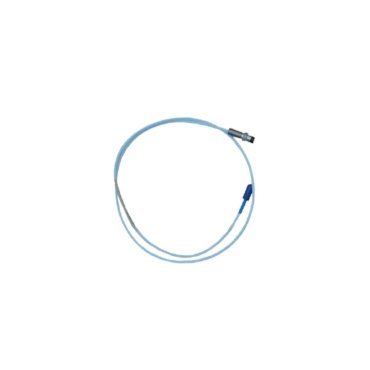

The Bently Nevada 330171-00-12-10-01-CN acts as a vital link within the 3300 XL 8mm Proximity Transducer System. This extension cable bridges the gap between the proximity probe and the Proximitor sensor, ensuring the transmission of high-frequency eddy current signals without loss. Maintenance teams rely on this hardware to monitor shaft vibration and axial position in critical rotating assets. By maintaining signal integrity, the cable allows the monitoring system to provide precise data regarding the mechanical health of high-speed industrial machinery.
Signal Integrity and Environmental Shielding
Technical reliability drives the design of the 330171-00-12-10-01-CN. The cable features a coaxial construction that specifically prevents electromagnetic interference from corrupting sensitive vibration data. Furthermore, the FEP (Fluorinated Ethylene Propylene) outer jacket provides excellent resistance against corrosive chemicals and moisture. This protection ensures consistent performance in the oil-heavy and humid environments typical of turbine decks. The high-quality insulation also allows the cable to function across a broad temperature range, which prevents signal drift during thermal cycling.
Technical Parameters and Hardware Features
This specific configuration meets precise length and protection requirements for industrial installations.
- Model Number: 330171-00-12-10-01-CN
- Cable Length: 1.0 meter (approximately 3.3 feet)
- Armor Option: Standard cable without stainless steel armor
- Connector Type: Miniature coaxial ClickLoc connectors (gold-plated)
- Agency Approval: CN (Hazardous area approvals for specific regions)
- Standard Operating Temperature: -51°C to +177°C (-60°F to +350°F)
- System Compatibility: 3300 XL 8mm Proximity Transducer System
- Capacitance: 69.9 pF/m (21.3 pF/ft) typical
