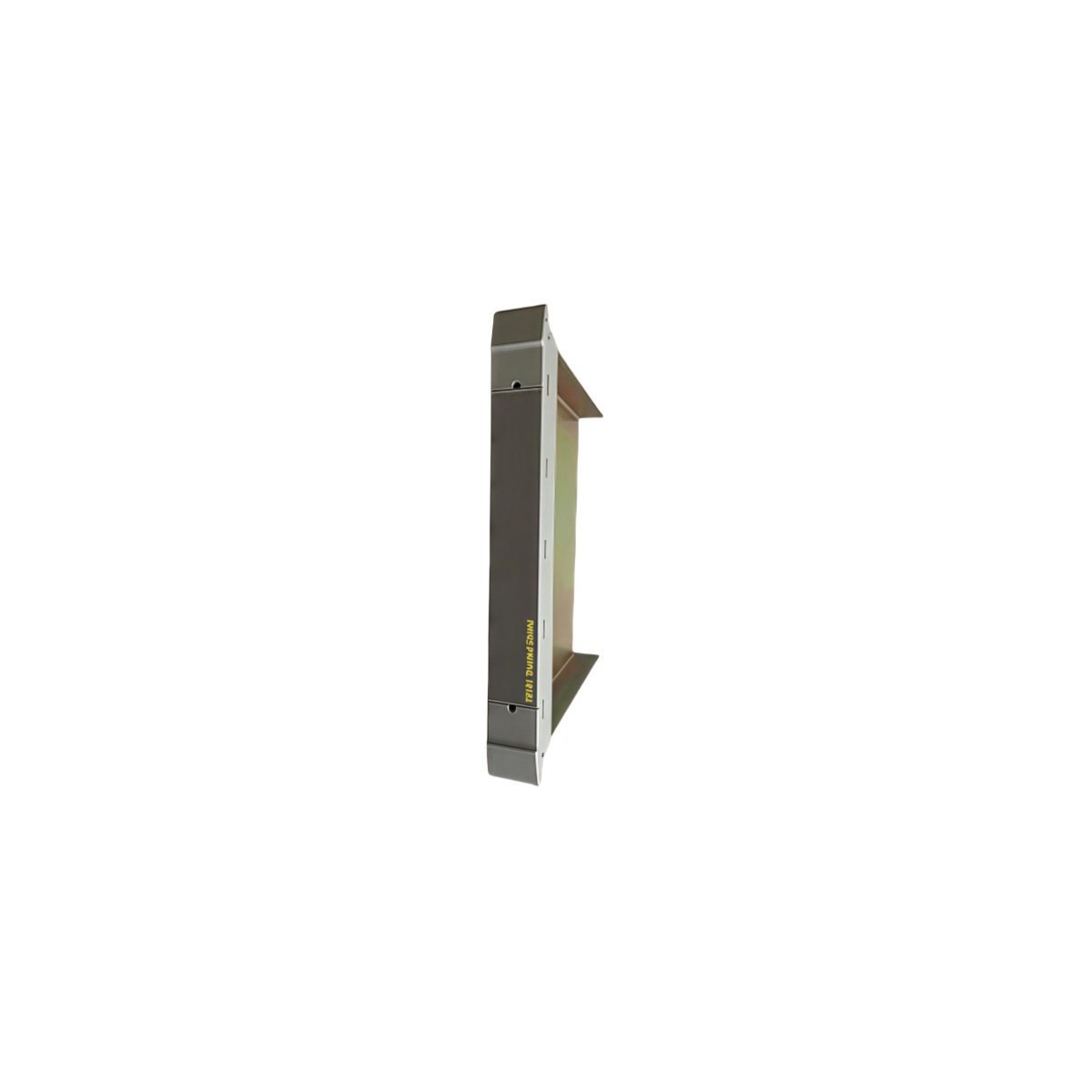

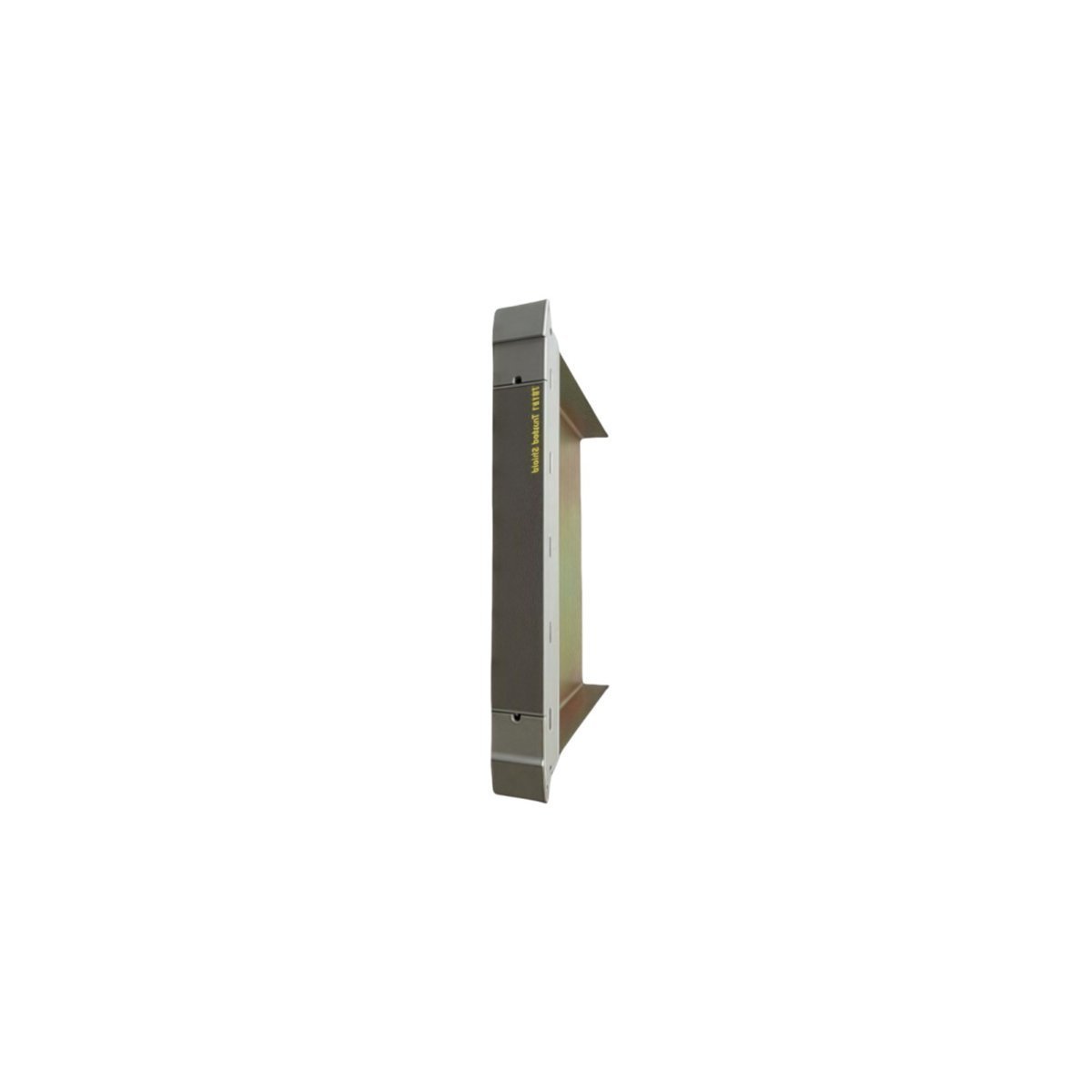

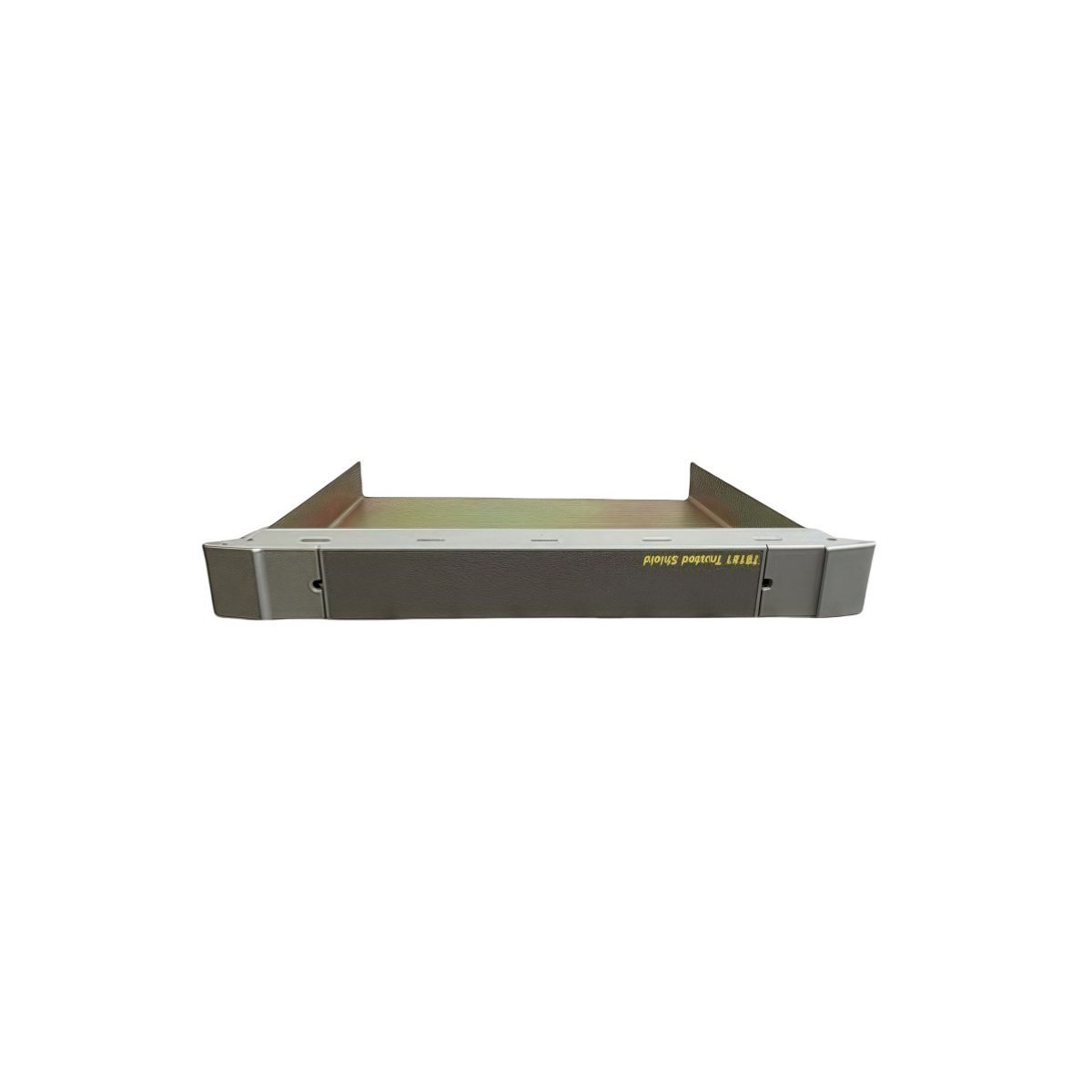

ICS Triplex T8191 Trusted I/O and Communication Module

The ICS Triplex T8191 acts as a high-performance communication gateway specifically engineered for the Trusted Triple Modular Redundant (TMR) processor platform. This module establishes a secure and reliable link between the main controller and external supervisory systems or third-party devices. Because safety-critical environments demand zero signal interruption, the T8191 utilizes a dual-connector architecture to maintain concurrent data flow with both Active and Standby processors. This design ensures that communication remains stable even during processor switchovers or maintenance events.

Technical Specifications and Overview

Primary Technical Characteristics

• Dual-Processor Interfacing: The module features two specialized DIN41612 connectors. Consequently, it facilitates a continuous handshake with the redundant processor pair, ensuring the communication link remains fault-tolerant and synchronized.
• Flexible Protocol Support: Users can configure the two onboard serial ports for either RS422 or RS485 standards. Furthermore, the module supports MODBUS Master functionality, which allows the Trusted system to gather data from peripheral devices effortlessly.
• Precise Time Synchronization: The T8191 optionally supports IRIG-B time signals. This capability allows the entire control network to maintain a unified timebase, which is essential for accurate sequence-of-events (SOE) recording and forensic data analysis.
• Comprehensive System Monitoring: Beyond standard data routing, the module includes dedicated paths for PSU (Power Supply Unit) monitoring and fault reporting. This allows plant operators to track the health of the power infrastructure and processor diagnostics through a single interface.
