General electric DS200SLCCG1ACC LAN Communication Card

The GE DS200SLCCG1ACC serves as a primary Local Area Network (LAN) communication interface for the Mark V Speedtronic control system. This module facilitates high-speed data exchange between the turbine control rack and external monitoring systems. By managing complex communication protocols, the card ensures that the turbine controller maintains real-time synchronization with the broader plant network.

Core Networking Functionality

This communication card acts as the bridge for DLAN (Drive Local Area Network) signals within the control architecture. It processes data packets from the Speedtronic core to allow remote operator interface access. Furthermore, the DS200SLCCG1ACC handles the translation of internal bus signals into standardized network formats. This capability is vital for the automated management of gas and steam turbine operations.

Hardware Architecture and Interface

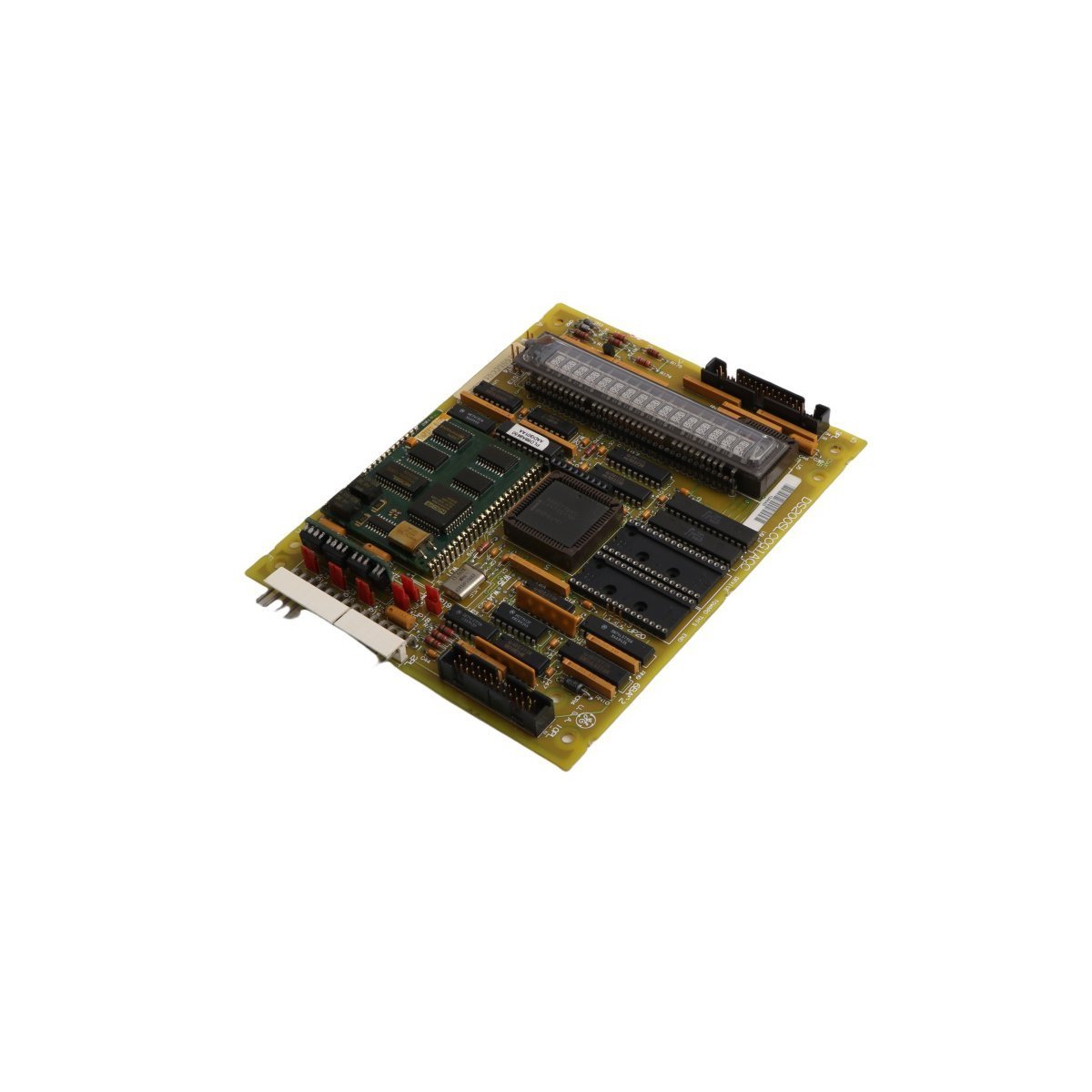

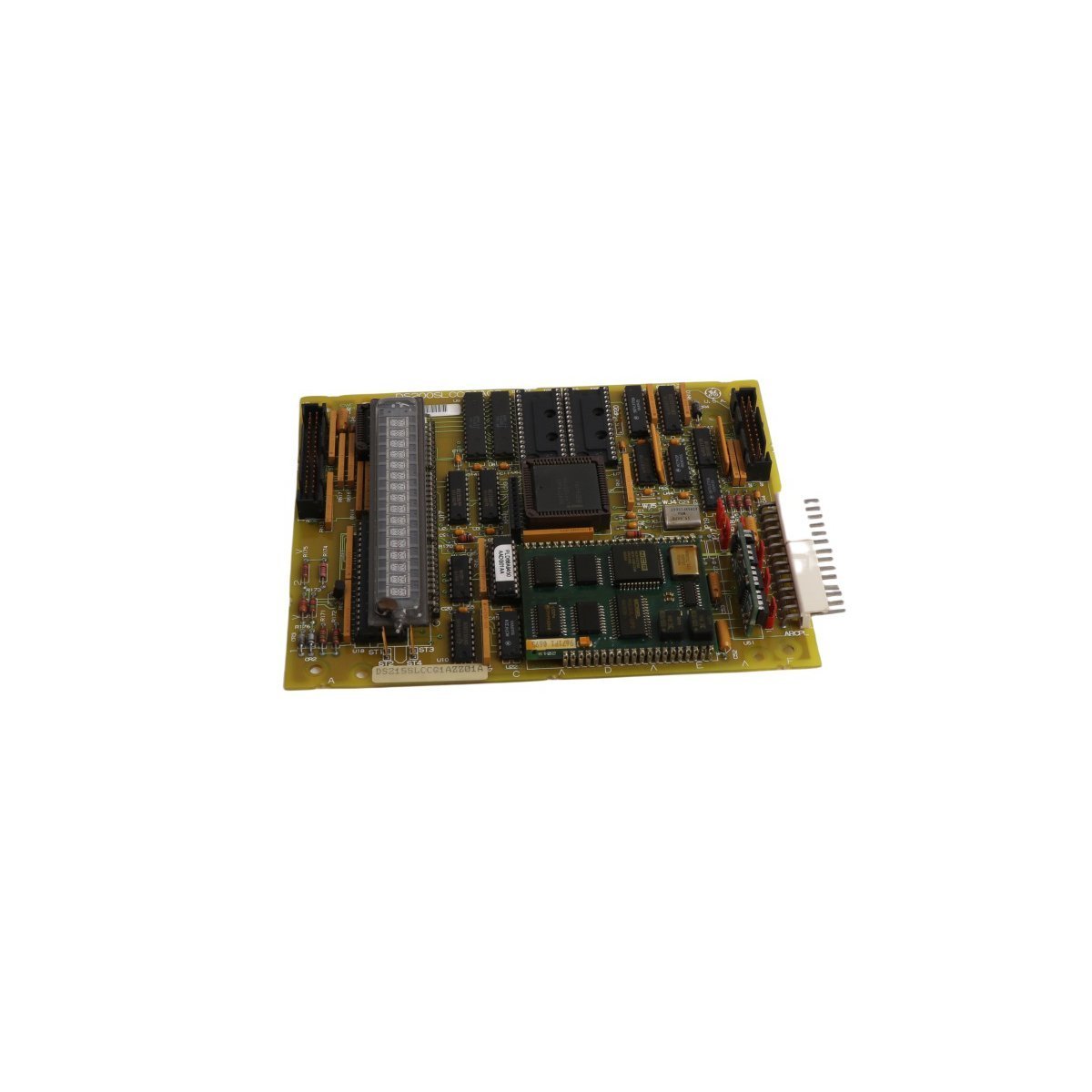

The board features a specialized layout optimized for high-frequency signal processing. It includes multiple ribbon cable connectors to interface directly with the system’s main processor cards. Unlike earlier versions, the G1ACC revision provides enhanced circuit stability for consistent data throughput. The module lacks manually adjustable jumpers because the system software handles most configuration parameters automatically.

Installation and System Compatibility

Technicians typically install the DS200SLCCG1ACC within the “C” or “R” cores of the Mark V cabinet. The compact 0.24 kg frame allows for easy mounting using standard plastic standoffs. Because this is a legacy Speedtronic component, users must verify firmware compatibility before replacing older “G1A” or “G1AB” versions. Proper handling of the multi-pin connectors prevents signal attenuation in critical communication loops.

Technical Specifications
