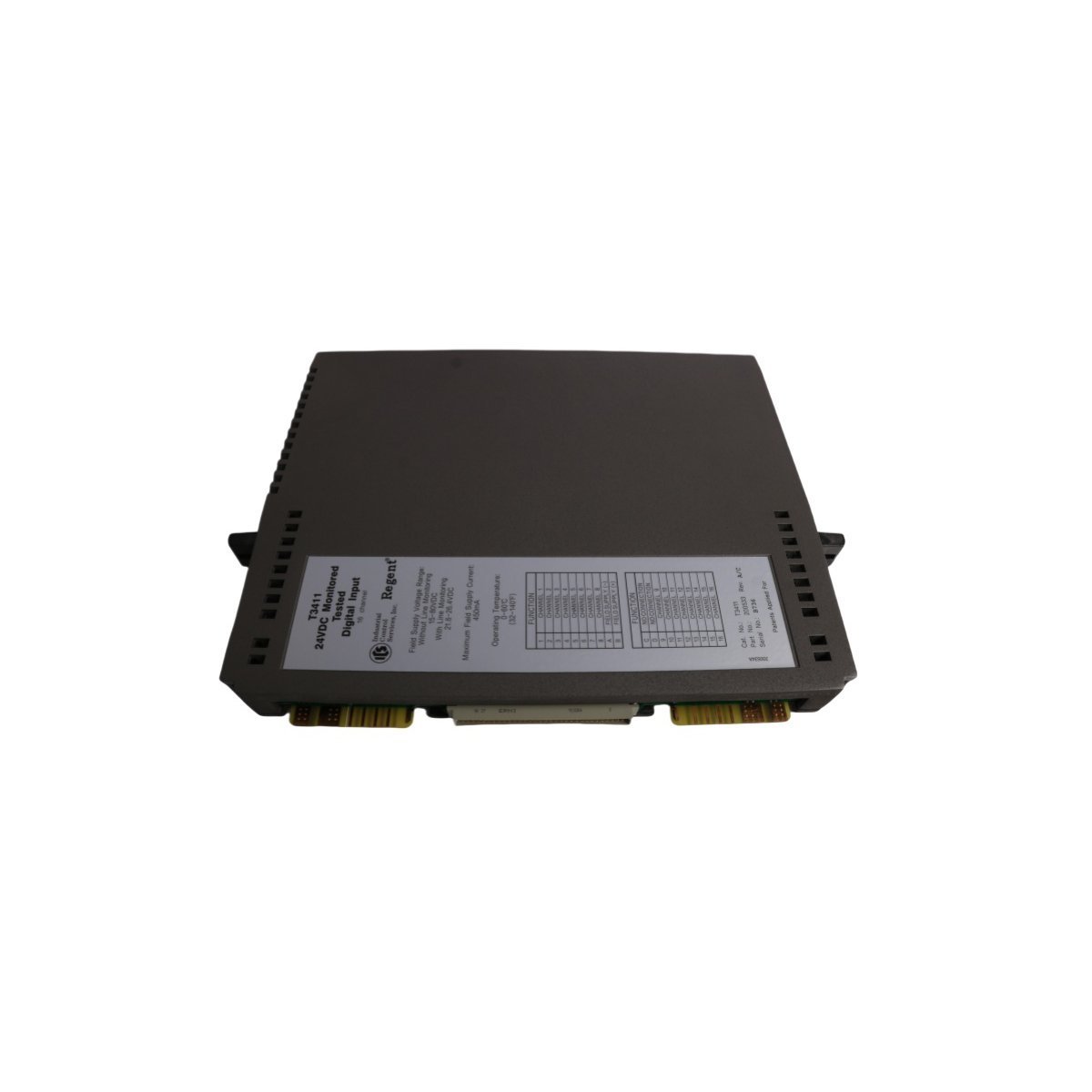

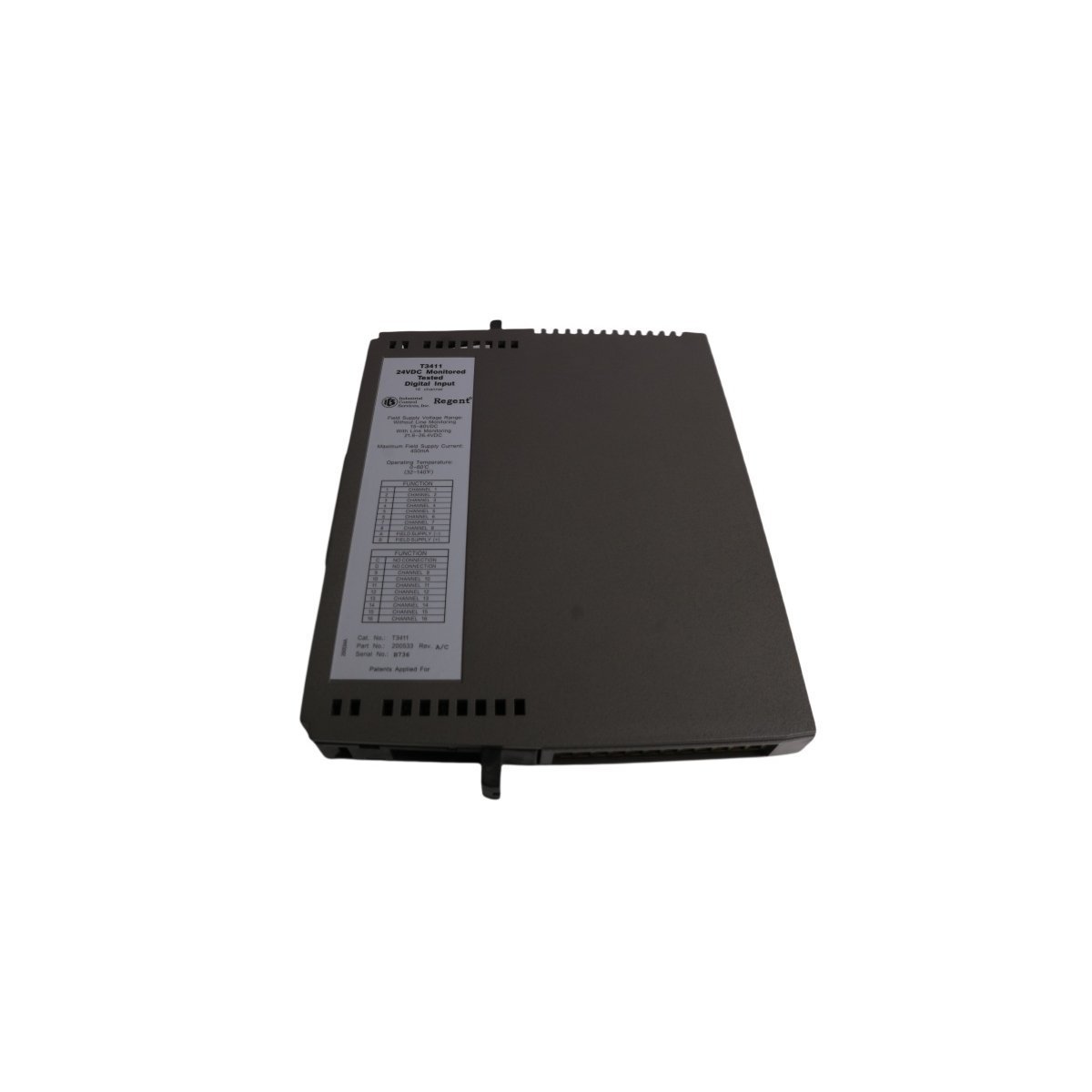

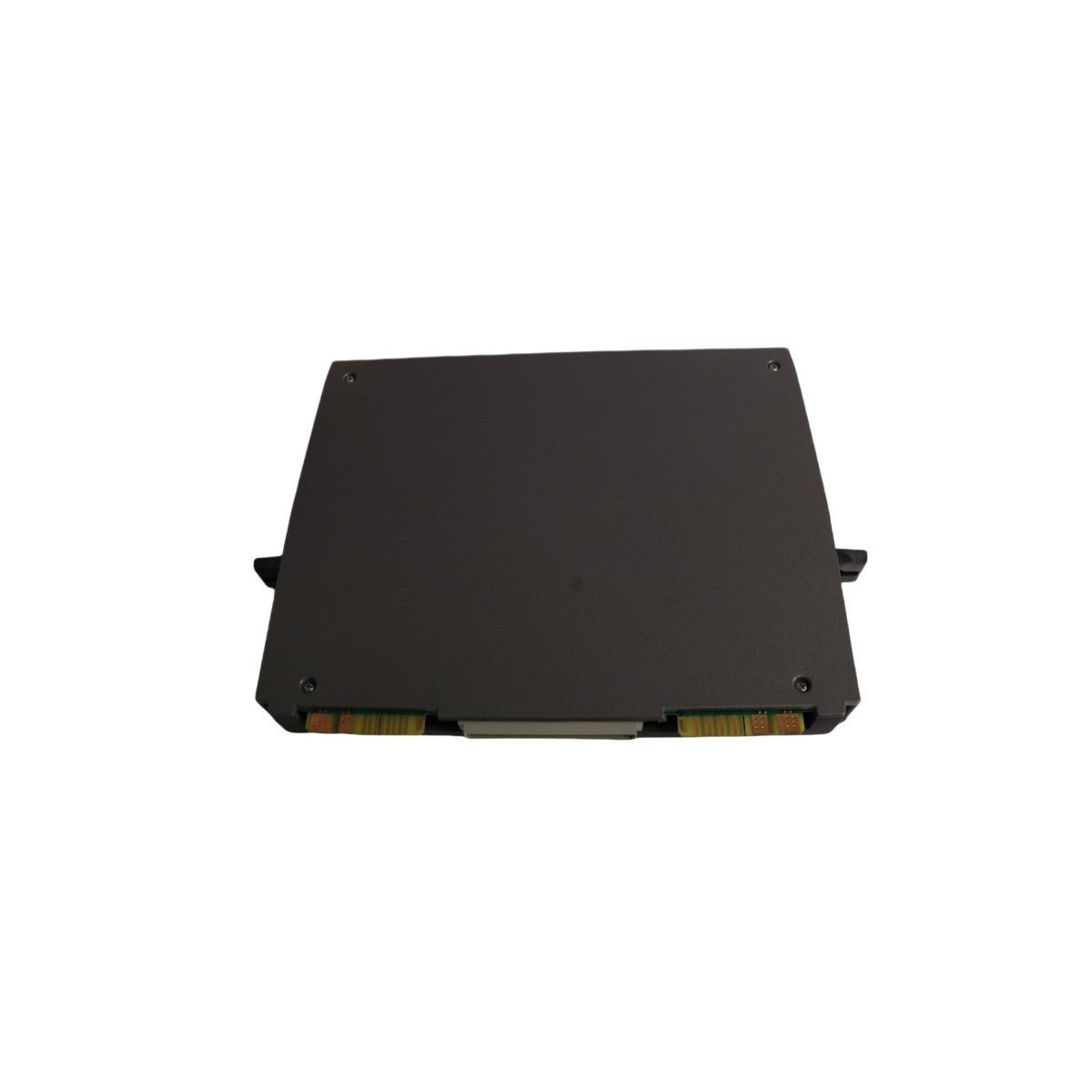

ICS Triplex T3411 Monitored Digital Input Module

The ICS Triplex T3411 serves as a high-integrity monitored digital input interface for the Regent+Plus control architecture. Unlike standard input cards, the T3411 continuously evaluates the state of field wiring and connected sensors to distinguish between legitimate process signals and hardware faults. Rockwell Automation engineered this module to provide high-availability data acquisition for safety-critical loops, ensuring that the central logic solver receives verified information from the field. Its architecture supports the rigorous uptime requirements of Triple Modular Redundant (TMR) systems, making it a foundational component for industrial risk management.

Technical Specifications and Overview

Advanced Technical Characteristics

• Line Monitoring Capabilities: The module identifies field-side anomalies such as open circuits or short circuits. By detecting these faults before a safety demand occurs, the T3411 prevents “fail-to-danger” scenarios and improves the overall Safety Integrity Level (SIL) of the control loop.
• Fail-Safe Input Architecture: Internal circuitry provides redundant signal paths for every input channel. Consequently, the module maintains accurate process monitoring even if an internal component fails, ensuring the safety logic always operates on valid data.
• Real-Time Hardware Diagnostics: The module features self-testing routines that verify the health of the input conditioning electronics. This proactive monitoring reduces the need for manual proof-testing and lowers the total cost of ownership over the system lifecycle.
• Ruggedized Industrial Design: Manufacturers built the T3411 to withstand the thermal and electromagnetic stresses of heavy industrial environments. Its durable construction ensures stable performance in high-interference zones, such as those near large motor starters or power distribution panels.
