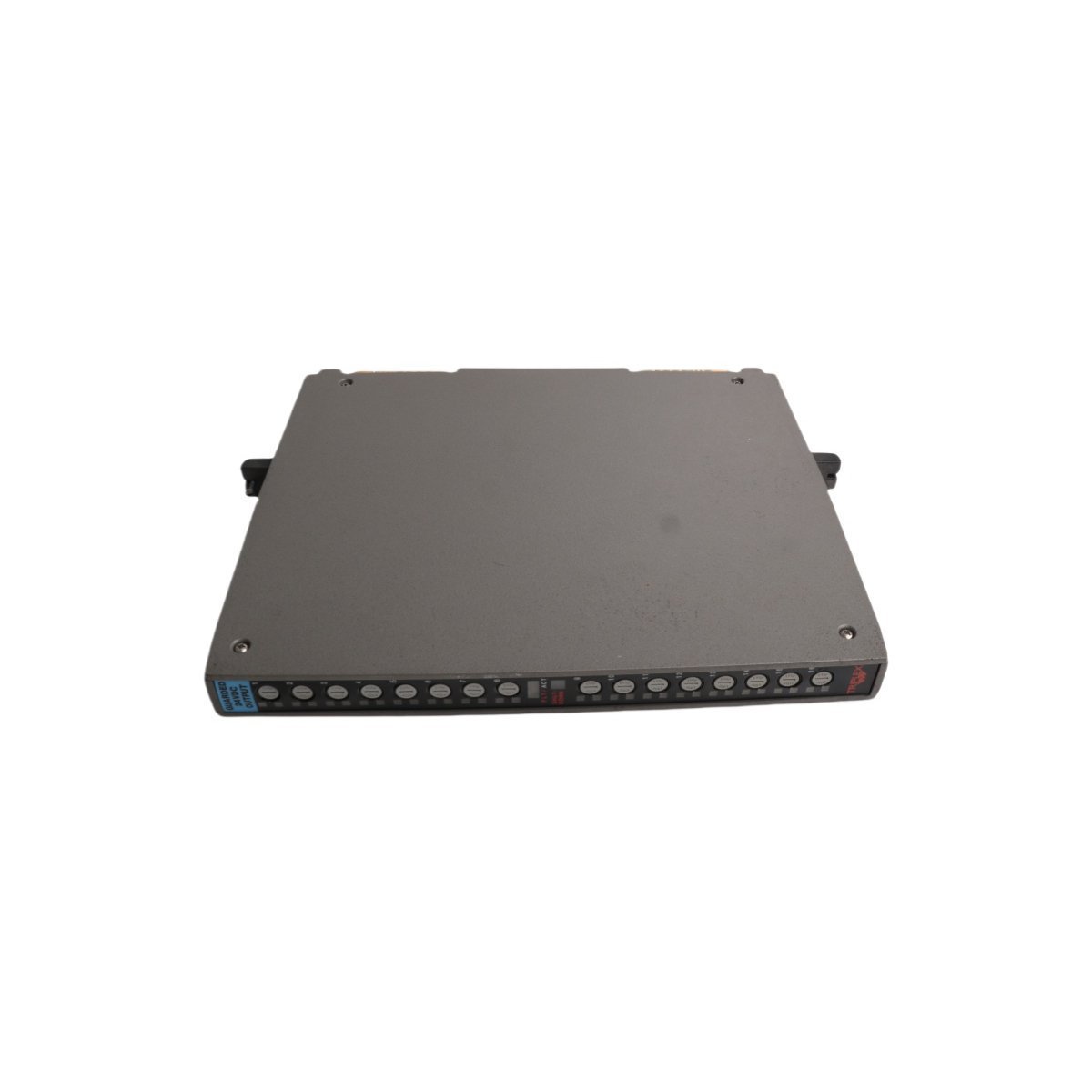

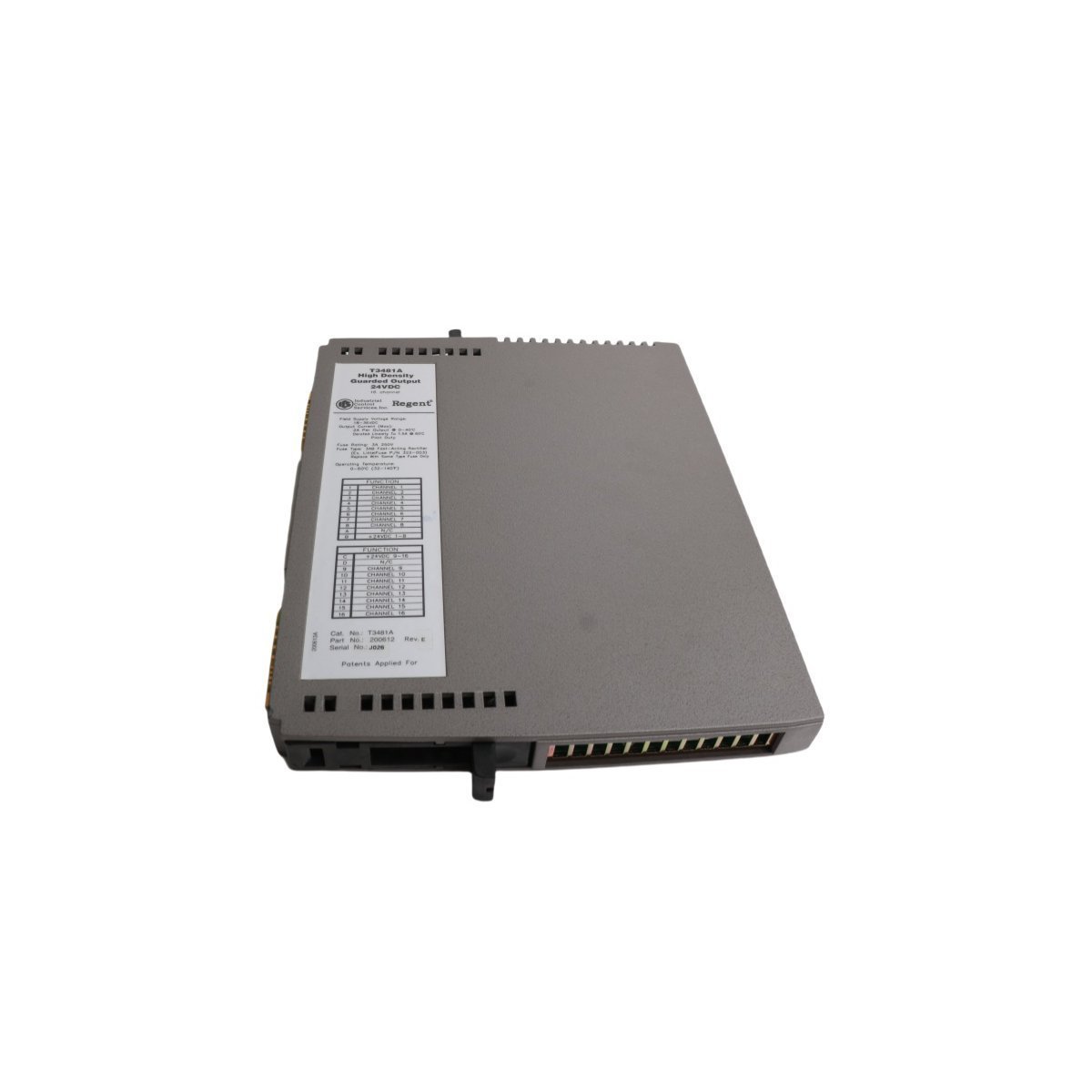

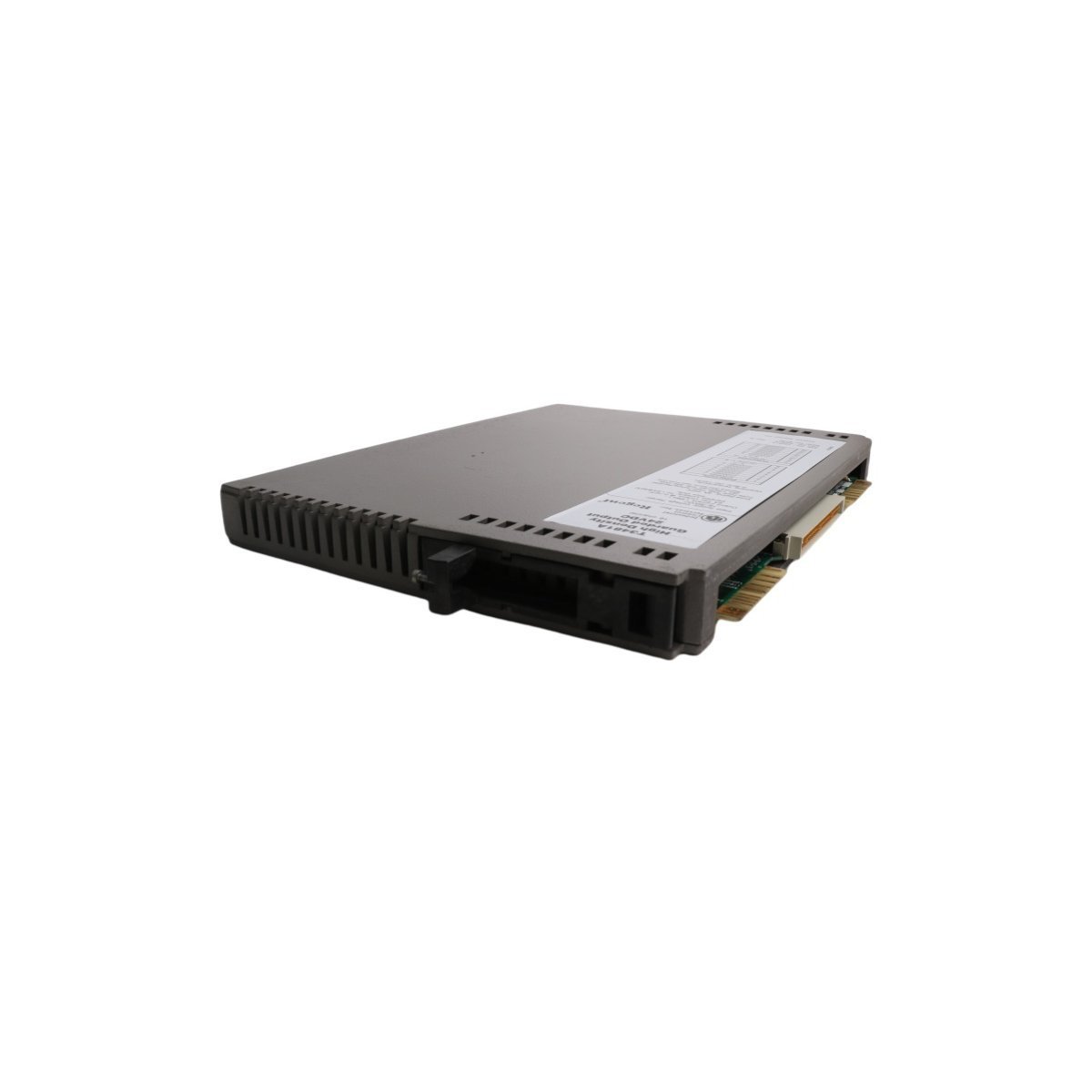

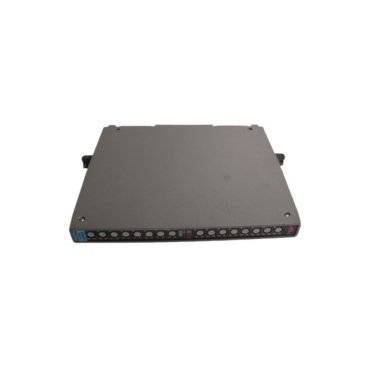

ICS Triplex T3491 Multiplexed I/O Module

The ICS Triplex T3491 functions as a high-density Multiplexed I/O interface for the Regent Control System. This module facilitates precise analog signal acquisition from diverse field instrumentation. It specifically addresses the needs of fault-tolerant automation environments where data accuracy remains paramount. By utilizing advanced multiplexing technology, the T3491 efficiently manages multiple signal paths through a single interface. This design significantly reduces system complexity while maintaining the high integrity required for safety-critical processes.

Functional Applications

Industrial facilities deploy the T3491 in sectors requiring rigorous safety standards. It excels in monitoring temperature, pressure, and flow sensors within oil refineries. Furthermore, power generation plants use this module for critical boiler and turbine oversight. The multiplexed architecture is particularly beneficial for large-scale chemical processing units. It provides the necessary stability for Emergency Shutdown (ESD) and fire protection systems.

Installation and Maintenance

The T3491 supports rapid installation into the standard controller rack assembly. Because the module features hot-swap capabilities, technicians can replace units without stopping the process. The onboard LEDs provide immediate visual status for power and internal health. This visibility simplifies troubleshooting and shortens maintenance intervals. Consequently, the T3491 helps operators maintain maximum uptime for their safety-instrumented systems.

Technical Specifications

Key Technical Characteristics

• High-Integrity Signal Processing

  The T3491 employs sophisticated filtering to ensure clean data conversion. It effectively eliminates electromagnetic interference from the raw field signals.

• Continuous Fault Supervision

  Internal diagnostics monitor every multiplexed channel in real time. The module identifies and isolates signal discrepancies before they affect the process.

• Scalable System Architecture

  This module integrates seamlessly into existing Regent and Trusted frameworks. Its standardized footprint allows for easy expansion as facility requirements grow.

• Robust Hardware Engineering

  The unit features a mechanical design built for industrial longevity. It operates reliably under extreme thermal conditions and high-vibration environments.
