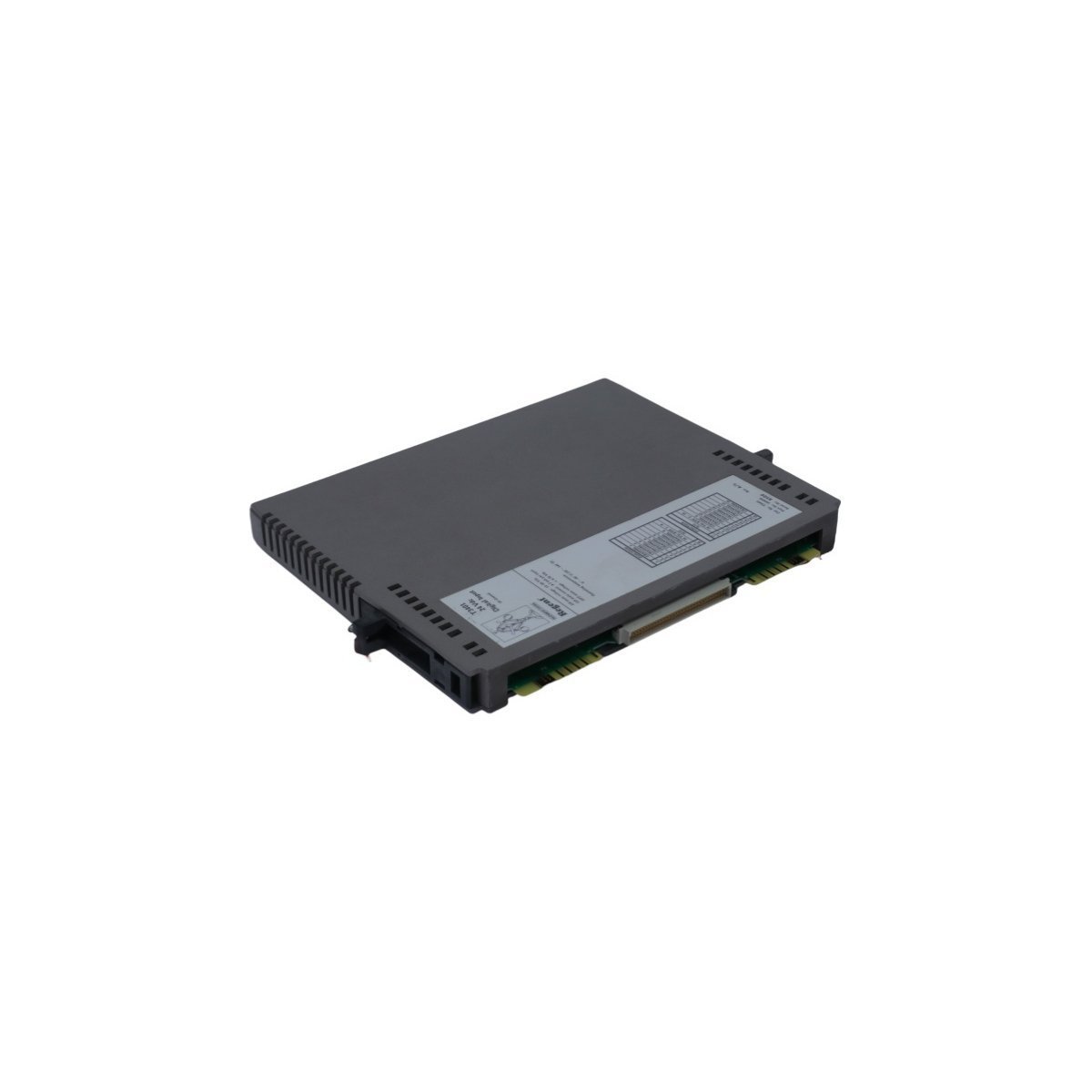

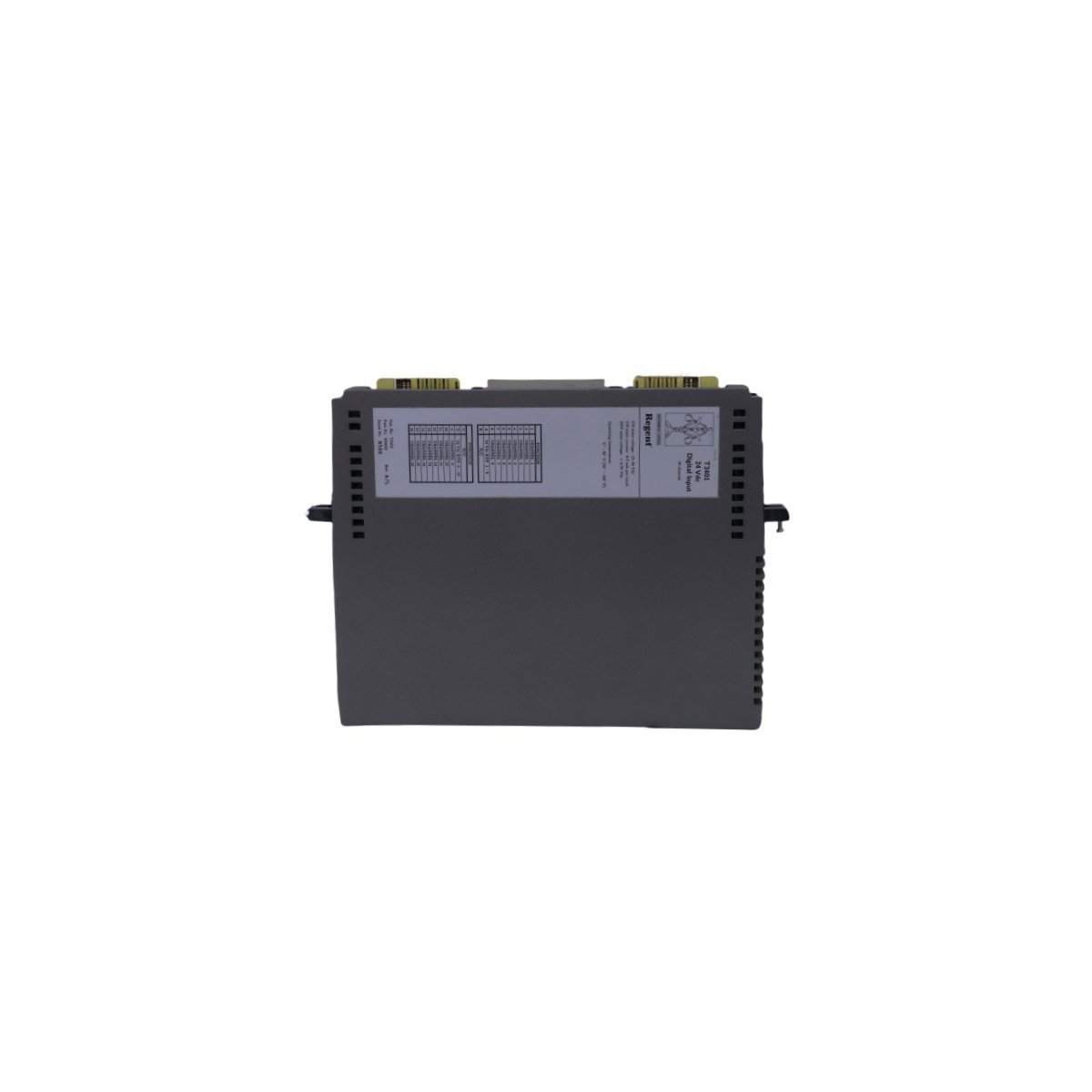

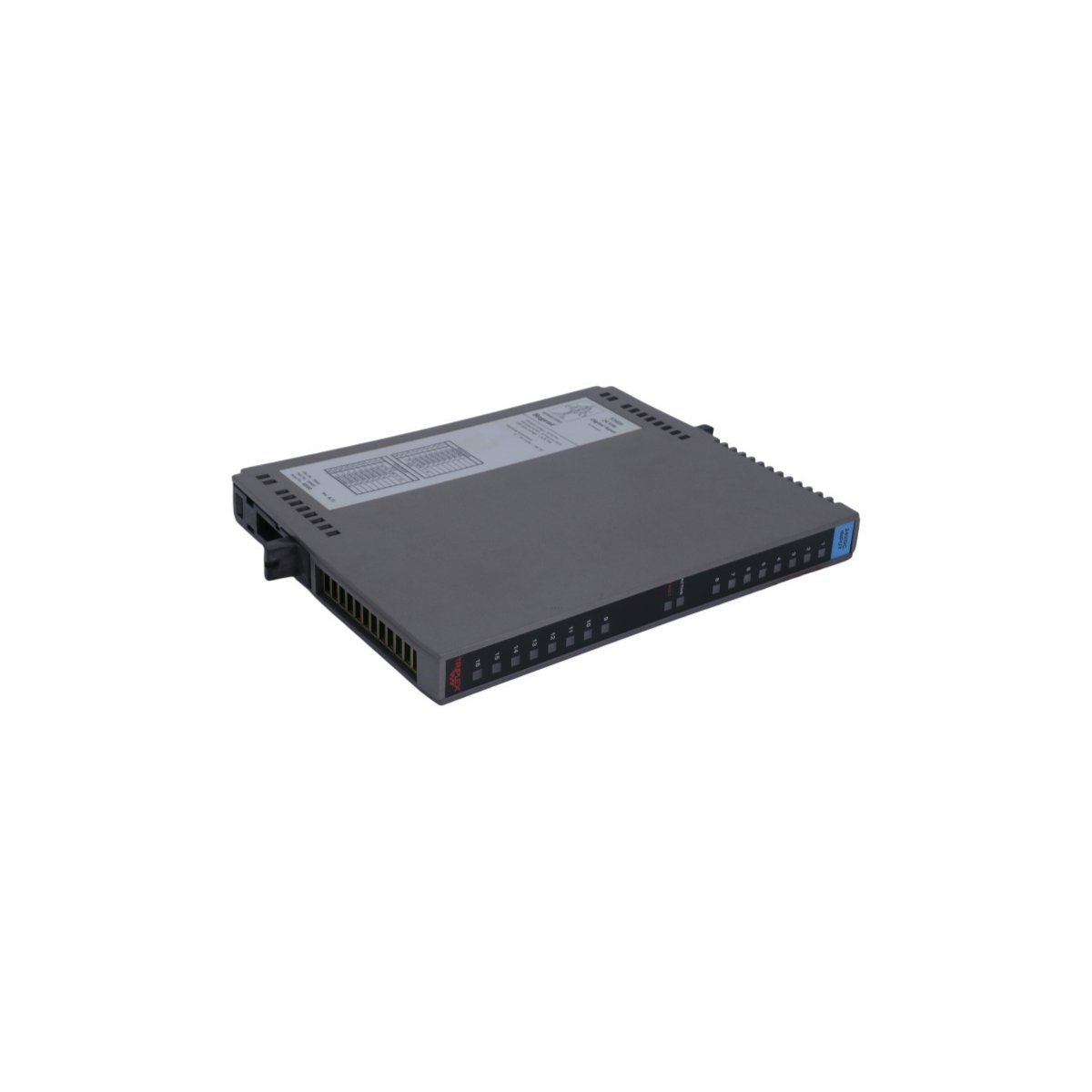

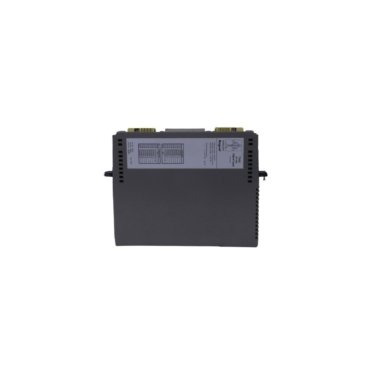

ICS Triplex T3401 DC Digital Input Module

The Rockwell T3401 serves as a high-integrity DC Digital Input Module within the ICS Triplex ecosystem. This module monitors discrete field signals to provide real-time status updates to the central controller. It effectively bridges the gap between field-level sensors and complex logic processing units. Furthermore, the T3401 architecture emphasizes signal stability to prevent false triggering in noisy environments. Each input channel filters electrical interference to ensure data consistency.

Core Hardware Specifications

Operational Features

Reliability defines the engineering of the T3401 input module. The unit utilizes opto-isolation to shield internal circuitry from external voltage spikes. Additionally, the module maintains high monitoring accuracy even under fluctuating thermal conditions. This capability makes it suitable for deployment in remote or unconditioned control rooms.

The T3401 integrates easily with standard industrial communication protocols like Modbus. Consequently, users can monitor channel health and diagnostic alerts remotely. Front-panel status indicators allow for rapid visual troubleshooting by site technicians. These diagnostic tools reduce system downtime during routine maintenance or fault investigations.

Industrial Applications

Facility engineers prioritize the T3401 for mission-critical Safety Instrumented Systems (SIS). It excels in monitoring emergency stop buttons, limit switches, and pressure contacts. Typical industries include petrochemical refining, offshore drilling, and large-scale power generation. The module remains a vital component for legacy system support despite its discontinued production status. It provides a robust solution for facilities requiring high-availability digital signal processing.
