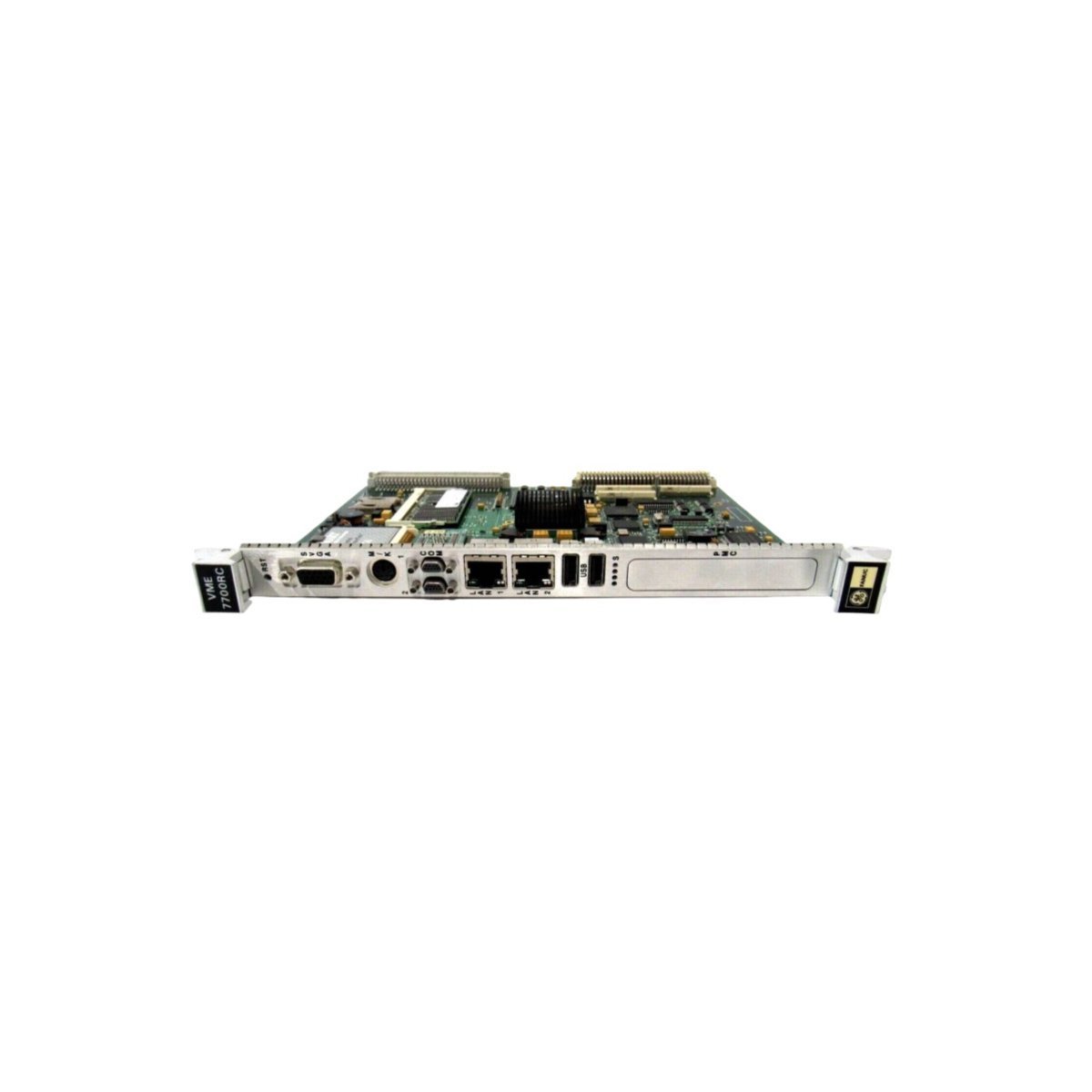

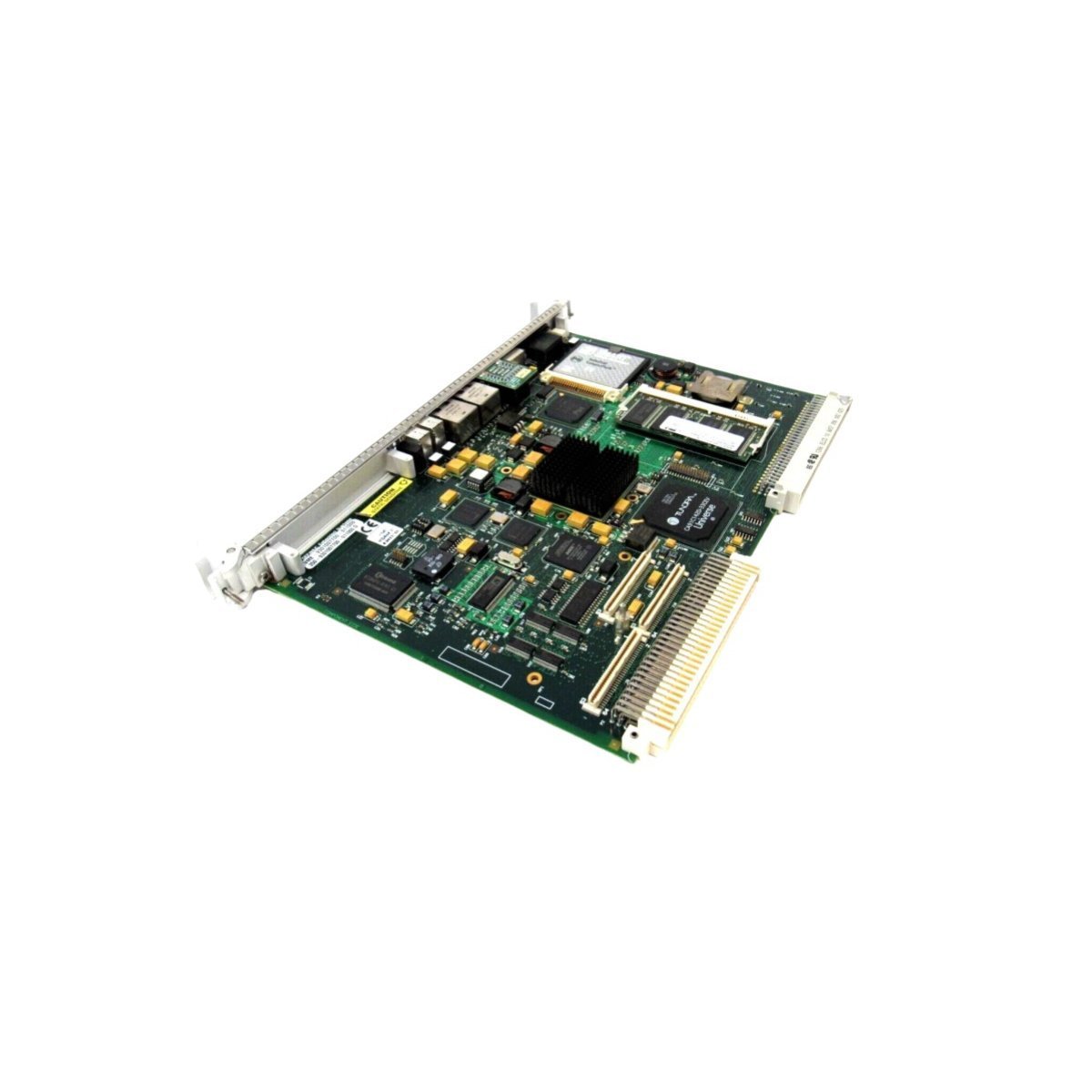

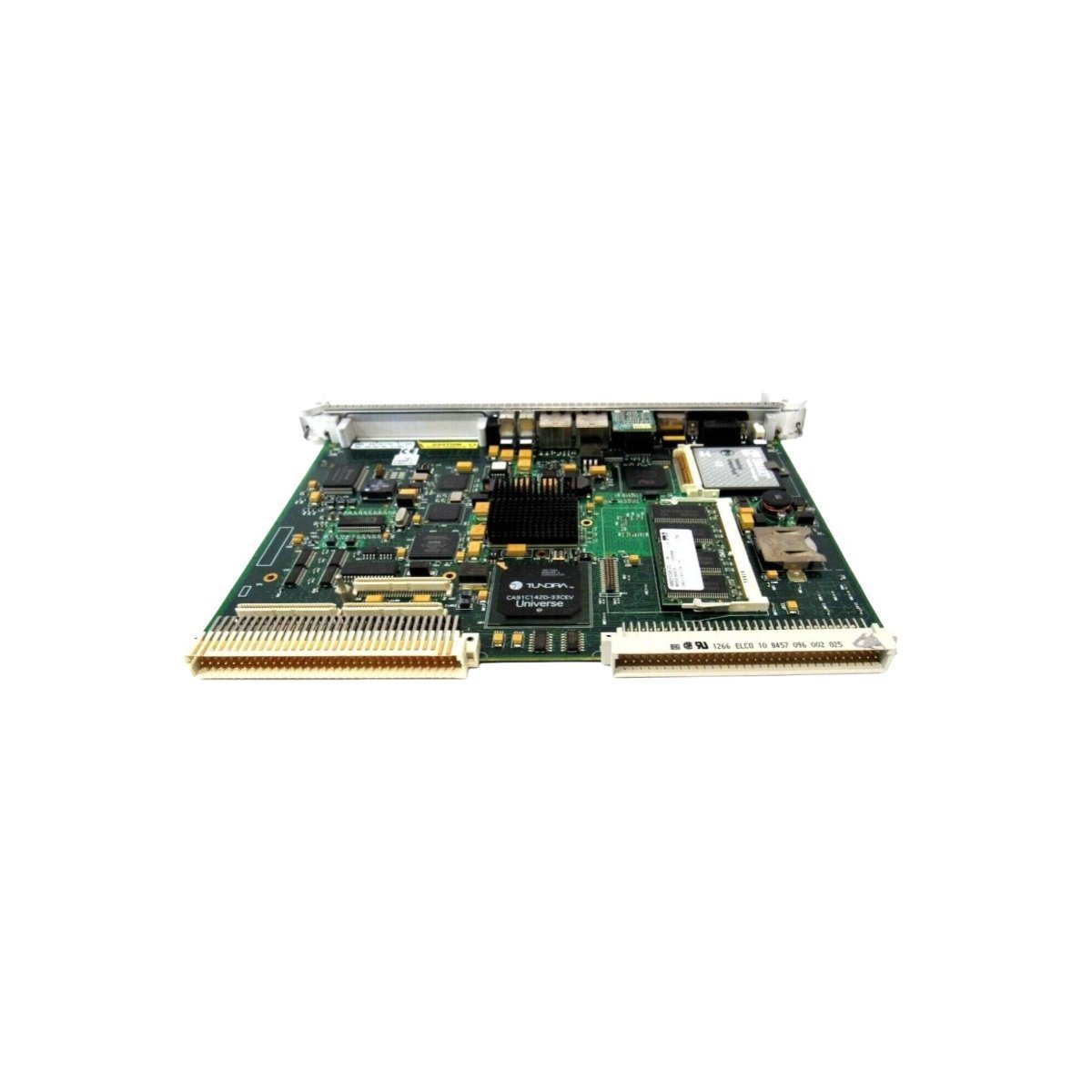

General Electric VME7807RC-420001 Digital Input Module

The GE VME7807RC-420001 is a high-performance 6U VMEbus Single Board Computer (SBC). This module provides robust computing power for mission-critical embedded systems. It features an Intel Pentium M processor running at 1.8 GHz. Consequently, the board handles intensive data processing tasks in industrial and defense sectors. Its ruggedized architecture ensures peak performance within harsh operational environments.

Advanced Processing and Memory

This SBC utilizes a 1 GB DDR SDRAM bank to support complex software applications. The integrated 2 MB L2 cache optimizes instruction execution speeds significantly. For reliable system booting, the module includes 512 KB of onboard flash memory. Additionally, a 2 GB solid-state scan disk provides ample non-volatile storage for data logging. This combination of speed and storage reliability benefits long-term industrial deployments.

Ruggedized Design for Extreme Conditions

The VME7807RC-420001 features a specialized conduction-cooled design for effective heat dissipation. This hardware maintains stable operations across a wide temperature range from -40°C to +85°C. Because it lacks moving cooling parts, the module resists mechanical failure in high-vibration settings. These characteristics make it ideal for aerospace, maritime, and heavy automation industries.

Connectivity and System Integration

The board adheres to standard 6U VME specifications for seamless backplane integration. It functions as a primary controller within a Distributed Control System (DCS) framework. Furthermore, the compact 2 cm width allows for high-density installation in standard sub-racks. Global logistical compliance and standard HS coding facilitate easy procurement for international engineering projects.

Technical Specifications
