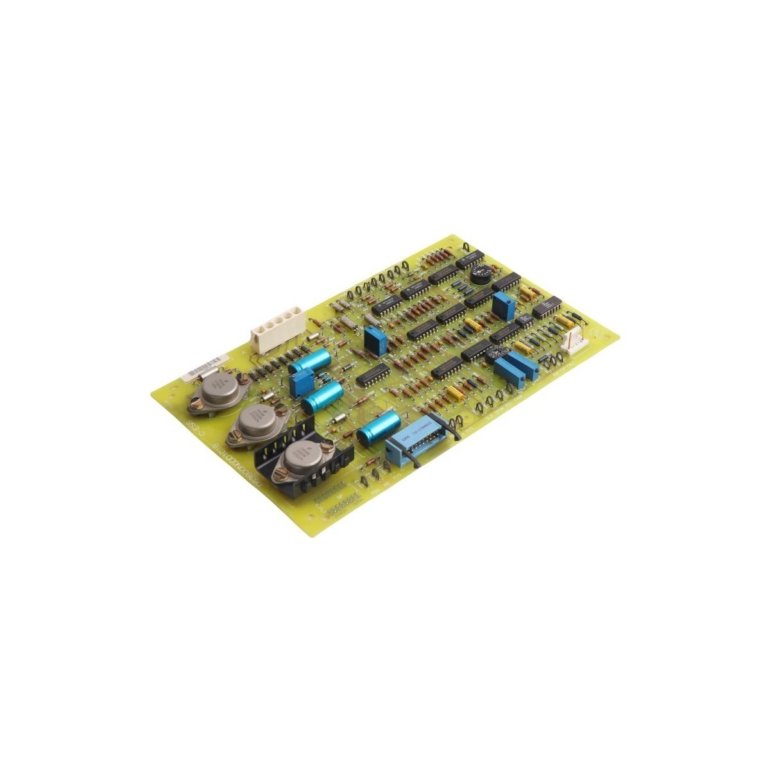

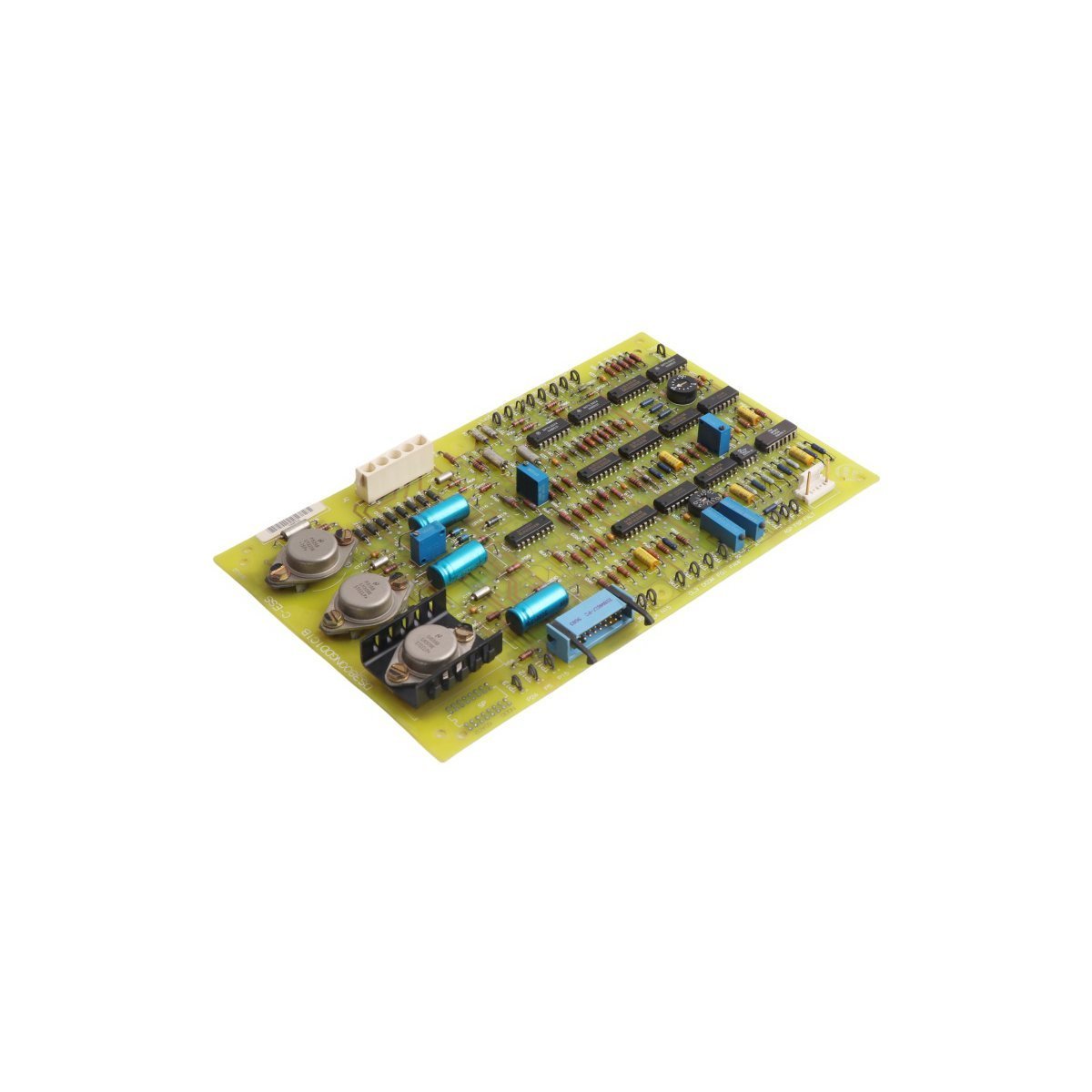

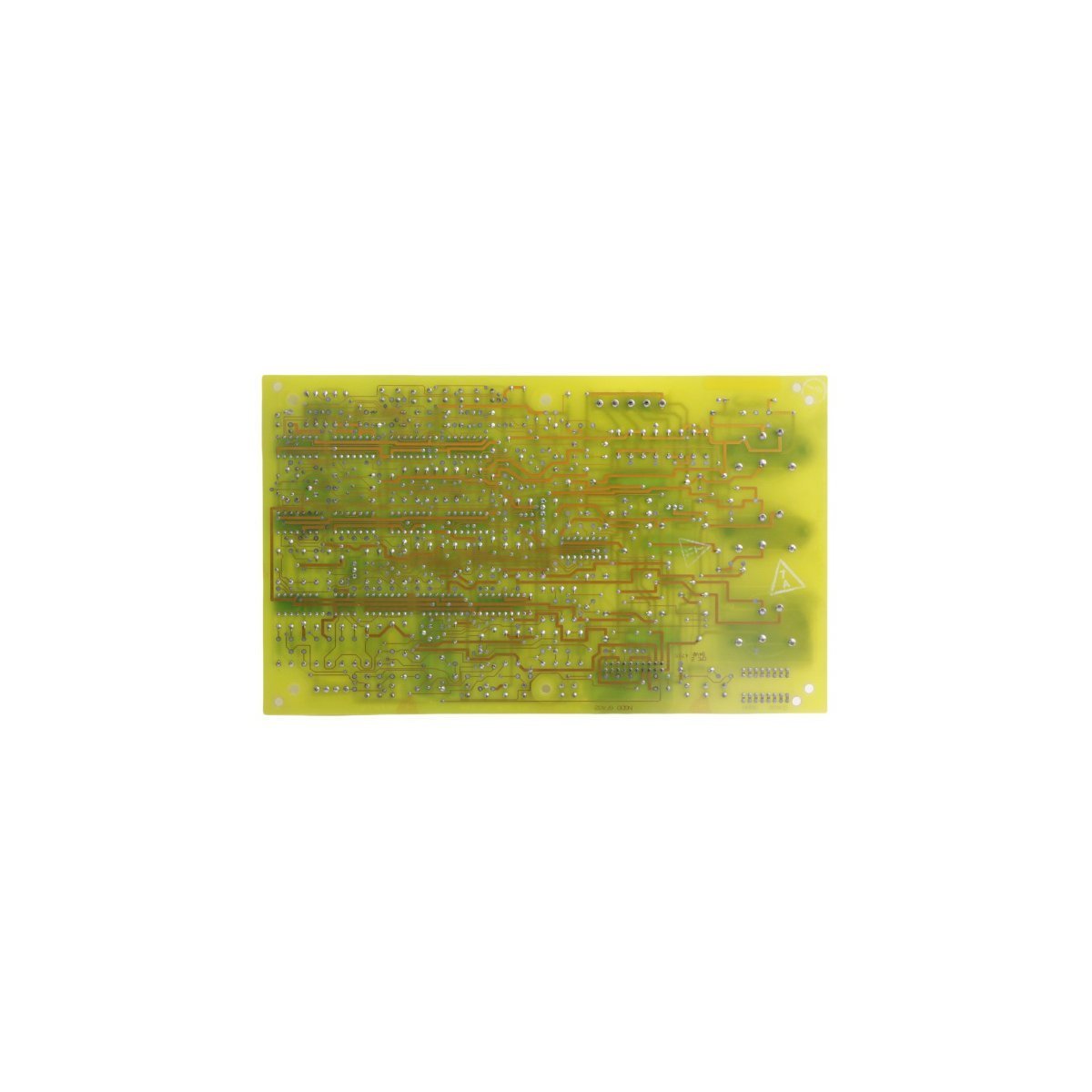

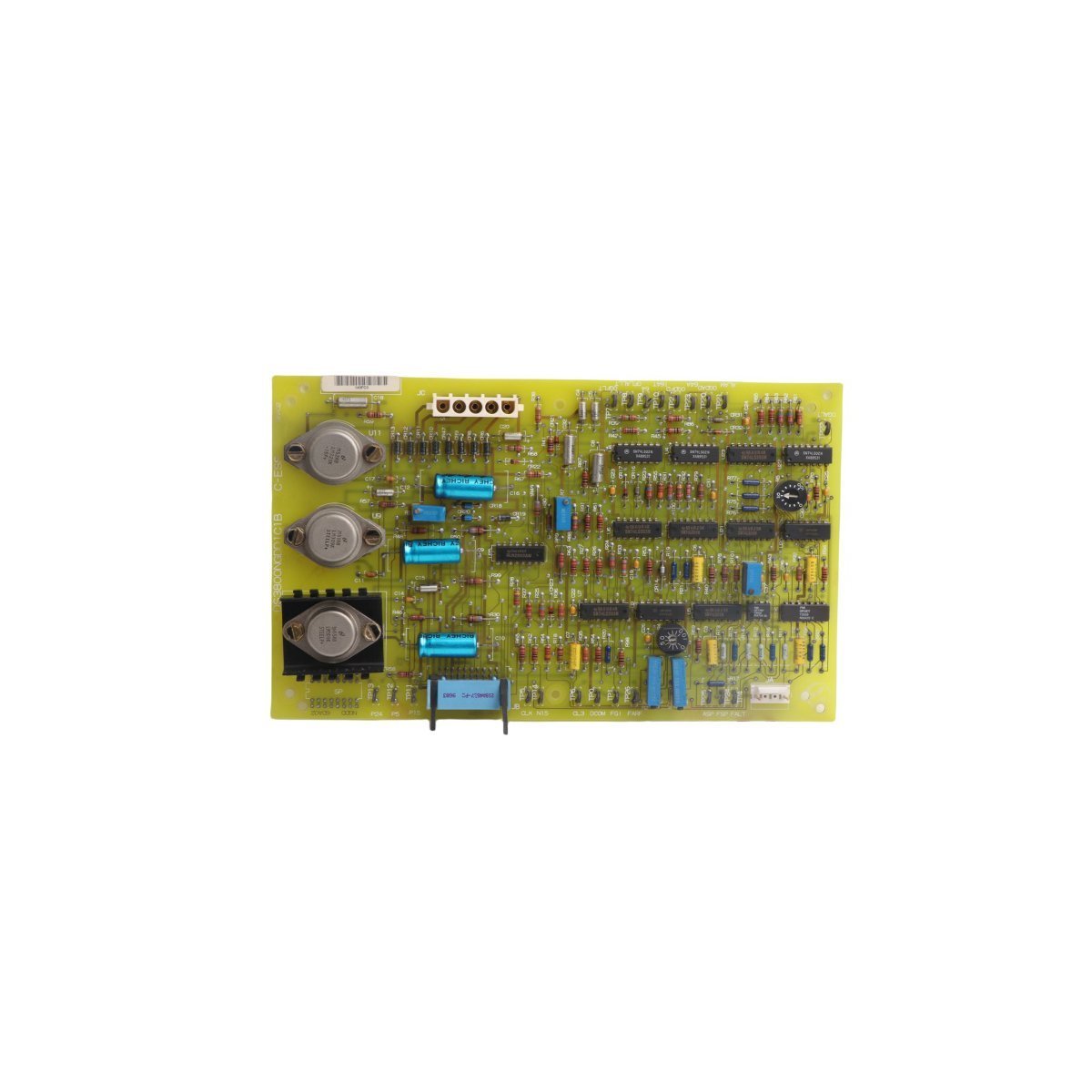

DS3800NGDD1C1B General Electric Turbine Control Ground Fault Board

Product Overview

The GE DS3800NGDD1C1B is a specialized field ground detector card engineered for the legacy Speedtronic Mark IV gas turbine control system. This module continuously monitors excitation and field wiring circuits to detect dangerous ground faults before they cause catastrophic hardware failure.

Technical Specifications

Functional Characteristics

The DS3800NGDD1C1B board functions as a protective diagnostic barrier within the Mark IV control rack. Unintentional electrical paths to ground disrupt generator excitation, jeopardize operator safety, and cause severe control instabilities. To combat this, the card actively tracks insulation integrity by monitoring leakage current and resistance differentials in field loops.

When the board identifies a breakdown in isolation, it immediately flags the anomaly. The internal circuitry routes fault signals directly to the master controller while simultaneously triggering local indicator lamps. Operators can quickly identify whether a ground fault exists on the positive or negative side of the field circuit. Consequently, this early isolation capability allows maintenance crews to rectify field wiring breakdown during planned service windows rather than experiencing unexpected emergency trips.

The C1B revision incorporates optimized solid-state components that resist high thermal stress. Furthermore, a specialized clear-coat protective layer insulates the surface components from conductive industrial grime and moisture buildup.

Hardware Installation and Compatibility

This card features a standardized form factor designed exclusively for native Mark IV rack slots. The modular edge connectors establish high-integrity electrical paths with the backplane for dependable data distribution.

Technicians must isolate all high-voltage sources before removing or inserting this card. Electrostatic discharge protocols remain mandatory during handling because the onboard microchips are sensitive to static shock. The circuit board runs autonomously once inserted, as configuration parameters link directly to the hardware engineering of the core Mark IV control backplane. Sourcing original, non-modified hardware maintains exact timing calibrations across your entire turbine protection network.
