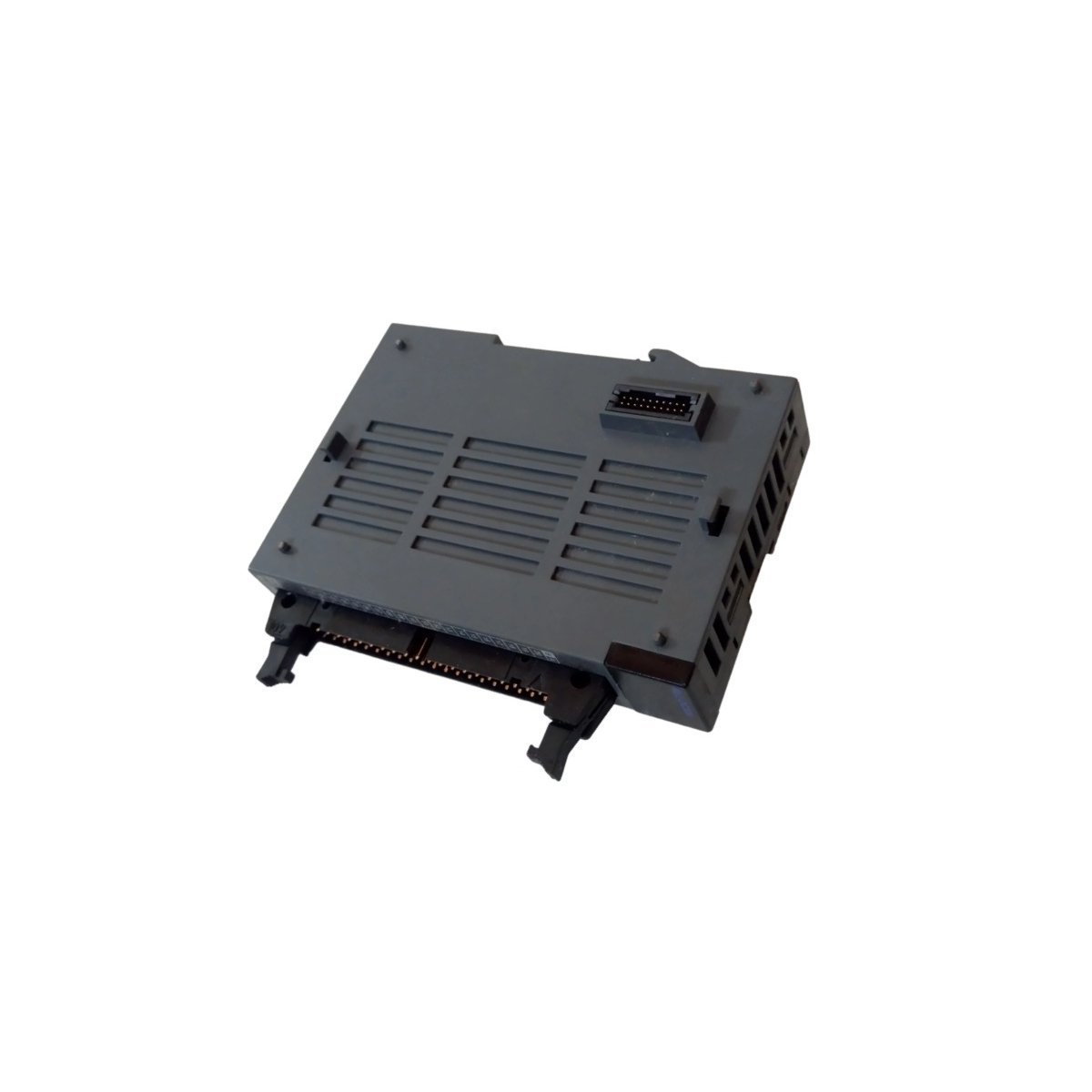

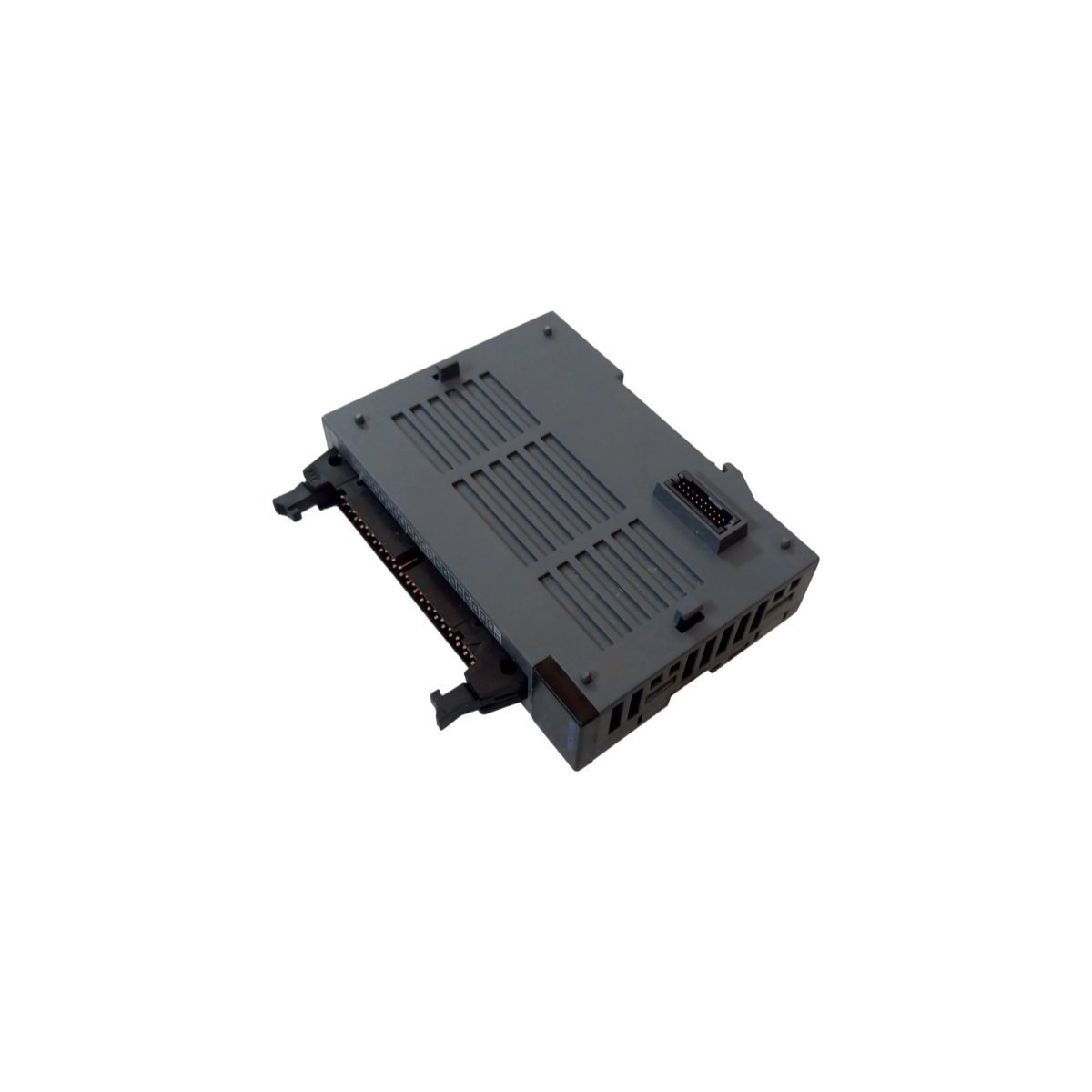

The Honeywell MLE-TP32A provides efficient transistor switching for the MasterLogic-50 PLC architecture. This module features a source-type open collector design across 32 independent channels. Because it supports high-density output requirements, it minimizes the physical footprint in control cabinets. The unit serves as a reliable interface for driving relays, solenoids, and status indicators. Consequently, operators can manage complex industrial tasks from a single, compact hardware component.
Rapid Response and Electrical Performance
This digital output module excels in time-sensitive operations due to its fast switching capabilities. It achieves signal transition times of 1ms or less for both activation and deactivation. Furthermore, the 10.2V to 26.4V DC operating range accommodates various field device standards. The low leakage current of under 0.1mA prevents ghost signals in sensitive equipment. Additionally, the 10MΩ insulation resistance protects the internal logic from external electrical noise.
Technical Specifications
| Feature | Detailed Parameter |
| Brand | Honeywell |
| Model Number | MLE-TP32A |
| Module Type | Transistor Digital Output |
| Output Points | 32 Channels |
| Rated Voltage | DC 12V / 24V |
| Max Load Current | 0.2A per point (2A per common) |
| Response Time | $\le$ 1ms (ON/OFF) |
| Current Consumption | 120mA (Internal) |
| Isolation Method | Photo-coupler Isolation |
| Weight | 0.1 kg (Module only) |
Industrial Stability and Integration
The MLE-TP32A utilizes photo-coupler isolation to separate internal circuits from field-side voltage spikes. This protection layer significantly increases the lifespan of the MasterLogic CPU. Moreover, the 32-point-per-common wiring structure reduces terminal complexity for technicians. The unit consumes only 120mA of internal current to maintain high energy efficiency. These features make it ideal for manufacturing automation and material handling systems.
Application and Maintenance
Industrial facilities use the MLE-TP32A for automated assembly lines and discrete process control. Its lightweight 100g design allows for easy installation in space-constrained rack systems. Because it lacks moving mechanical parts, the transistor-based output requires minimal periodic maintenance. The module remains active in Honeywell’s current product lineup for new projects and system expansions. Therefore, engineers can specify this part for long-term infrastructure reliability.
