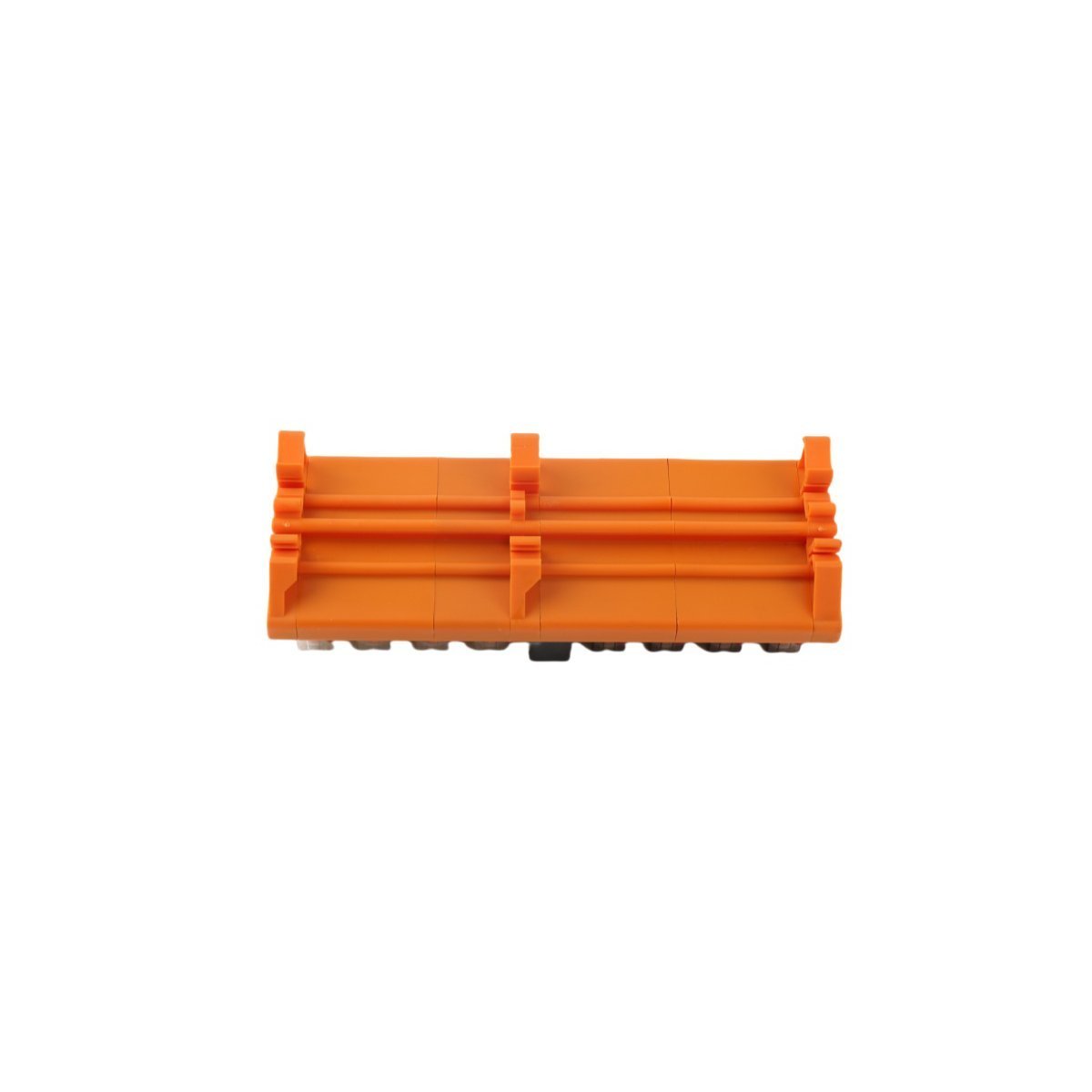

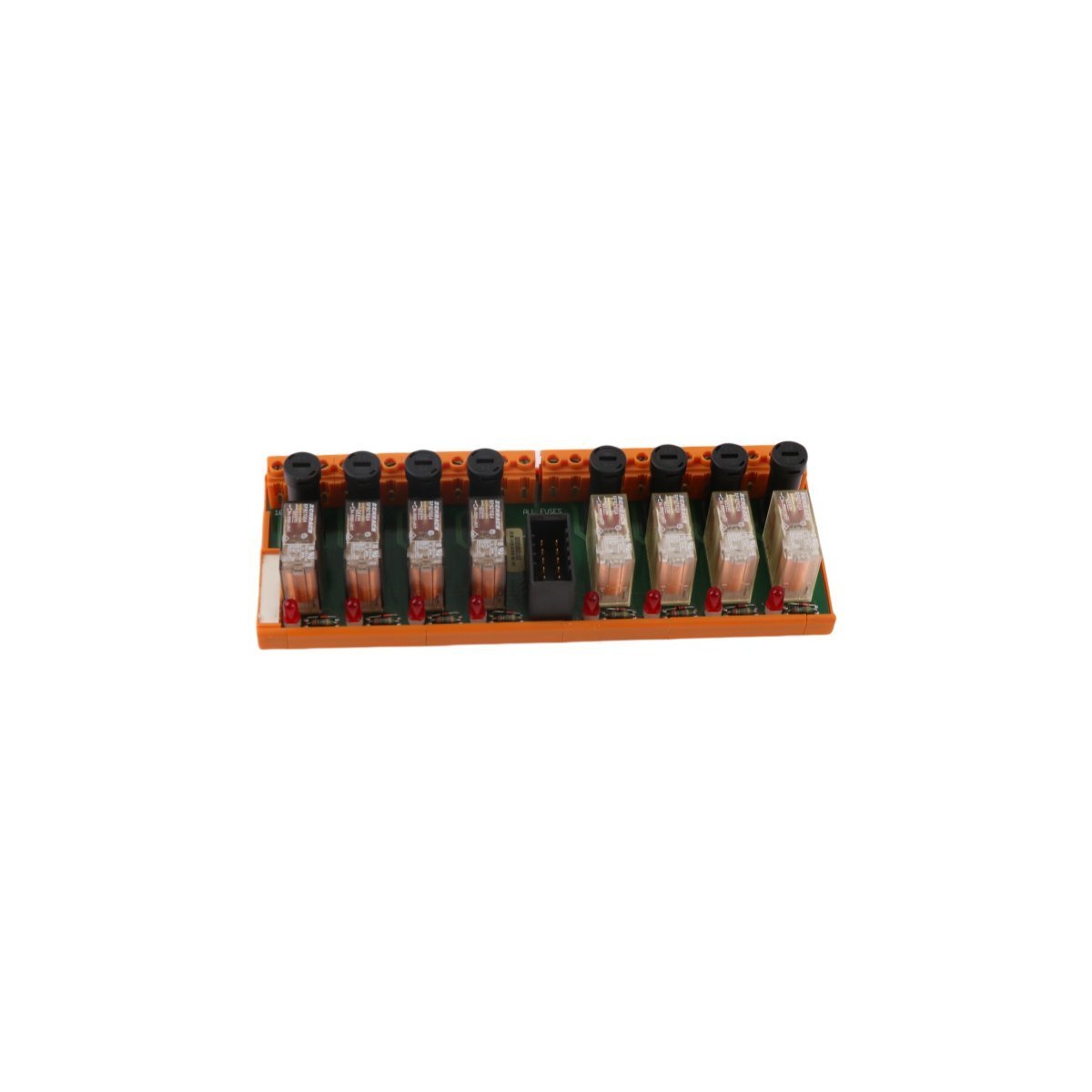

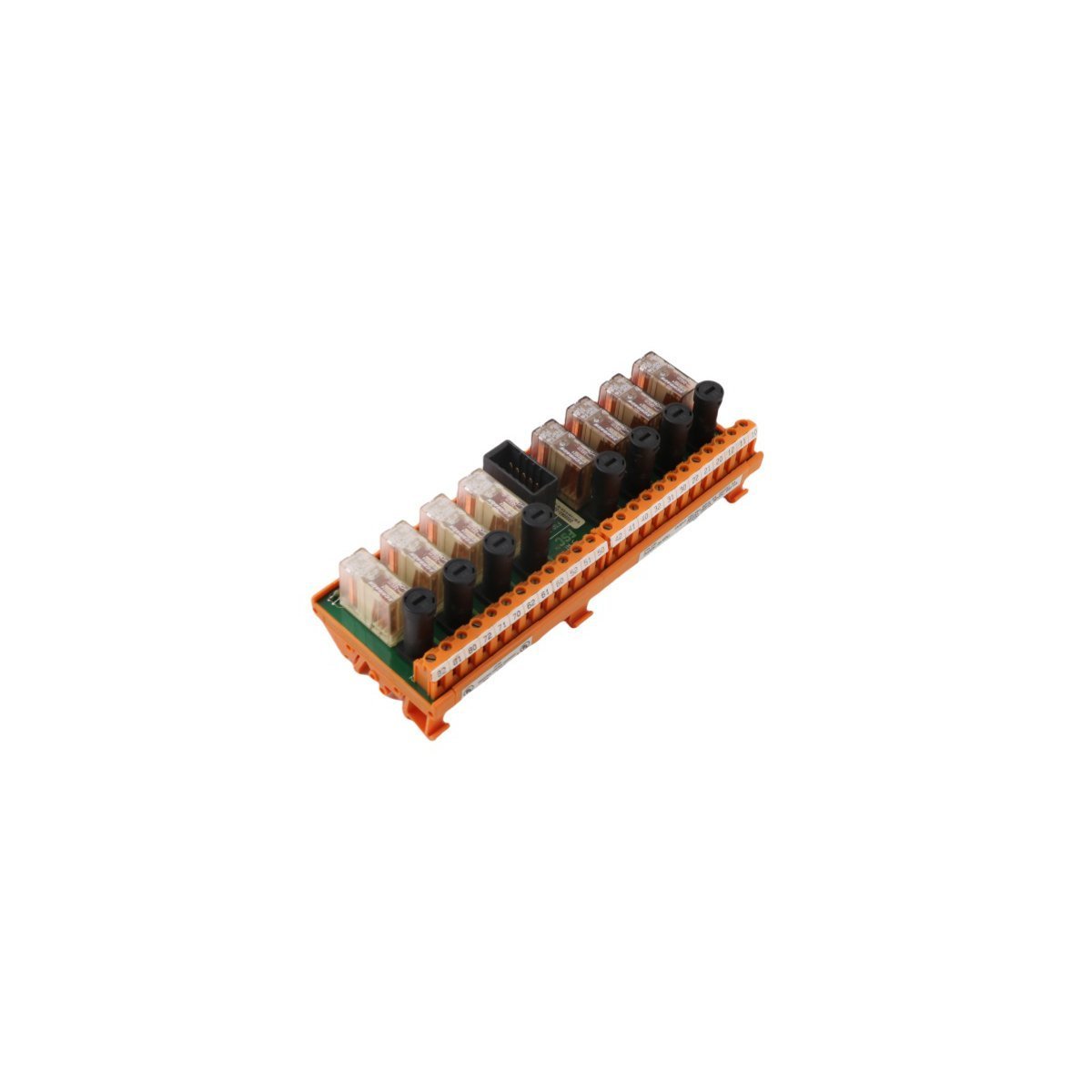

Honeywell FTA-T-20 FSC Output Module FTA-T-20 Termination Board

Honeywell FTA-T-20 FSC System Field Termination Assembly Output Module

Configured for discrete signal conditioning and field wiring termination in Honeywell FSC systems, the Honeywell FTA-T-20 (FTA-T-20 Field Termination Assembly Output Module) provides direct physical/electrical execution.

Hardware Specifications

Channel-to-Channel Isolation and Field Loop Integrity

Engineers integrate the FTA-T-20 module into safety and distributed control system loops to isolate field load actuators from sensitive backplane logic circuits. Internal isolation barriers prevent ground loops, whereas dedicated terminal clamping points suppress voltage surges originating from external inductive loads. The internal output routing maintains low loop impedance, so field devices receive consistent switching power without excessive thermal dissipation across the board traces. Consequently, this design stabilizes output signal paths across multi-channel terminal racks.

Frequently Asked Questions

Q: How does channel-to-channel isolation protect the master control rack from field electrical faults?

A: Galvanic optocouplers isolate internal system logic from field-side voltage transients. Therefore, a direct short circuit on a field actuator terminal will fail safely without damaging the central processor modules.

Q: Can field technicians terminate multi-core field cables directly onto the FTA-T-20 board?

A: Technicians land field wiring directly onto the module’s screw terminal blocks. However, installers must strip conductors to specified strip lengths to prevent adjacent terminal bridging.

Field Installation Guidelines

Technicians must isolate all incoming high-voltage sources before mounting or wiring the FTA-T-20 module. First, align the module base with the standard enclosure mounting track, and then lock the retaining tabs securely into place. Maintain clean wiring practices by separating 220 V field load cables from low-voltage signal communication buses within the wire duct.

Installers should verify that all terminal block screws torque down correctly onto solid or ferrule-terminated stranded copper conductors. Furthermore, connect field cable shielding directly to the designated enclosure earth ground bar rather than floating the shield ground. Always leave a minimum 30 mm vertical clearance around terminal blocks to ensure proper thermal dissipation and cable bend radius.
