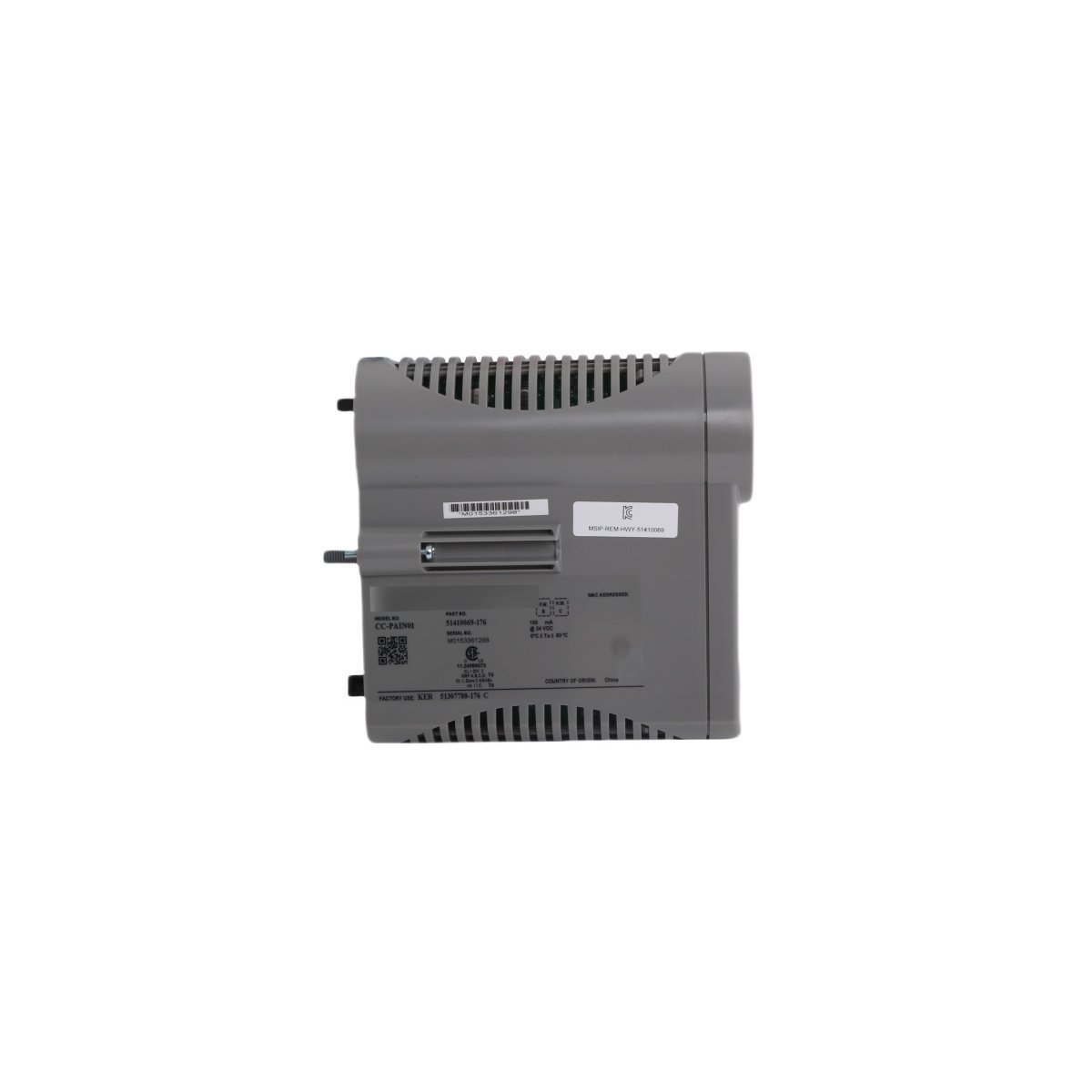

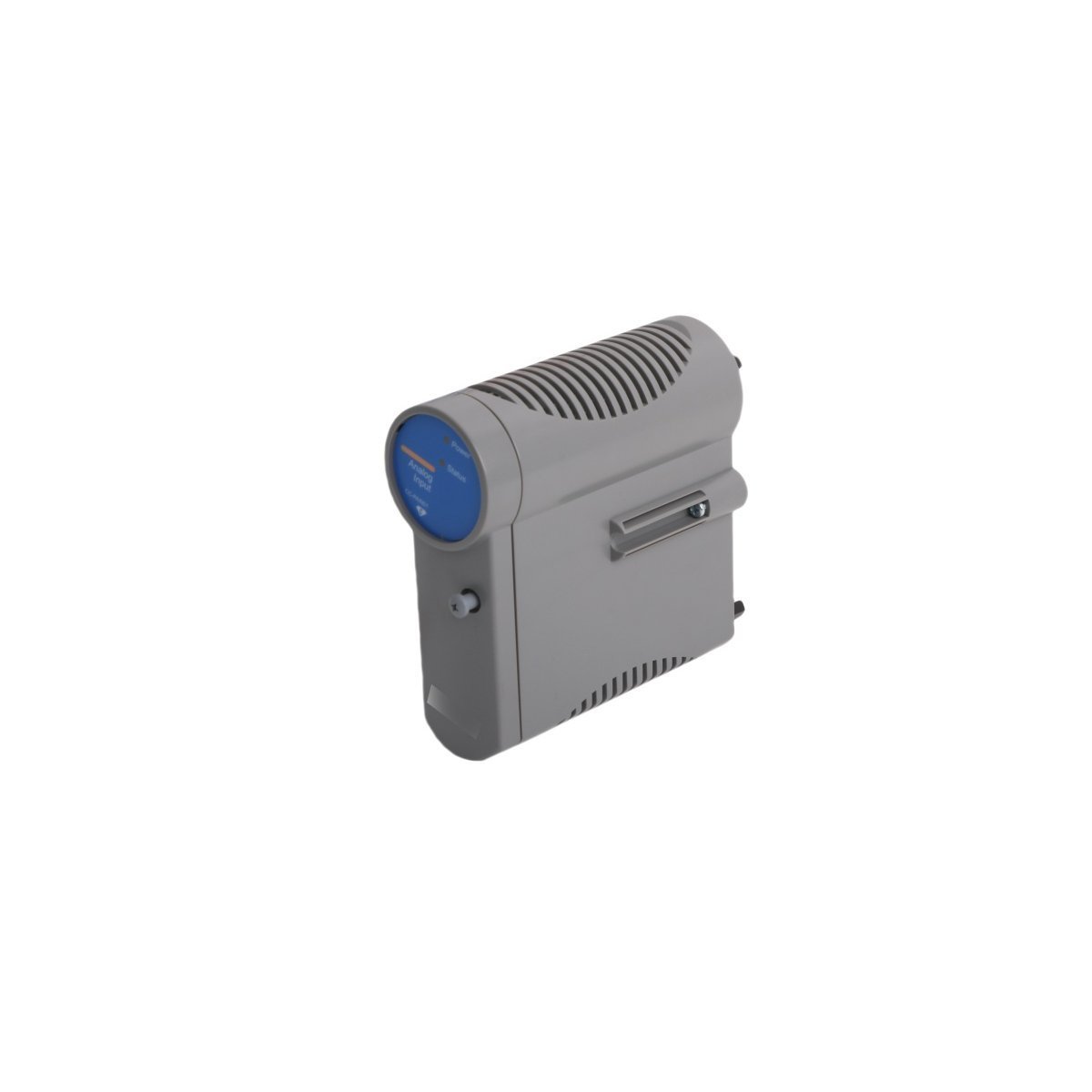

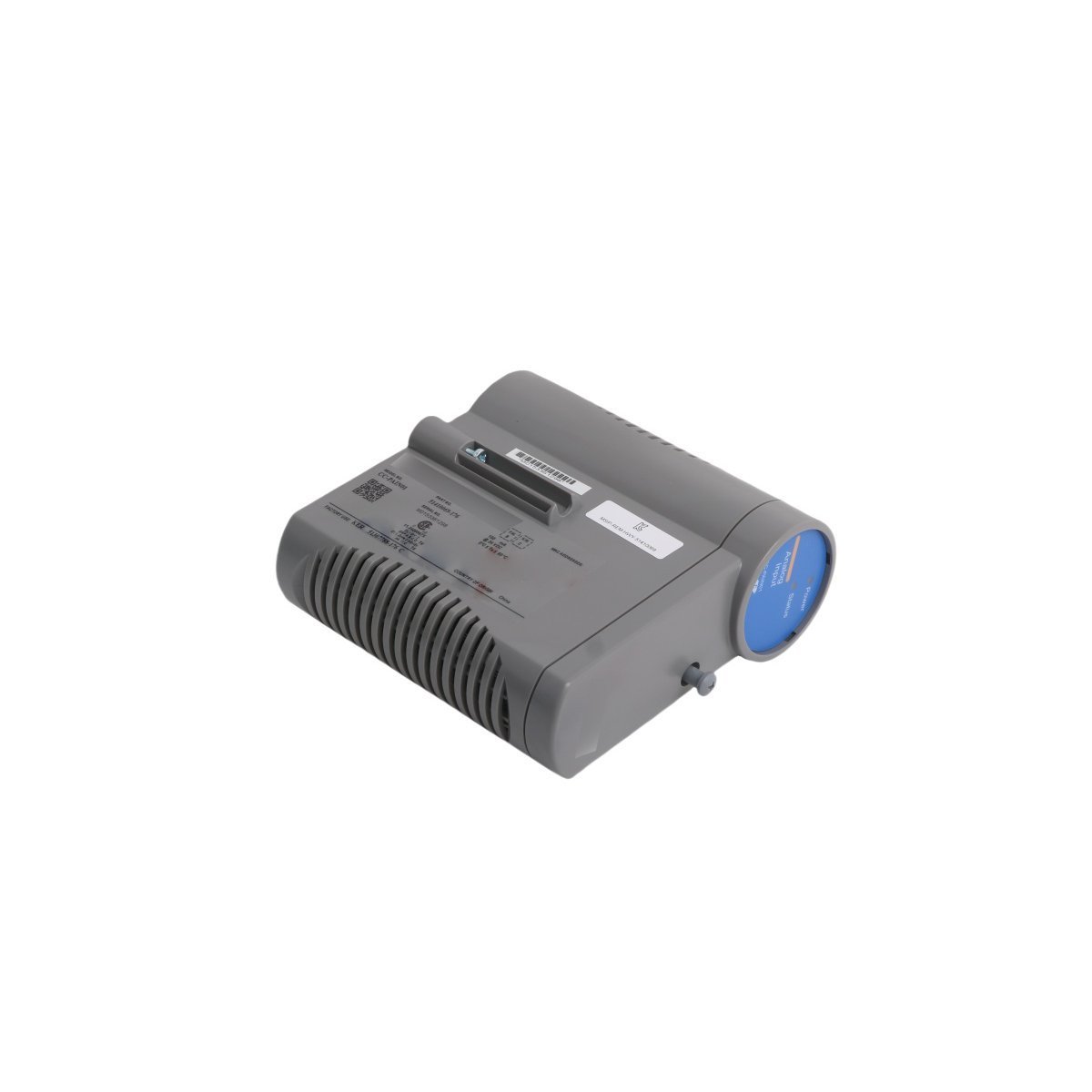

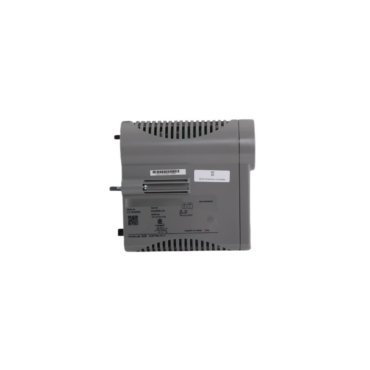

Honeywell CC-PAIN01 Analog Input Module

The CC-PAIN01 module serves as a primary interface for analog data collection within the Honeywell Experion PKS platform. This Series C component captures continuous signals from various field instruments like pressure transmitters and flow meters. Because it utilizes high-resolution conversion technology, the module provides the controller with extremely accurate process variables. This precision ensures that the Distributed Control System (DCS) maintains tight control over critical industrial parameters. Furthermore, the hardware handles signal conditioning to eliminate environmental noise from the data stream.

Reliable Performance in Demanding Safety Environments

Honeywell engineered the CC-PAIN01 specifically for high-availability applications in sectors like oil and gas processing. The module features a rugged design that withstands the thermal and electrical stresses of modern control rooms. Moreover, its compact form factor allows for high-density installation within the Series C I/O row. This spatial efficiency reduces the total number of required cabinets and lowers infrastructure costs. Since the module supports hot-swapping, maintenance teams can replace units without interrupting the overall process flow. Therefore, it provides a stable foundation for both standard control and safety-related monitoring.

Integrated Diagnostics and System Integrity

The CC-PAIN01 incorporates sophisticated self-testing routines to monitor internal hardware health and external loop integrity. These diagnostic functions detect sensor failures or wiring open-circuits in real time. Because the module provides immediate feedback to the operator station, technicians can perform proactive maintenance quickly. This early detection capability significantly reduces the risk of unplanned shutdowns. Additionally, the unit features galvanic isolation to protect the system backplane from field-side electrical interference. This multi-layered approach ensures long-term reliability and data security for complex automation architectures.
