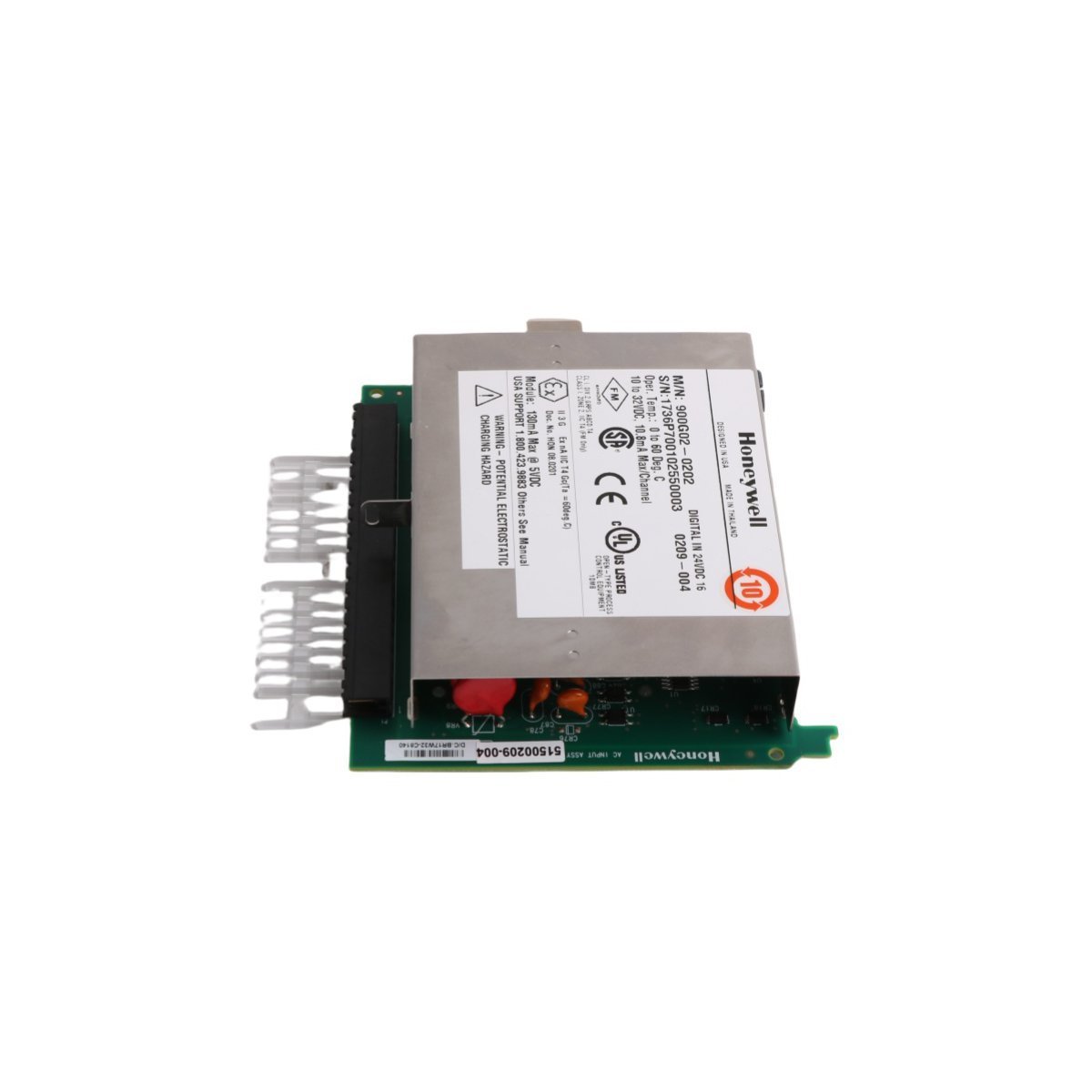

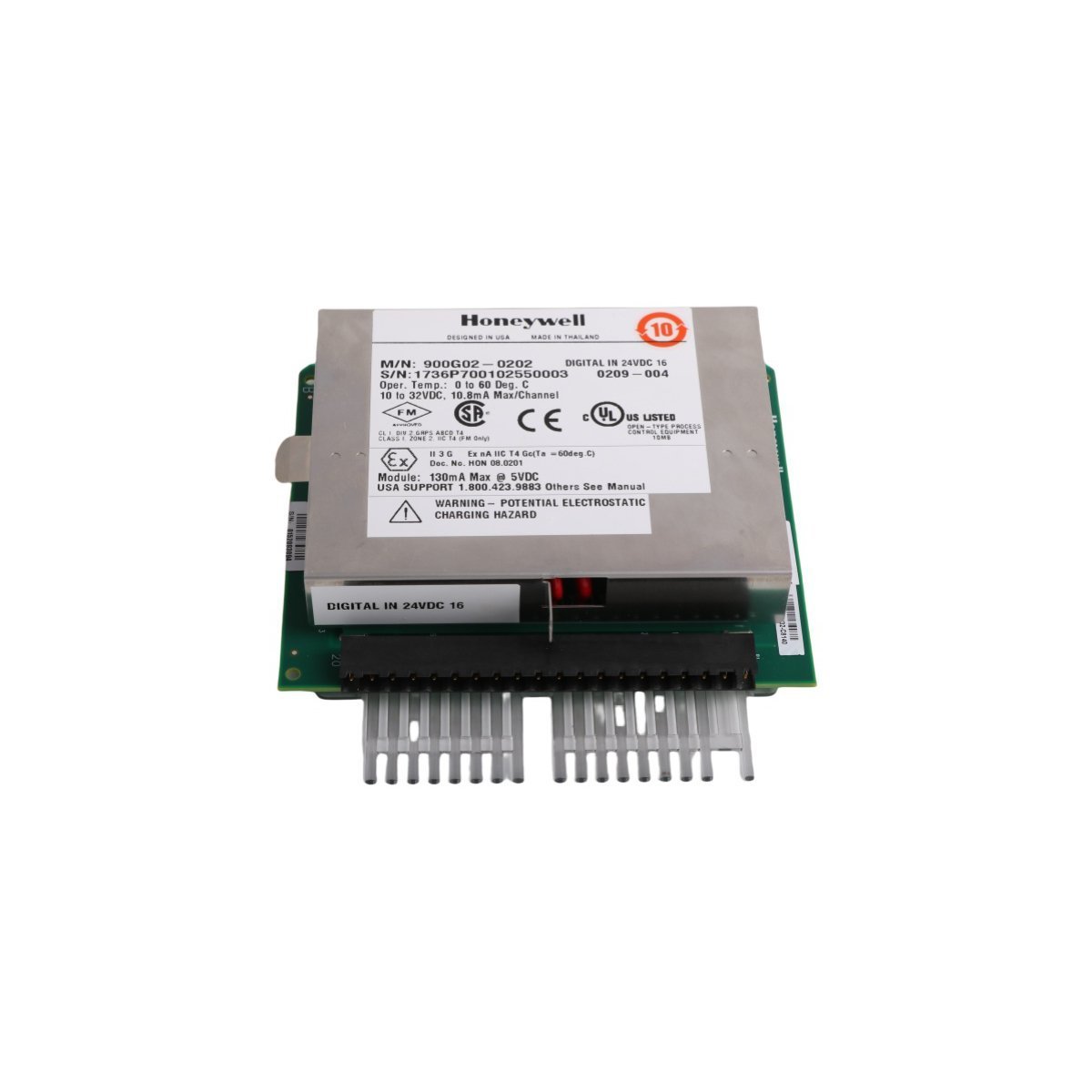

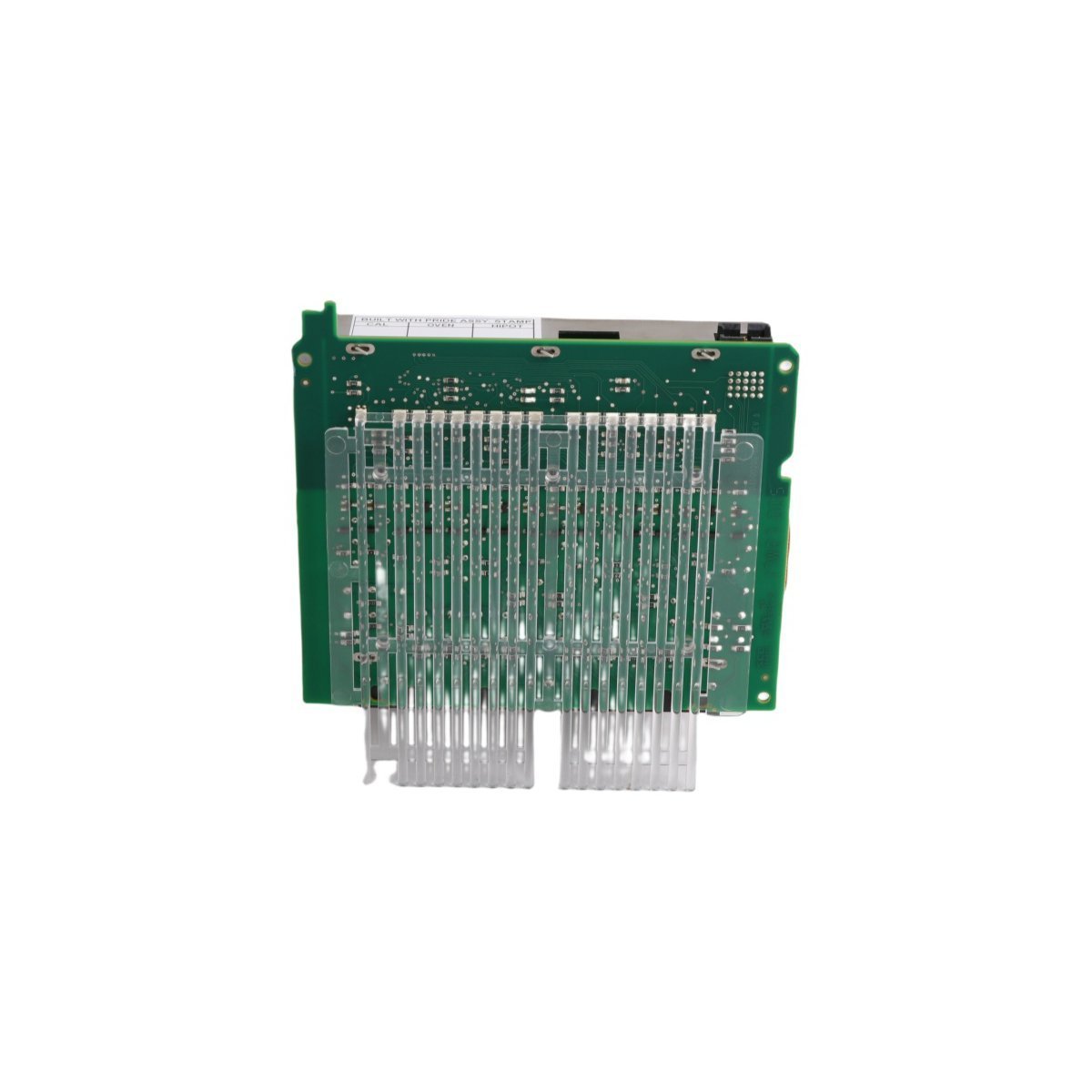

Honeywell 900G02-0202 Digital Input Module

The Honeywell 900G02-0202 functions as a critical interface for the ControlEdge HC900 and Experion PKS systems. This module provides 16 isolated channels for monitoring discrete field states.It captures ON/OFF signals from various industrial sources like pushbuttons and limit switches. Furthermore, the 900G02-0202 processes inputs from proximity sensors and motor starter contacts. The hardware converts these physical electrical states into digital data for the controller logic. Consequently, it enables precise real-time monitoring of automated machinery and plant safety sequences.

Industrial Reliability and Signal Integrity

Honeywell builds this module to maintain peak performance within high-interference environments. It features sophisticated filtering to eliminate signal bounce and electromagnetic noise. This ensures the control system receives clean, accurate data without false triggers. Moreover, the 100% galvanic isolation between channels protects internal circuitry from field-side voltage surges. This protective layer significantly increases the overall uptime of the distributed control architecture. The module operates consistently despite vibration or significant temperature shifts common in processing facilities.

Primary Technical Specifications

The following table details the mechanical and operational parameters for the 900G02-0202 module.
