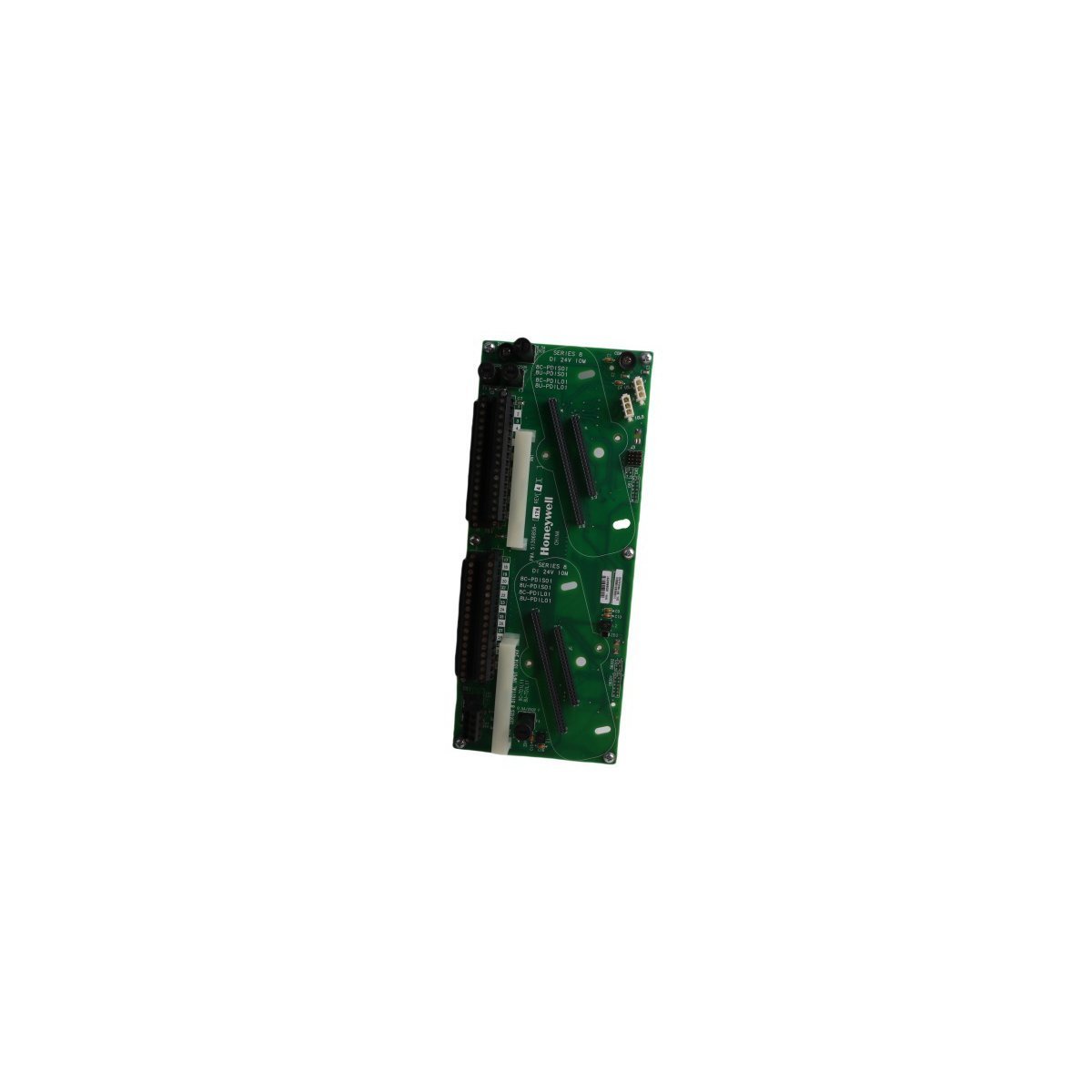

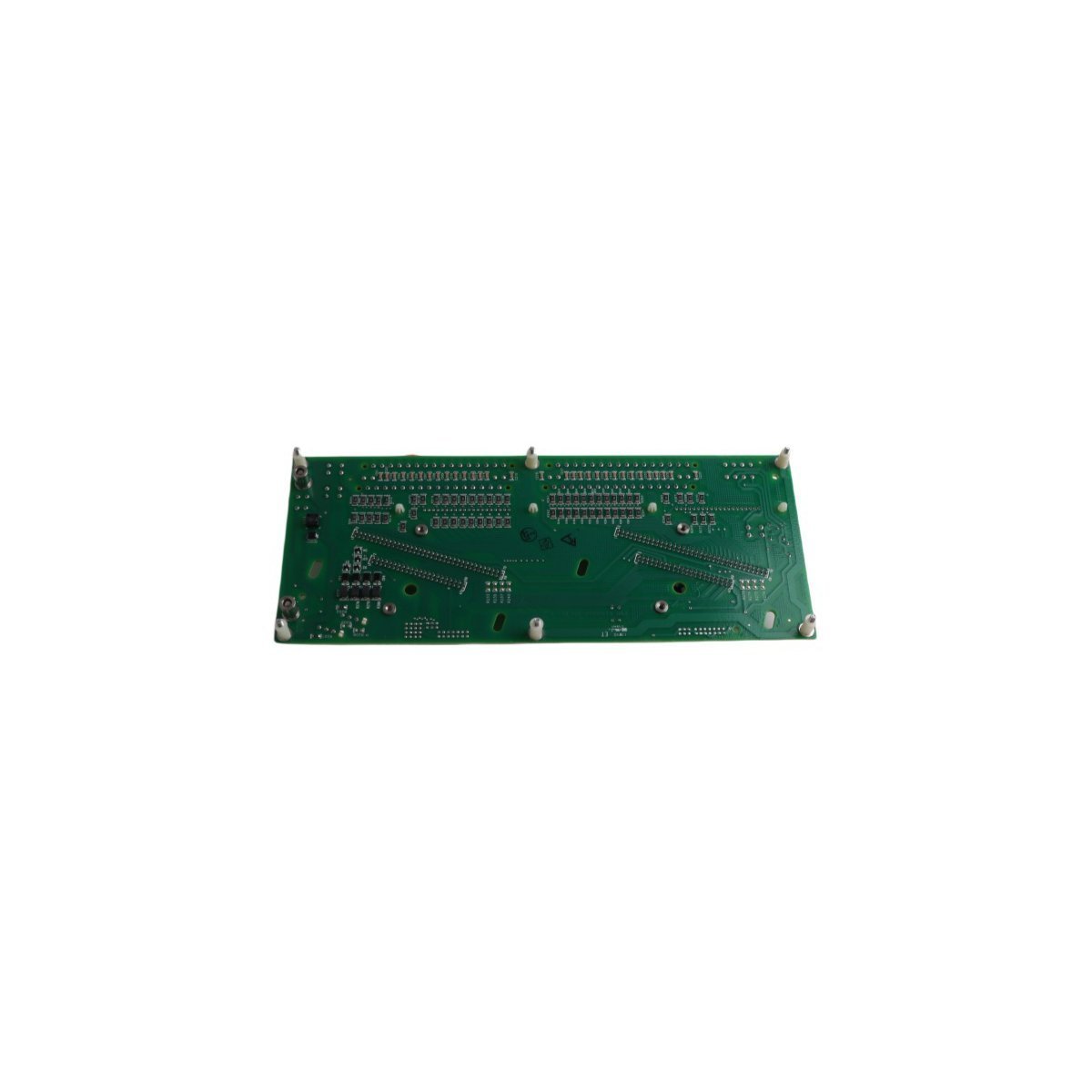

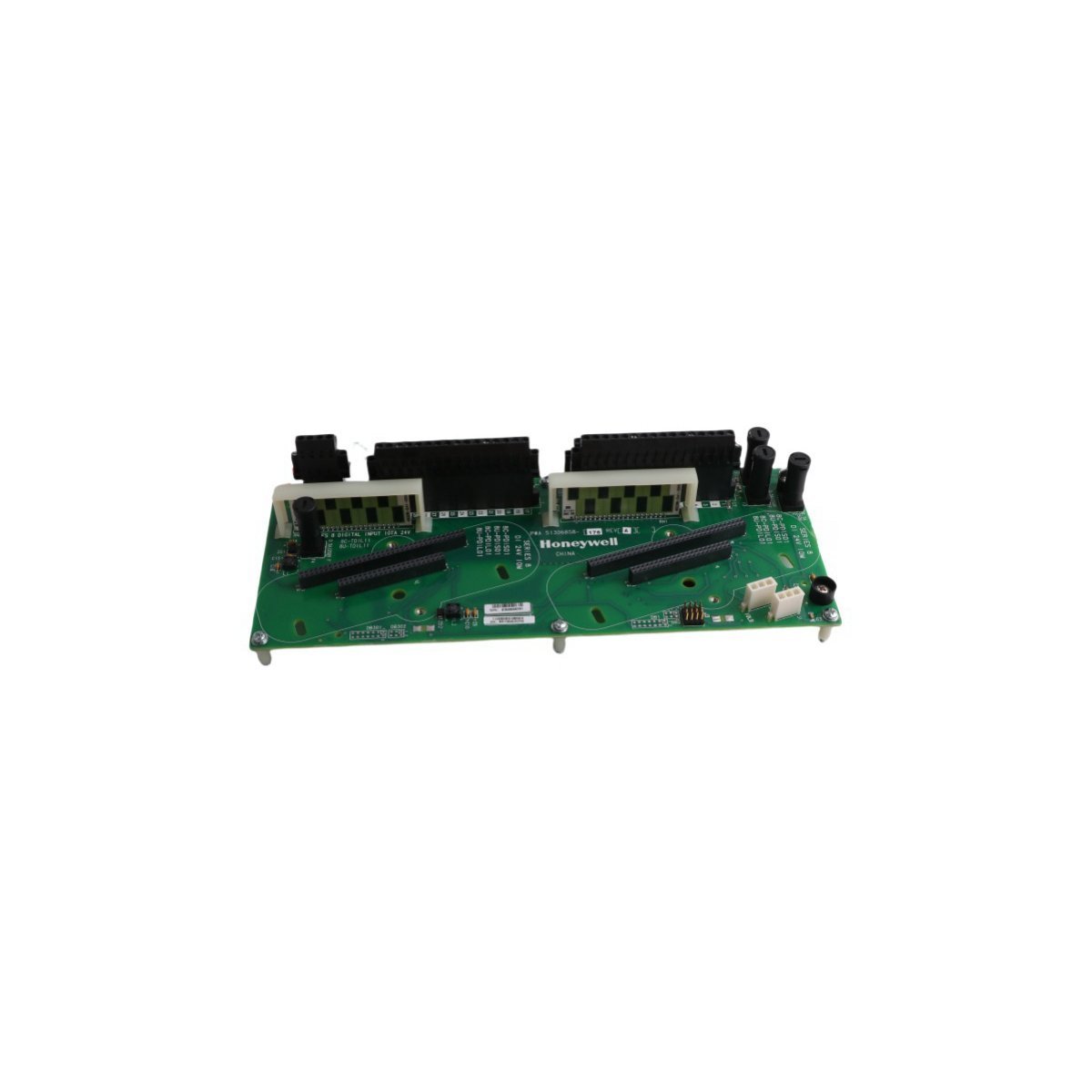

Honeywell 8C-TDIL11 51306858-175 Digital Input Module

The 8C-TDIL11 serves as a high-density discrete signal interface within the Honeywell Series 8 I/O family. This module effectively translates binary signals from field equipment into actionable digital data for the controller. Because it utilizes advanced signal conditioning, the hardware eliminates electrical noise from incoming data streams. It supports precise time-stamping for sequence of events (SOE) monitoring in critical processes. Consequently, operators gain real-time visibility into the status of switches, relays, and other discrete field devices.

Robust Engineering for Demanding Facilities

Honeywell engineered the 51306858-175 module to withstand the rigorous conditions of modern industrial plants. The internal circuitry features heavy-duty protection against thermal stress and electromagnetic interference. Furthermore, the compact mechanical form factor optimizes space within the control cabinet. This high-density design allows for more I/O points in a smaller footprint. The hardware complies with international industrial standards to ensure long-term stability in hazardous zones. Therefore, the module reduces the total cost of ownership by minimizing unplanned hardware failures.

Diagnostic Intelligence and System Maintenance

The 8C-TDIL11 integrates comprehensive self-diagnostic functions to monitor channel health continuously. These internal checks identify field wiring issues and hardware faults immediately to prevent data corruption. Because the Series 8 platform supports modular replacement, maintenance teams can swap units with minimal process disruption. The module also features visible status indicators for rapid local troubleshooting by technicians. Moreover, the seamless integration with Experion PKS simplifies initial configuration and lifecycle management. This intelligent design enhances overall system responsiveness and reduces potential maintenance downtime.

Technical Specifications
