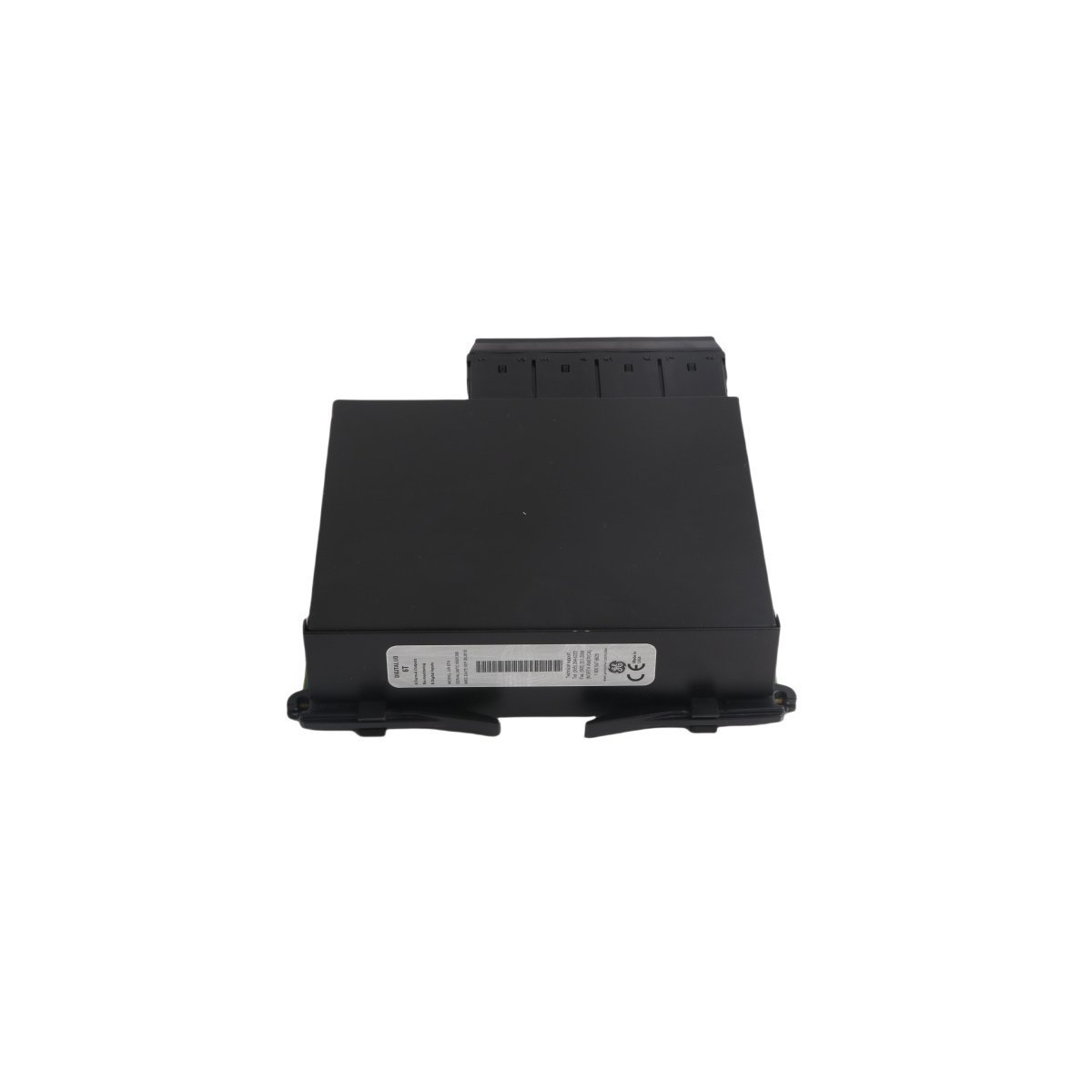

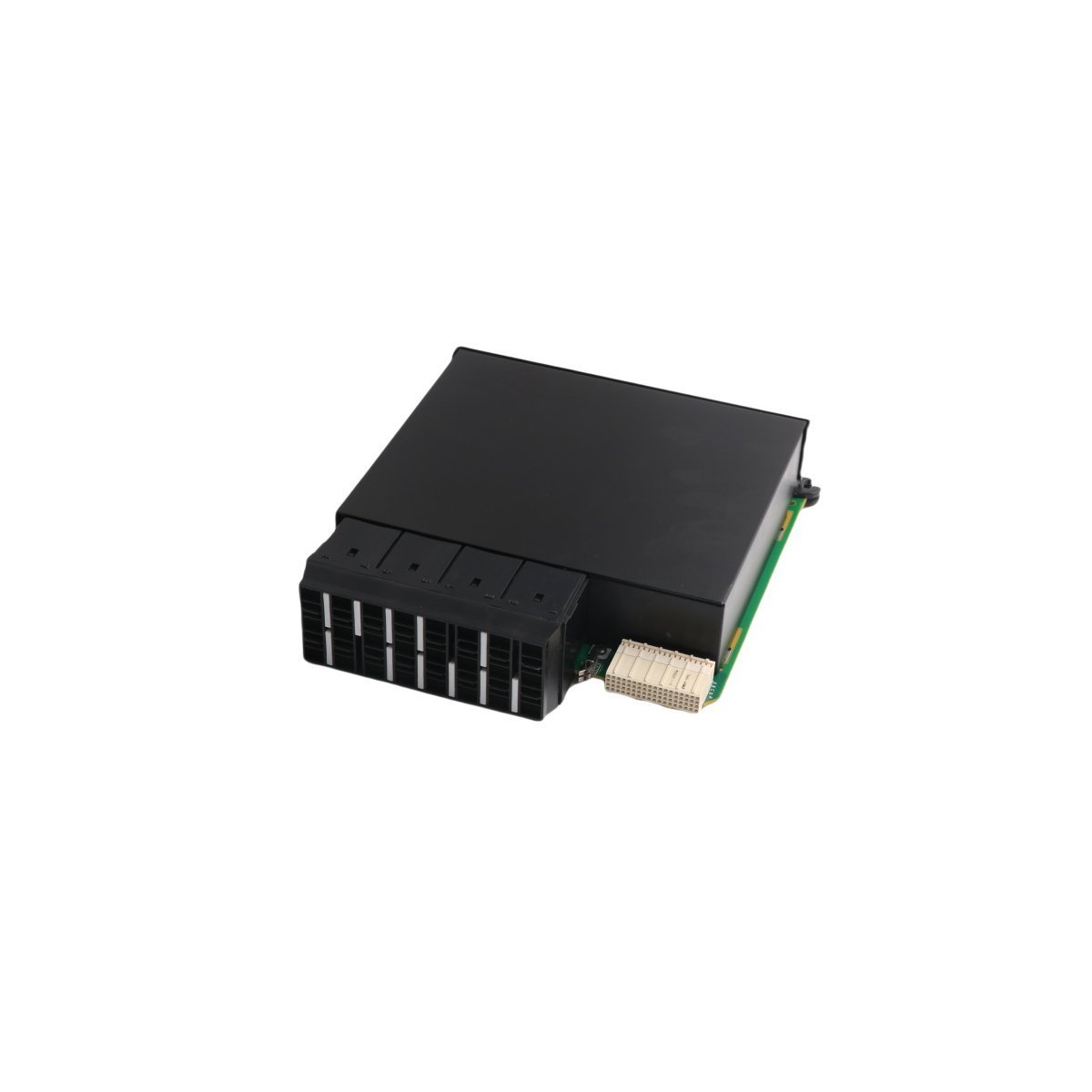

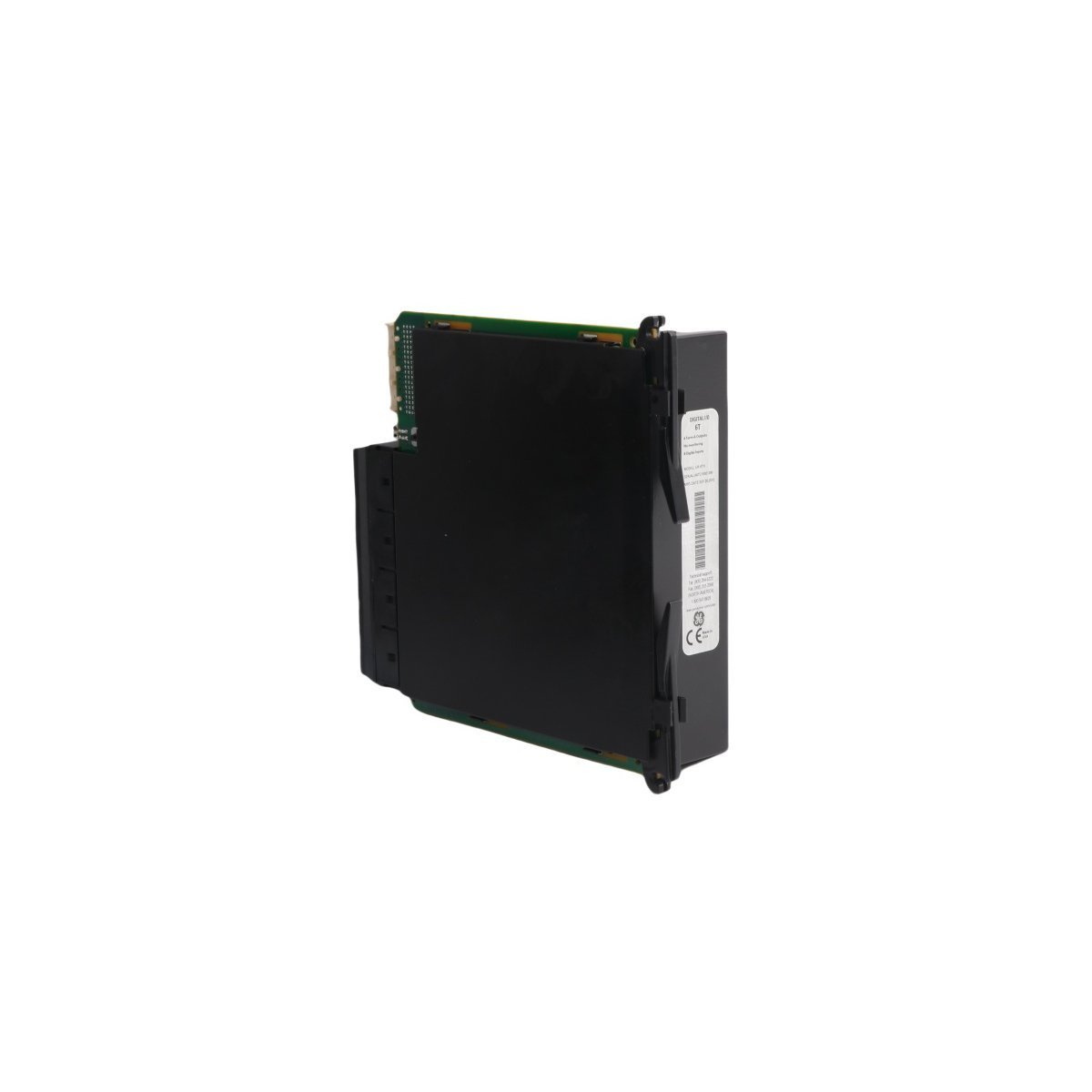

The GE Multilin UR6TH serves as a high-density digital interface for the Universal Relay (UR) platform. This module expands the input and output capabilities of protection and control systems. It facilitates the monitoring of auxiliary equipment within modern electrical substations.
Technical Specifications
| Property | Details |
| Brand | General Electric (GE) |
| Model Number | UR6TH |
| Series | Multilin Universal Relay |
| Module Type | Digital Input/Output (I/O) |
| Configuration | 4 Digital Inputs / 6 Form-A Outputs |
| Weight | 0.66 kg |
| Dimensions | 16.3 x 4.2 x 21 cm |
| Manufacturing Origin | USA |
Advanced Control and Monitoring
The UR6TH module features six Form-A contact outputs for reliable switching operations. Additionally, four digital inputs provide precise status feedback from field devices. This combination allows the relay to execute complex automation logic.
The hardware reduces the need for extensive analog wiring. Consequently, it lowers the risk of electrical noise interference. This digital approach ensures higher data integrity for safety-critical protection functions.
Installation and Field Maintenance
The modular design supports rapid plug-and-play installation in the UR chassis. Engineers can swap modules with minimal impact on system availability. This flexibility helps utilities scale their control systems as infrastructure grows.
The rugged construction withstands the harsh electromagnetic conditions of power plants. Furthermore, the module maintains operational stability across a wide temperature range. This durability ensures a long service life in demanding industrial settings.
