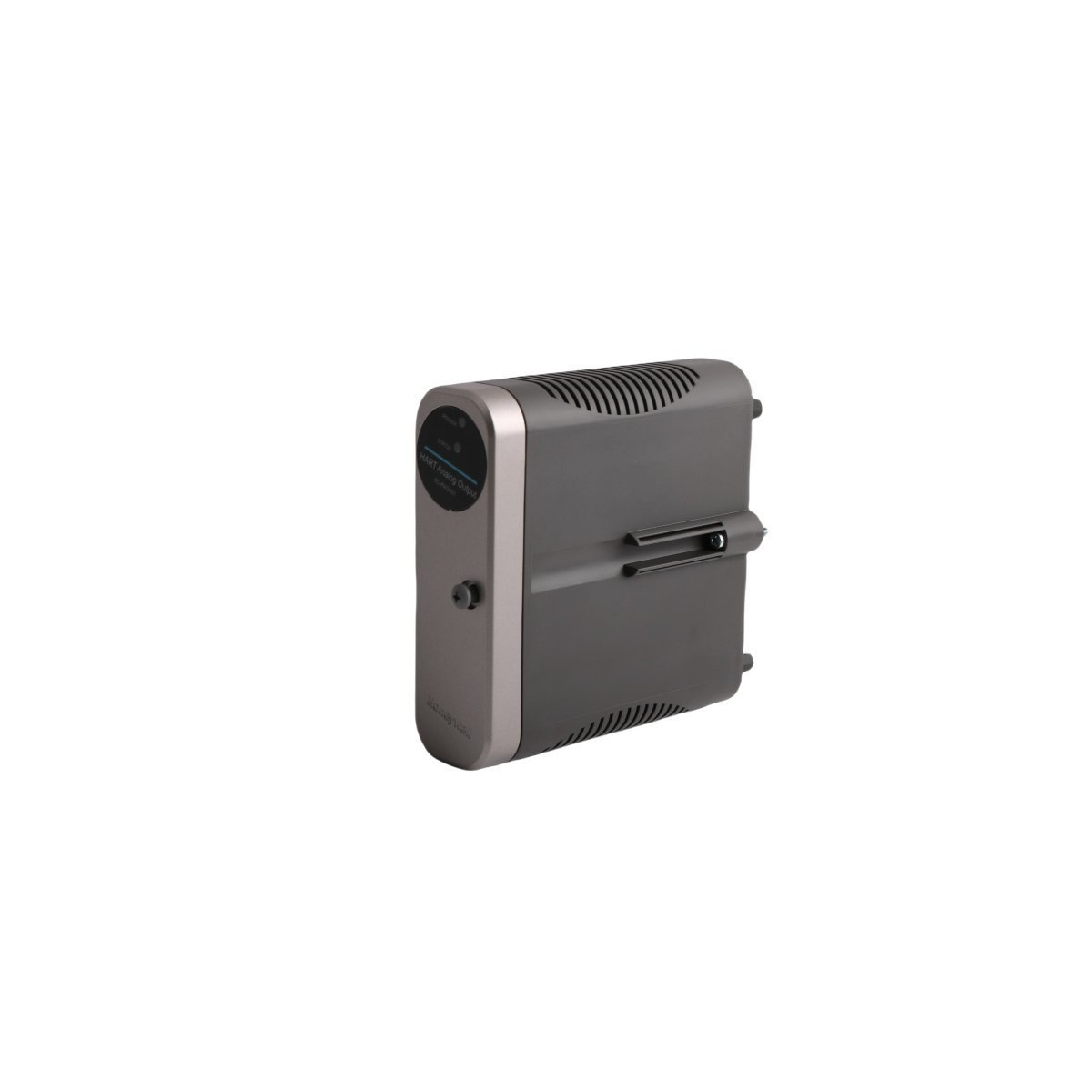

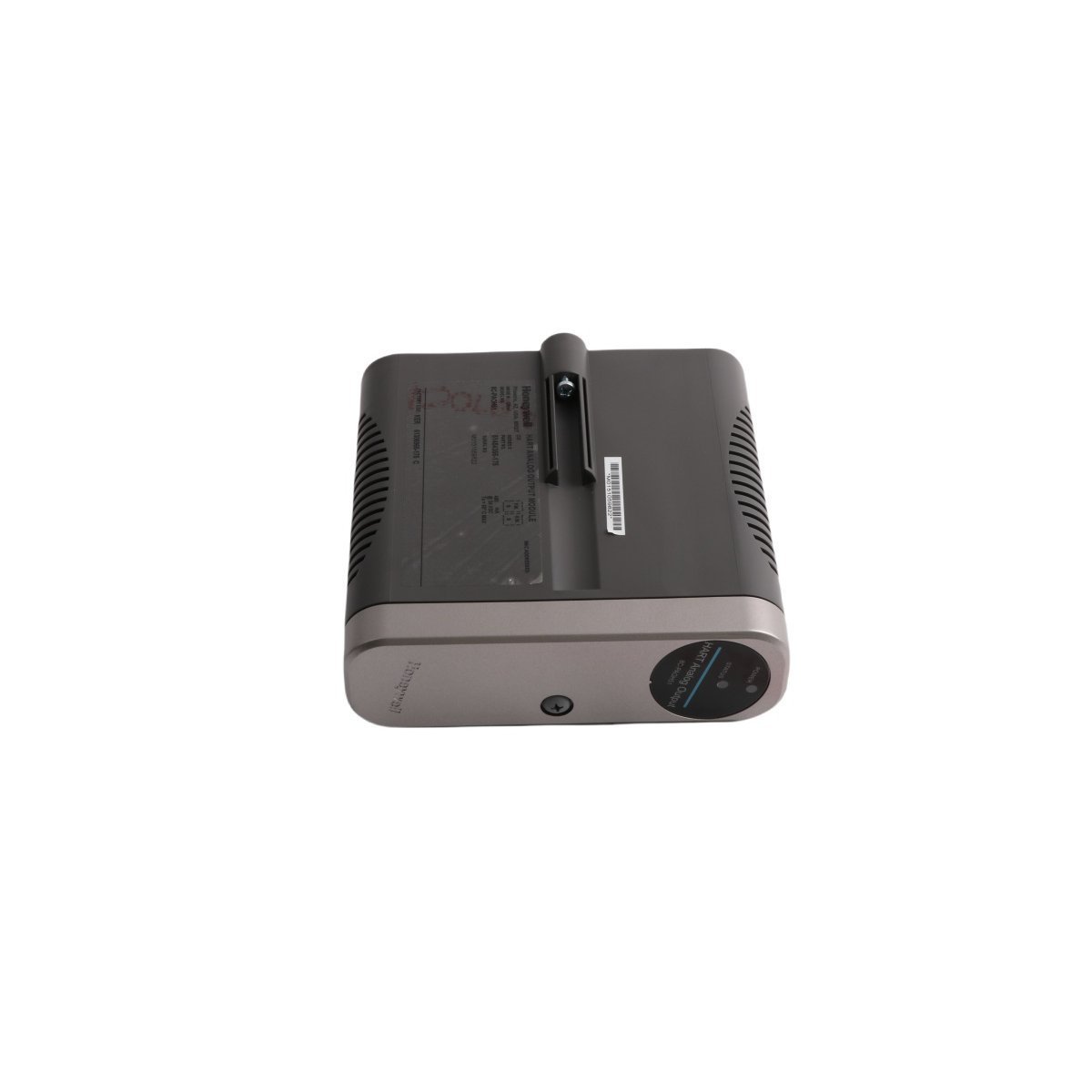

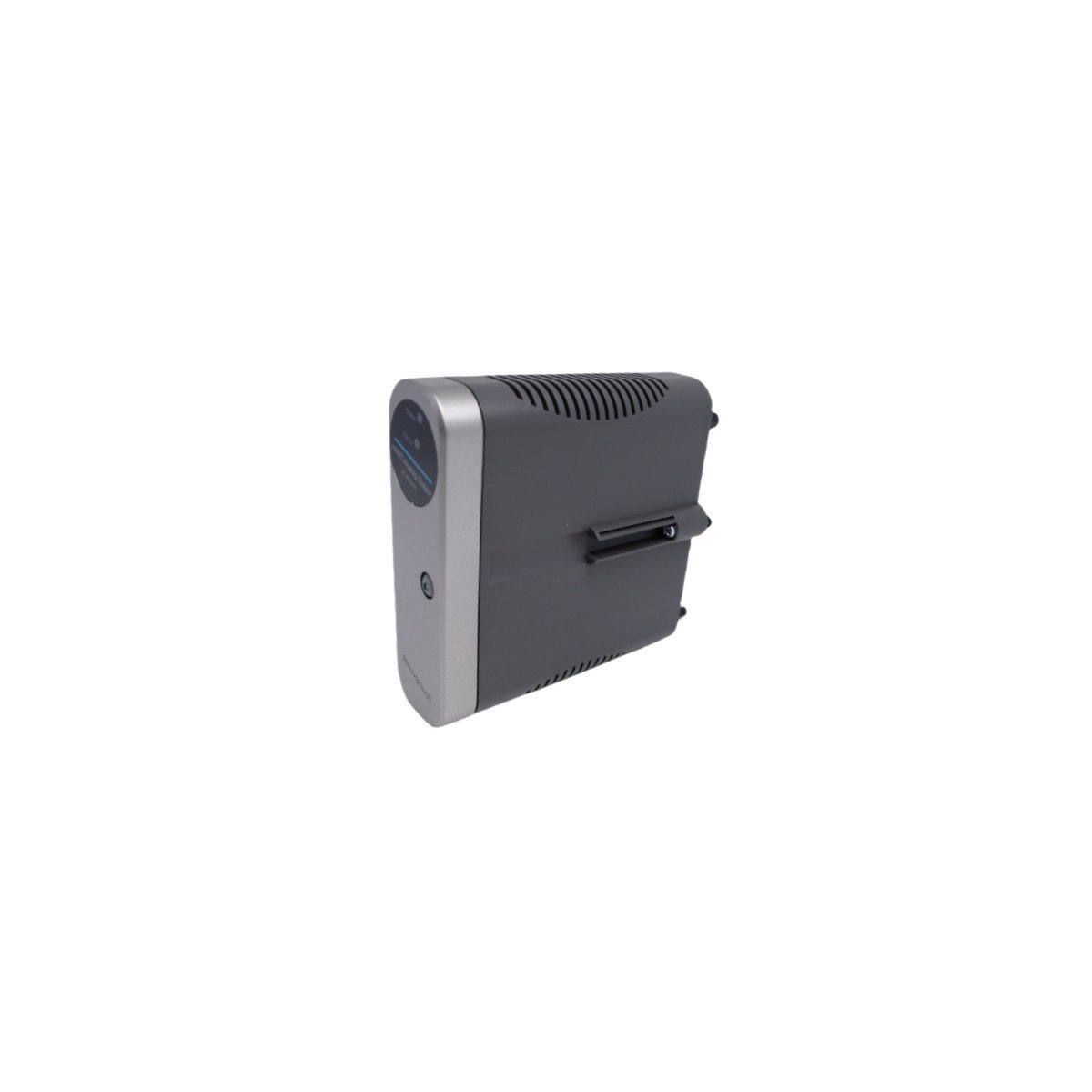

Honeywell 8C-PAIN01 51454356-175 Analog Input Module

The 8C-PAIN01 module serves as a primary interface for continuous signal acquisition in Honeywell Experion PKS environments. This Series 8 hardware converts physical variables from field transmitters into precise digital values for the controller. Because it handles various signal ranges, the module monitors pressure, temperature, and level transmitters with high accuracy. The internal circuitry filters out electrical noise to maintain superior signal quality. Consequently, the control system receives reliable data for making critical process decisions.

Optimized Design for Modern Control Enclosures

Honeywell designed the 51454356-175 with a compact footprint to maximize cabinet space efficiency. This Series 8 component features a vertical orientation that allows for high-density I/O installations. Furthermore, the modular design simplifies the hardware replacement process during maintenance cycles. The unit withstands harsh industrial vibrations and thermal fluctuations common in processing plants. Since it uses energy-efficient electronics, the module generates minimal heat during continuous operation. Therefore, it provides a durable solution for demanding automation infrastructures.

Advanced Self-Diagnostics and System Stability

The 8C-PAIN01 integrates sophisticated diagnostic routines to ensure long-term hardware reliability. These internal checks identify field wiring issues and channel malfunctions in real time. Because the module provides immediate feedback to the DCS, operators can address faults before they cause downtime. The hardware also includes galvanic isolation to protect the system backplane from field-side surges. Moreover, it supports redundant configurations to enhance the availability of critical control loops. This multi-layered safety approach ensures stable performance in high-stakes manufacturing environments.

Technical Specifications
