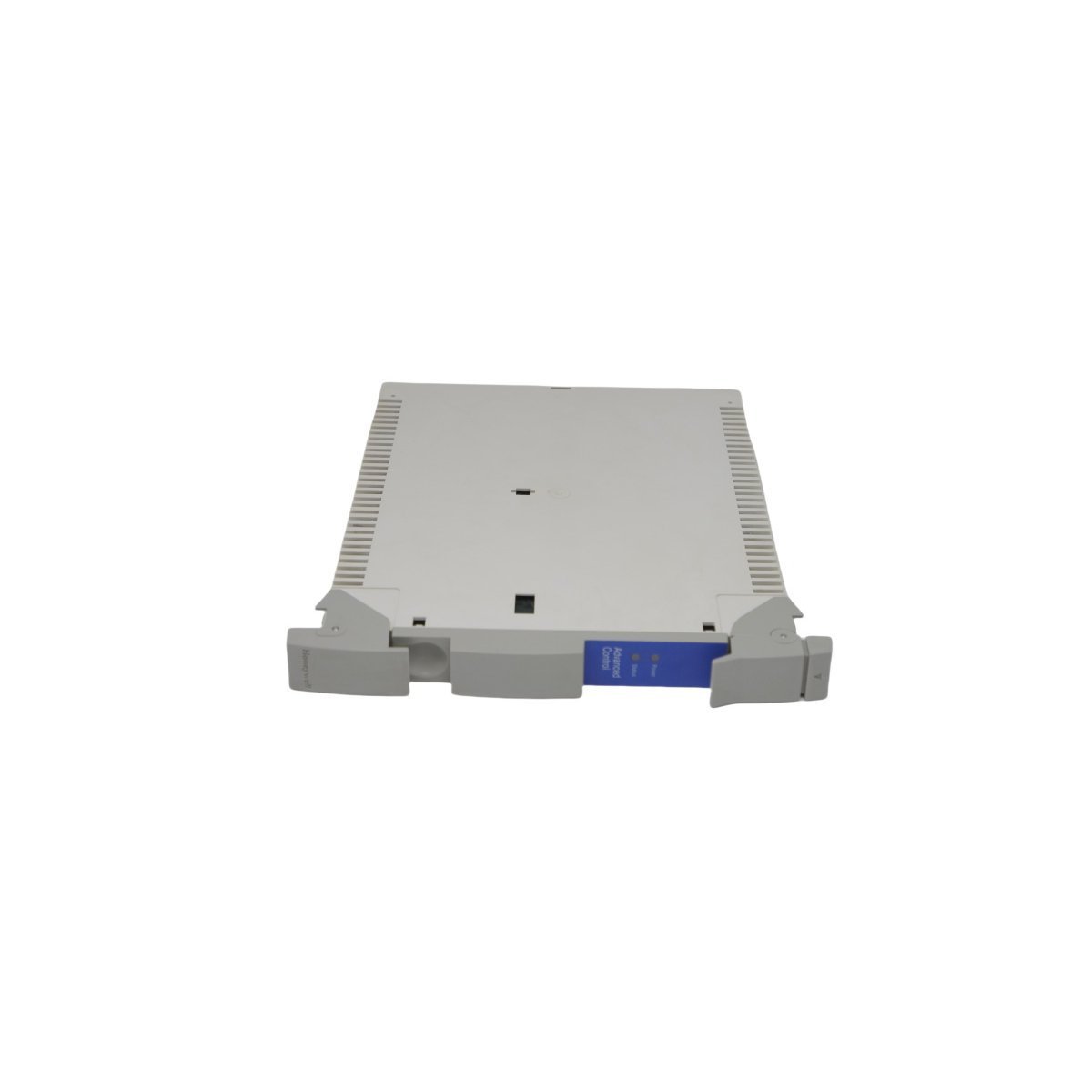

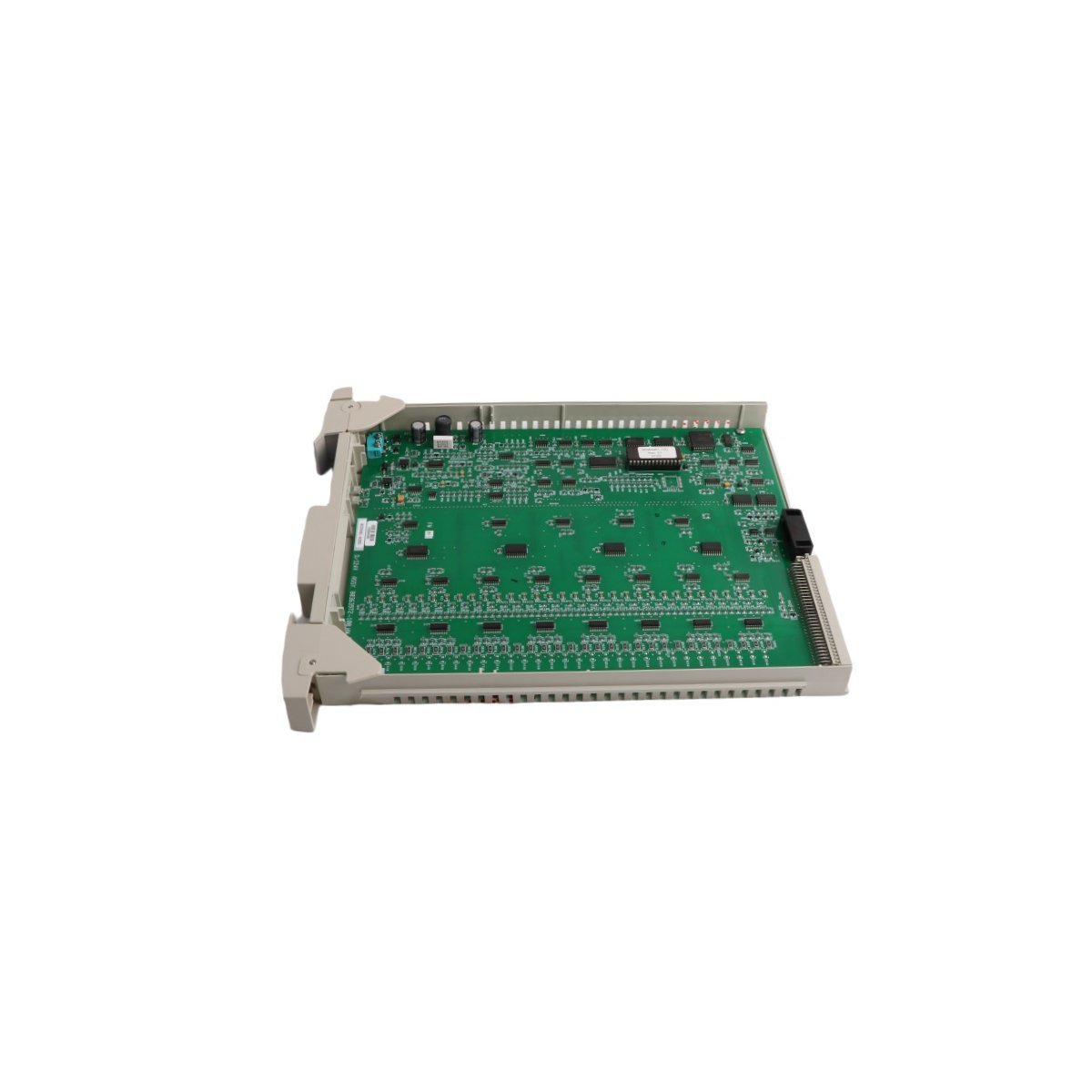

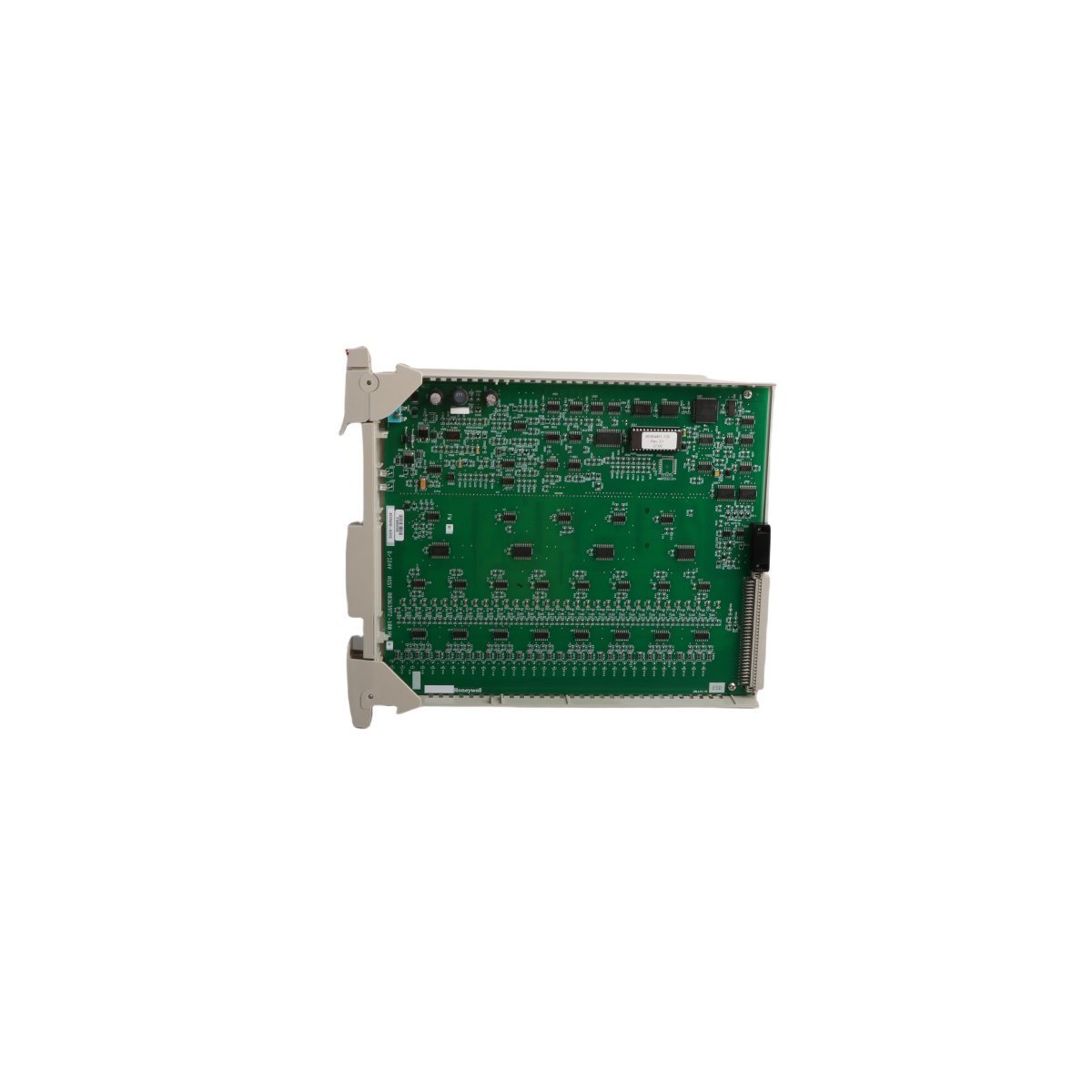

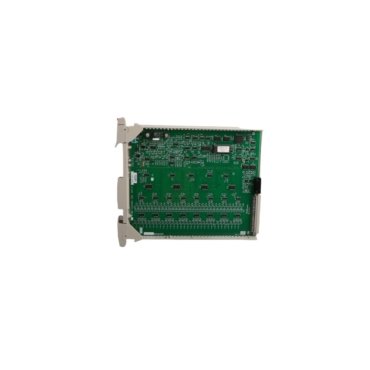

Honeywell MC-PDOY22 80363975-150 Digital Output Module

The MC-PDOY22 functions as a primary interface for discrete control within the Honeywell TDC 3000 architecture. This digital output module converts electronic commands from the controller into physical switching actions. Because it manages field actuators effectively, it drives devices like solenoid valves and motor starters. The hardware ensures precise timing for all binary operations in the process network. Consequently, the unit maintains the operational integrity of the entire distributed control system (DCS).

Robust Engineering for Process Stability

Honeywell designed the 80363975-150 to withstand the rigors of continuous industrial use. The module features high-grade galvanic isolation to shield sensitive control logic from field-side electrical interference. Furthermore, the unit supports multiple load types across various voltage ranges. Since it includes integrated overcurrent protection, the hardware prevents damage during unexpected circuit faults. This focus on durability significantly extends the lifecycle of the control system infrastructure. Therefore, it provides a stable foundation for critical process management in volatile environments.

Intelligent Monitoring and Easy Integration

The MC-PDOY22 incorporates advanced self-diagnostic capabilities to monitor output health in real time. These internal routines detect circuit anomalies and report them to the operator station immediately. Because the module identifies faults early, maintenance teams can minimize unplanned system downtime. The hardware fits perfectly into standard TDC 3000 I/O racks for rapid installation. Moreover, the plug-and-play design simplifies the commissioning process for both new and existing setups. This efficiency reduces the total cost of ownership for long-term automation projects.

Technical Specifications
