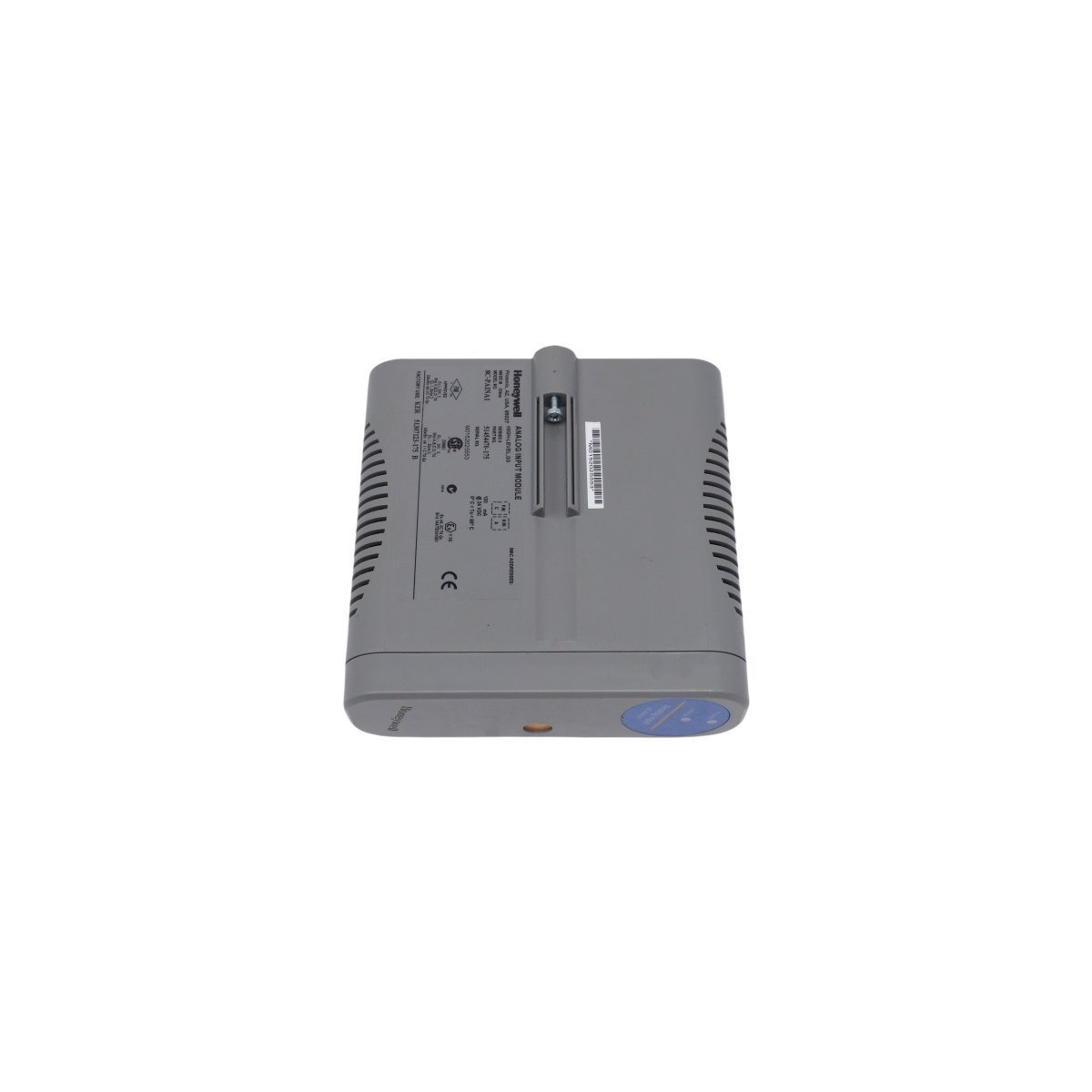

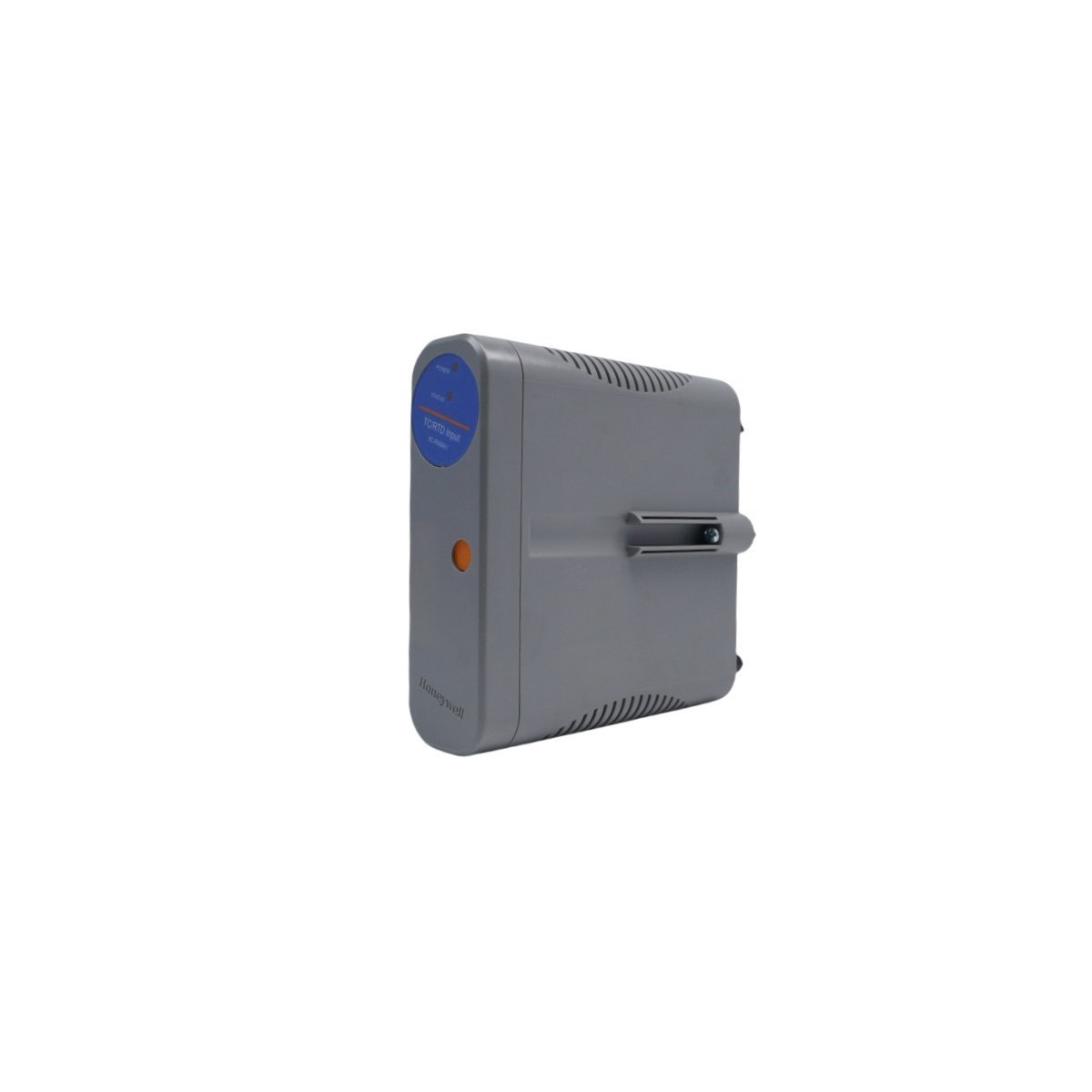

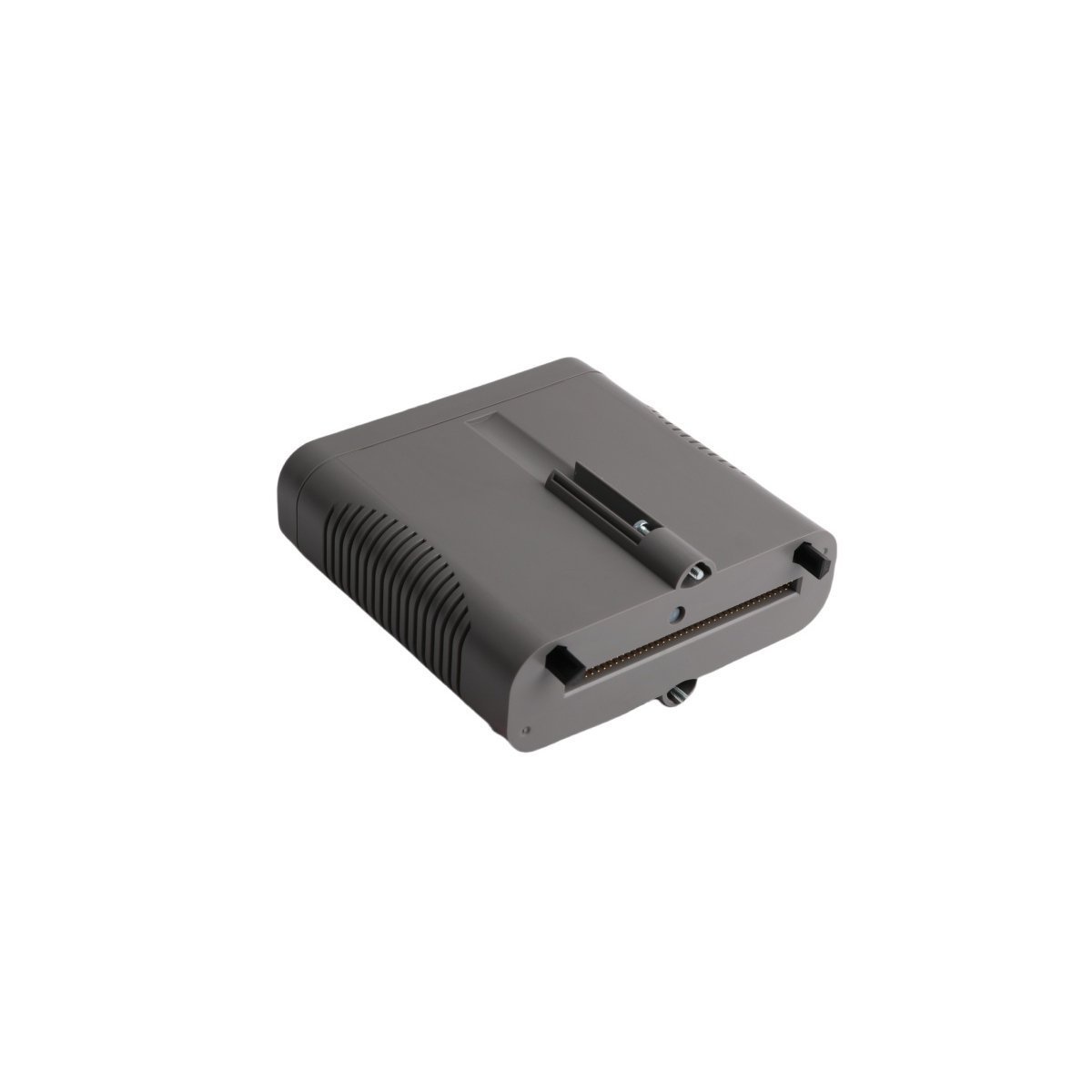

Honeywell 8C-PAIMA1 51454473-175 Analog Input Module

The 8C-PAIMA1 serves as a high-density analog input solution for the Honeywell Experion PKS Series 8 I/O architecture. This mixed analog module accepts various signal types from field instruments like pressure transmitters and temperature sensors. Because it supports diverse input configurations, it offers significant flexibility for complex process control strategies. The internal converters transform continuous physical variables into precise digital data for the C300 controller. Consequently, the system maintains high-resolution monitoring for all connected field devices.

Space-Efficient Design for Modern Control Cabinets

Honeywell engineered the 51454473-175 with a vertical orientation to maximize cabinet density. This compact form factor allows engineers to install more I/O points in a smaller physical footprint. Furthermore, the modular design simplifies the physical integration process within the DCS rack. The hardware features a robust plastic housing that protects internal electronics from dust and environmental contaminants. Since the module optimizes space, users can reduce the total number of required control enclosures. Therefore, it provides a cost-effective path for large-scale system expansions.

Intelligent Diagnostics and Industrial Durability

The 8C-PAIMA1 includes sophisticated self-testing routines to ensure continuous data integrity. These diagnostic functions detect sensor failures and wiring abnormalities in real-time. Because the module identifies errors early, maintenance teams can perform proactive repairs before a process shutdown occurs. The unit also features high-grade galvanic isolation to prevent electrical interference between channels. This protection ensures stable signal acquisition even in electrically noisy environments like power plants. Moreover, the rugged construction meets stringent industrial standards for long-term operational reliability.

Technical Specifications
