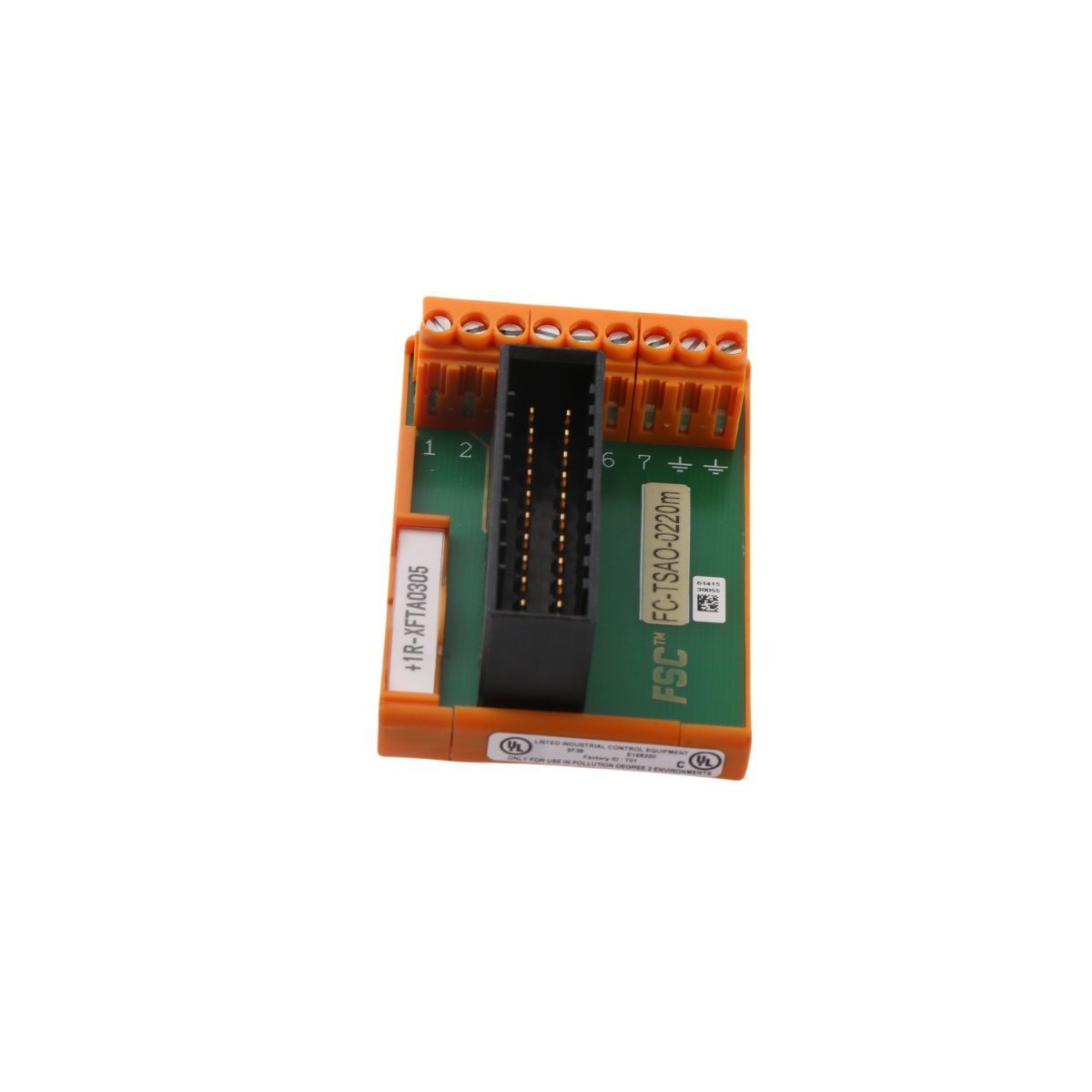

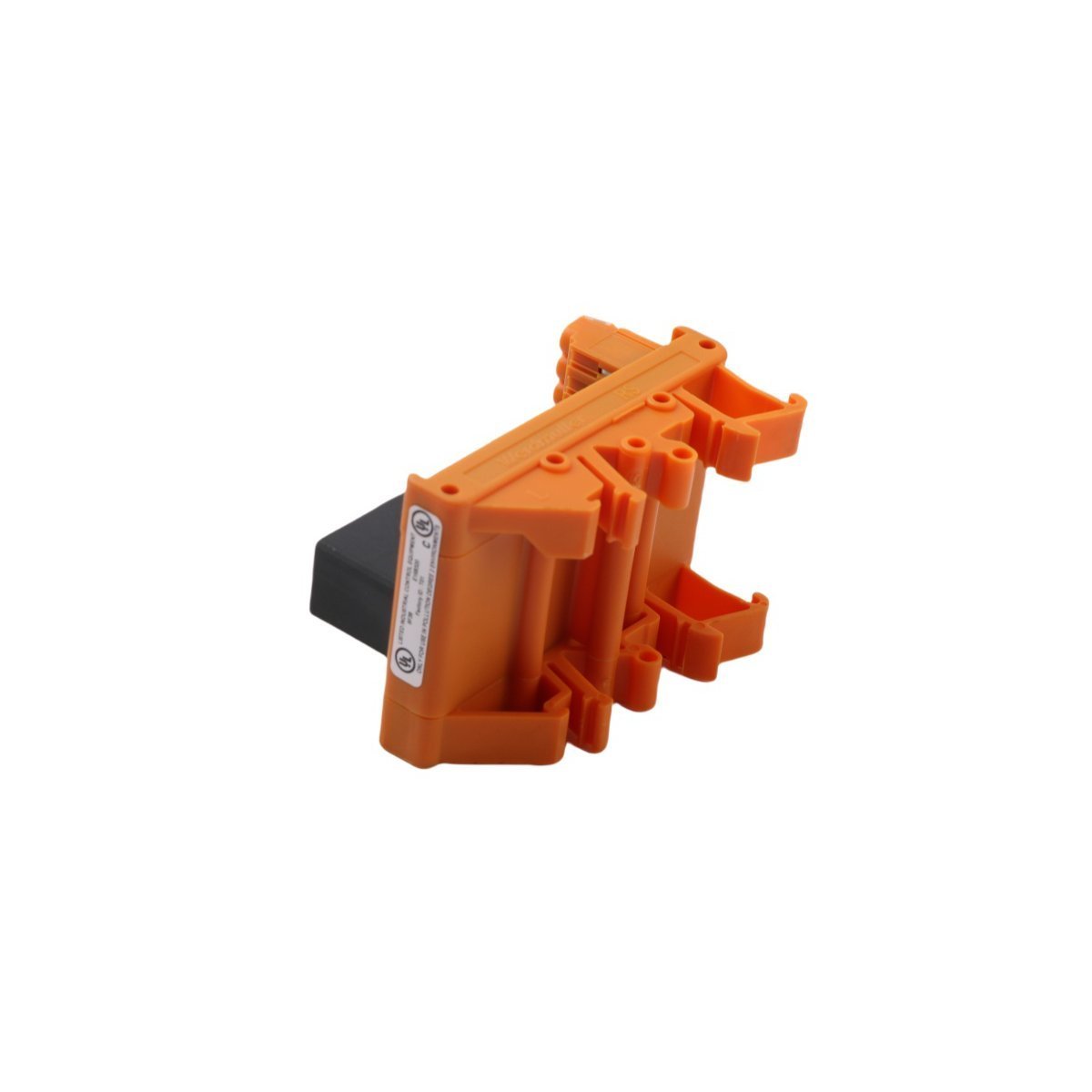

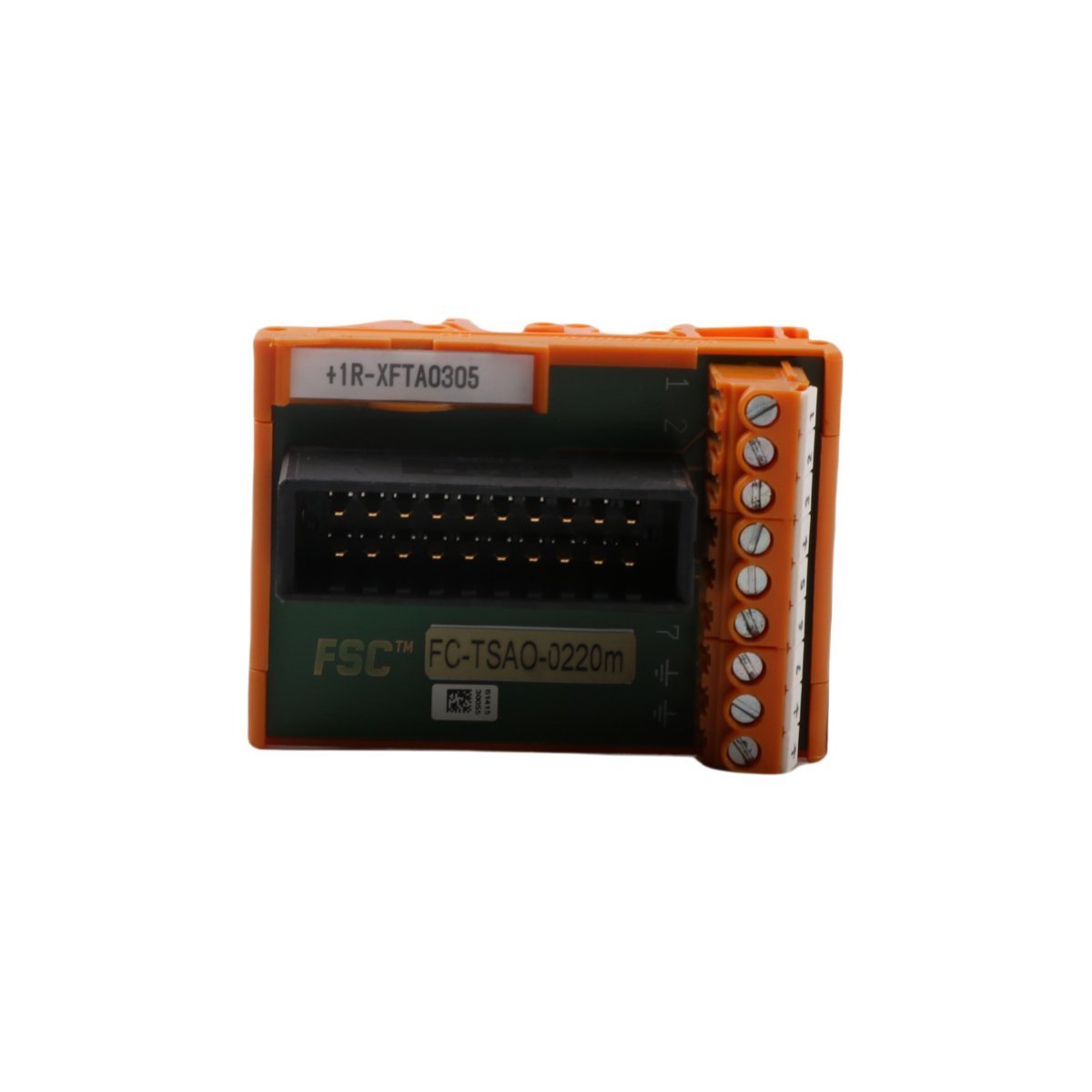

Honeywell FC-TSAOH-0220M Safe Analog Output Module

The FC-TSAOH-0220M functions as a dedicated safety-certified output interface for the Honeywell C300 controller system. This dual-channel module specifically manages critical final control elements in hazardous process zones. Because it provides high-precision 4-20mA signals, it ensures accurate valve positioning and drive control. The hardware maintains a remarkable ±0.1% output accuracy to support tight process tolerances. Furthermore, it complies with SIL 2 safety standards for use in emergency shutdown applications. Consequently, the module delivers the reliability required for the most demanding industrial safety loops.

Integrated HART Communication and Diagnostics

This module distinguishes itself by supporting bidirectional HART digital communication over standard analog wiring. This feature allows operators to perform remote field device configuration and secondary variable monitoring. Since it transmits diagnostic data in real-time, the hardware identifies circuit faults before they impact production. The built-in circuitry detects open loops, short circuits, and ground leakage conditions automatically. Moreover, the hot-swappable design permits hardware replacement without interrupting active process control. This combination of communication and protection significantly reduces plant maintenance costs.

Ruggedized Design for Industrial Environments

Honeywell engineered the FC-TSAOH-0220M to withstand the harsh electrical noise of power plants and refineries. The module includes robust protection against reverse polarity and transient overvoltage events. Because of its compact footprint, it optimizes available space within high-density DCS cabinets. The internal components operate efficiently to minimize heat dissipation during continuous high-load service. Furthermore, the specialized Field Termination Assembly (FTA) interface simplifies field wiring and reduces installation errors. Therefore, the module serves as a durable link between the digital controller and mechanical field assets.

Technical Specifications
