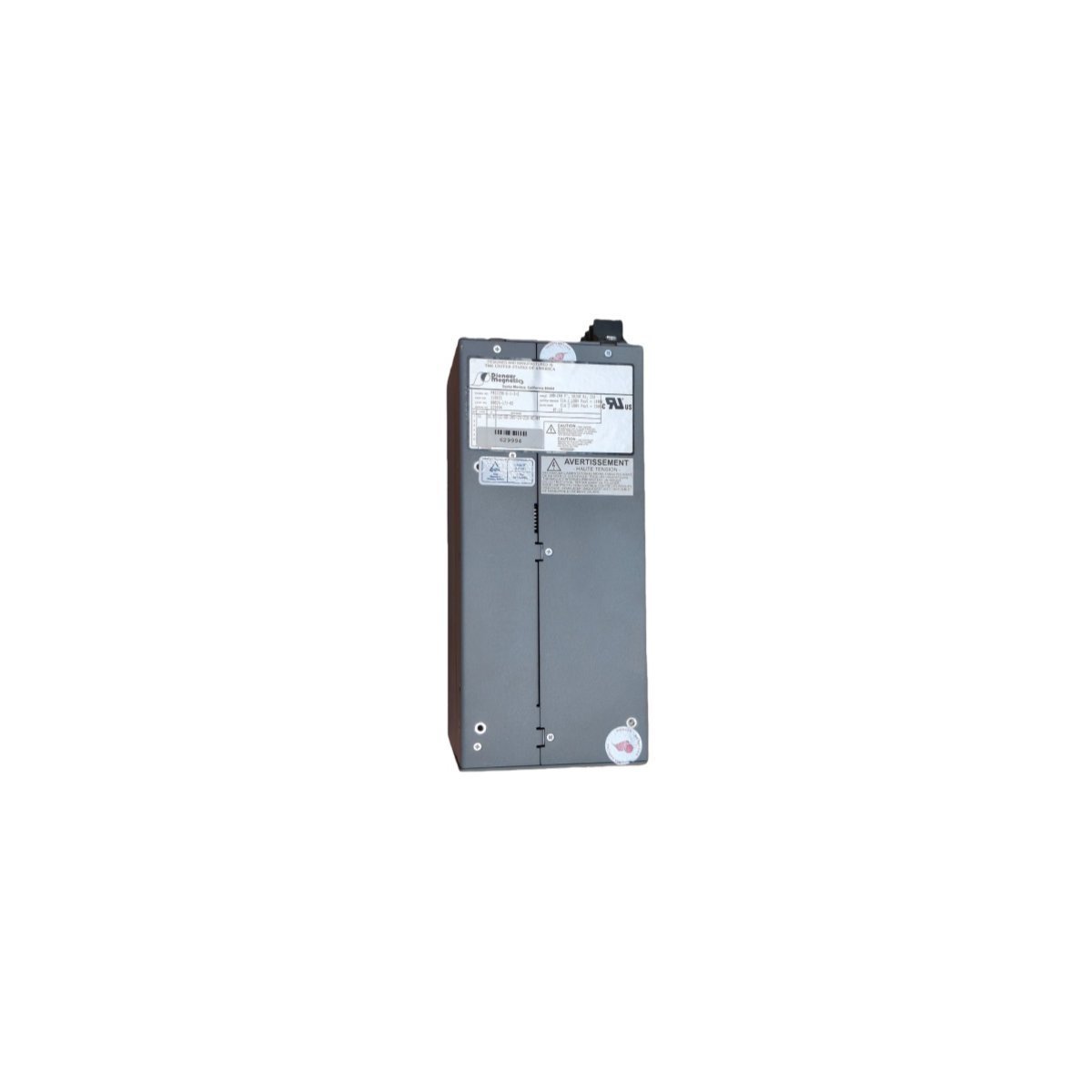

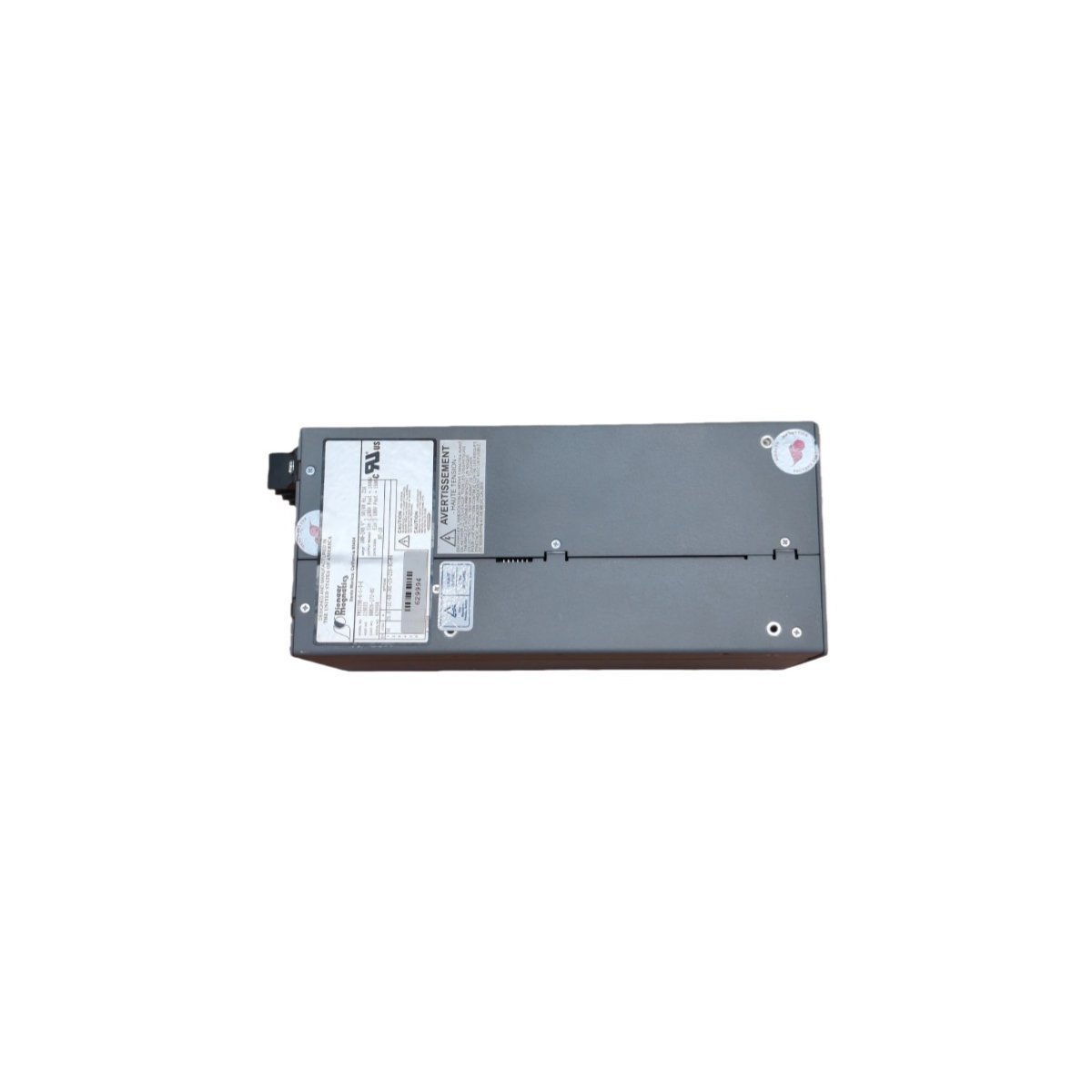

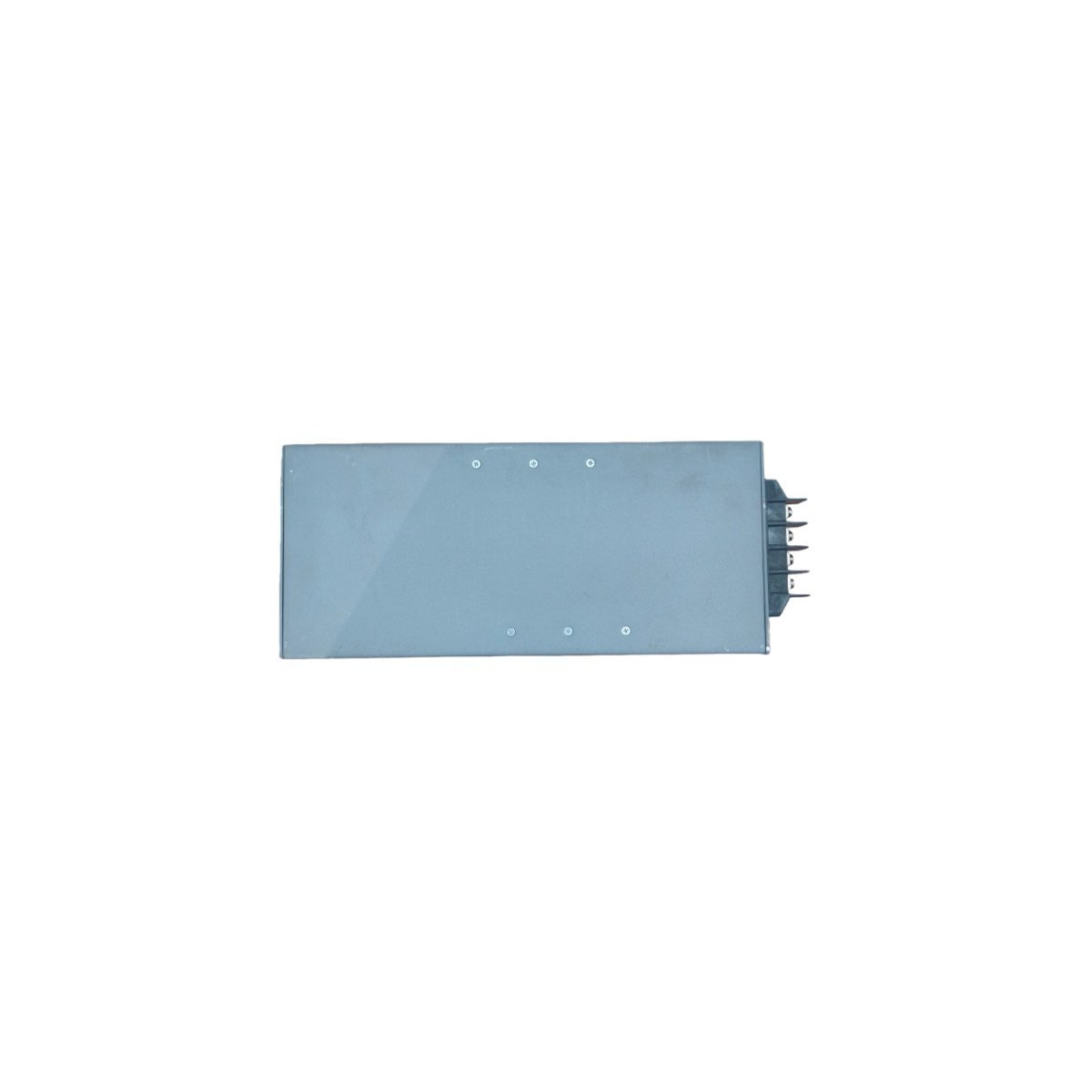

The Allen-Bradley PM3328B-6-1-3-E (Part Number 80026-524-01) is a specialized industrial power conversion module designed to provide regulated DC power within the PowerFlex 7000 Medium Voltage AC Drive ecosystem. This module acts as a critical power infrastructure component, ensuring that the control circuitry and sensitive electronics of the drive system receive stable, noise-free electricity. By converting single-phase AC input into a consistent DC output, the module protects the drive from line fluctuations that could otherwise cause system trips or hardware damage.
Technical Specifications and Operating Parameters
This power supply is engineered for high-demand industrial environments, balancing a high power-to-size ratio with robust thermal resilience.
- Input Voltage Range: 100V to 240V AC (Single-Phase)
- Input Frequency: 50/60 Hz
- Rated Output Voltage: 24V DC
- Current Capacity: 8A to 12A continuous output; 23A peak handling
- Total Power Capacity: 1500 Watts (Maximum System Support)
- Operating Temperature: -25°C to +70°C (-13°F to +158°F)
- Physical Weight: 5.9 kg (Shipping Weight); 4.46 kg (Net Weight)
- Dimensions: 12.5 x 25 x 27.5 cm
Application Use Cases
- Oil and gas pumping stations
- Mining and material handling conveyors
- Water treatment and large-scale irrigation systems
- Chemical processing and refinery drive lineups
