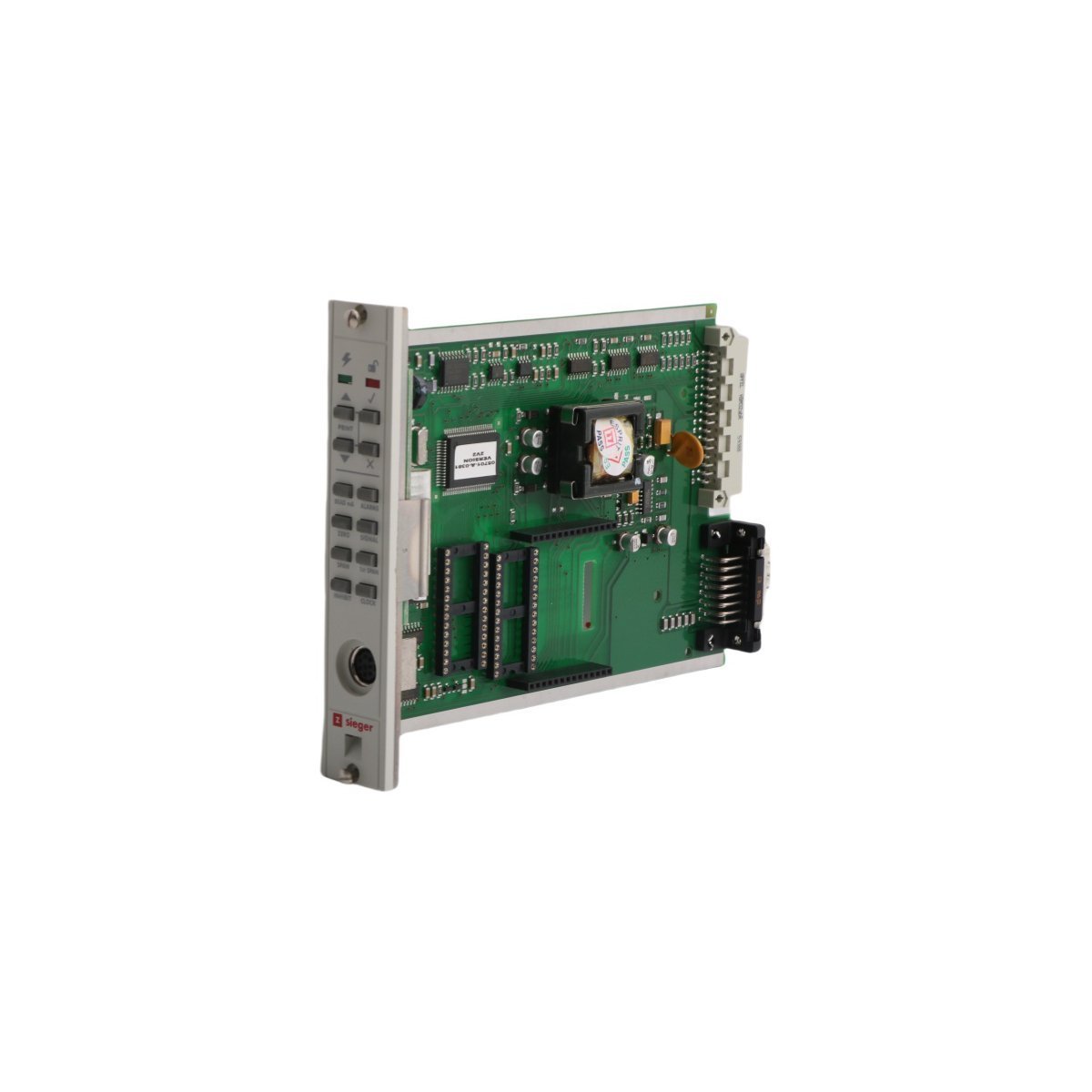

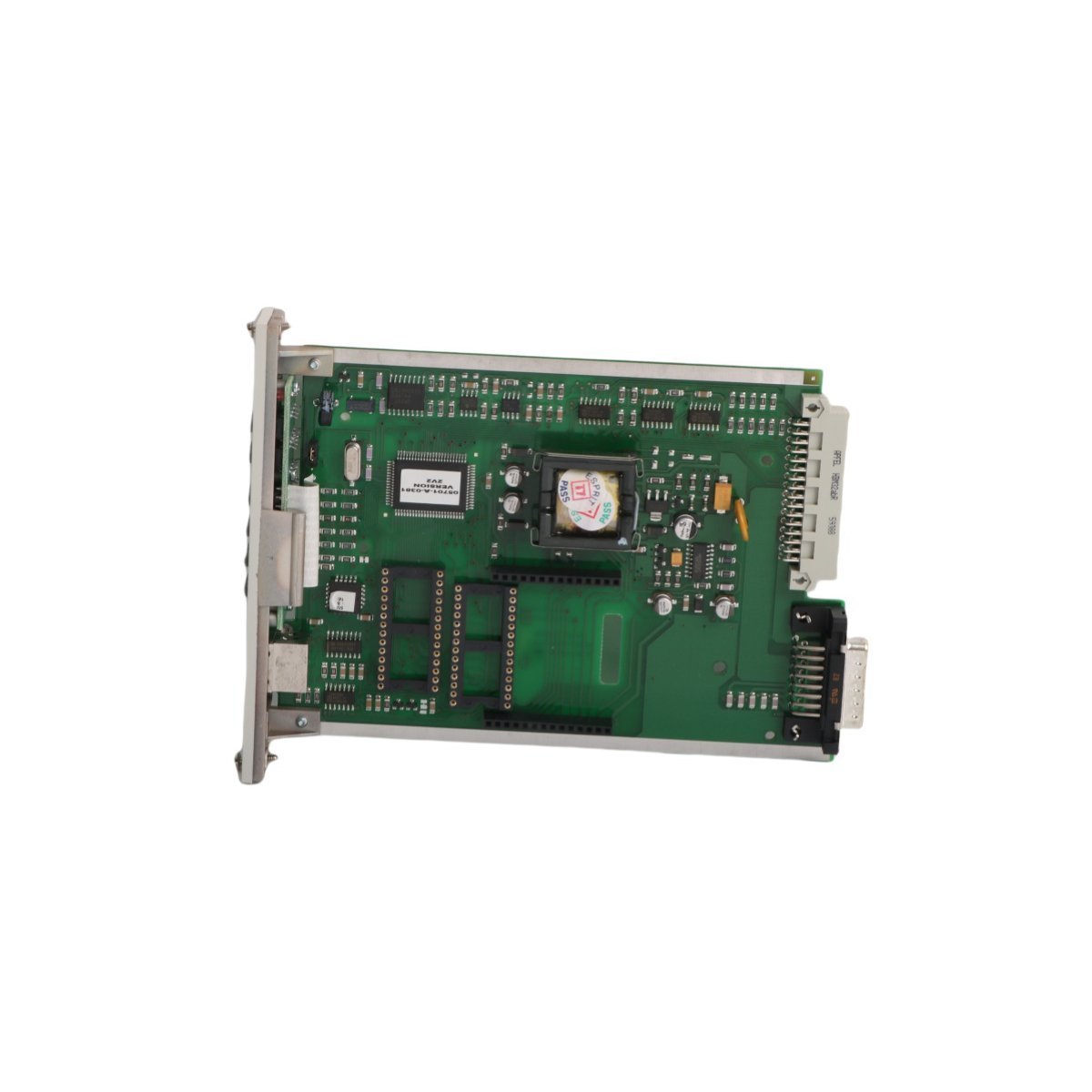

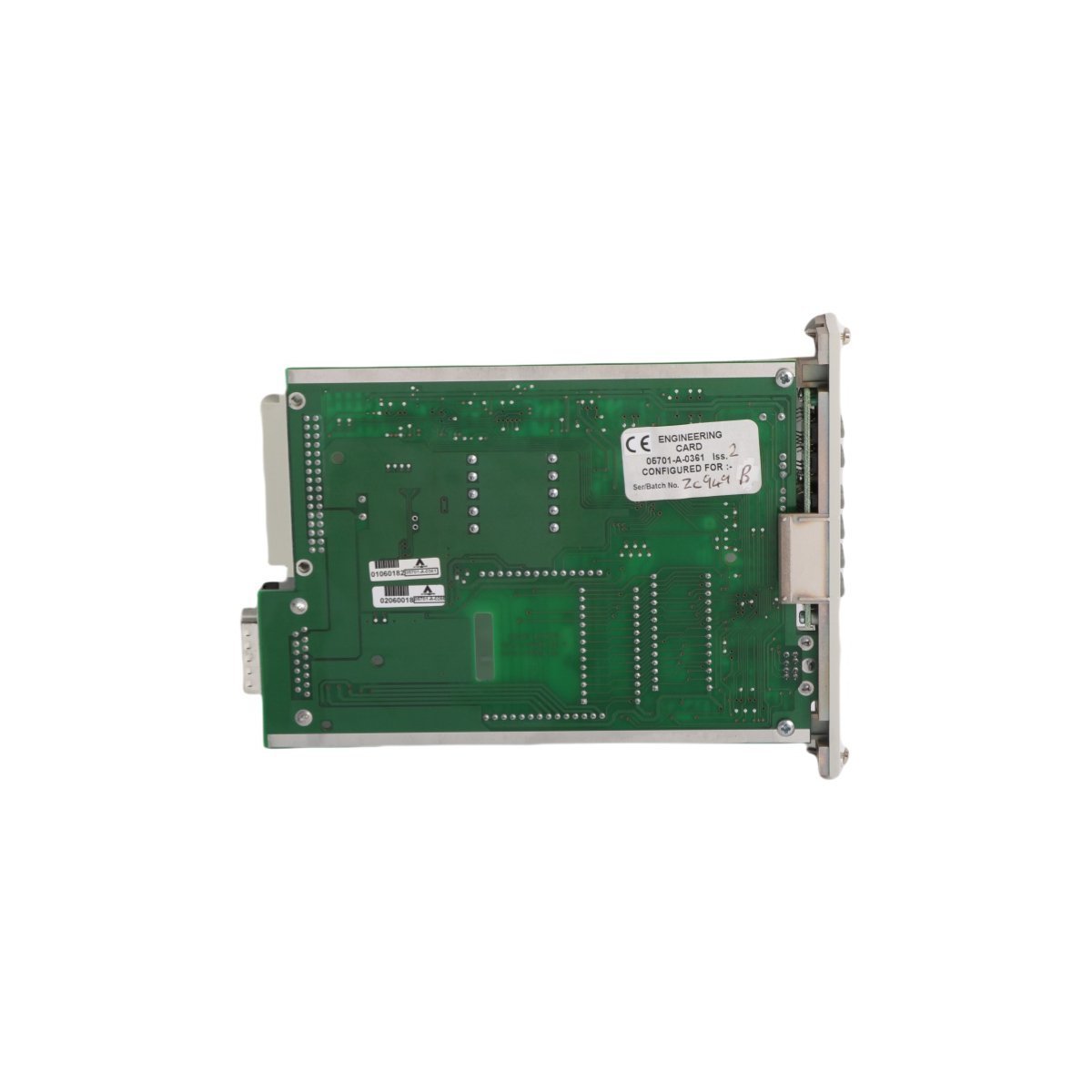

Honeywell 05701-A-0361 Experion PKS Analytics Engineering Card

Honeywell 05701-A-0361 Experion PKS Analytics Engineering Card

Configured for high-integrity signal processing and system telemetry within Experion PKS DCS networks, the Honeywell 05701-A-0361 (05701-A-0361 Analytics Engineering Card) provides direct physical and electrical execution of dedicated control routines. The hardware interfaces directly with backplane buses to process critical process variable data, maintaining deterministic data delivery across field instrumentation loops. Engineers integrate this card into standard rack assemblies, where it manages channel-to-channel communication paths and processes field-side inputs without interrupting ongoing subsystem operations.

Hardware Specifications

Process Control & Loop Processing Features

The Honeywell 05701-A-0361 executes real-time process monitoring protocols while utilizing galvanically isolated input/output channels to maintain total signal integrity across process control loops. The internal architecture features dedicated cold junction compensation (CJC) circuits and supports standard 4-20 mA HART loop protocol translation directly over the backplane. This design isolates analog field signals from transient voltage spikes, prevents ground loop interference, and ensures sub-millisecond data refresh rates between field transmitters and primary DCS controllers.

Frequently Asked Questions

Q: How does the module handle signal conditioning for 4-20 mA HART loops?

A: Internal hardware filters isolate field analog signals from high-voltage transients while dedicated onboard converters transform loop current readings into digital values for the Experion PKS backplane.

Q: Can maintenance personnel perform hot-swapping operations on this card during active controller operation?

A: Field technicians can safely execute hot-swap procedures by releasing the module retaining screws, sliding the card from the backplane slot, and inserting a replacement unit without interrupting backplane power to adjacent I/O modules.

Field Installation Guidelines

Engineers must verify that all supply power to the target rack remains isolated or confirm that hot-swap safety protocols are active prior to inserting the Honeywell 05701-A-0361 card into the chassis slot. Technicians should align the card edges carefully with the rack guide rails and push the module firmly until the rear connector seats completely into the backplane interface.

Field personnel must secure all retaining hardware to ensure continuous grounding through the rack framework. Wire installation requires shielded twisted-pair cabling for all analog signal paths, and installers must terminate cable shields at a single dedicated earth ground point to prevent ground loop noise. Installers should maintain a minimum engagement of 5 full threads on conduit fittings and route high-voltage power leads separately from low-voltage signal wiring to eliminate electromagnetic coupling.
