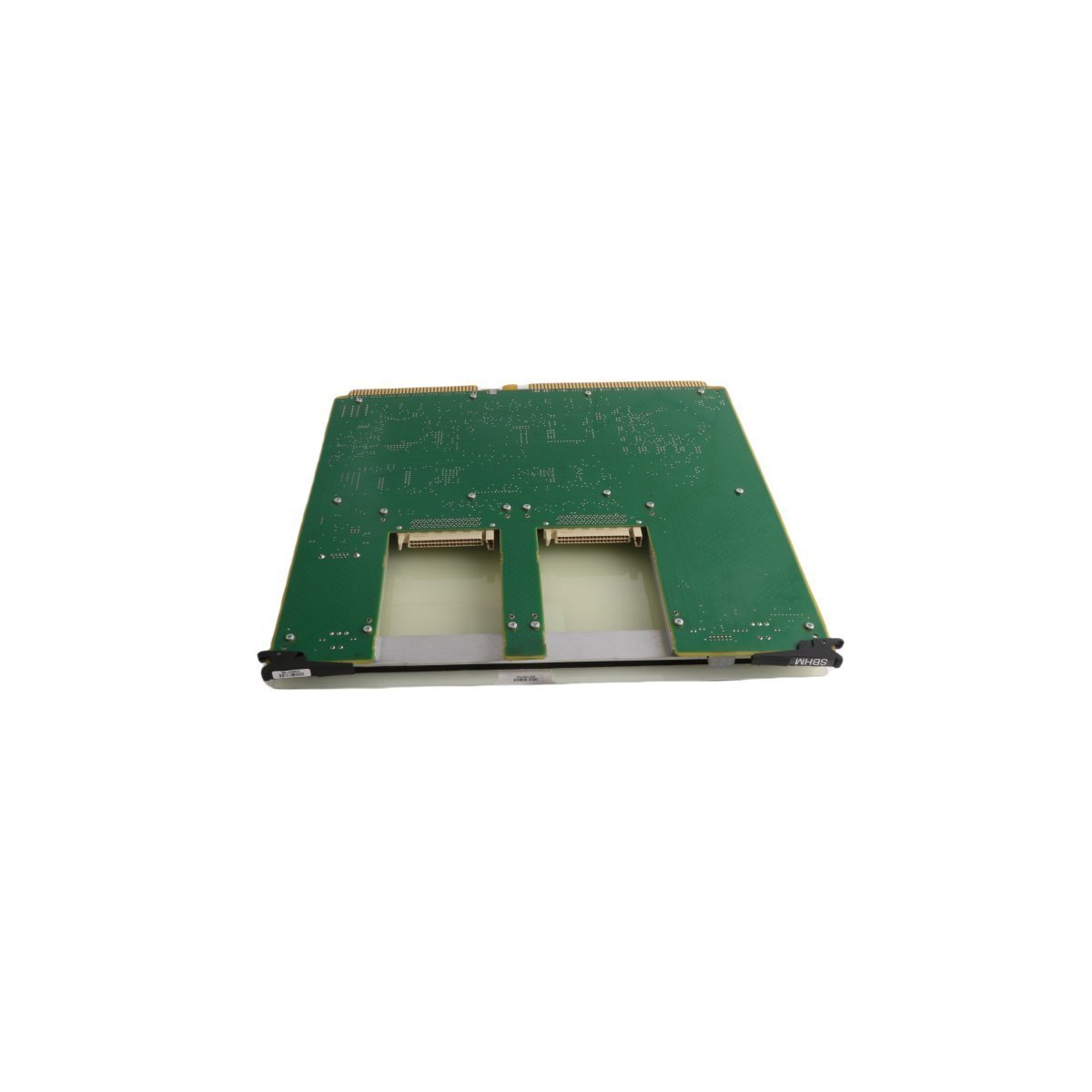

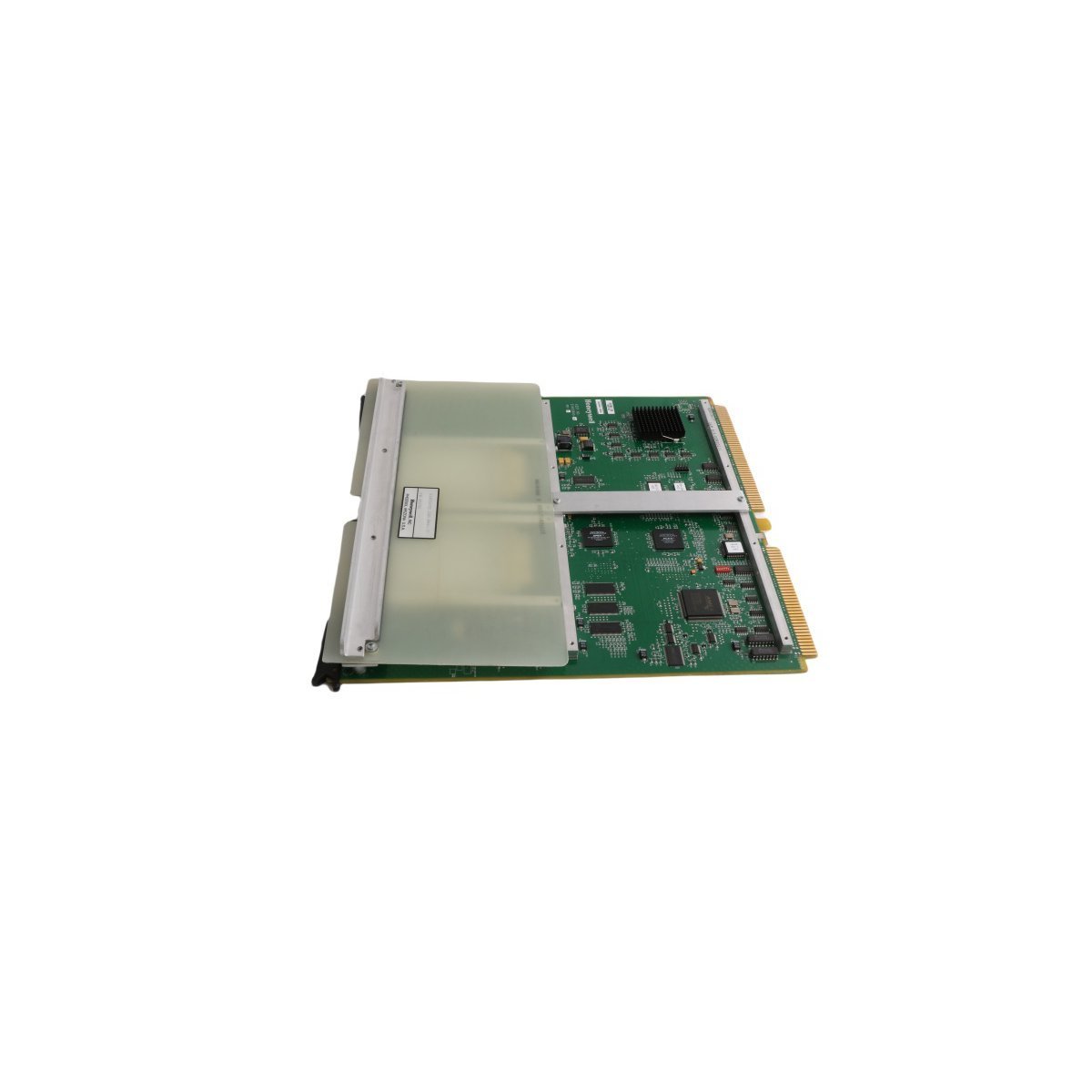

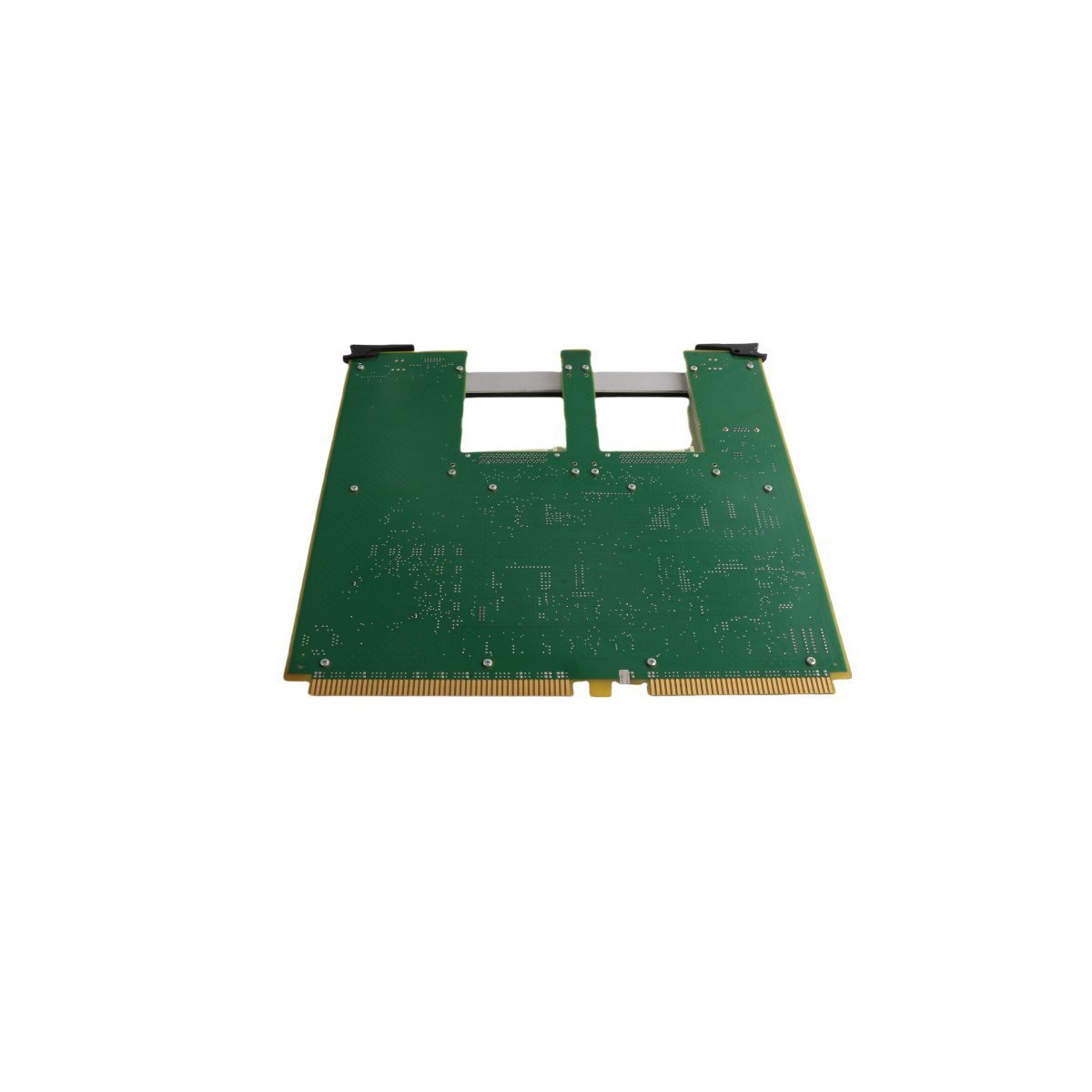

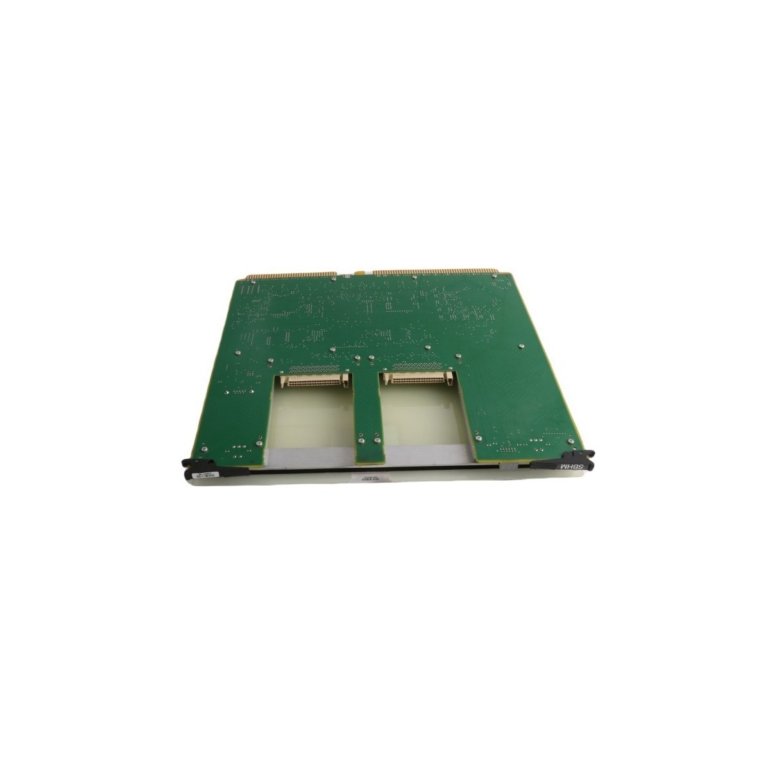

51403645-400 Honeywell Series 8 Single Board History Module

Honeywell 51403645-400 Series 8 Single Board History Module

The Honeywell 51403645-400, also cataloged as the 51403645-400 Single Board History Module, operates as a dedicated hardware component for historical process data logging and signal routing within Experion PKS Series 8 DCS platforms. Field operators rely on this board to archive high-speed trend records and process alarms directly from C300 controllers across backplane buses. Consequently, the card maintains continuous telemetry logs, while internal buffer microprocessors prevent data loss during network disruptions or controller failover sequences.

Hardware Specifications

Process Control & Loop Processing Features

This module executes real-time data archiving for process control loops while maintaining channel-to-channel isolation across backplane routing channels. Furthermore, the internal memory circuit manages 4-20 mA HART loop protocol information alongside FOUNDATION Fieldbus field device parameters without degrading network throughput. Integrated cold junction compensation (CJC) algorithms normalize thermocouple inputs across remote terminal assemblies; thus, system engineers achieve precise temperature trend monitoring without additional signal conditioning hardware.

Frequently Asked Questions

Q: How does the module handle backplane bus power consumption and thermal dissipation during continuous logging?

A: The board draws approximately 4.5 W directly from the chassis power supply, while onboard thermal pathways conduct heat outward to maintain stable memory bus speeds under maximum continuous write operations.

Q: Can technicians replace the module while the underlying controller backplane remains energized?

A: Maintenance personnel can perform hot-swapping operations provided that the redundant partner module actively maintains the historian buffer and technicians follow standard ESD grounding steps before seating the replacement card.

Q: What mechanisms prevent ground loops across connected field instrument loops?

A: Internal galvanic isolation barriers decouple logic-side memory buses from field-side transmitter networks, and onboard filters eliminate high-frequency common-mode noise before processing digital telemetry.

Field Installation Guidelines

Installers must verify power status and connect an ESD grounding strap before touching the Honeywell 51403645-400 hardware. Align the board edges with the enclosure card guides, push the module firmly until rear connectors mate completely with the backplane, and tighten all retaining screws to establish frame grounding.

Field wire routing requires shielded twisted-pair cables for all communication channels. Installers must terminate shielding drain wires at a single point near the earth ground bus bar, and they must maintain a minimum engagement of 5 full threads on metal conduit fittings. Finally, separate signal wiring from high-voltage AC cables by maintaining specified duct spacing to avoid electromagnetic interference.
