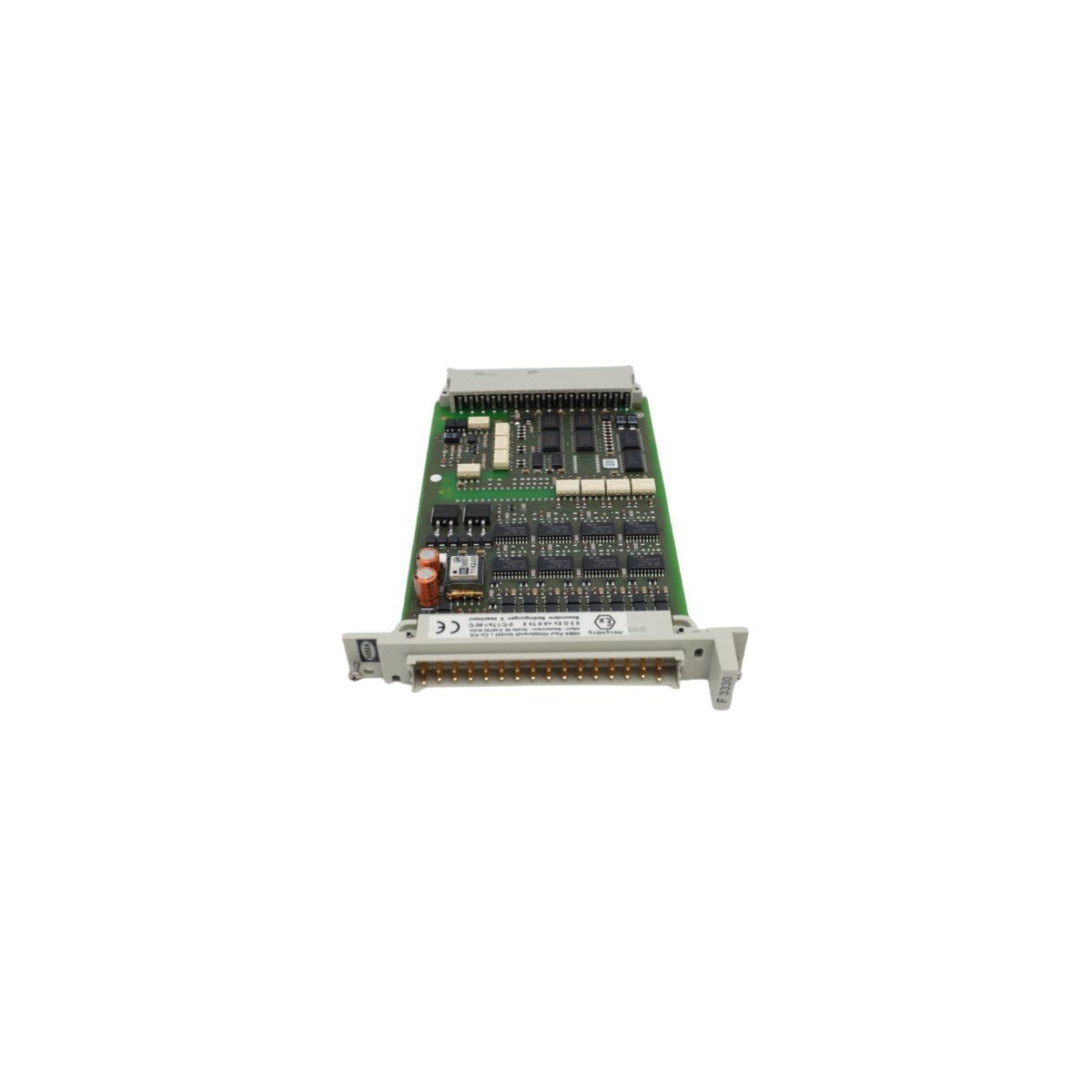

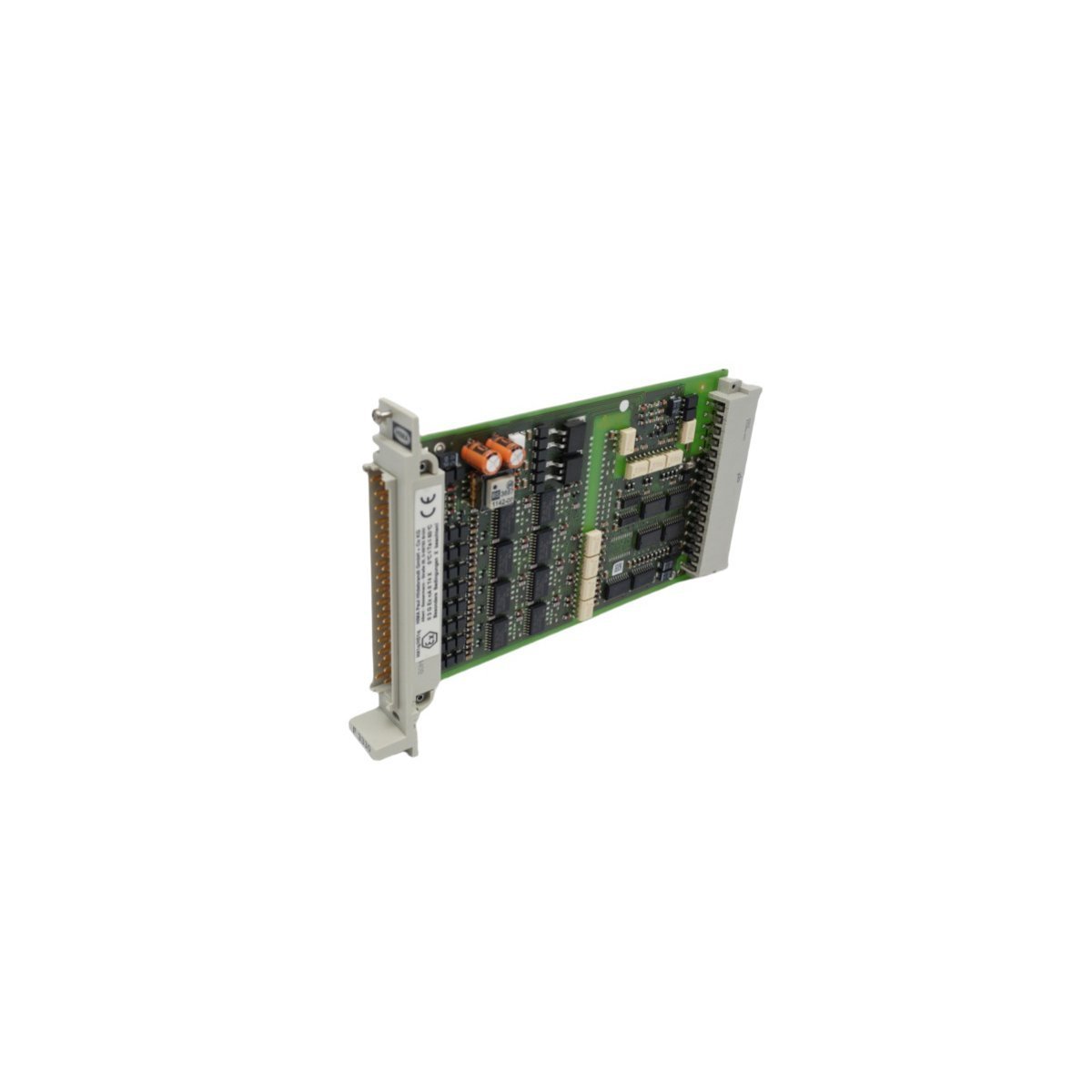

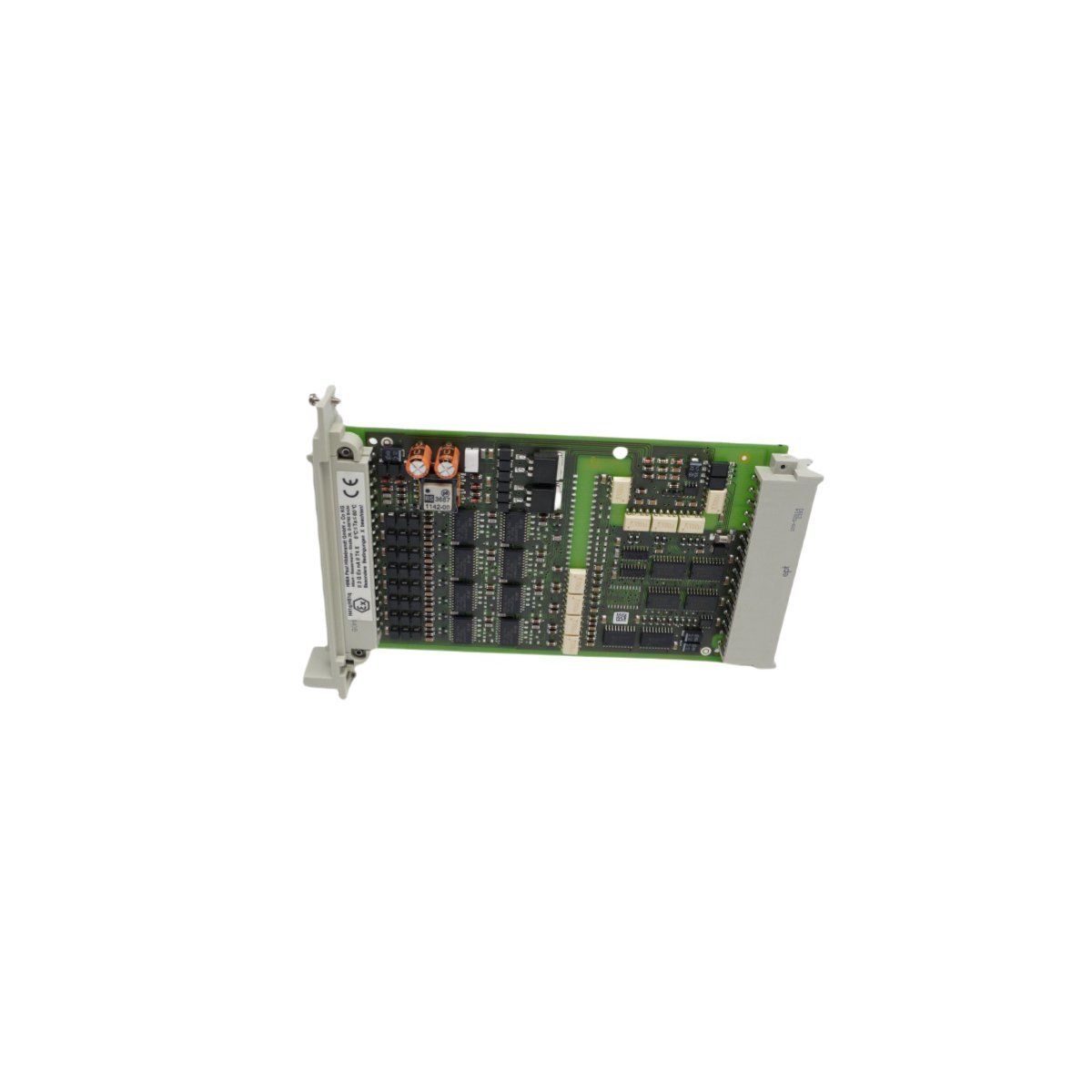

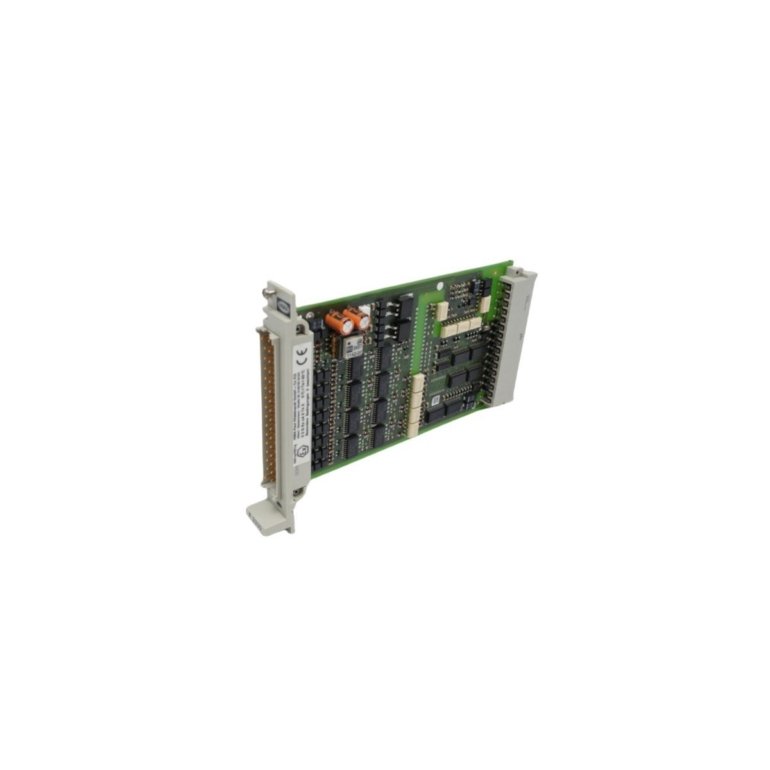

HIMA F3330 8-Channel Output Module

The HIMA F3330 is a high-integrity digital output module designed for safety-instrumented systems (SIS). This German-engineered component provides eight independent channels for controlling actuators, valves, and relays in critical industrial environments. It functions within the H41q and H51q system architectures to execute safety-related commands. Because HIMA prioritizes fail-safe operation, this module ensures that industrial processes remain under control during emergency events. It effectively manages energy distribution to field devices while maintaining strict electrical isolation between internal logic and external loads.

Technical Specifications and Hardware Data

Core Functional Characteristics

This 8-fold output module offers exceptional versatility for complex automation scenarios. It features low internal voltage drop to minimize power dissipation across the circuit board. Consequently, the module operates efficiently under full load conditions without excessive heat buildup. The integrated circuitry monitors output status and provides feedback to the central processing unit. Therefore, the control system can detect line faults or actuator failures in real-time. This proactive monitoring approach significantly enhances the overall diagnostic coverage of the Distributed Control System (DCS).

Integrated Safety and Protection Mechanisms

Safety remains the foundational element of the F3330 hardware architecture. The module includes specialized undervoltage tripping capabilities to prevent unpredictable behavior during power fluctuations. If the supply voltage falls below a safe threshold, the module triggers a controlled shutdown of its outputs. This mechanism protects connected field equipment from damage caused by brownouts. Furthermore, the robust construction allows the module to withstand significant vibrations and electromagnetic interference. These features ensure system integrity remains intact within harsh chemical or power plant environments.
