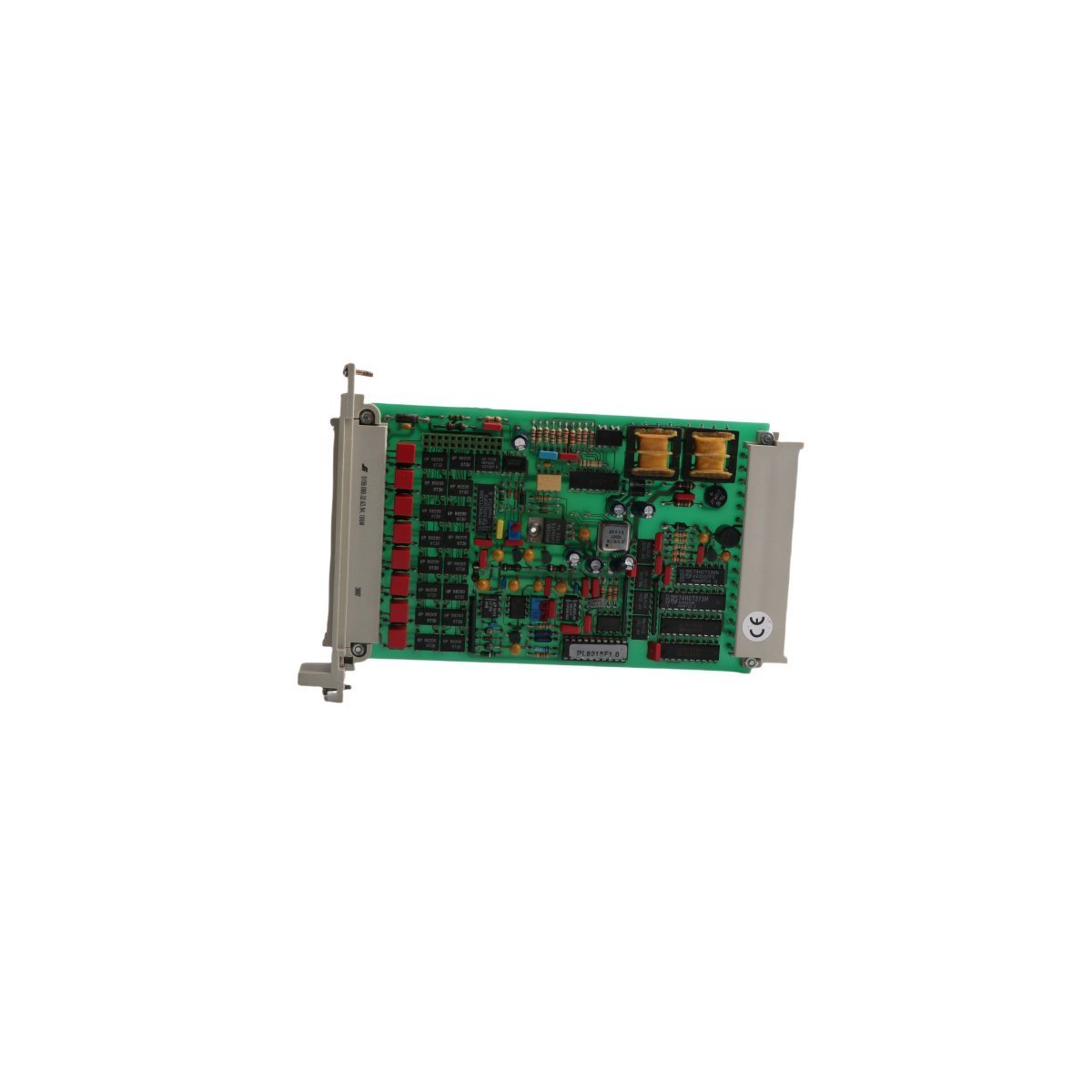

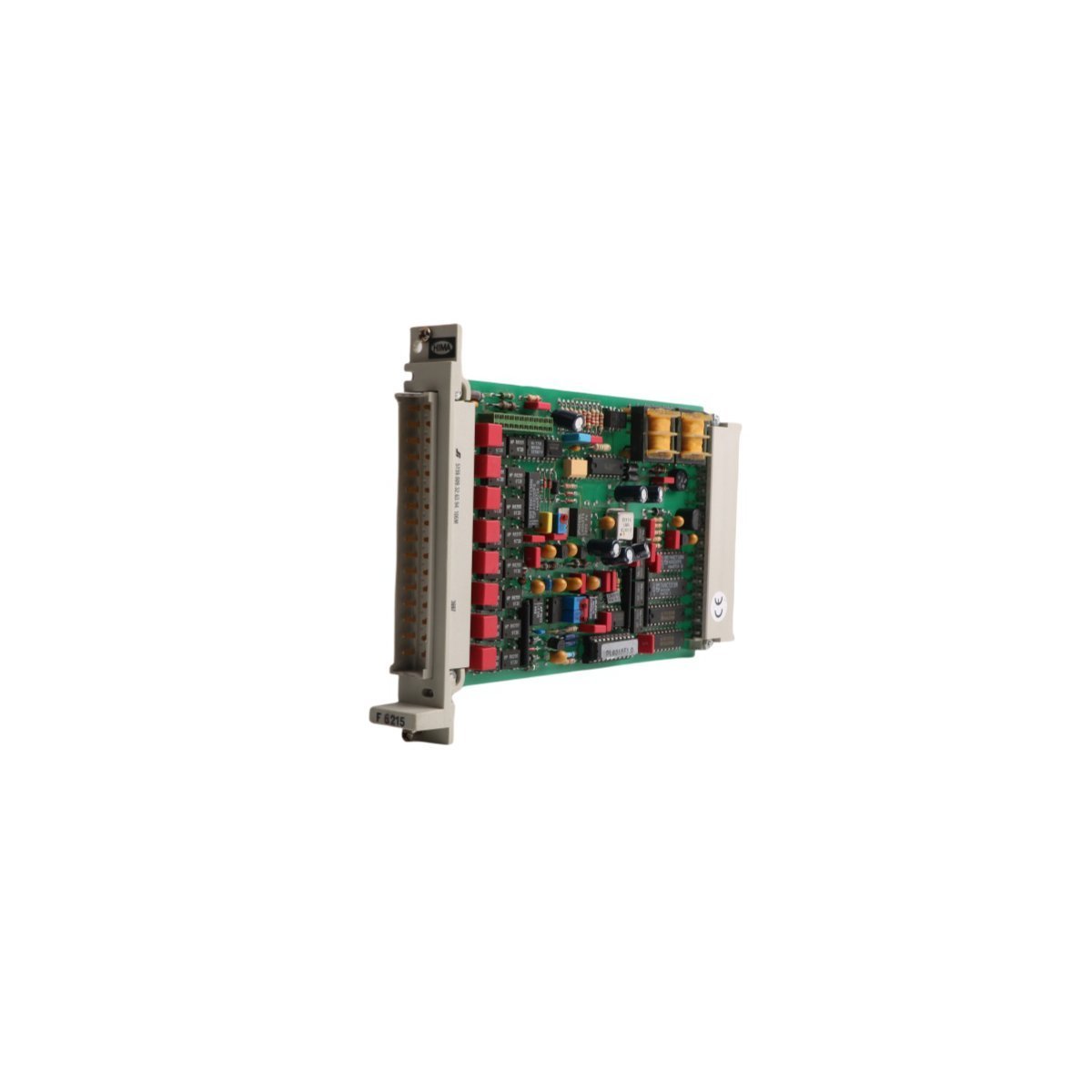

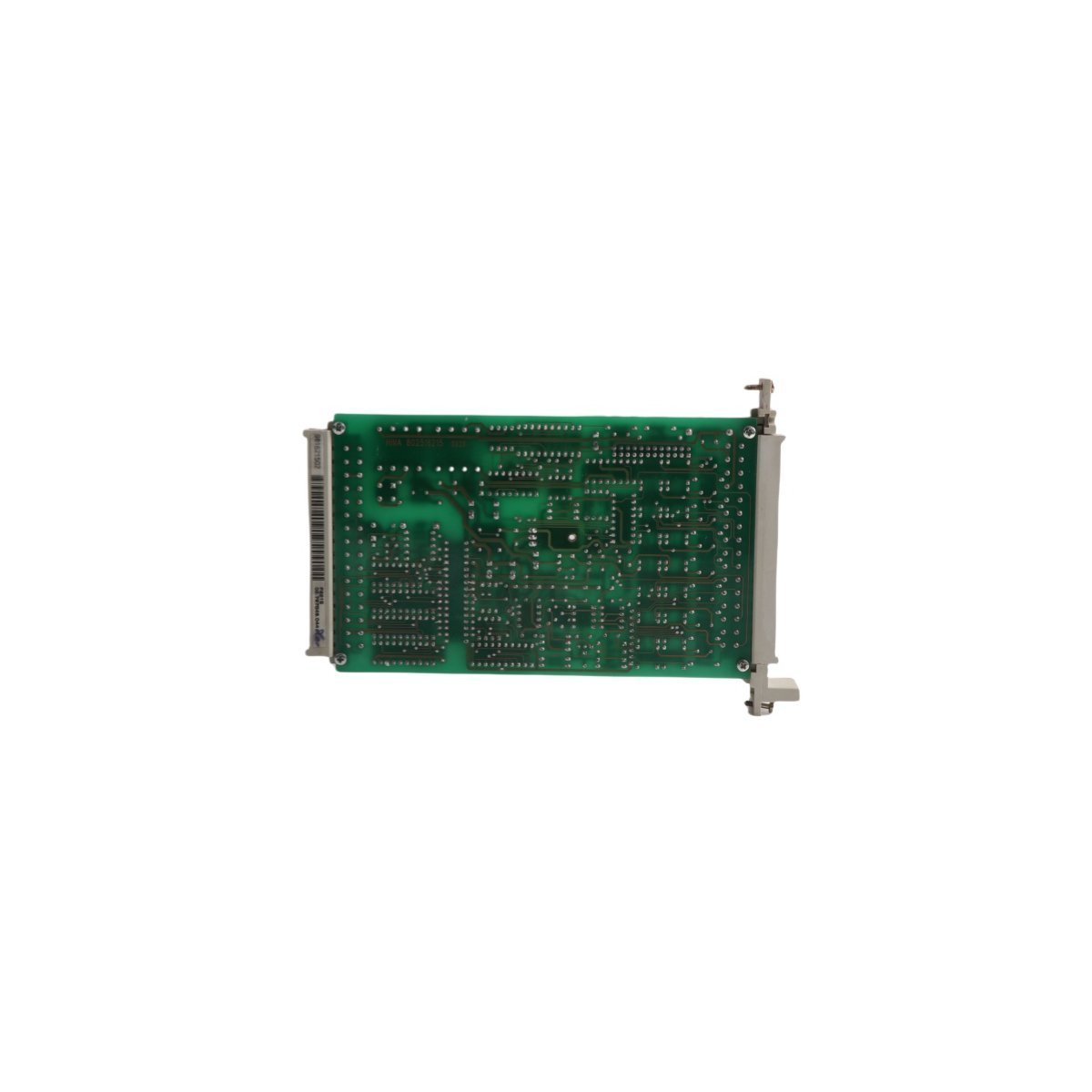

The HIMA F6215 is a high-reliability 4-channel analog input module specifically engineered for the HIQuad H41q and H51q safety controller series. This module serves as a critical link in industrial safety instrumented systems (SIS), converting analog signals from field instrumentation into high-resolution digital data. Designed to meet rigorous functional safety requirements, the F6215 ensures that process variables are monitored with extreme precision, facilitating safe shutdowns or regulatory control actions when thresholds are breached.
Installation and System Integration
The F6215 features a compact, space-saving form factor that allows for high-density I/O configurations within a standard HIMA subrack. The module supports seamless backplane integration, allowing the central CPU to perform real-time diagnostics on each channel. This connectivity enables the detection of open circuits or short circuits in the field wiring, further enhancing the diagnostic coverage of the overall safety system.
Technical Specifications
| Parameter | Description |
| Manufacturer | HIMA |
| Model Number | F6215 |
| Channels | 4 Analog Inputs |
| A/D Resolution | 12-Bit |
| Standard Range | 0/4 to 20 mA |
| Operating Temperature | -20°C to +70°C |
| System Series | HIQuad (H41q/H51q) |
| Weight | 0.2 kg |
| Dimensions | 2.0 x 19.0 x 12.8 cm |
