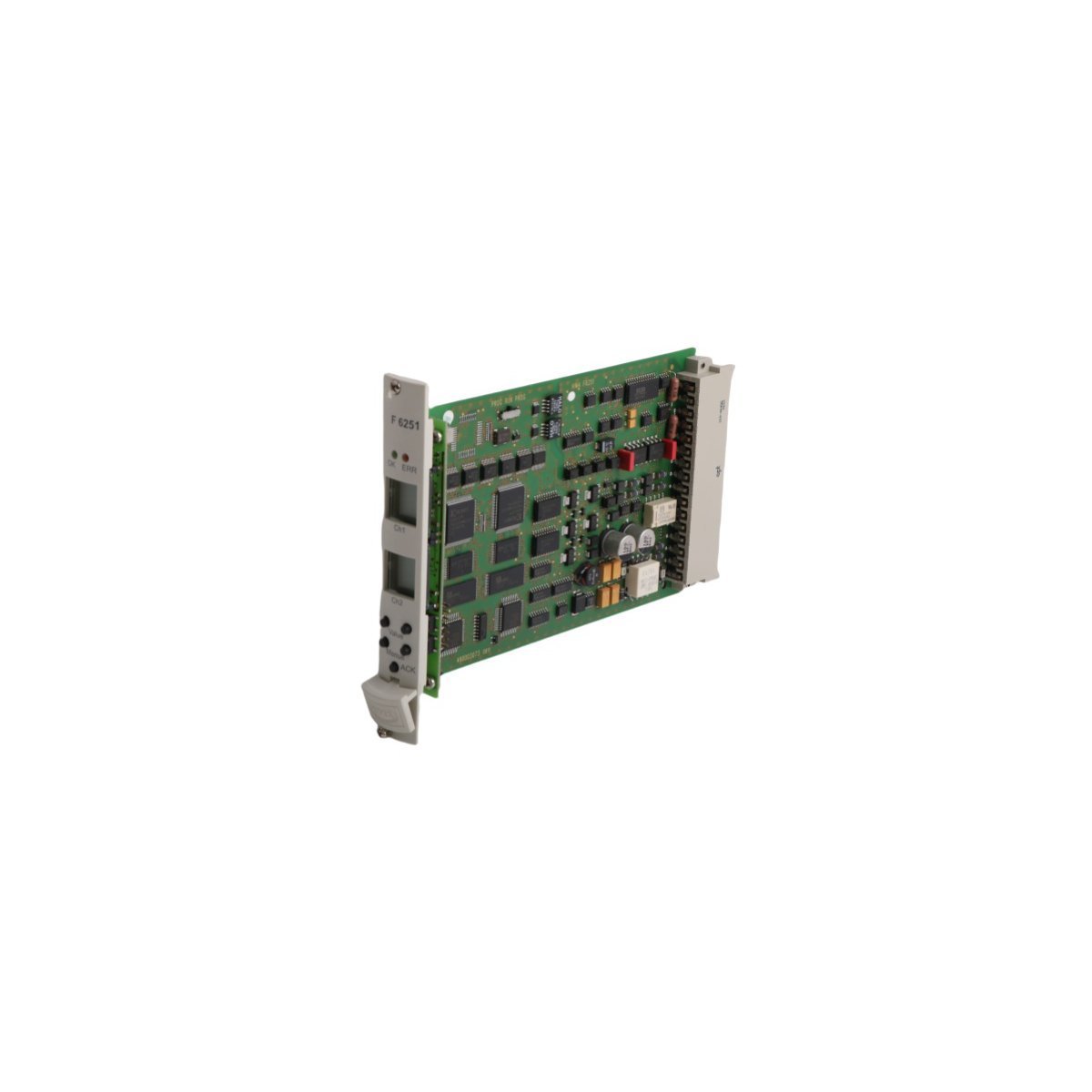

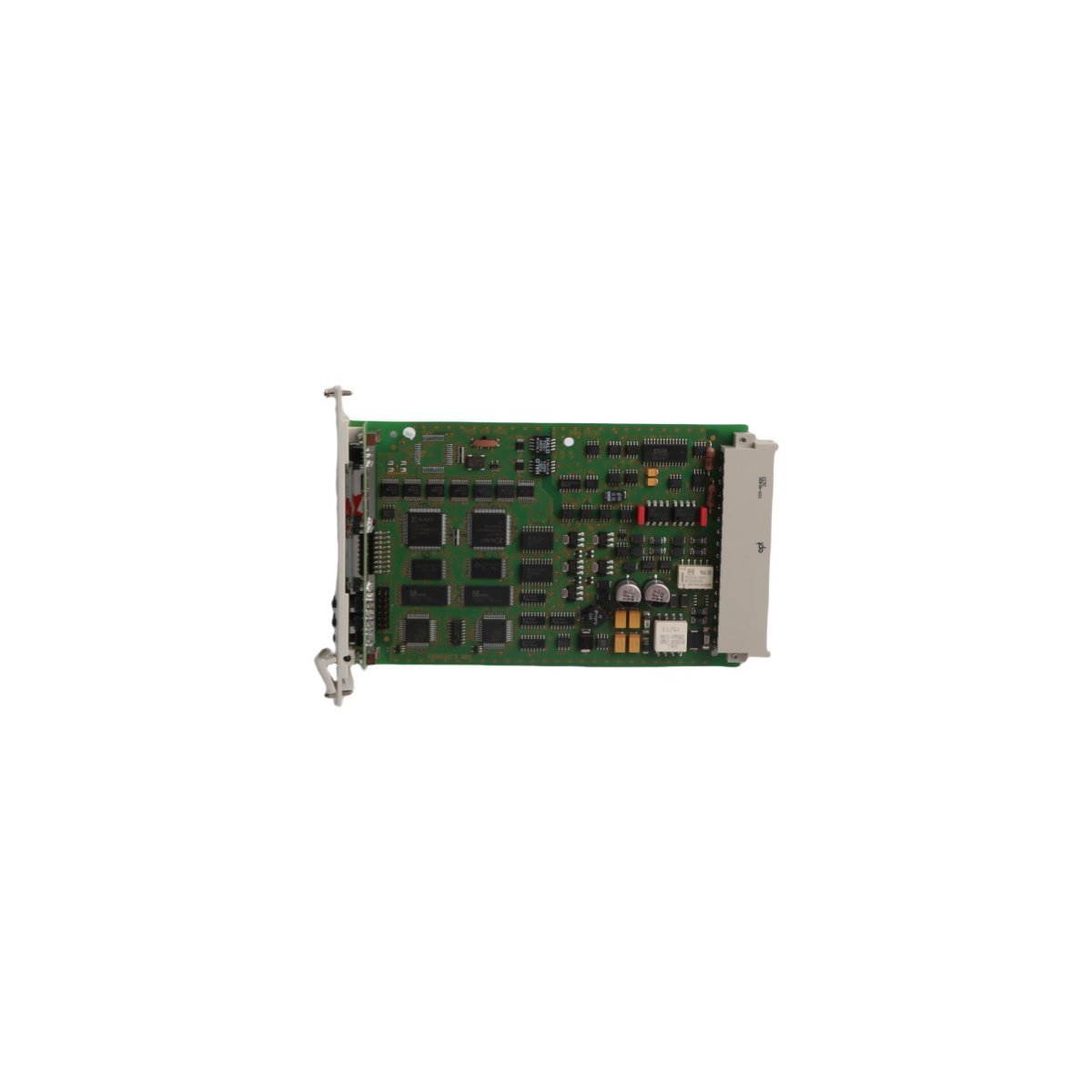

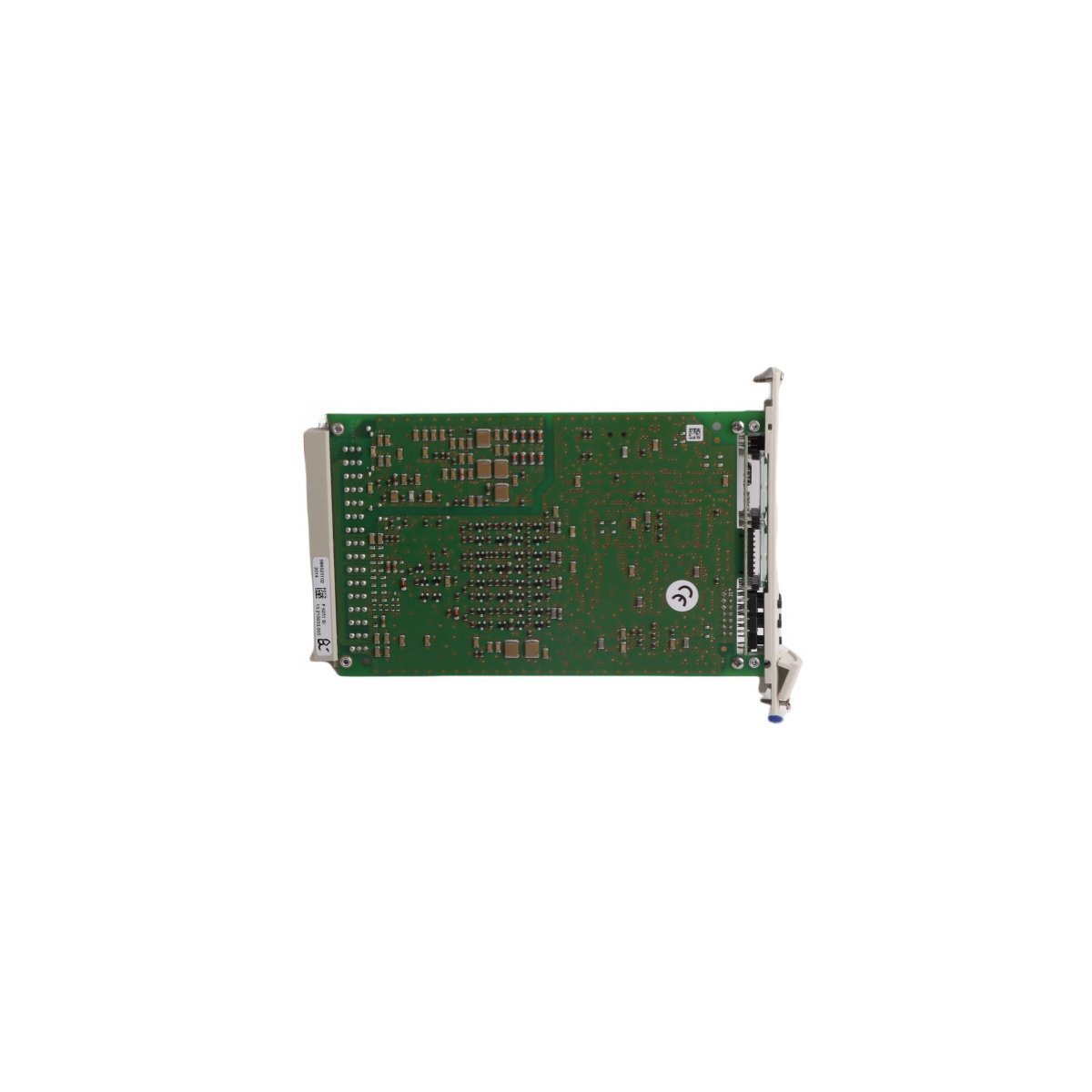

F6251 HIMA Industrial Computer Automation Accessory PC Board

Product Overview

The HIMA F6251 operates as a high-precision safety-related limit monitor designed for the H41q and H51q control architectures. This module facilitates real-time oversight of industrial processes by providing accurate signal processing and configurable alarm thresholds to mitigate operational risks.

Technical Specifications

Functional Characteristics

The F6251 module executes advanced digital signal processing to ensure rapid identification of safety-critical deviations. By offering a fully adjustable monitoring span from 0% to 100%, the unit accommodates diverse process variables and sensor inputs. The integrated logic circuits prioritize low energy draw, consuming less than 1W of power, which minimizes the thermal load within the system cabinet.

In addition to monitoring, the F6251 features a highly configurable alarm system. This system allows for proactive safety management by providing continuous signal supervision and immediate fault detection. Consequently, the module prevents potential equipment failures and reduces unplanned downtime in complex Distributed Control Systems (DCS).

Application and Integration

HIMA engineered the F6251 specifically for high-availability environments such as chemical processing, oil and gas, and power generation. The compact PC board design enables seamless insertion into existing H41q or H51q racks. Because the module adheres to SIL 2 safety standards, it provides a verified layer of protection for both personnel and high-value industrial assets. Furthermore, the robust hardware construction ensures signal stability across a wide temperature range from –25°C to +60°C.

Engineering Advantages

• Optimized Safety Compliance: Meets stringent international safety regulations with SIL 2 certification.
• Precision Signal Control: Delivers fine-tuned limit monitoring for critical process loops.
• Efficient Power Management: Enhances system longevity through minimal heat dissipation.
• Reliable German Engineering: Utilizes high-grade components to maintain performance in harsh industrial climates.

FAQs

How does the F6251 improve plant safety?

The F6251 identifies when process variables exceed safe thresholds. By triggering immediate alarms or safety shutdowns, it prevents hazardous conditions before they escalate.

Is this module compatible with modern Ethernet architectures?

Yes, the F6251 supports integration into systems utilizing Ethernet routers for communication, allowing safety data to be transmitted across the automation network for centralized monitoring.

What maintenance is required for the F6251 PC board?

The module requires minimal maintenance due to its solid-state design. Periodic diagnostic checks through the HIMA software suite ensure the alarm configurations and signal accuracy remain within specified tolerances.
