General electric IS200IGPAG2AED Gate Drive Power Supply Board

The GE IS200IGPAG2AED serves as a specialized power distribution module within the Mark VIe and EX2100 systems. This Gate Drive Power Supply board provides the necessary electrical potential for switching high-power semiconductors. It features a sophisticated dual-sided layout that optimizes both component density and thermal performance. This unit ensures stable voltage delivery for critical excitation control and industrial drive applications.

Component Architecture and Thermal Design

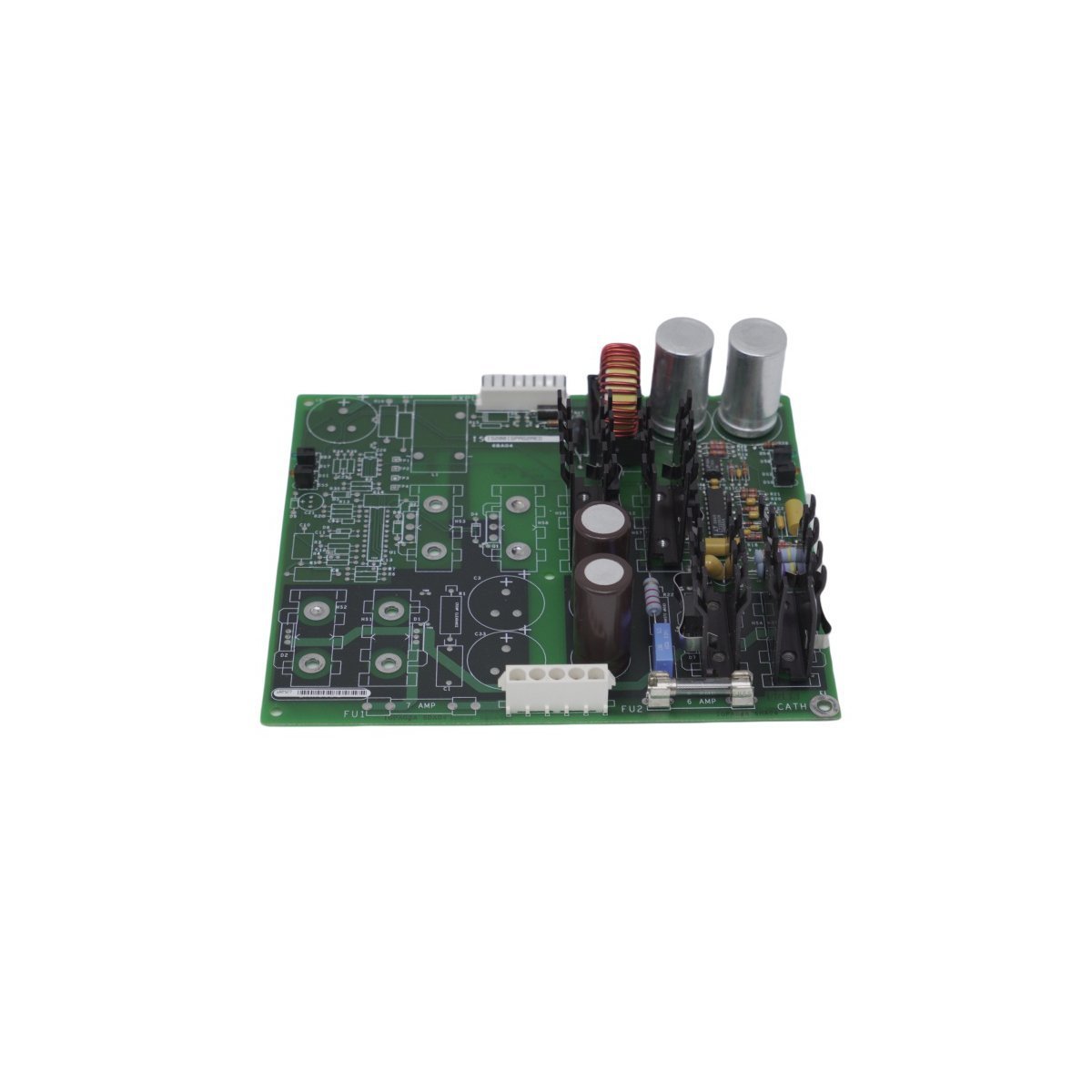

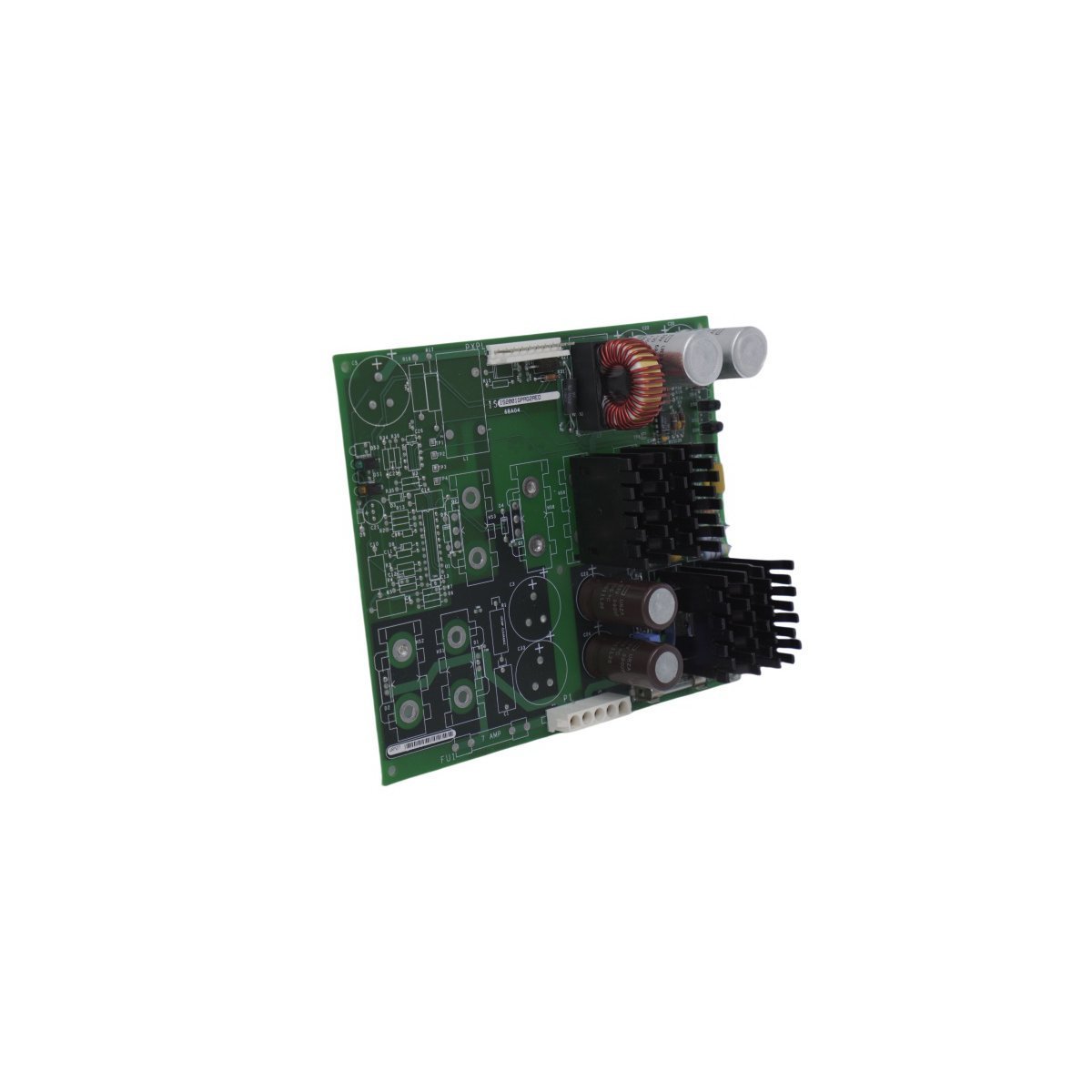

The primary side of the IS200IGPAG2AED contains a high concentration of power management components. It integrates four large electrolytic capacitors alongside an inductor coil to filter output voltage. Furthermore, six heat sinks reside in two parallel rows to dissipate thermal energy effectively. These sinks prevent overheating during continuous high-load operations in the control cabinet.

The board uses metal film resistors to maintain consistent resistance values across varying temperatures. While the component count is high, the design remains streamlined by using fewer integrated circuits. This approach reduces potential failure points and simplifies the overall power circuit.

Signaling and Interface Hardware

A vertical 9-pin male header provides the primary connection point for control signals. Additionally, several drilled terminal connectors allow for secure high-current wiring. For status monitoring, the board includes a pair of LED indicators in green and amber. These lights reside on the edge of the PCB to ensure visibility from multiple angles.

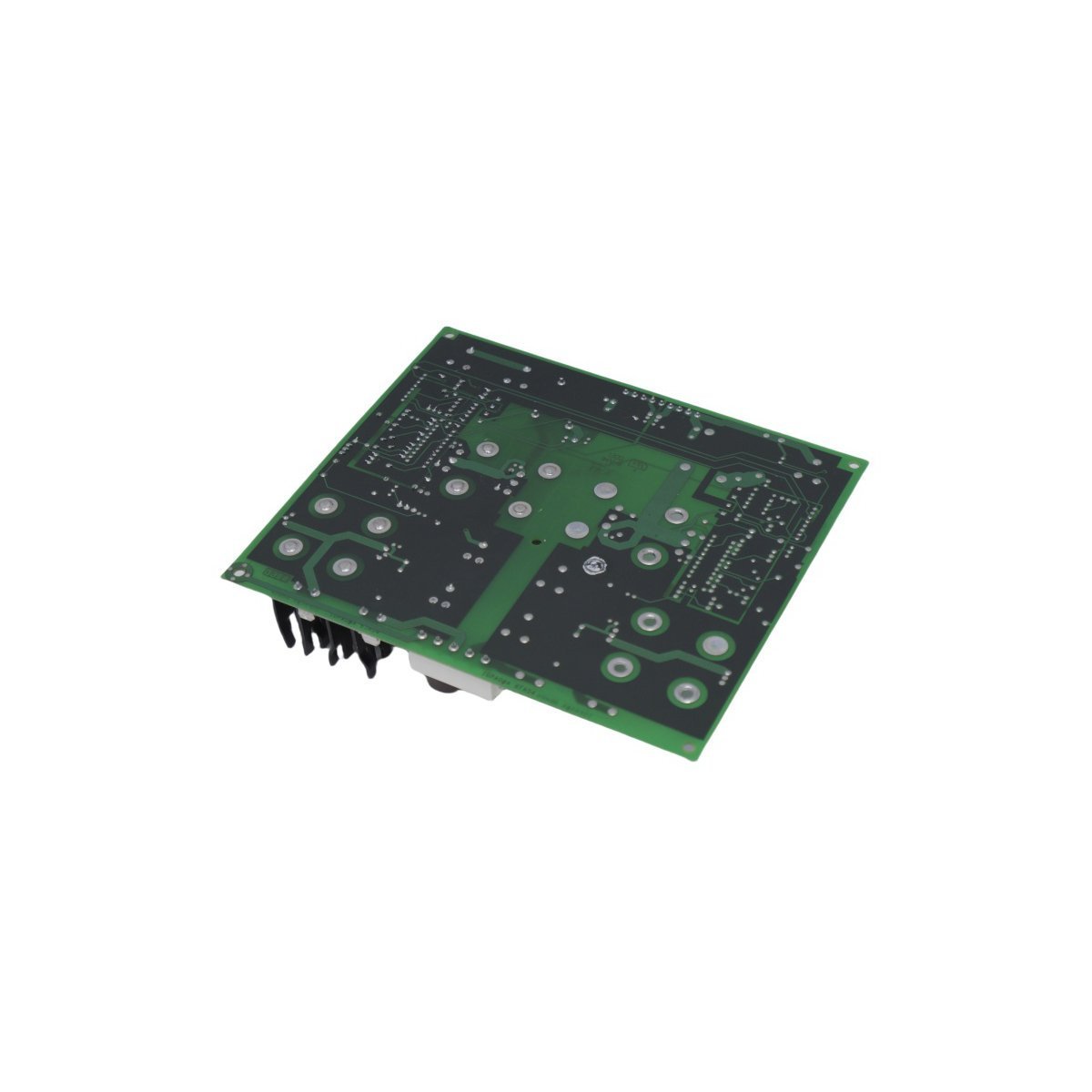

The LEDs mirror their signal on both sides of the board. This feature allows technicians to verify power status regardless of the mounting orientation. Consequently, troubleshooting becomes faster during routine maintenance or system startups.

Technical Specifications
