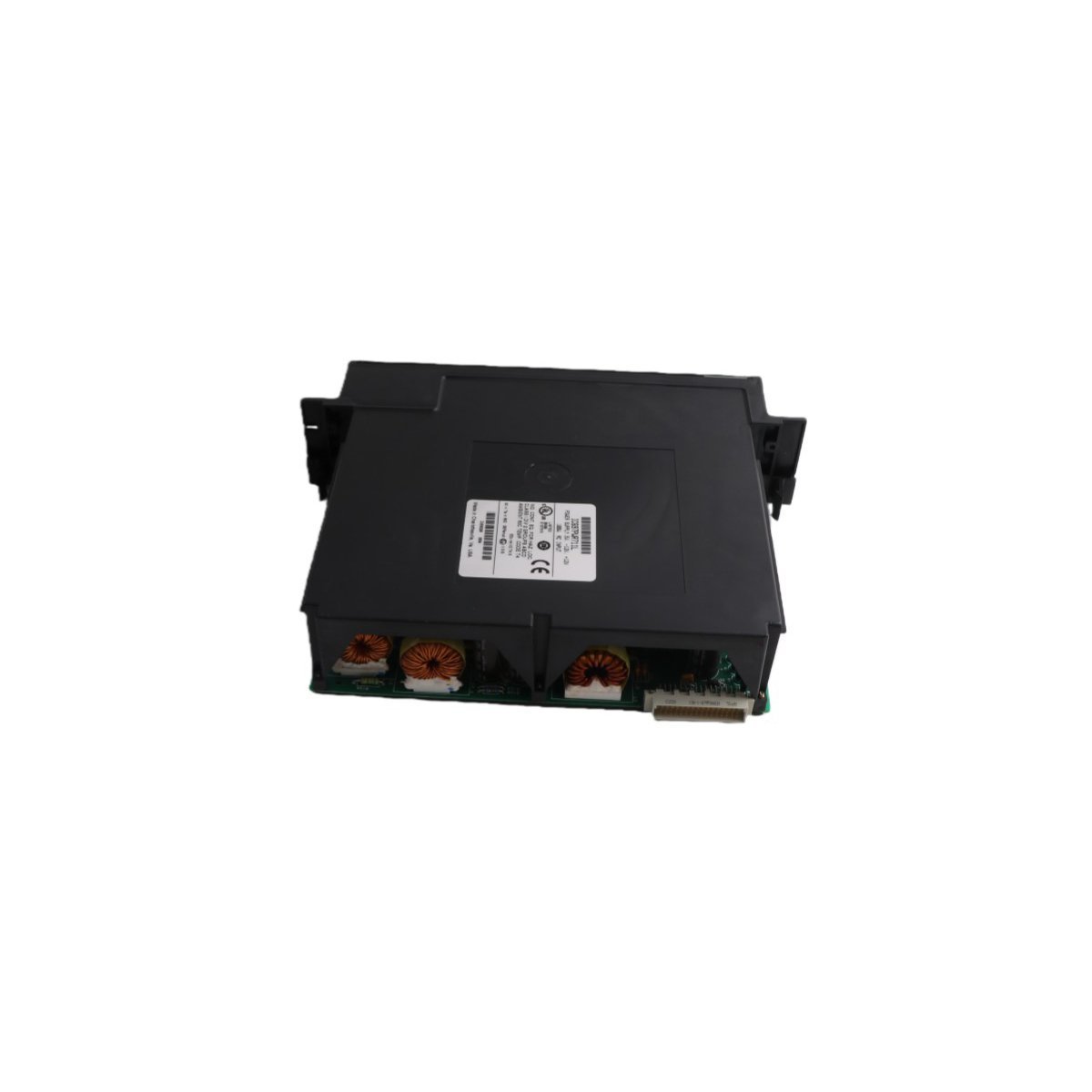

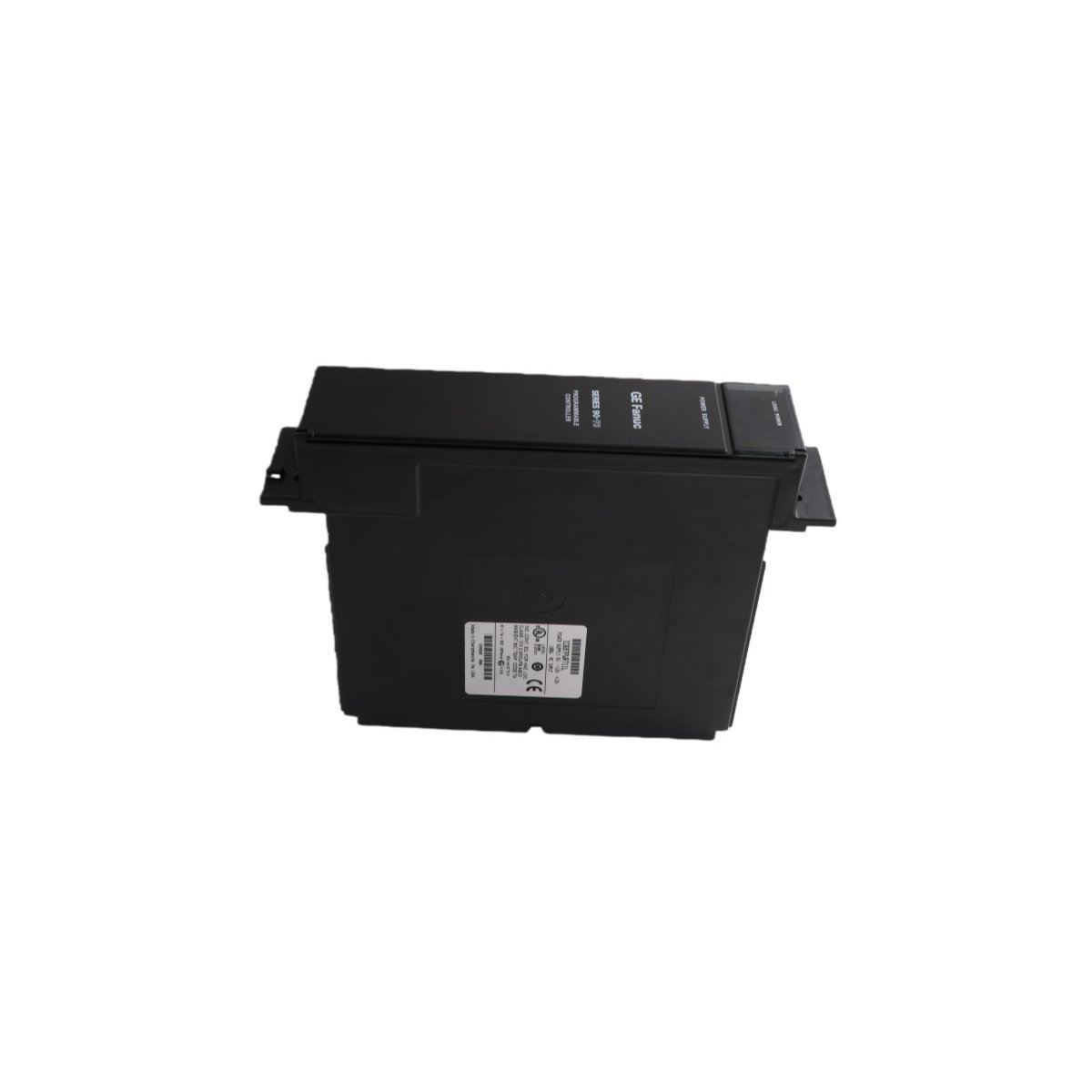

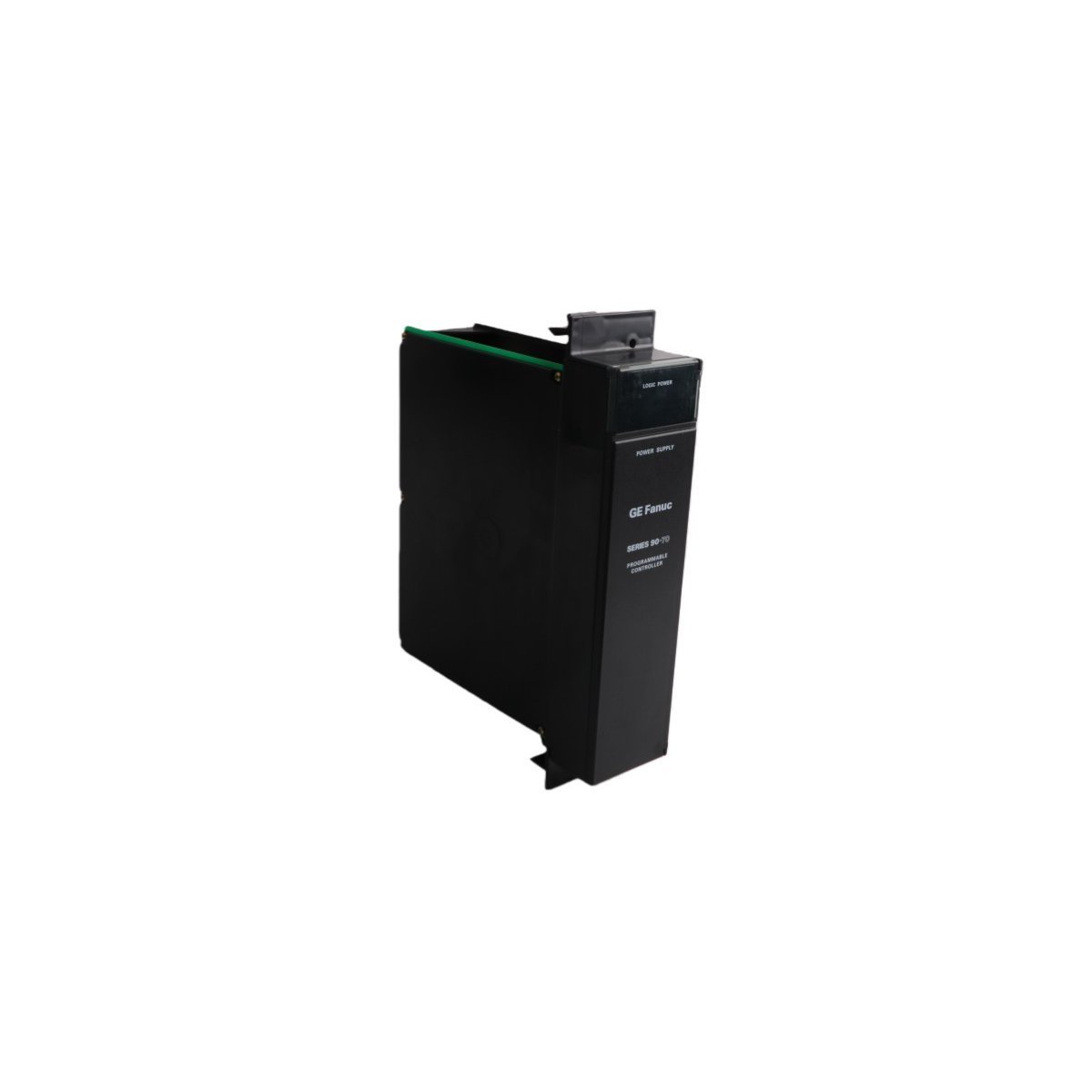

The GE Fanuc IC697PWR711M is a premium 100-watt power supply designed to provide centralized energy distribution for the Series 90-70 PLC architecture. This module is engineered to convert various industrial input sources into regulated DC voltage rails, ensuring the stability of logic processing and I/O communication across the backplane. Its flexible input stage is compatible with 120/240 VAC or 125 VDC, allowing for standardized implementation across different global power standards.
Technical Performance Specs
- Output Rail 1: +5V DC at 20 Amps (Logic Power)
- Output Rail 2: +12V DC at 2 Amps (Auxiliary)
- Output Rail 3: -12V DC at 1 Amp (Auxiliary)
- Input Voltage Ranges: 85–264 VAC (47–63 Hz) or 100–150 VDC
- Mounting: Dedicated leftmost slot in IC697 chassis
- Module Weight: 0.9 kg
- Chassis Dimensions: 20 x 11.5 x 5.7 cm
Installation and Integration Notes
The IC697PWR711M features a slide-in design that simplifies the commissioning process. It is a direct replacement for legacy IC697 power modules, offering improved reliability and adherence to modern manufacturing standards. For applications requiring maximum uptime, the module’s diagnostic LEDs provide immediate visual verification of input power health and the status of internal DC rails.
