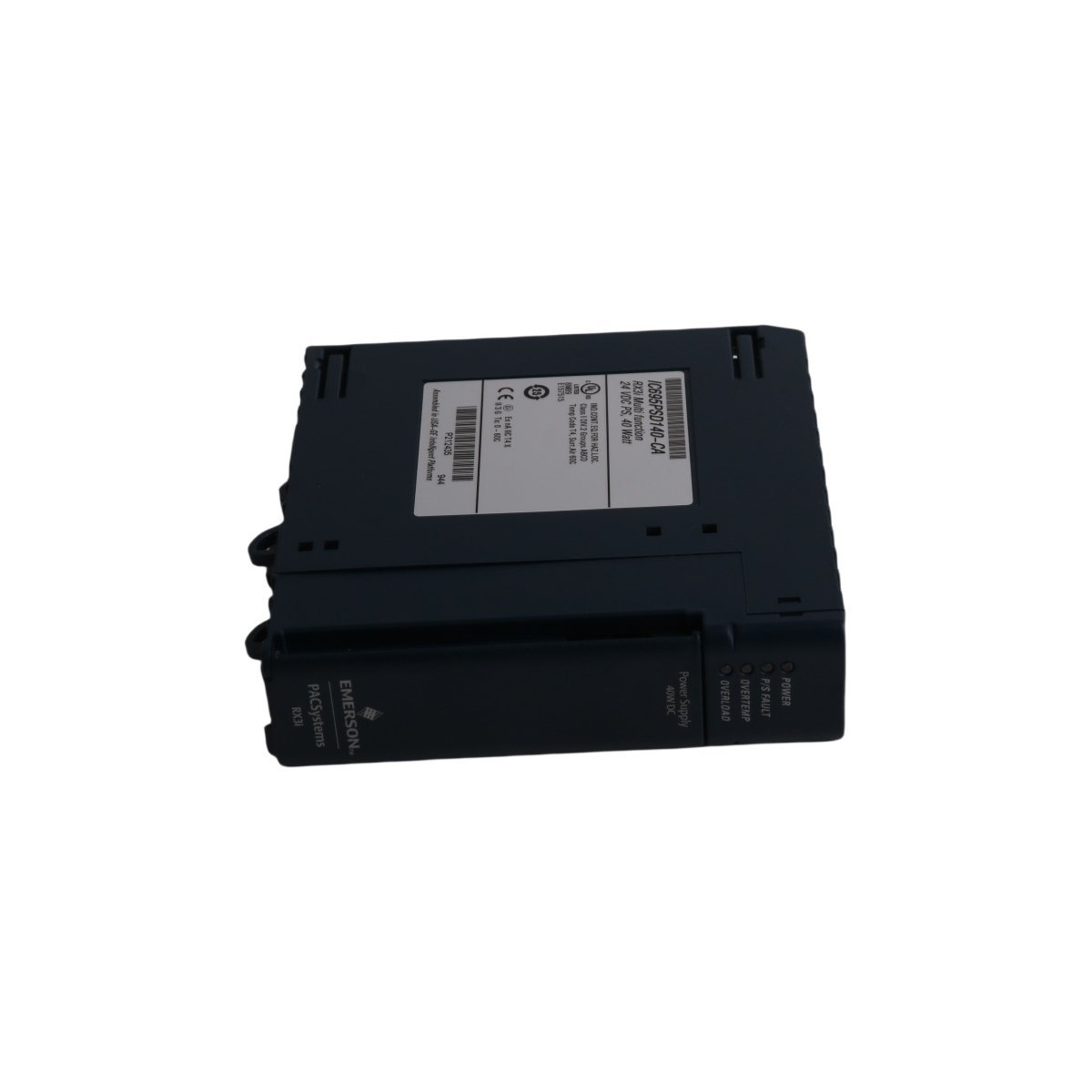

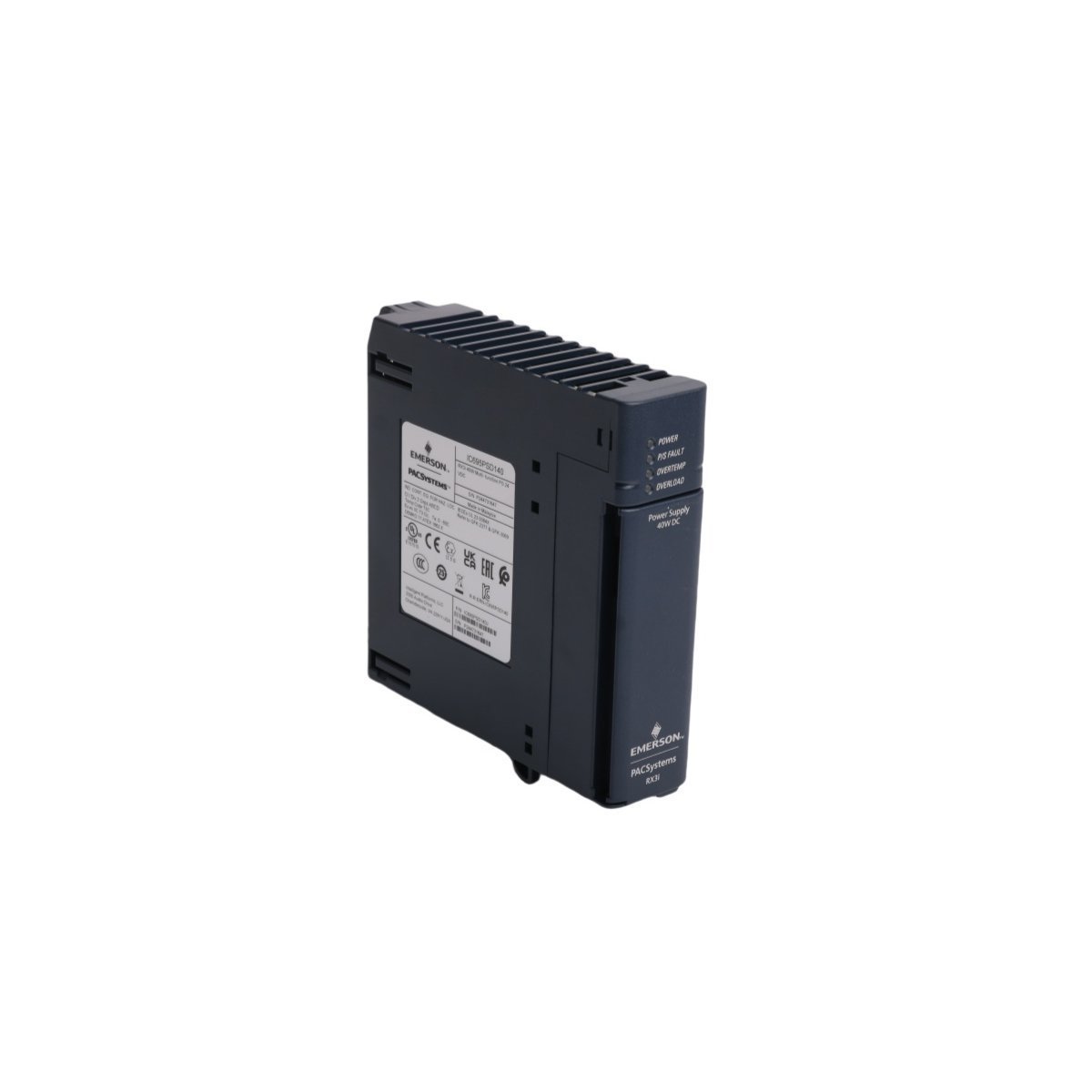

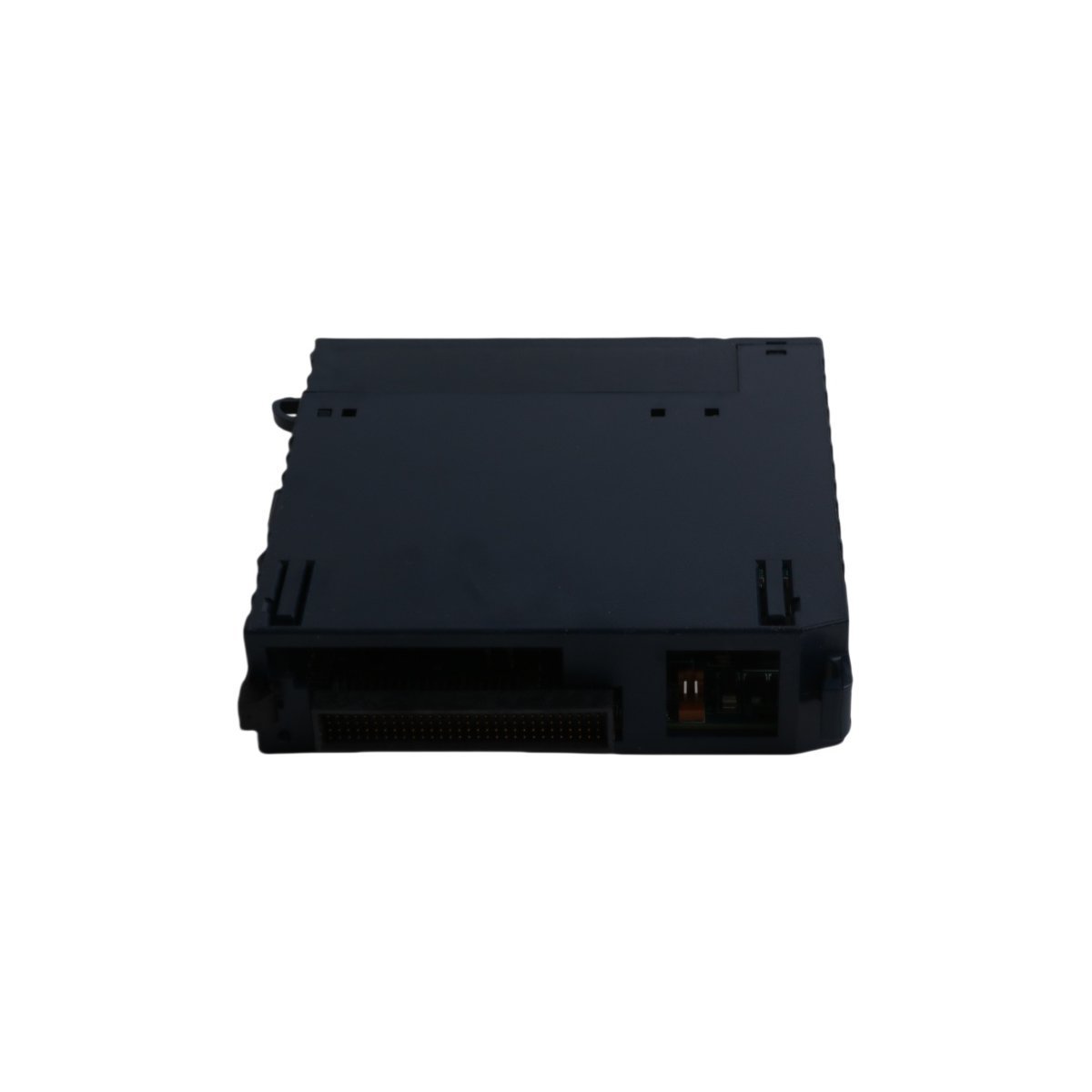

The GE Fanuc IC695PSD140 is a high-performance 40-Watt power supply module engineered specifically for the PACSystems RX3i universal backplane. This module serves as a critical energy conversion point, transforming a 24V DC input into three distinct regulated voltage rails required for system operation: 5.1V DC for backplane logic, 24V DC for relay power, and 3.3V DC for internal module circuitry. Its high-efficiency design ensures consistent power delivery to CPU, I/O, and specialized communication modules.
Redundancy and Scalability Features
A standout characteristic of the IC695PSD140 is its support for advanced power configurations. This module is capable of operating in both standalone and redundant modes. When installed in an RX3i universal backplane, up to four PSD140 units can be utilized to provide N+1 redundancy or load-sharing capabilities. This architecture is essential for mission-critical automation environments where power failure could lead to costly downtime or safety hazards.
Key Technical Characteristics
- Input Voltage Range: 18V to 30V DC
- Nominal Input Voltage: 24V DC
- Total Output Power: 40 Watts
- Backplane Voltage Rails: 5.1V DC, 3.3V DC, and 24V DC (Relay)
- Redundancy Support: Up to 4 modules per backplane
- Occupied Slots: 1 slot on Universal Backplane
- Load Sharing: Automatic distribution between multiple PSD units
