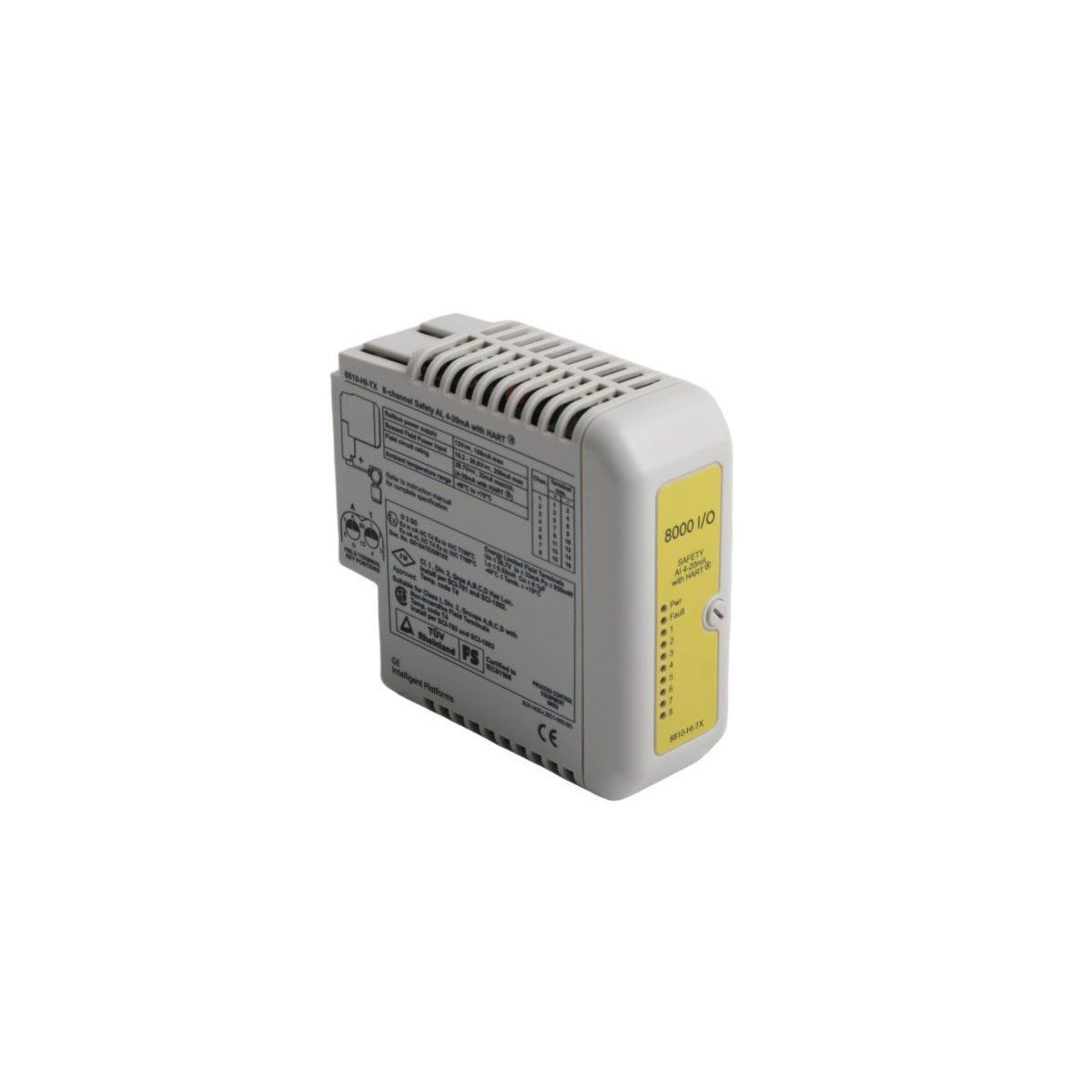

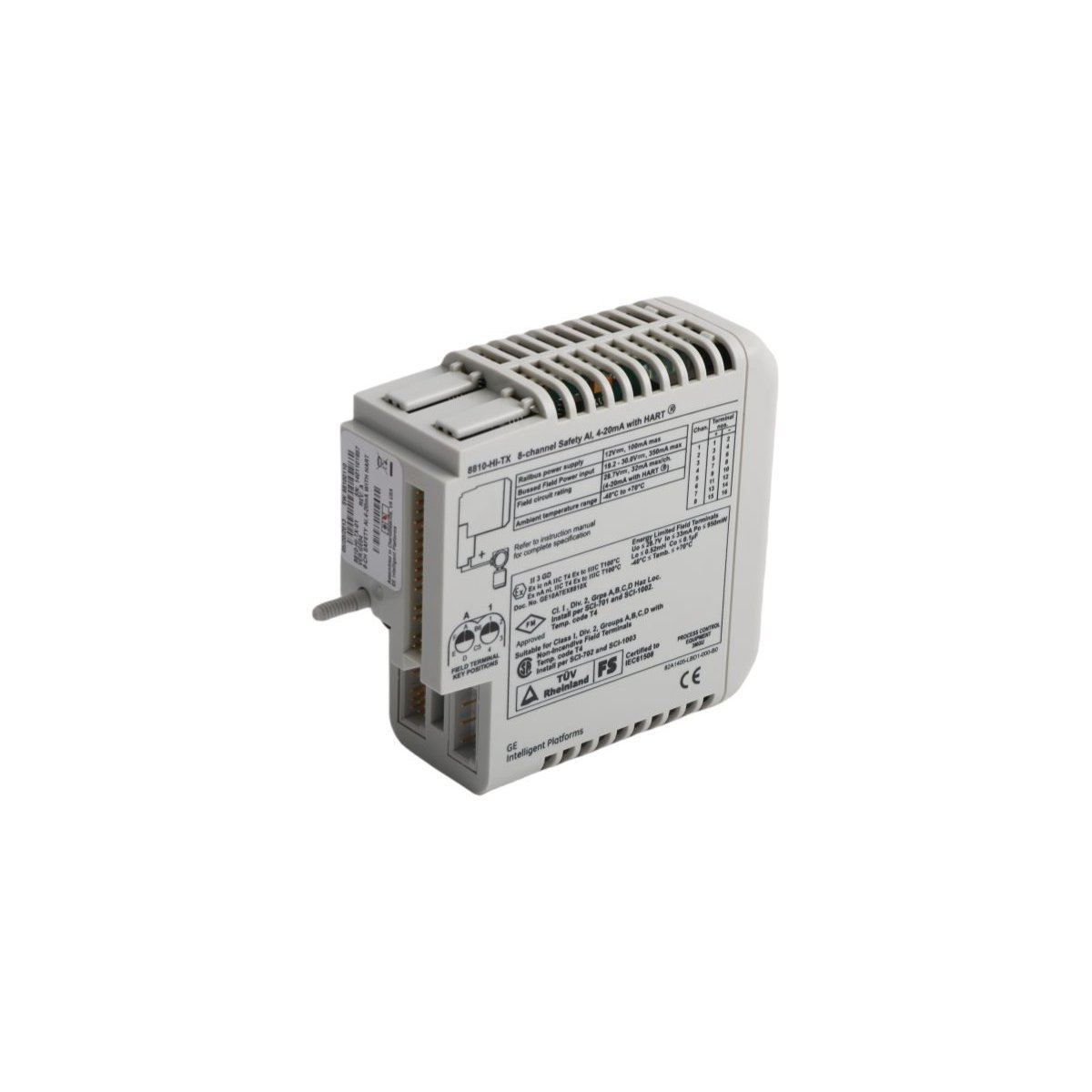

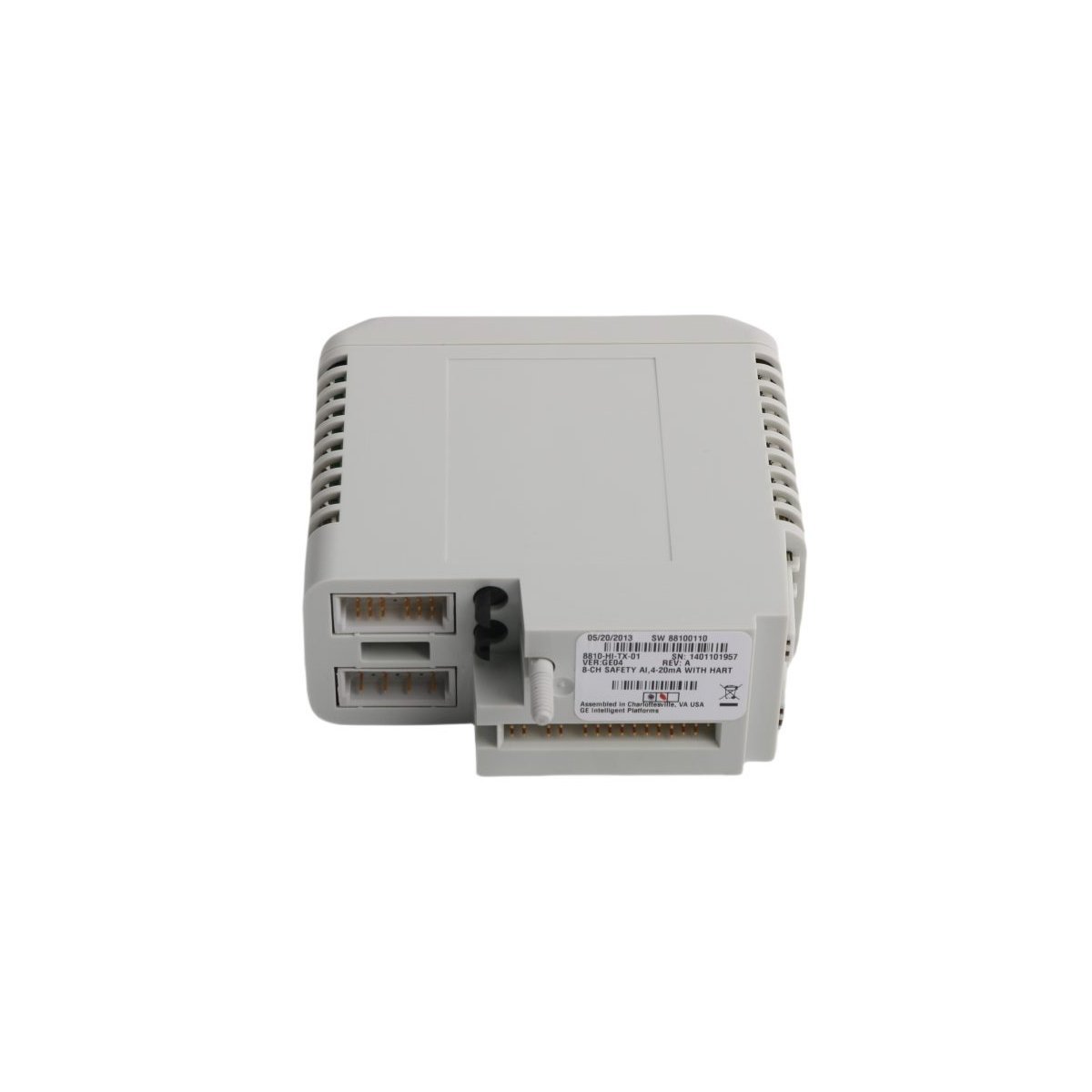

General Electric 8810-HI-TX Safety Analog Input Module

The GE 8810-HI-TX serves as a high-integrity analog input interface for safety-critical industrial environments. This SafetyNet module integrates seamlessly with PACSystems and FB-8800 logic solvers. It ensures precise monitoring of field instruments while maintaining strict compliance with SIL 2 safety standards.

Technical Specifications

Safety Architecture and Certification

The 8810-HI-TX employs a robust 1oo1D architecture for dependable safety operation. This design does not rely on legacy field data for safety validation. Instead, the module utilizes advanced internal logic to achieve its safety rating. Consequently, it provides a trusted solution for Emergency Shutdown (ESD) and Fire and Gas (F&G) systems.

Comprehensive Diagnostic Capabilities

Integrated diagnostics monitor the performance of all eight channels in real time. The system identifies hardware malfunctions or signal irregularities immediately. If a safety-impairing fault occurs, the module initiates a controlled shutdown.

This failsafe response halts all input scanning and output activities. Meanwhile, the module logs diagnostic data to facilitate fast root cause analysis. This transparency helps maintenance teams restore system integrity without unnecessary delays.
