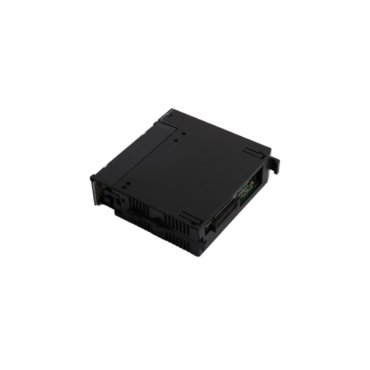

General Electric IC693ALG221 Analog Current Input Module

The General Electric IC693ALG221 serves as a high-density interface for the Series 90-30 Programmable Logic Controller. This module specifically converts analog current loops into digital registers for the CPU. It supports four independent input channels. Moreover, it accepts standard industrial signals including 4 to 20 mA and 0 to 20 mA. This flexibility allows engineers to monitor critical process variables like pressure, temperature, and flow.

Precision Engineering and Data Resolution

Each channel provides a 12-bit converter resolution for high accuracy. This ensures that the PLC receives a precise digital representation of field conditions. The module features a rapid conversion rate of 0.5 milliseconds per channel. Consequently, the system can track fast-changing industrial processes without significant lag. In addition, the internal scaling maps a 4-20 mA signal to a range of 0 to 32,000 counts.

Industrial Protection and Reliability

The IC693ALG221 incorporates advanced optical isolation to protect the PLC backplane. This design isolates sensitive internal electronics from external field interference. Furthermore, the module manages common-mode voltages up to 200 volts. It operates effectively across a wide temperature spectrum from -30 to 65°C. These robust features ensure long-term stability in harsh factory environments.
