General electric DS3800NPSE1E1G Power Supply Board

The GE DS3800NPSE1E1G serves as a core power regulation module for the Speedtronic Mark IV turbine control system. This sophisticated printed circuit board provides stable electrical distribution to support automated turbine operations. It monitors critical power parameters to prevent unsafe conditions during heavy industrial activity. Consequently, this board remains essential for maintaining the operational safety of large-scale GE turbine installations.

Technical Specifications

Advanced Circuitry and Power Filtering

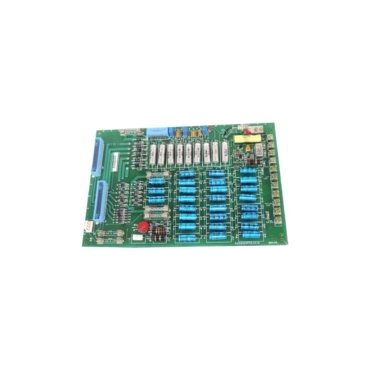

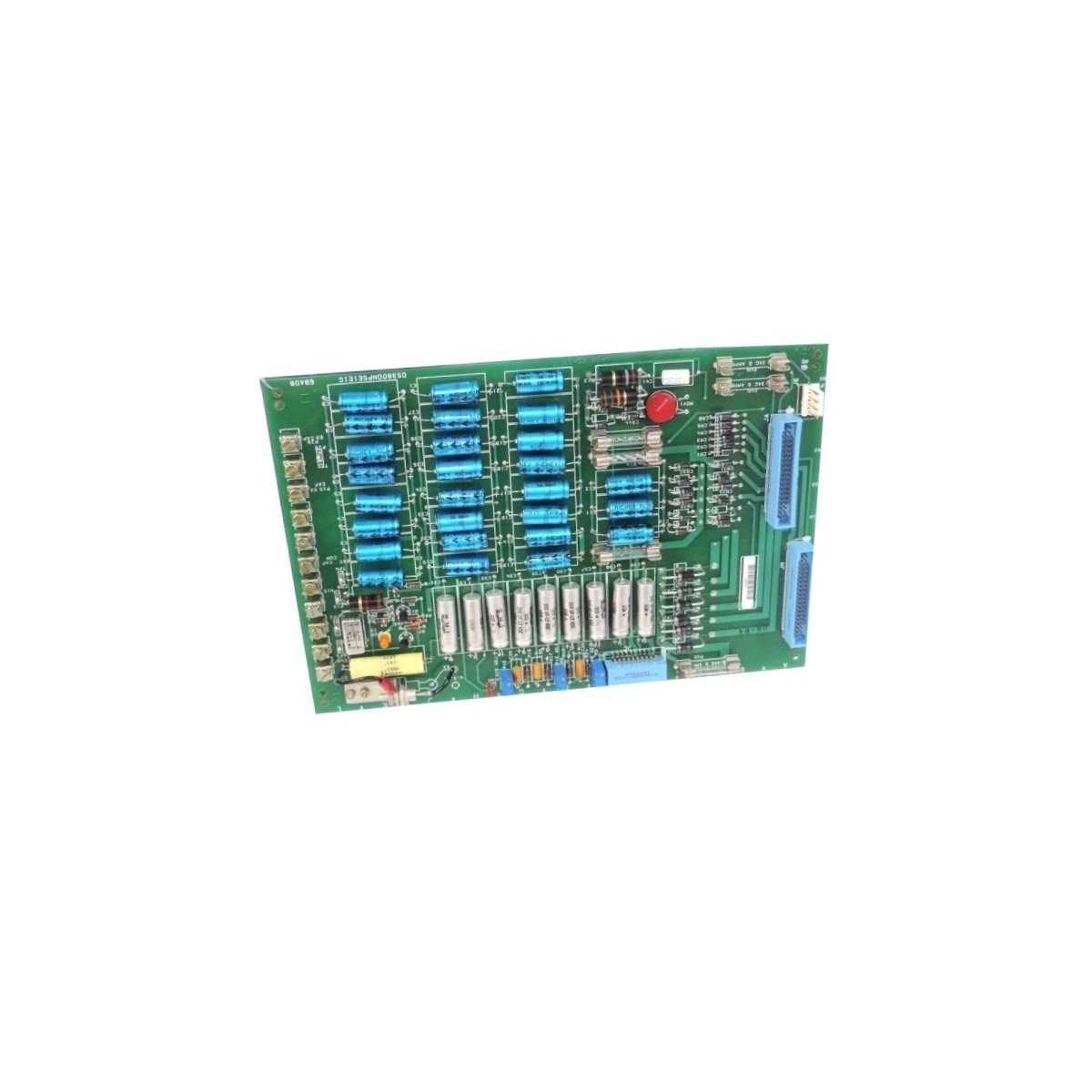

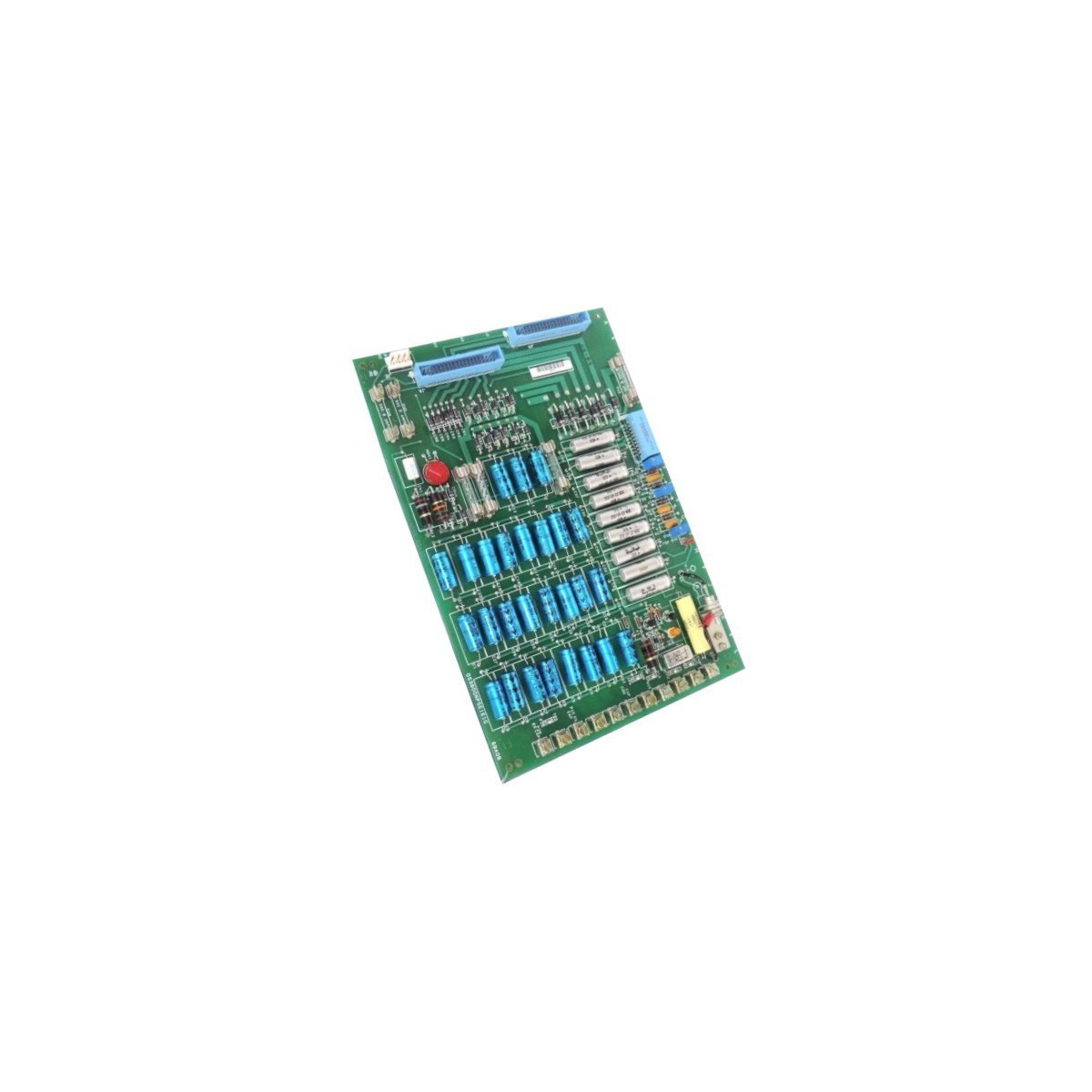

The hardware layout prioritizes efficient energy management and signal stability. Specifically, the board contains 27 medium-sized blue capacitors arranged in vertical columns for primary filtering. Nine additional silver horizontal capacitors provide supplementary decoupling for sensitive logic circuits. Furthermore, 24 small black and grey diodes regulate current flow across the board. These components collectively ensure a clean DC output for the connected Speedtronic modules.

Integrated Protection and Regulation

GE engineers incorporated multiple safety layers into the DS3800NPSE1E1G design. A Metal Oxide Varistor (MOV) sits near the bottom to suppress voltage surges effectively. The board also features four active fuses with dedicated slots for two additional spares. Additionally, three top-mounted potentiometers allow operators to manually calibrate resistance levels. These adjustment dials enable precise fine-tuning of the power output to match specific field requirements.
