General electric 531X111PSHARG3 Motor field Control and Power Supply Board

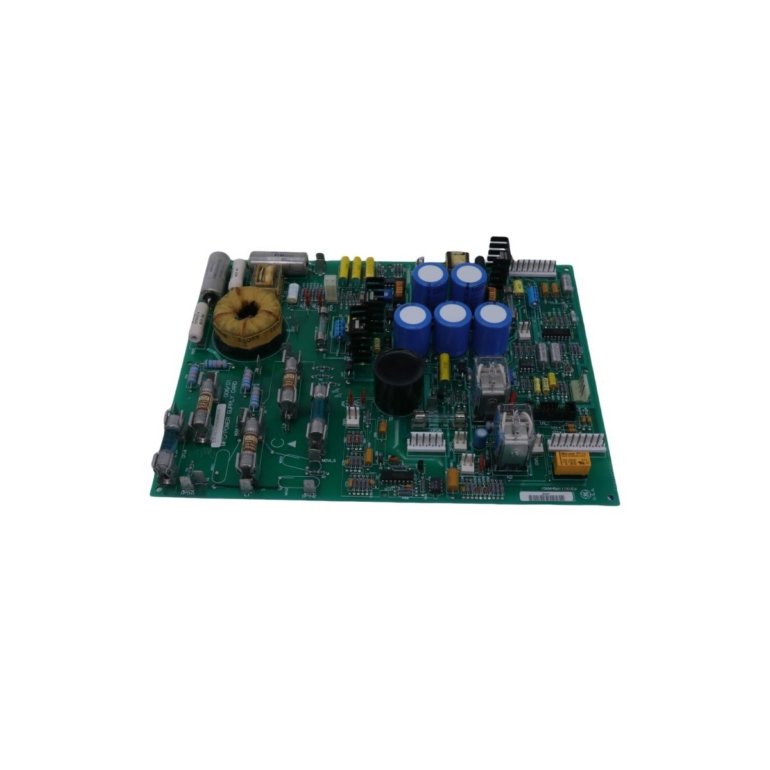

The GE 531X111PSHARG3 functions as a specialized power supply and motor field regulator board for industrial drive systems. This module provides essential DC voltage outputs to support internal control logic and field excitation. It integrates multiple power distribution roles into a single compact hardware interface. Consequently, this board serves as a vital replacement part for maintaining legacy GE drive performance.

Multi-Rail Power Distribution

The board converts incoming electrical energy into three stabilized DC rails for the drive system. Specifically, it generates 5 VDC for logic circuits, 15 VDC for analog signals, and 24 VDC for peripheral hardware. An onboard pulse transformer delivers dedicated power to the motor field circuitry. This architecture ensures that the motor field receives consistent voltage during variable speed operations.

Control Relays and Monitoring

Three integrated relays handle the operational logic and safety monitoring of the drive. The K1 relay manages the RUN status to indicate active motor operation. Furthermore, the K2 relay monitors MAX limits while the K3 relay signals FAULT conditions. These mechanical switches provide a hardware-level interface for system diagnostics and interlock safety.

Precision Calibration Components

The 531X111PSHARG3 includes three precision potentiometers for manual system tuning. Users utilize the P1 dial to calibrate the FIELD SCALE parameters. Additionally, the P2 and P3 potentiometers allow for CFB ZERO and CFB ADJUST settings. These adjustments facilitate the fine-tuning of current feedback loops to match specific motor characteristics.
