General Electric DS200SDCCG1AGD Drive CPU Board

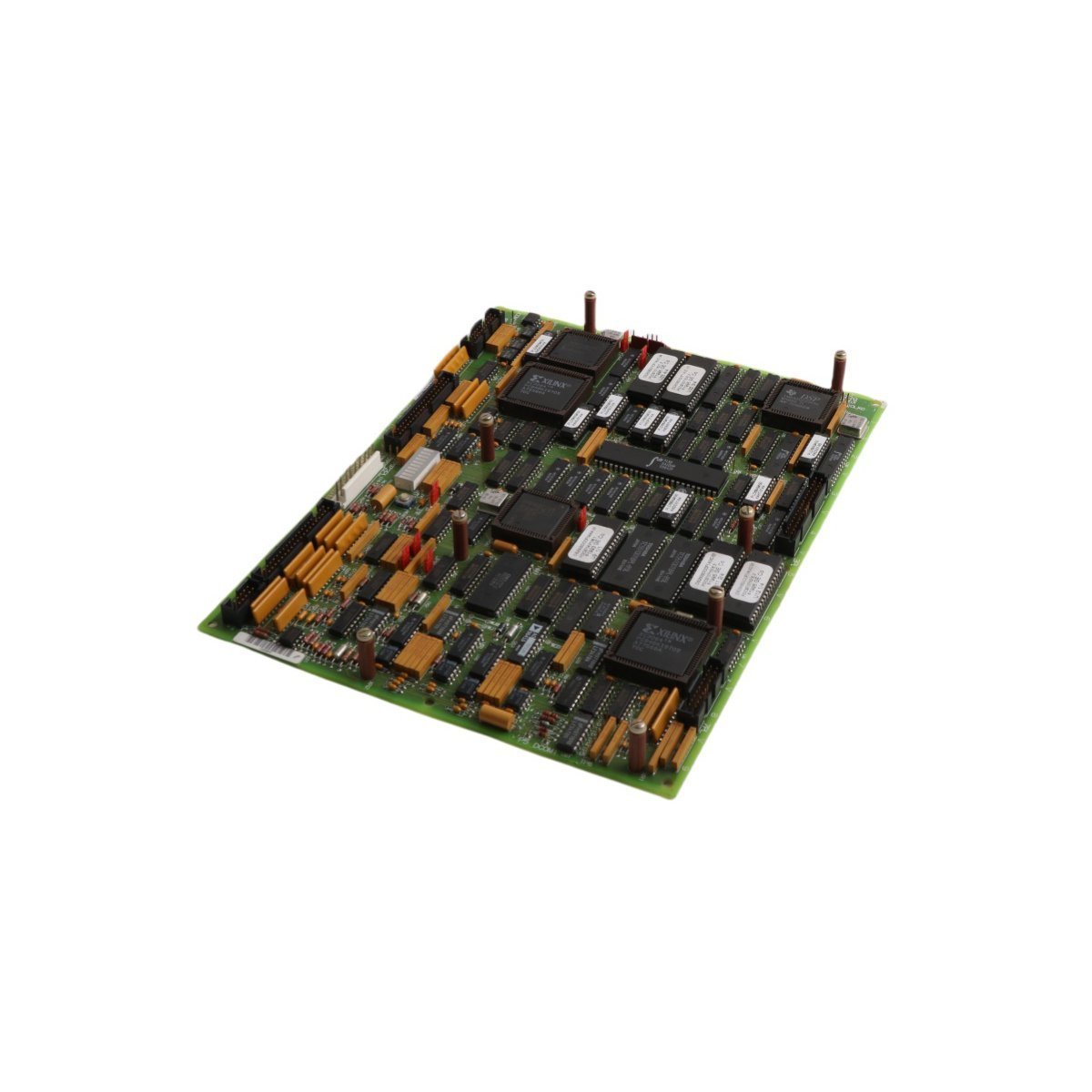

The GE DS200SDCCG1AGD serves as the primary processing hub for the Speedtronic Mark V turbine control system. This board manages critical operations for gas, steam, and wind turbine drives. It utilizes a multi-processor architecture to execute complex control algorithms in real time. Consequently, it ensures stable performance across diverse industrial power generation applications.

Core Processing and Memory Architecture

The board features three high-speed microprocessors that share a common RAM pool. This design allows several processors to access critical data simultaneously without bottlenecking. Because of this parallel processing capability, the board handles intense computational loads efficiently. It manages everything from fuel regulation to speed control within the turbine environment.

Diagnostics and Visual Feedback

Maintenance technicians can monitor system health through a dedicated sequence of ten onboard LEDs. These indicators display specific fault codes during hardware or software errors. Under normal conditions, the LEDs flash in a predefined pattern to confirm operational status. This visual diagnostic system allows for rapid troubleshooting without specialized external tools.

Modular Expansion and Configuration

The hardware supports various daughterboards to extend its native capabilities. For instance, the DS215SLCC card provides enhanced LAN communication for networked environments. Additionally, the 531X309SPC signal processor card improves analog data handling. These modular additions allow the CPU board to adapt to specific site requirements.

System engineers configure the board using proprietary software tools to define operational parameters. These settings dictate how the CPU interacts with the broader Distributed Control System (DCS). Furthermore, users can duplicate these configurations across multiple boards to ensure fleet-wide consistency.

Environmental and Installation Notes

The DS200SDCCG1AGD resides within a protective cabinet to shield it from industrial contaminants. It utilizes a standard mounting footprint for easy integration into existing Mark V racks. Reliable communication depends on secure ribbon cable connections and proper grounding of the PCB. This ensures signal integrity in high-EMI environments typical of power plants.
