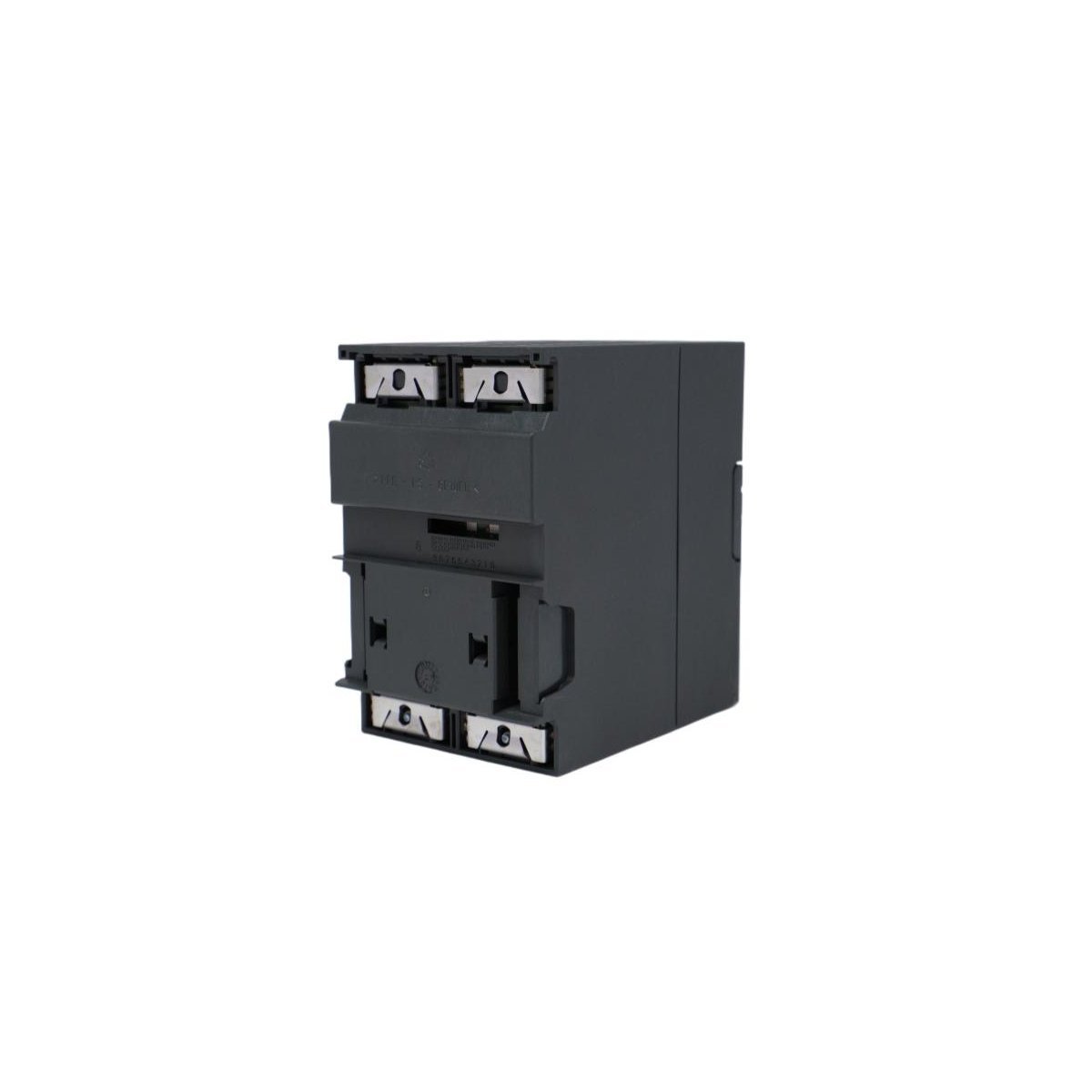

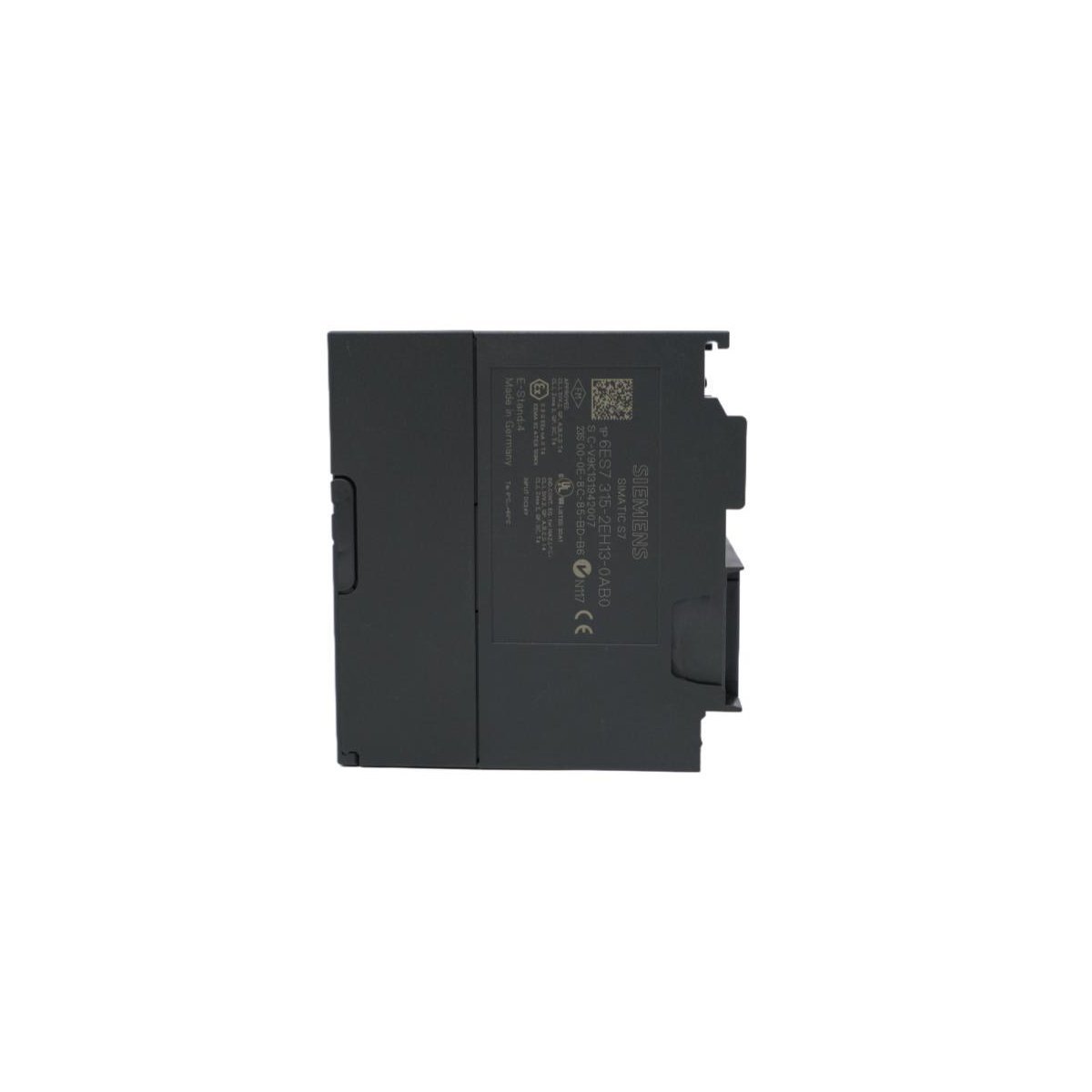

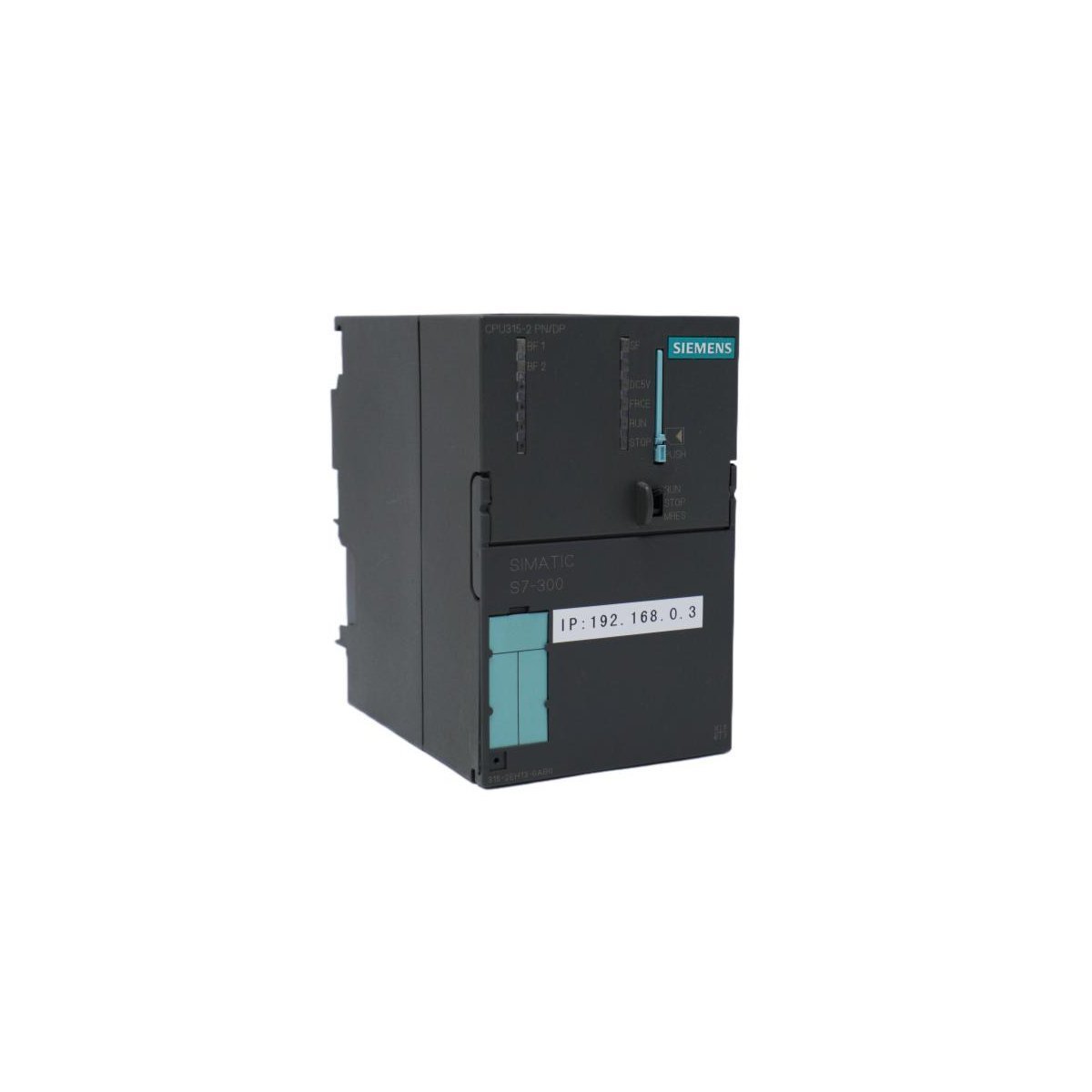

Siemens 6ES7315-2EG10-0AB0 CPU Module

The Siemens 6ES7315-2EG10-0AB0 serves as a high-performance central processing unit within the SIMATIC S7-300 controller family. This CPU excels in managing medium to large-scale industrial automation plants. It offers a balanced work memory of 128 KB for efficient program execution and data storage. Because of its fast instruction processing, it manages complex logical operations with minimal cycle times. The module requires a Micro Memory Card (MMC) for permanent storage and system startup. This architecture ensures system reliability even during unexpected power interruptions in the facility.

Integrated Dual-Protocol Connectivity

Networking remains a core advantage of this S7-300 processor. The hardware includes two distinct communication interfaces for plant-wide integration. One port provides a combined MPI and PROFIBUS DP connection for traditional fieldbus communication. The second interface features a dedicated PROFINET port with an integrated 2-port switch. Consequently, users can implement Ethernet-based control and distributed I/O without extra networking hardware. This dual-interface approach supports seamless data exchange between sensors, actuators, and higher-level SCADA systems.

Versatile Industrial Application

The 6ES7315-2EG10-0AB0 operates on a standard 24V DC power supply for industrial compatibility. Its modular design allows for easy expansion with various S7-300 signal and function modules. Furthermore, the CPU supports advanced PROFINET features such as prioritization and synchronization. Engineers utilize Siemens STEP 7 software to program and configure the unit’s extensive instruction set. This controller proves ideal for automotive production, water treatment, and food processing industries. It represents a robust solution for modernizing legacy systems or building new automated environments.

Technical Specifications
