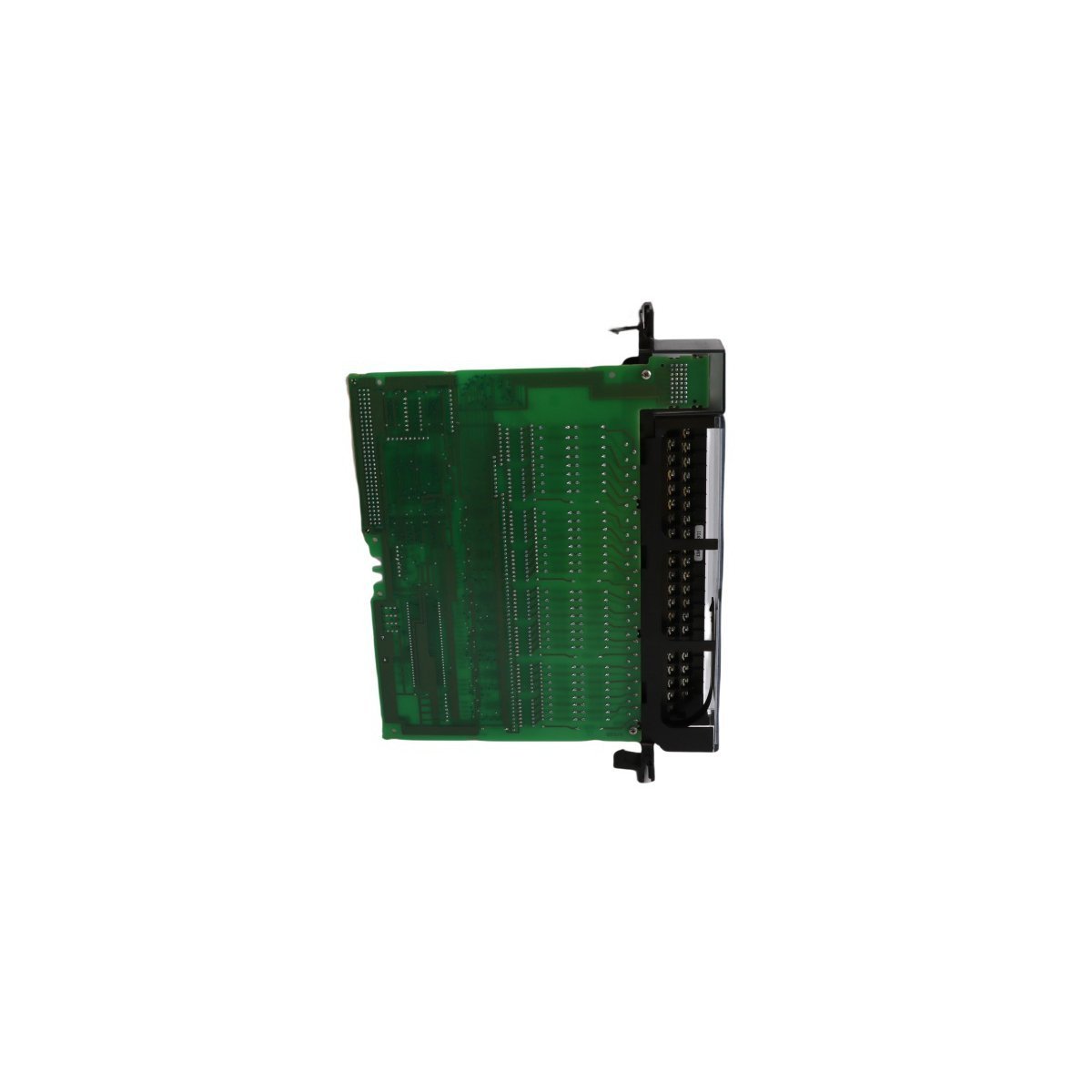

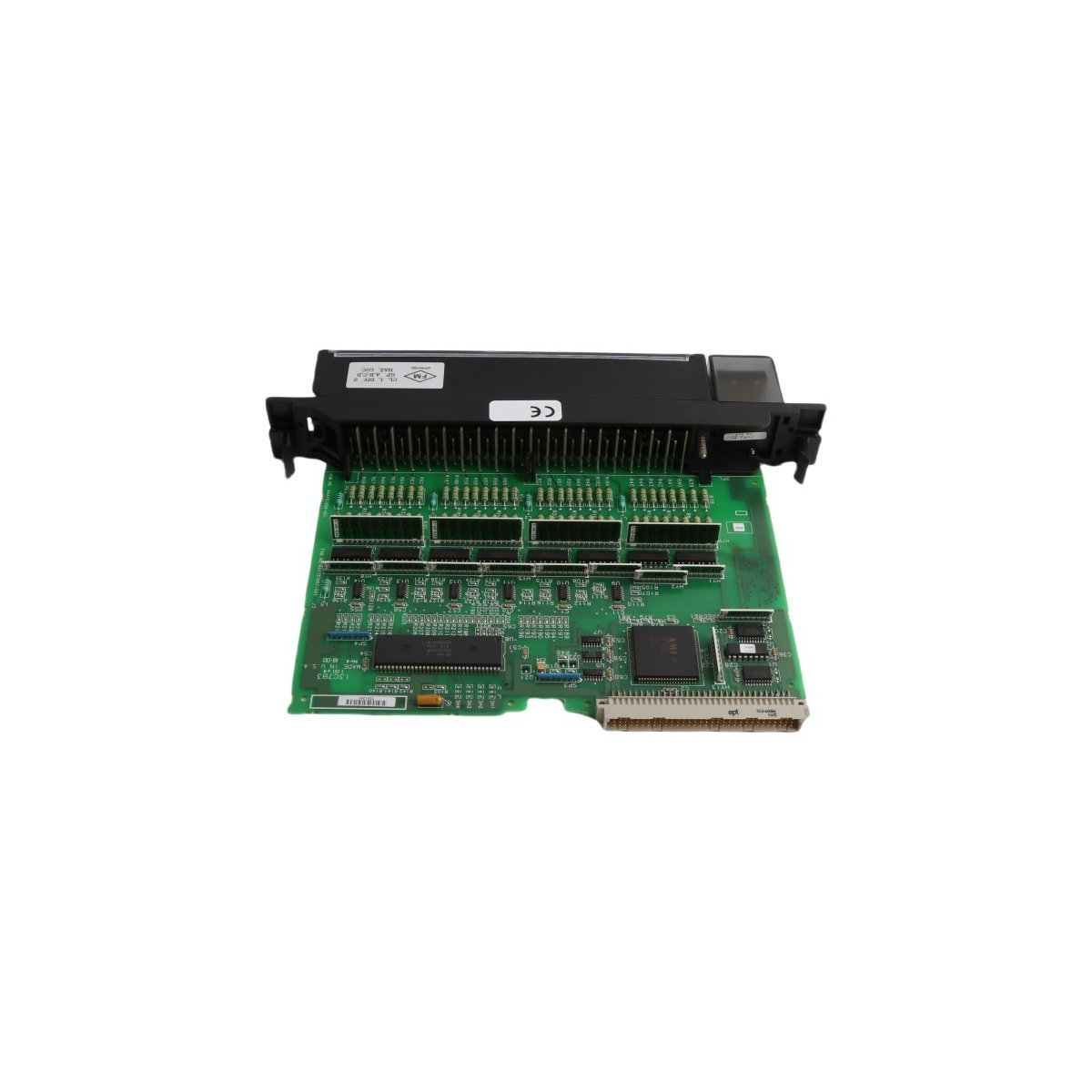

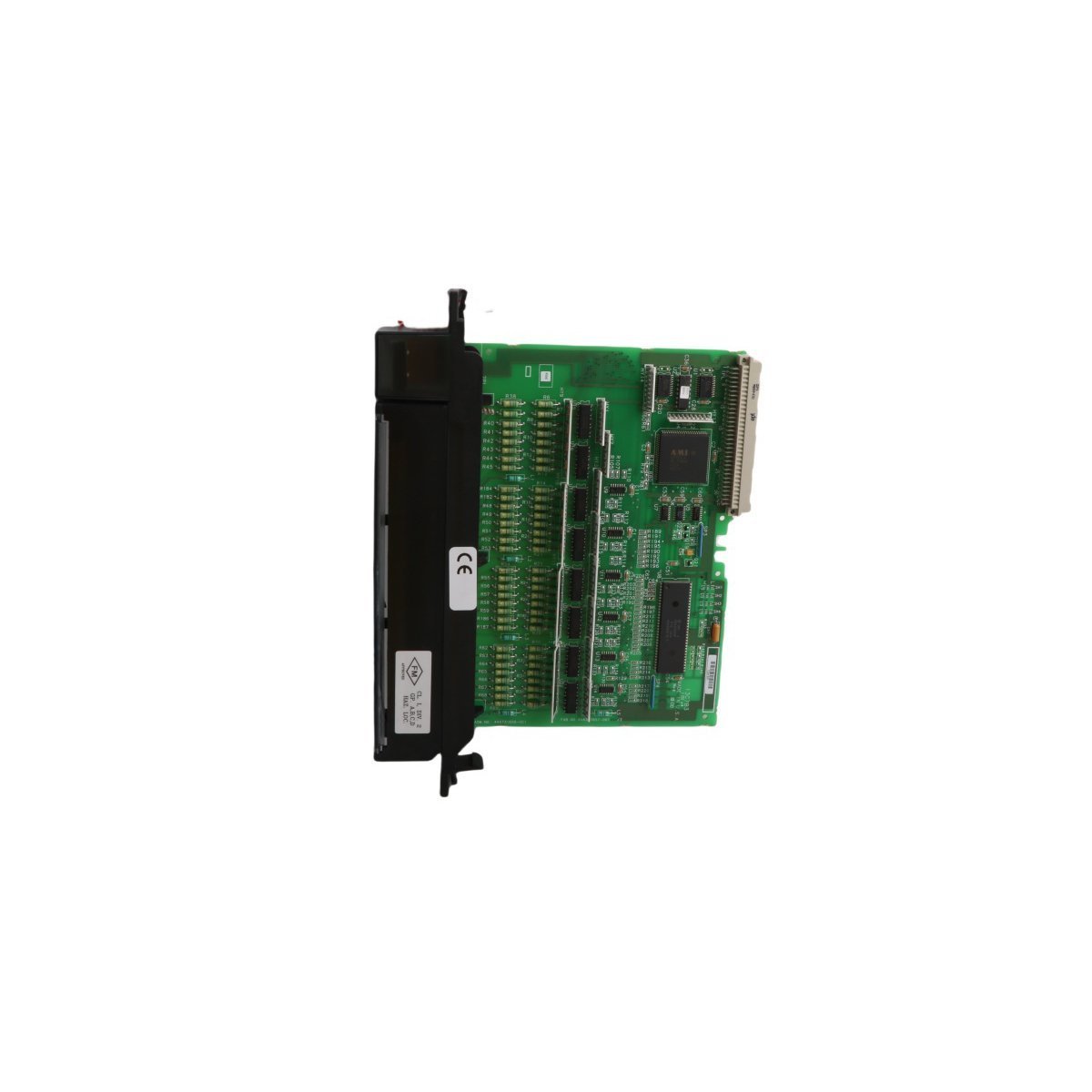

GE Fanuc IC697MDL653 Digital Input Module

The GE Fanuc IC697MDL653 is a high-density digital input module engineered for the Series 90-70 PLC platform. It provides 32 discrete input points, making it a space-efficient solution for complex automation environments. This module captures on/off signals from a variety of field devices, including limit switches, pushbuttons, and proximity sensors. Because it supports both positive and negative logic (sinking or sourcing) wiring configurations, it offers significant flexibility for diverse industrial electrical standards. Now maintained under the Emerson Automation portfolio, this module remains a critical component for robust data acquisition.

Advanced Group Isolation and Filtering

This module prioritizes signal integrity through a segmented architecture. The 32 channels are divided into four isolated groups of eight points each. This design provides 500 VDC isolation between groups and a substantial 1500 VDC isolation between the field inputs and the backplane logic. To manage electrical noise and contact bounce, the IC697MDL653 allows users to configure input filter delay times of either 1ms or 10ms via software. These features ensure that the PLC receives clean, accurate data even in electrically noisy factory settings.

Technical Specifications

Streamlined System Configuration

The IC697MDL653 simplifies the engineering process by eliminating the need for manual hardware adjustments. Users perform all I/O configurations through software, which removes the risk of errors associated with physical DIP switches or jumpers. For real-time monitoring, the module features a front-facing LED array that displays the active status of every input point. This visual feedback assists technicians during commissioning and maintenance phases. The hardware occupies a single slot in the IC697 rack and integrates seamlessly with standard Series 90-70 CPUs.

Key Operational Benefits

Utilizing the IC697MDL653 within a control system provides several technical advantages:

• Flexible Logic Support: Compatible with both sinking and sourcing field devices.
• Superior Noise Rejection: Selectable software filters prevent false triggering from mechanical switch bounce.
• Enhanced Safety: High-voltage isolation protects sensitive backplane electronics from field-side surges.
• Reliable Diagnostics: Dedicated LEDs allow for rapid identification of input circuit faults.
