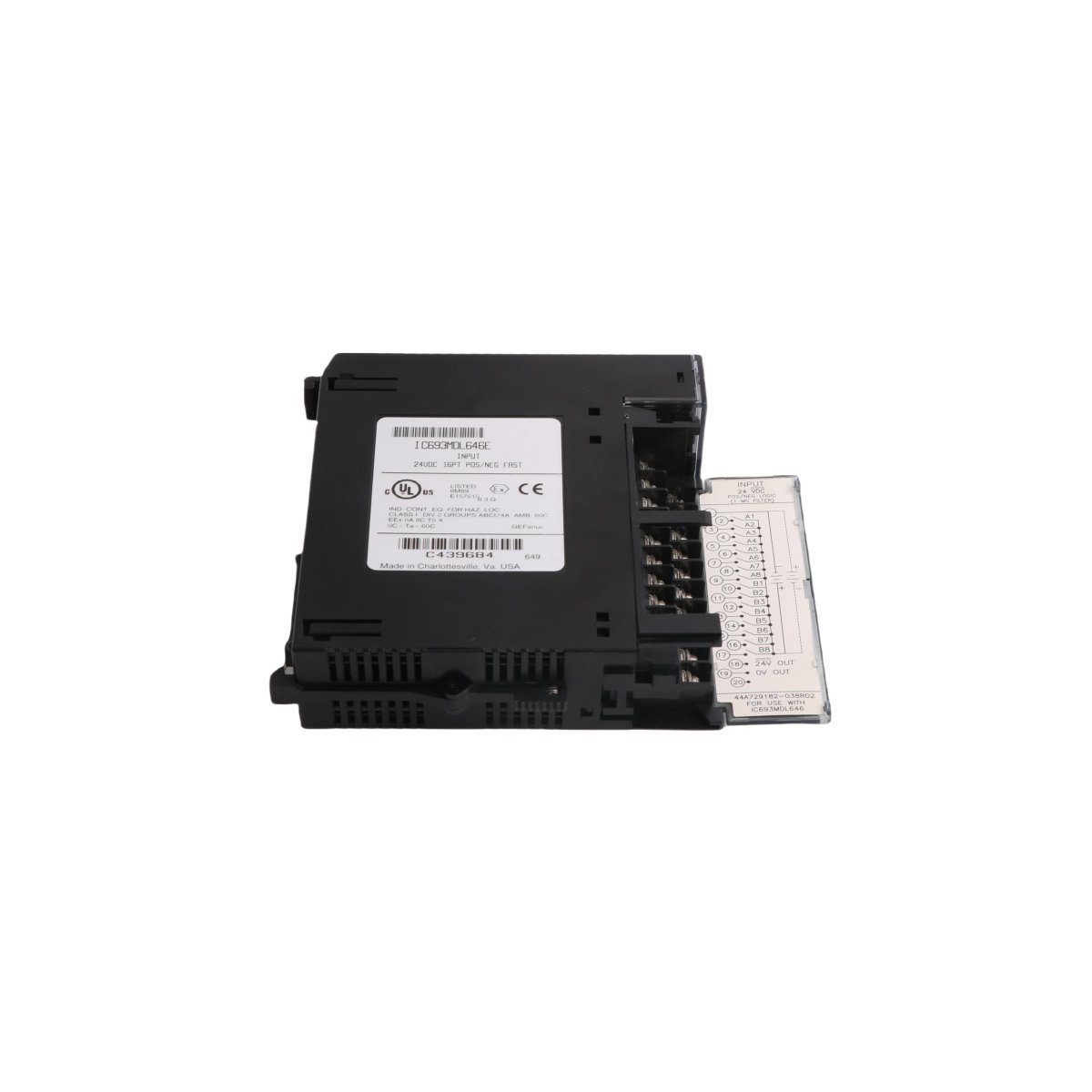

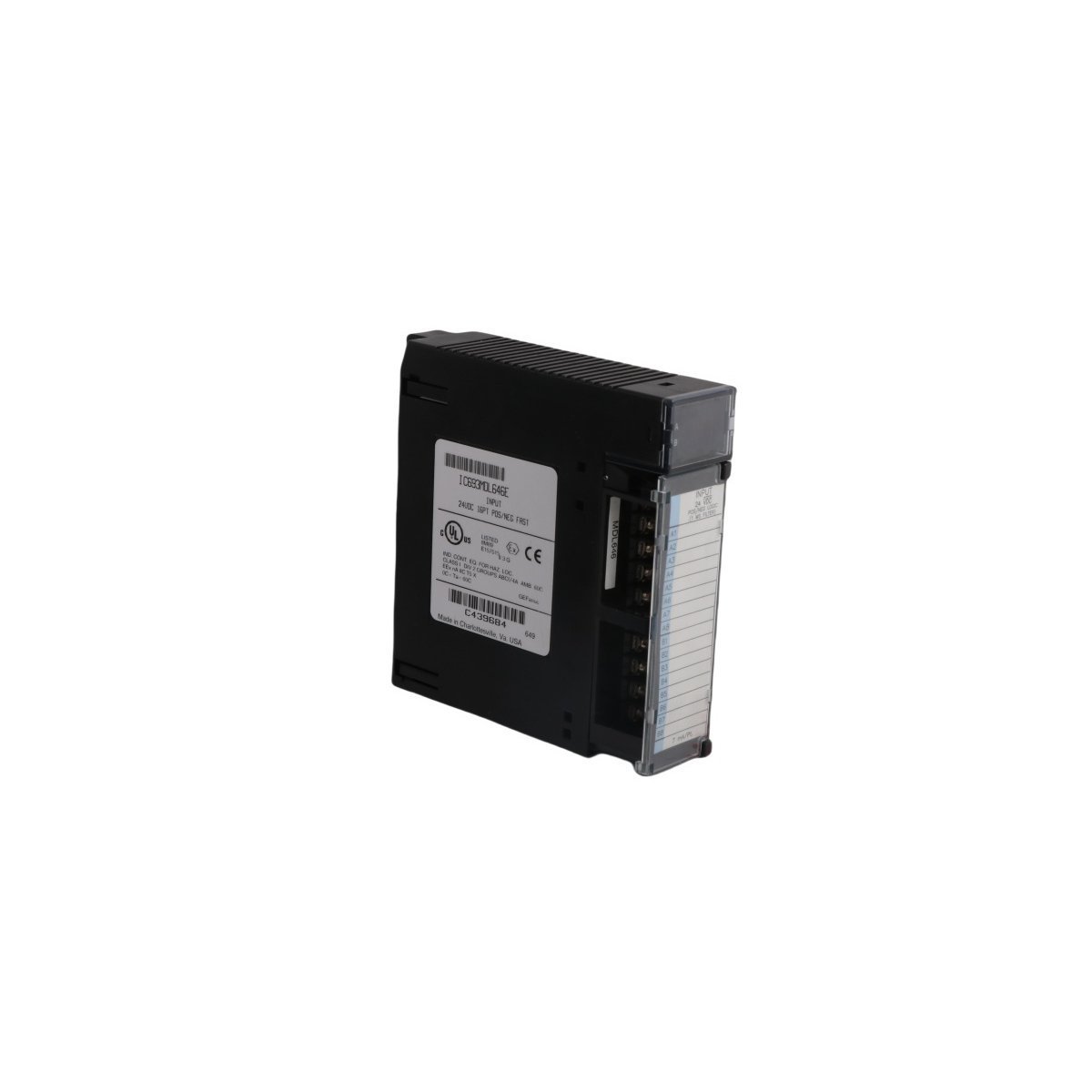

GE Fanuc IC693MDL646 Advanced Logic Input Module

The IC693MDL646 functions as a high-performance discrete input interface for the GE Series 90-30 PLC system. This module converts external 24 VDC signals into logic-level data for the controller. It supports versatile field wiring by accommodating both positive and negative logic configurations. Industrial operators utilize this component to monitor binary devices like limit switches and proximity sensors. The robust design ensures stable performance in diverse automation environments.

Operational Features and Signal Processing

This module integrates sixteen distinct input points organized into a single common group. The internal circuitry provides a rapid response time of 1 millisecond for signal transitions. Consequently, the PLC can process fast-moving industrial events without significant delay. Each input channel includes an individual LED indicator on the front faceplate. These lights offer immediate visual confirmation of the logic state for every field circuit. Furthermore, a dedicated “Module OK” LED monitors the internal health of the hardware.

Hardware Interface and Installation

A removable 20-terminal connector block simplifies the wiring process for technicians. The protective swing door includes a detailed wiring diagram for onsite reference. Blue color-coding on the module faceplate identifies it as a low-voltage DC component. This safety feature prevents installation errors during system assembly. The module fits into any standard I/O slot of a Series 90-30 baseplate.

Technical Parameters and Power Requirements

• Nominal Input Voltage: 24 VDC
• Input Voltage Range: 0 to 30 VDC
• On-State Voltage: 11.5 to 30 VDC
• Off-State Voltage: 0 to 5 VDC
• Input Current: 7 mA at 24 VDC
• Minimum On-State Current: 3.2 mA
• Maximum Off-State Current: 1.1 mA
• Internal Power Consumption: 80 mA from 5V bus / 125 mA from 24V relay bus

Field Compatibility Table
