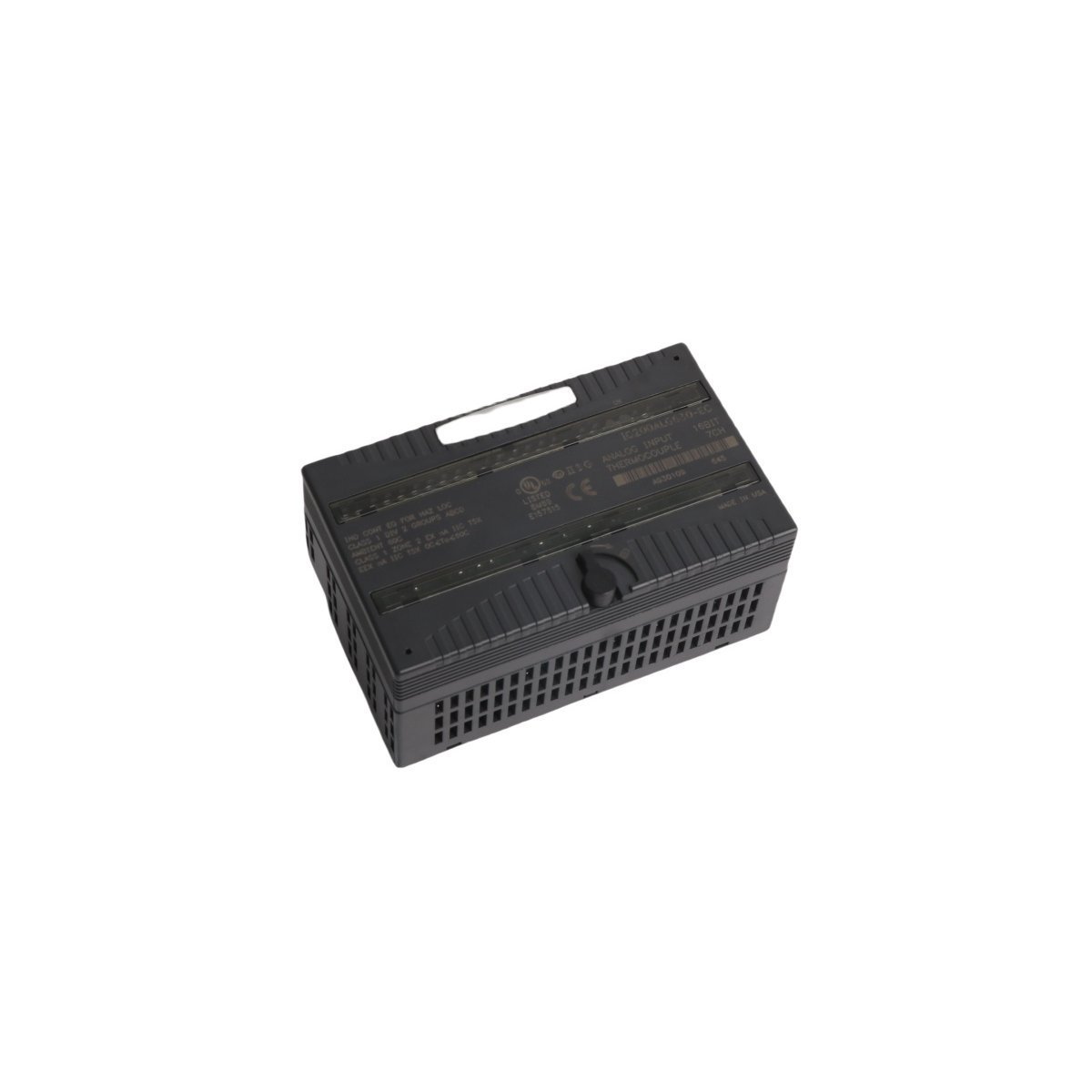

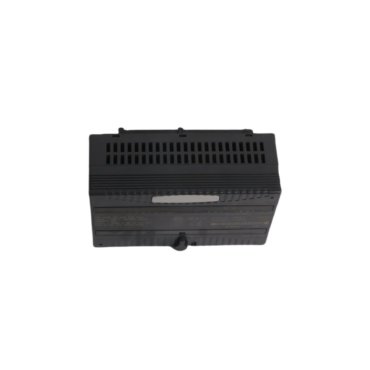

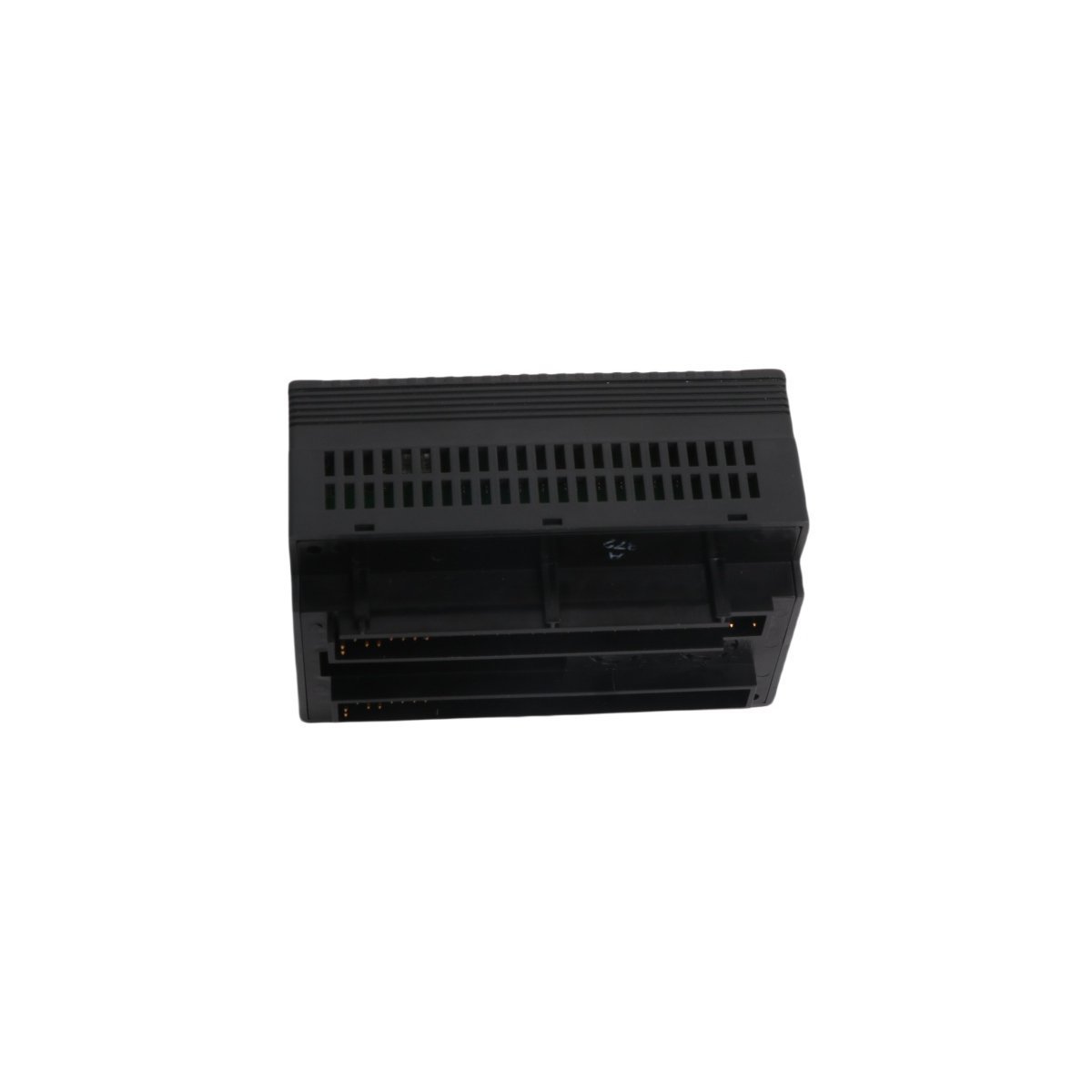

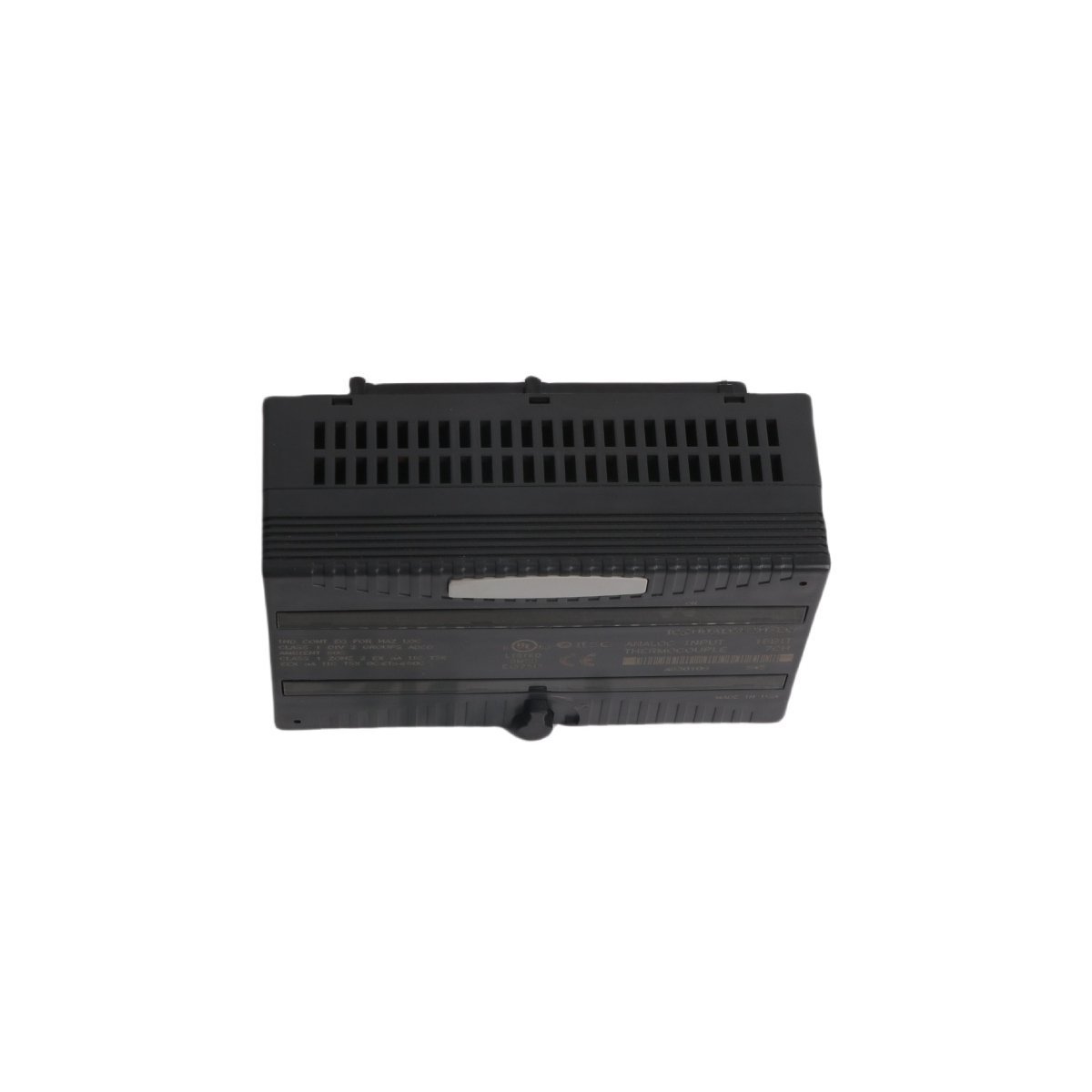

GE Fanuc IC200ALG630 VersaMax Analog Input Module

The GE Fanuc IC200ALG620 is a specialized analog input module designed for the VersaMax I/O family.This module provides seven independent channels for high-precision temperature sensing and low-voltage signal monitoring. It natively supports a wide range of thermocouple types, including J, K, T, S, R, B, C, N, and E. Additionally, the hardware can process bipolar millivolt signals from ±19.5mV up to ±625mV.By utilizing a 16-bit Analog-to-Digital Converter (ADC) for every channel, the module delivers the fine granularity required for sensitive industrial thermal loops.

Advanced Signal Processing and Protection

To ensure data integrity, the IC200ALG630 incorporates sophisticated filtering and isolation. The module provides 250 VAC continuous isolation between the field inputs and the backplane logic, with transient protection reaching up to 1500 VAC. Furthermore, the unit features Cold Junction Compensation (CJC) to maintain accuracy across varying ambient temperatures. Users can configure the scan rates based on line frequency, achieving 60ms per point at 60Hz or 70ms at 50Hz. These features collectively minimize electrical interference and ensure stable readings in demanding factory environments.

Technical Specifications

Intelligent Diagnostics and Maintenance

The IC200ALG630 includes internal logic to monitor the health of the field circuit. It automatically detects common failure points such as open thermocouples, thermistor errors, and out-of-range hardware alarms. These diagnostic alerts transmit directly to the controller for rapid response. For local troubleshooting, the front-panel LED glows green during healthy operation and switches to amber if a fault occurs. The module also supports hot-swapping on compatible carriers, which allows for hardware replacement without interrupting the rest of the I/O bus.

Core Operational Benefits

Deploying the IC200ALG630 offers several distinct advantages for automation systems:

• Versatile Input Support: Connects directly to multiple thermocouple types and millivolt sensors.
• Space-Efficient Design: High channel density fits seven inputs into a single compact module slot.
• Enhanced Diagnostics: Real-time monitoring of open circuits and sensor faults reduces downtime.
• Stable Performance: Integrated CJC and high-voltage isolation ensure reliable thermal data.
