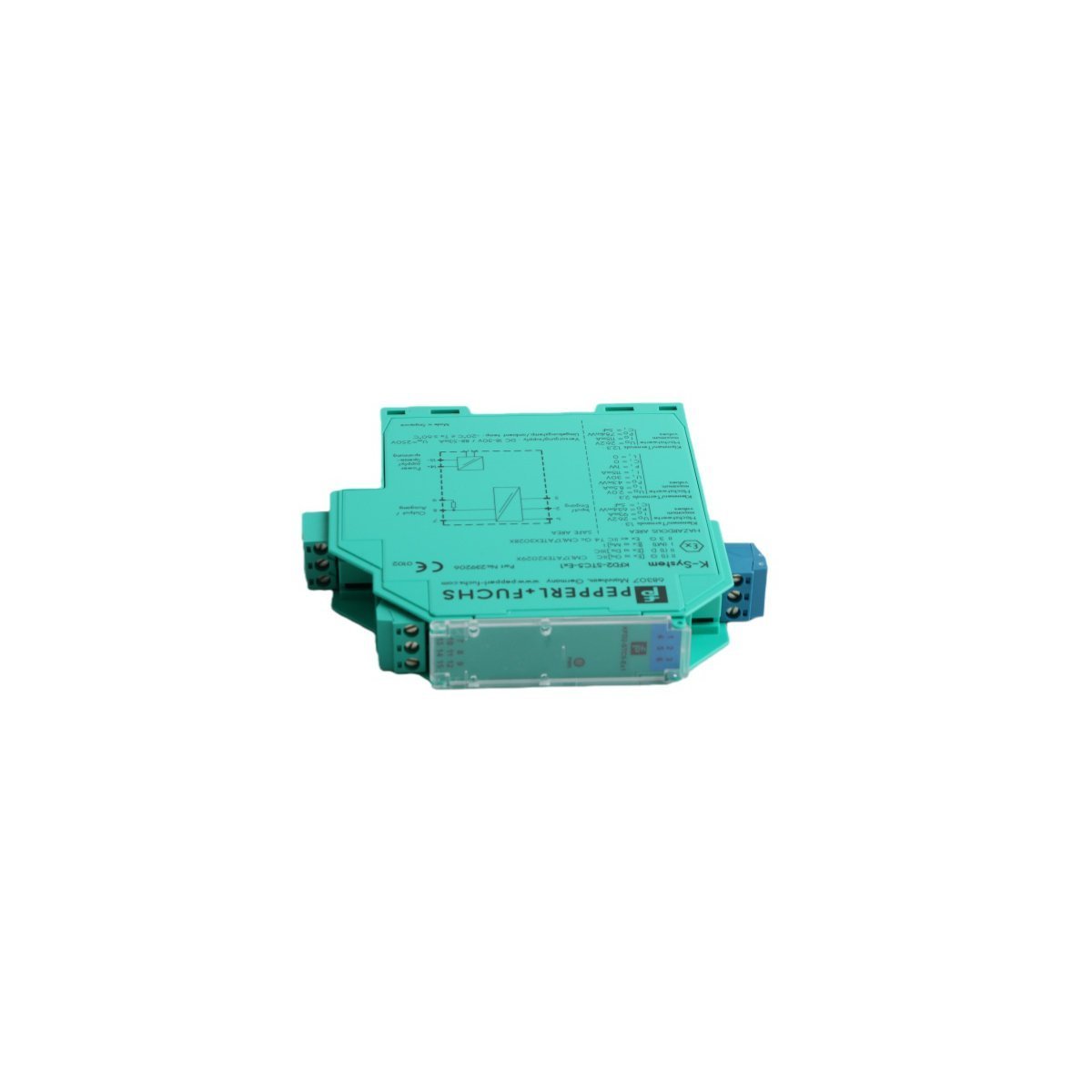

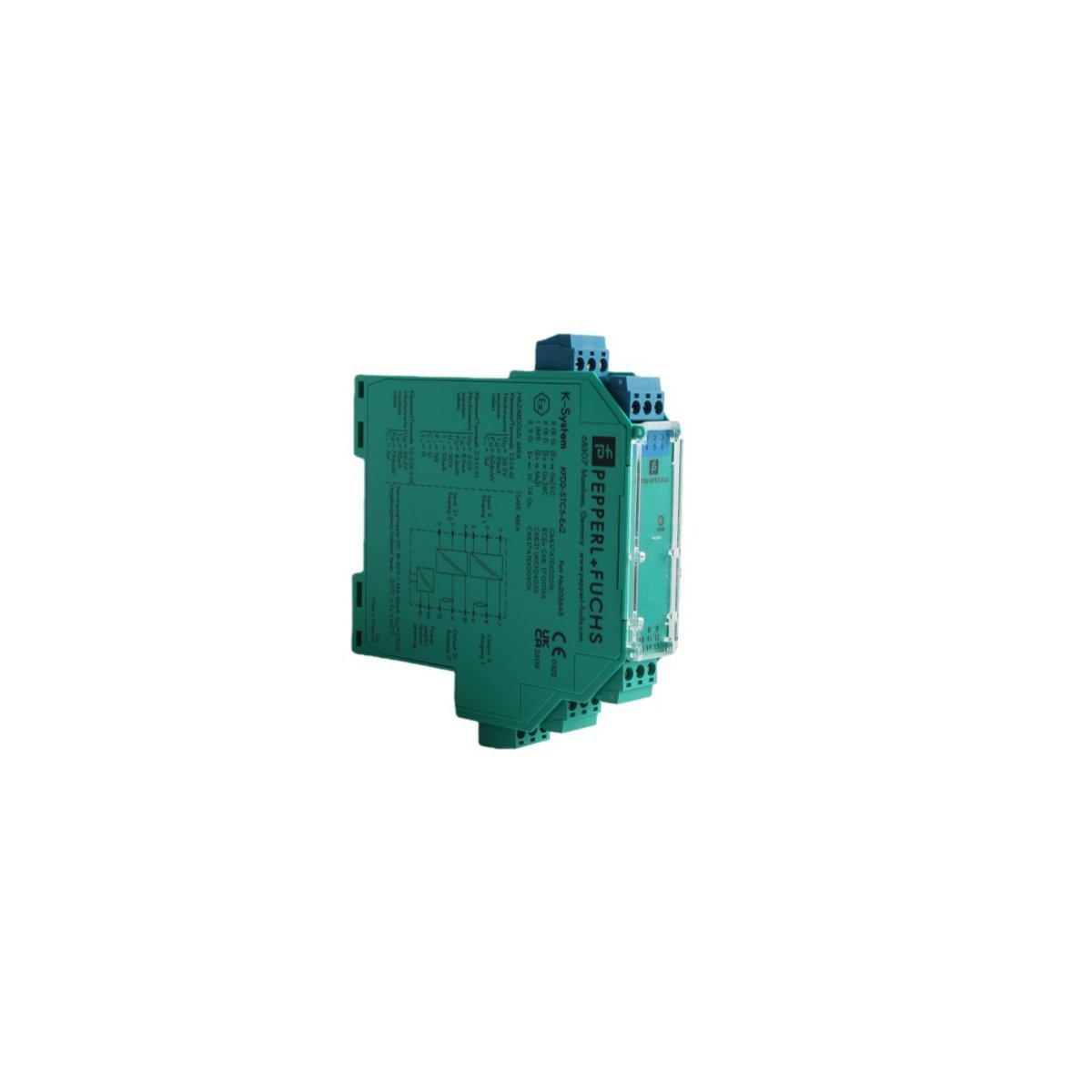

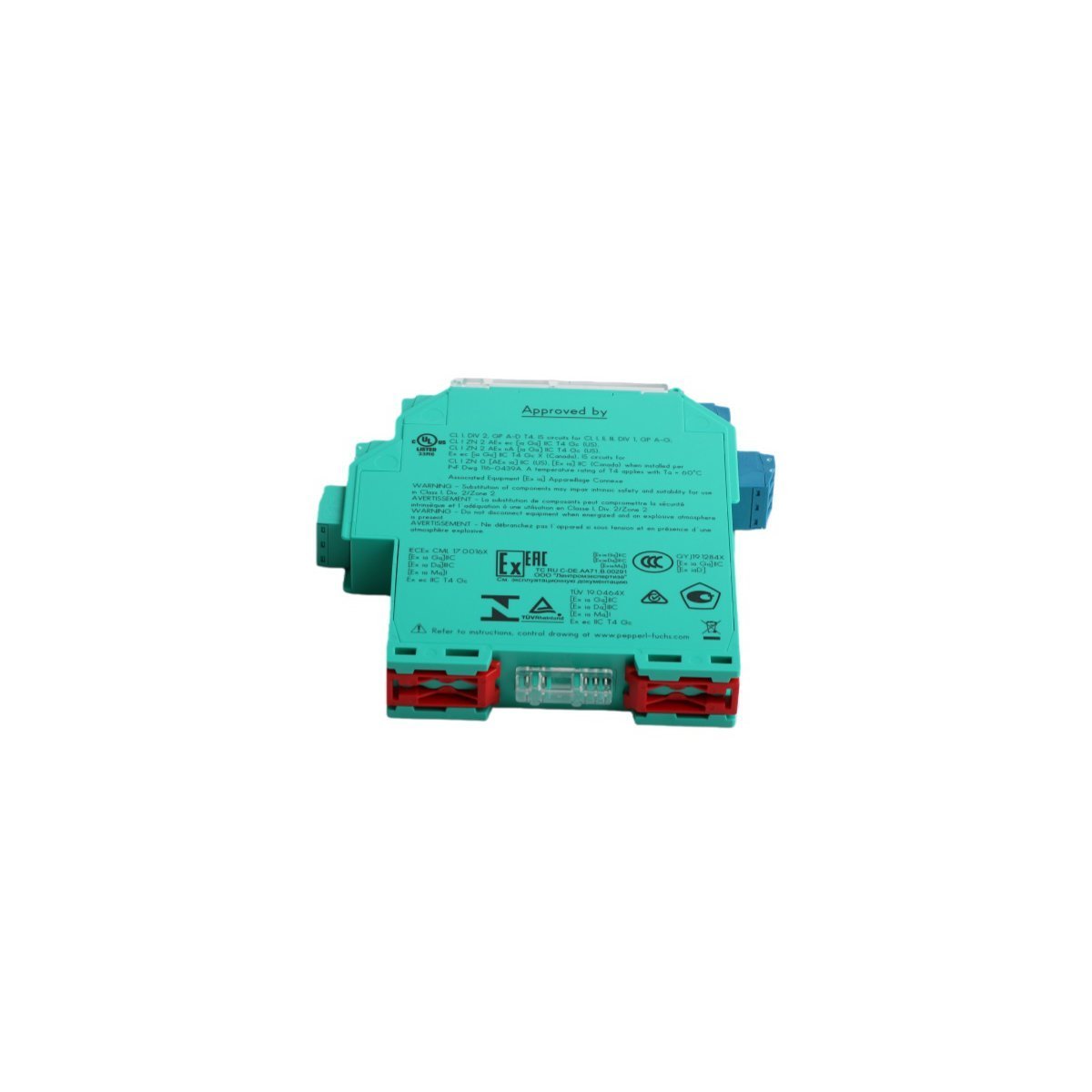

Pepperl + Fuchs KFD2-STC5-1 Transmitter Power Supply
Sale!Pepperl + Fuchs KFD2-STC5-1: Isolated power for SMART transmitters with HART support. Prevents ground loops and ensures 4-20mA accuracy. Brand new. Buy now.
99 in stock
- Superior Isolation: Prevents ground loop interference between field and control circuits.
- SMART Compatibility: Supports bidirectional digital protocols for advanced device management.
- Output Flexibility: Configurable for both current sink and current source operations.
- Efficient Operation: Minimal power dissipation reduces heat buildup in control cabinets.
The Pepperl + Fuchs KFD2-STC5-1 provides essential galvanic isolation for industrial sensor networks. This device supplies power to 2-wire and 3-wire SMART transmitters in the field. It also supports 2-wire SMART current sources. By separating field circuits from control side terminals, the module eliminates ground loops and protects the control system from electrical surges. The unit converts analog input signals into isolated 4-20 mA current values, ensuring high-precision data transmission across the isolation barrier.
Advanced HART Communication and Integration
Maintenance teams benefit from the bidirectional digital communication features of this module. It allows HART, BRAIN, or Foxboro protocols to pass through the signal without interference. Specifically, the KFD2-STC5-1 includes an internal 250 Ohm resistor for HART compatibility. Integrated test sockets allow for direct communicator connection, which streamlines field calibration and system troubleshooting. Furthermore, the output stage offers flexibility by operating in either sink or source mode to match diverse PLC and DCS input requirements.
Technical Specifications
| Feature | Details |
| Manufacturer | Pepperl + Fuchs |
| Model Number | KFD2-STC5-1 |
| Module Type | Transmitter Power Supply / Signal Conditioner |
| Supply Voltage | 18 – 30 V DC |
| Power Consumption | < 1 W |
| Input Type | 2-wire / 3-wire SMART Transmitter |
| Output Signal | 4 – 20 mA (Source or Sink) |
| Isolation Rating | 300 V (Basic Insulation per IEC 61010-1) |
| Settling Time | 200 µs |
| Accuracy Deviation | < 10 µA |
| Weight | 0.2 kg |
Reliable Performance in Industrial Environments
This power supply module excels in real-time signal processing applications. It features rapid response characteristics, including a 100 µs rise and fall time. These speeds ensure that the control system reacts instantly to field changes. In addition, the rugged housing and high input resistance make the unit suitable for heavy-duty process industries. The KFD2-STC5-1 maintains exceptional signal stability even under fluctuating environmental conditions, directly contributing to overall manufacturing efficiency and plant safety.
Core Technical Advantages
| Weight | 0.2 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 8.3 x 5.2 x 4m |
