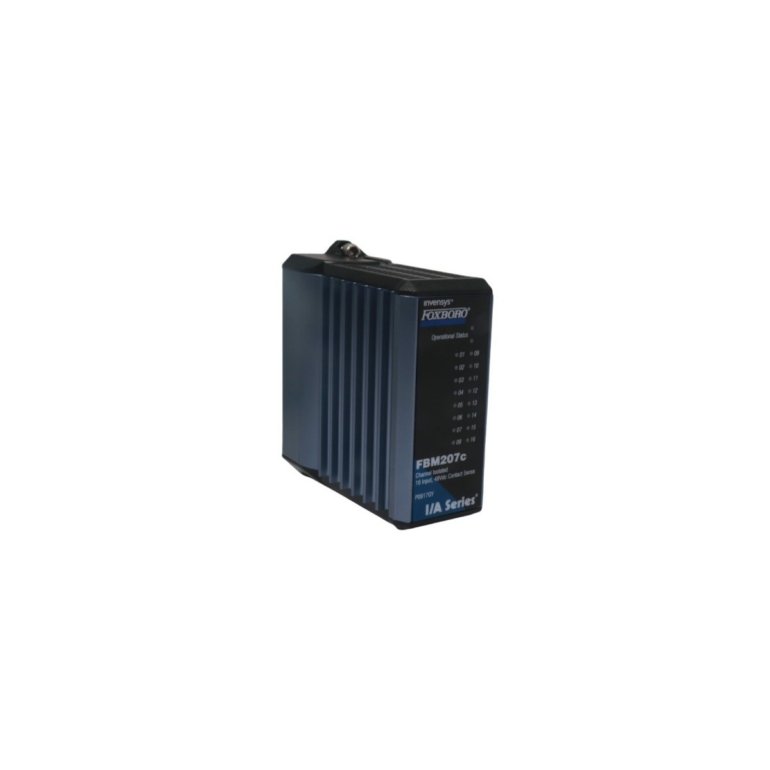

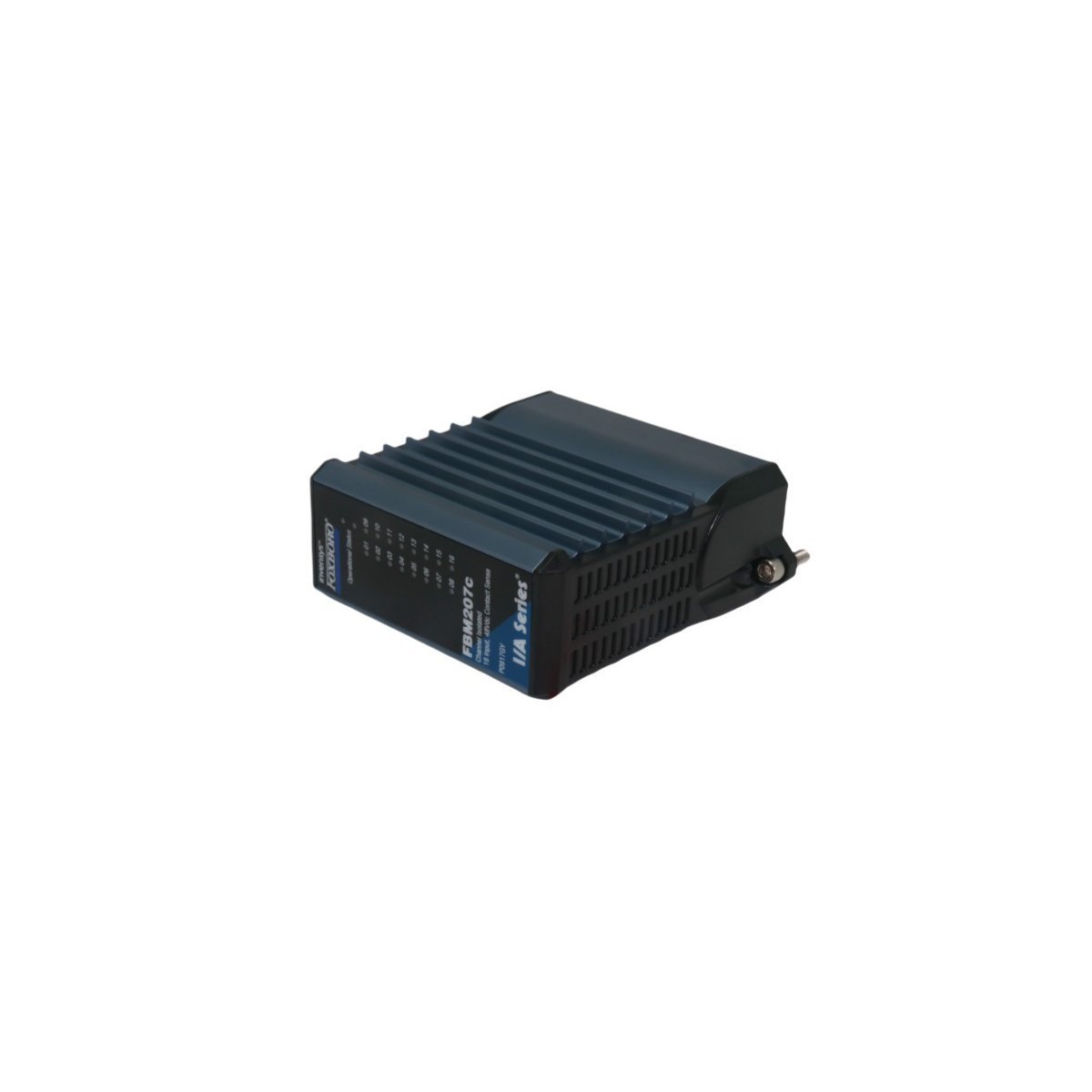

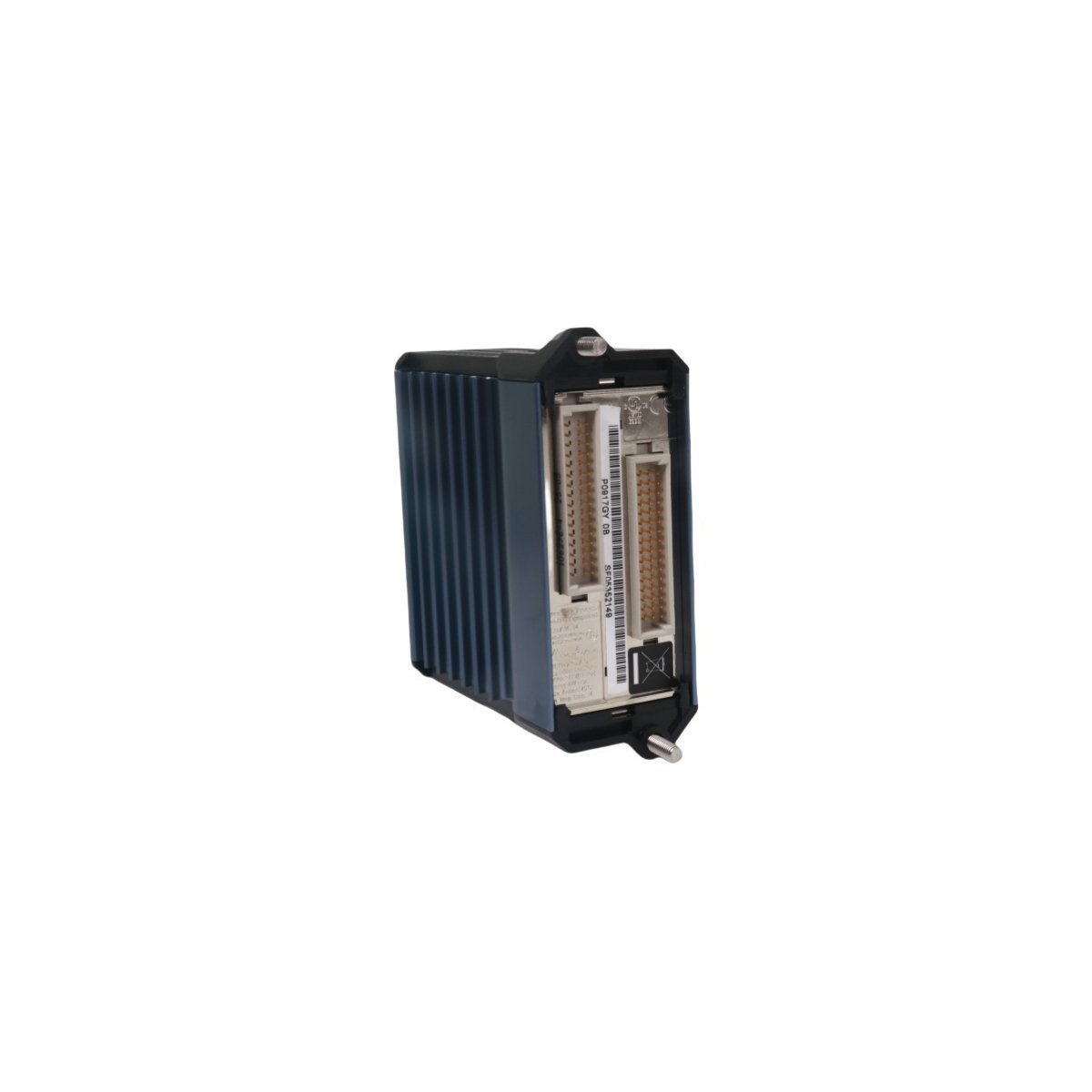

Foxboro FBM207C Voltage Monitor Contact Sense Input Module

Technical Specifications

Advanced Logic and Industrial Hardening

Beyond basic signal detection, the FBM207C possesses onboard processing power to execute complex functions. It handles Ladder Logic, Sequence of Events (SOE) recording, and Pulse Counting directly at the module level. Users can also configure Input Filter Times to eliminate signal bounce and electrical noise. The ruggedized design features an IP65-rated equivalent protection level and withstands extreme temperatures. These characteristics allow for reliable deployment in Class G3 harsh environments, ensuring long-term stability in areas with high contaminant exposure.

Primary Operational Features

• Flexible Logic Execution: Supports discrete input processing and high-speed pulse counting.
• Redundant Capability: Operates in pairs to prevent data loss in critical control loops.
• Wide Compatibility: Interfaces with various Termination Assemblies for local or remote wiring.
• Rugged Construction: Extruded aluminum casing provides superior thermal and physical protection.

The Foxboro FBM207C serves as a high-performance interface for monitoring sixteen discrete input signals within the I/A Series Distributed Control System (DCS). This module specializes in detecting contact closures and voltage states from field-mounted switches and sensors. It provides critical status data for manufacturing, chemical processing, and power generation sectors. By converting field signals into digital data, the FBM207C allows the control system to execute logic based on real-time hardware states. The unit supports both single and redundant configurations to ensure continuous monitoring for high-availability applications.
