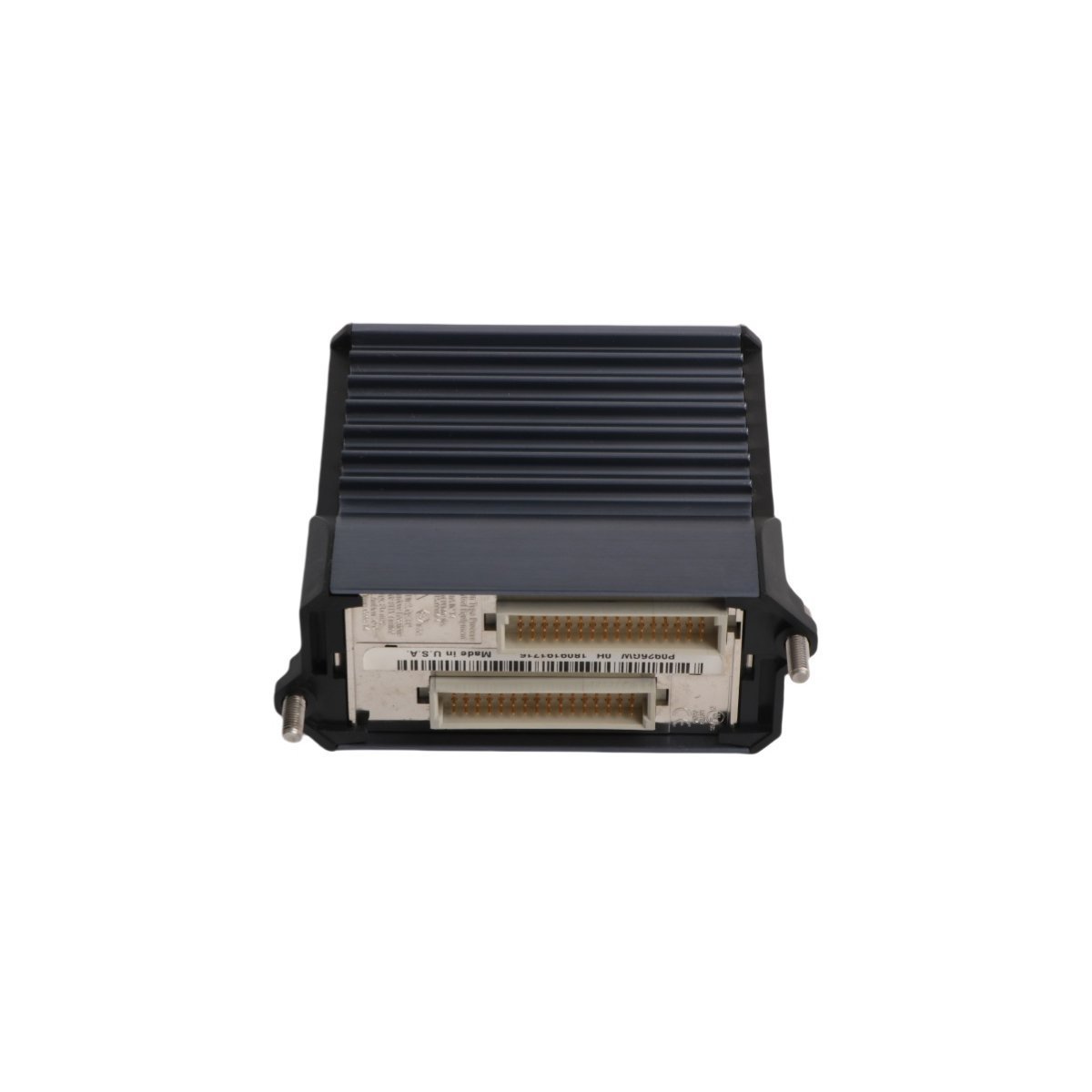

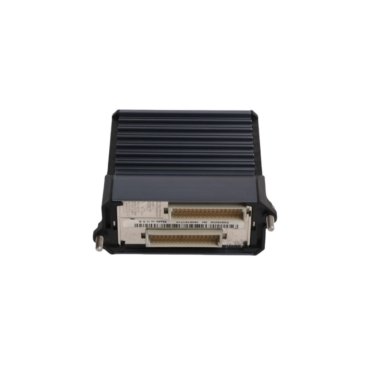

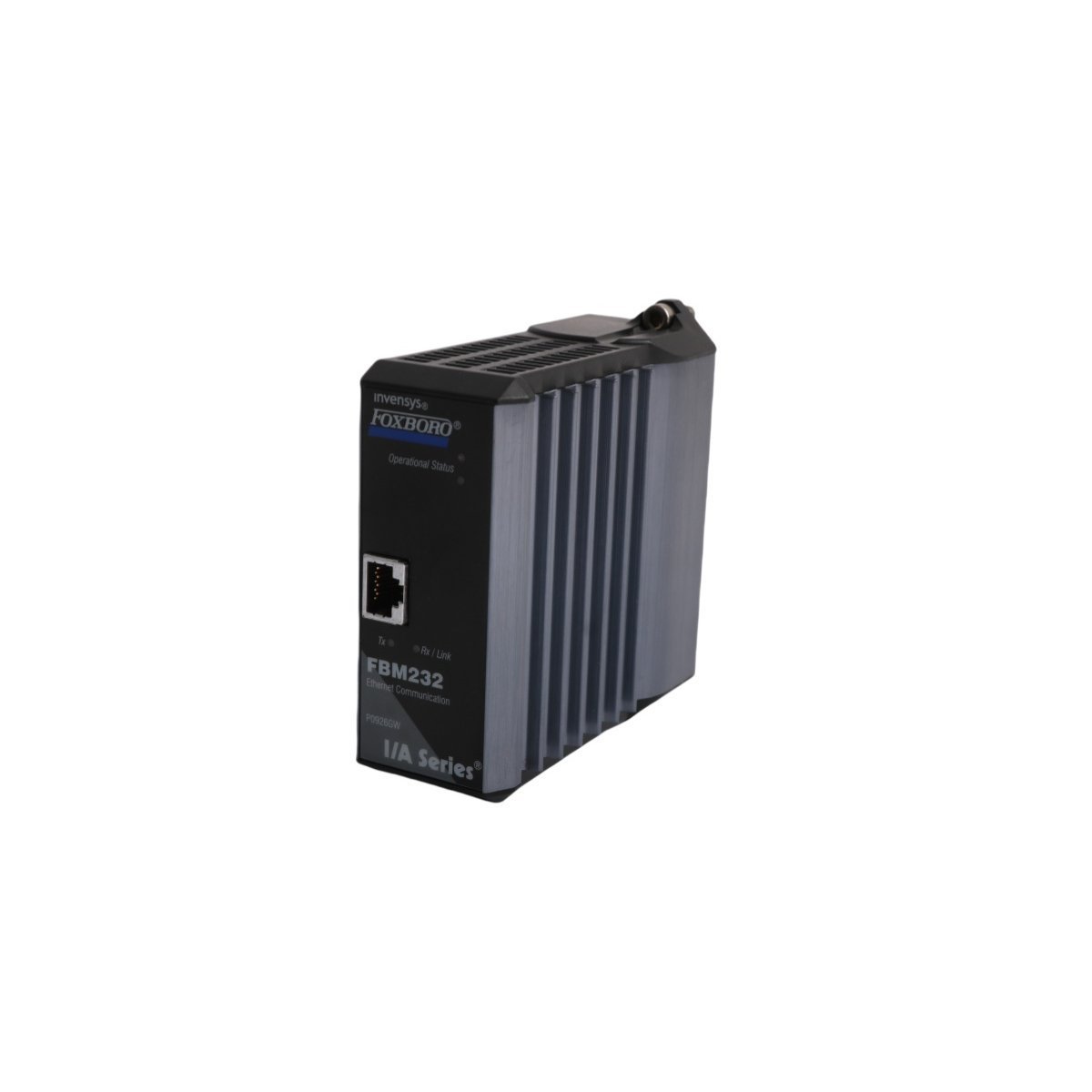

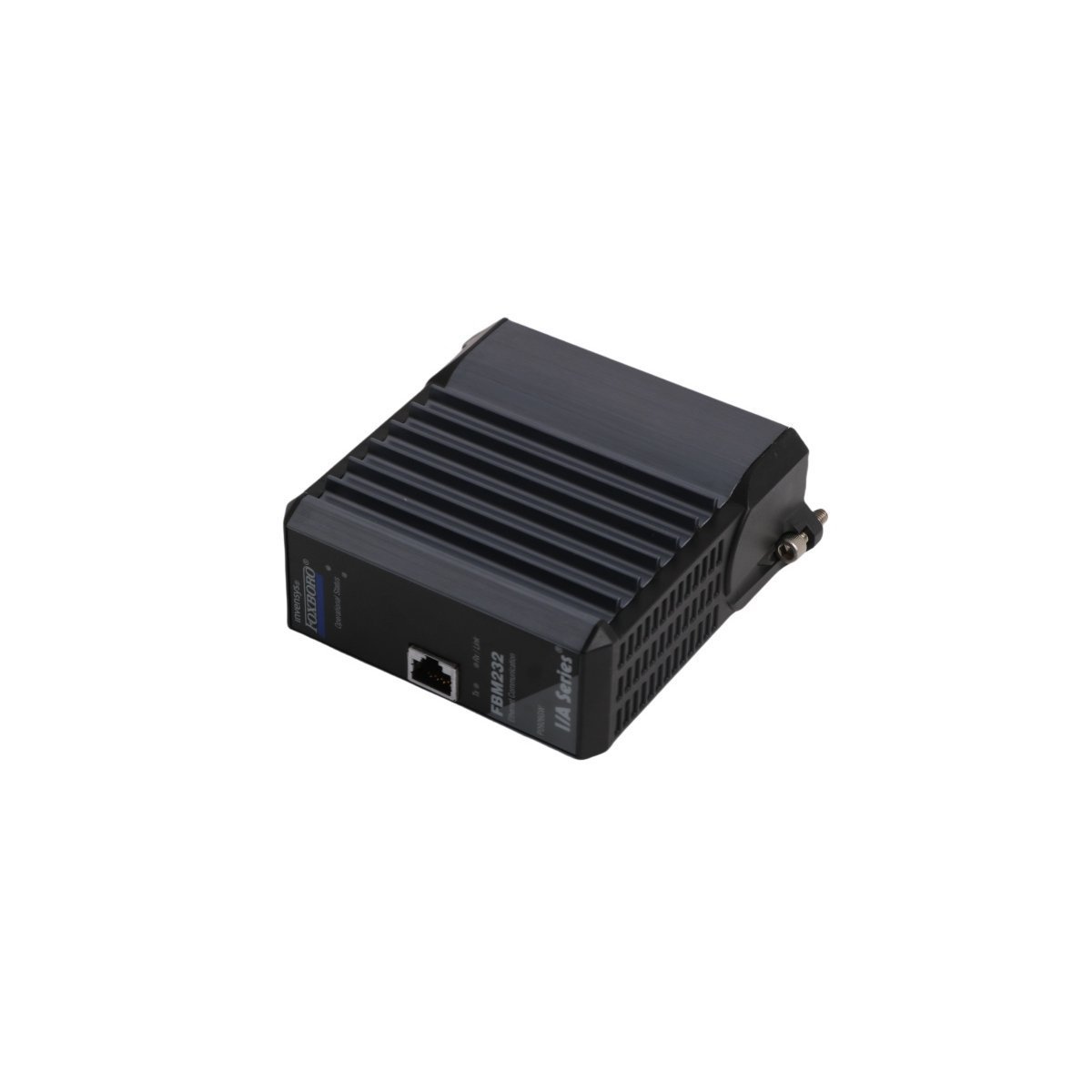

Foxboro FBM232 P0926GW Ethernet Communication Module

The Foxboro FBM232 (P0926GW) serves as a powerful bridge between the I/A Series Distributed Control System (DCS) and external Ethernet devices. This module can interface with up to 64 unique field devices simultaneously. It manages up to 2,000 Distributed Control Interface (DCI) data connections. Consequently, the FBM232 can handle massive datasets, including up to 2,000 analog signals or 64,000 digital points. The module effectively collects field data, performs necessary protocol conversions, and populates the DCS database for operator visualization and plant management.

Versatile Data Handling and Performance

This communication module supports a variety of data formats to ensure broad compatibility. It processes analog values as integers or IEEE single-precision floating points. Additionally, it manages both individual digital points and packed digital groups of up to 32 bits. Data refresh rates are highly efficient, with access speeds reaching 500 ms depending on device configuration. By centralizing these diverse inputs, the P0926GW enables comprehensive bidirectional communication. This allow the DCS to not only read field information but also write control commands back to the connected devices.

Ruggedized Construction and Environmental Protection

Foxboro engineered the FBM232 for long-term stability in demanding industrial settings. The unit features a durable extruded aluminum housing. This casing provides excellent physical protection and shields internal circuitry from electromagnetic interference (EMI). Furthermore, when installed in a compatible enclosure, the module meets ISA S71.04 Class G3 standards. This level of protection ensures reliable operation in chemically harsh or corrosive environments, which is a standard requirement for refineries and chemical processing facilities.

Principal Operational Advantages

The P0926GW provides several critical benefits for industrial automation:

• Massive Scalability: Supports high-density digital and analog I/O within a single module footprint.
• Flexible Protocol Conversion: Uses specialized drivers to translate external device data into native DCI types.
• Bi-directional Control: Facilitates both data acquisition and remote command execution.
• Enhanced Durability: Aluminum exterior and G3-rated protection prevent hardware failure in industrial zones.
