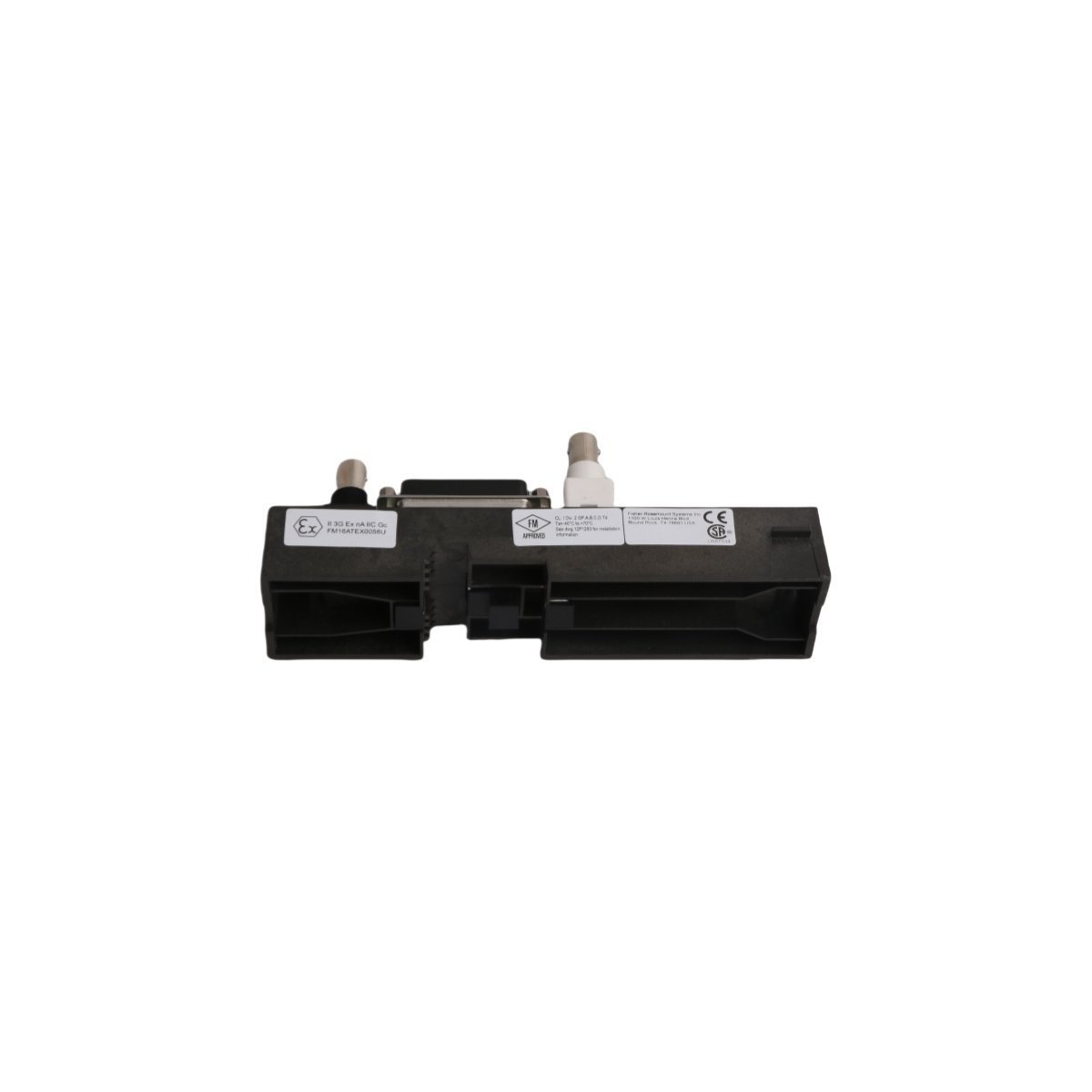

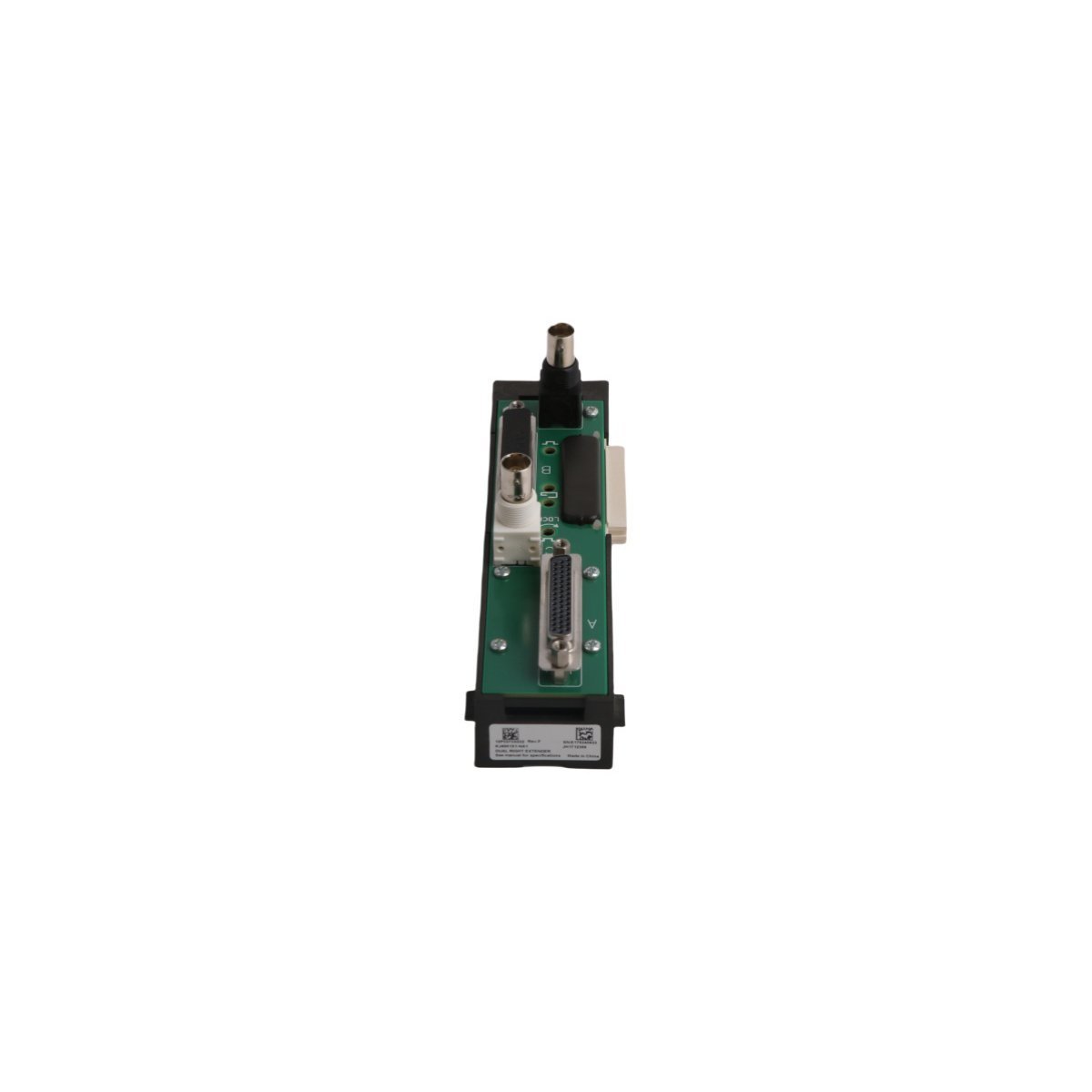

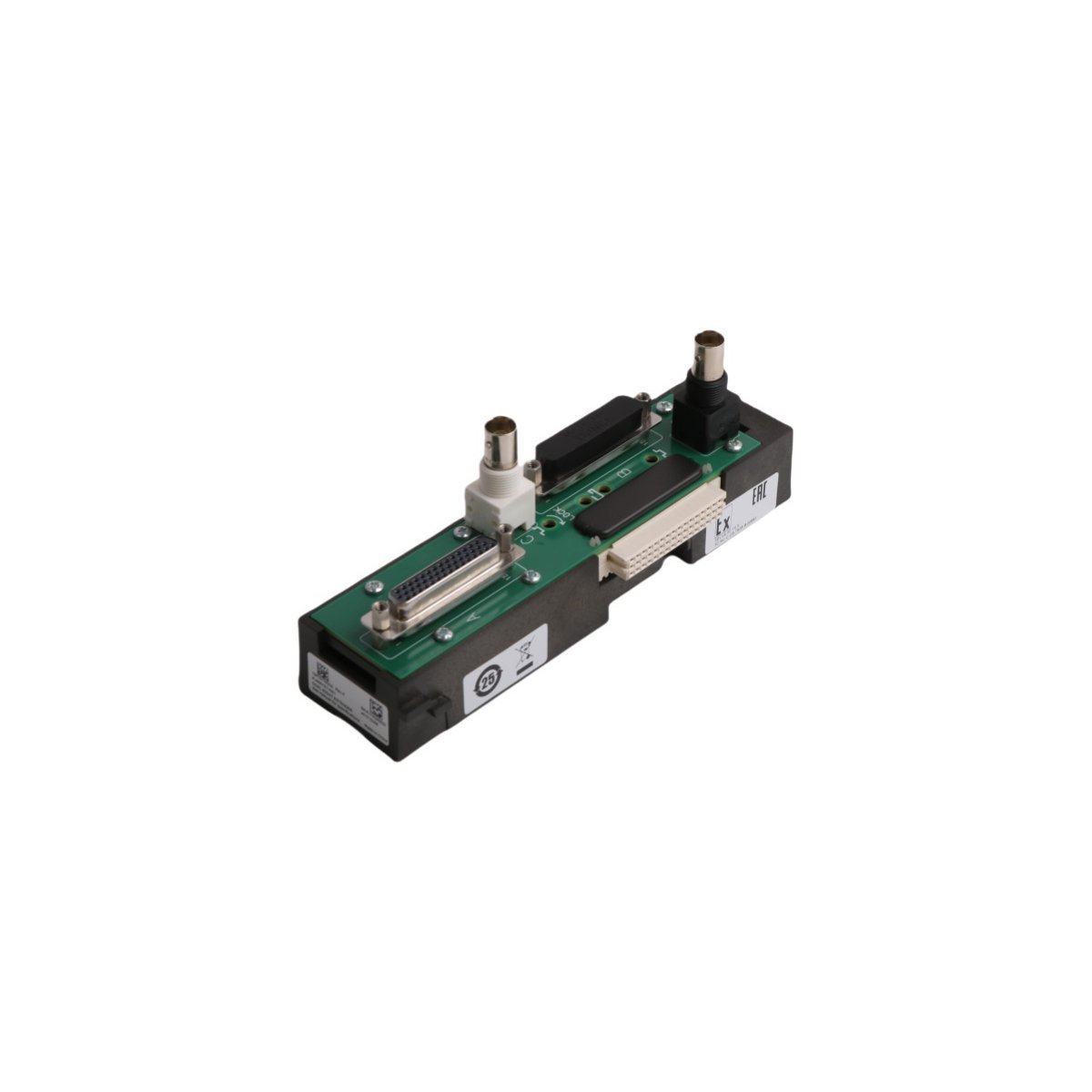

Emerson KJ4001X1-NA1 12P3373X032 DeltaV Horizontal LocalBus Extender

Emerson KJ4001X1-NA1 12P3373X032 Horizontal LocalBus Dual Right Cable Extender

The Emerson KJ4001X1-NA1 12P3373X032, also cataloged as the KJ4001X1-NA1 Horizontal LocalBus Dual Right Cable Extender, operates as a dedicated hardware component for LocalBus extension within DeltaV M-series I/O Subsystem platforms. The module provides direct physical interface continuity between adjacent horizontal carrier racks while maintaining electrical integrity for bus signal transmission across DeltaV DCS architectures. Engineers deploy this unit to extend backplane communications to the right-hand side of a controller bank, delivering high-speed data flow and 12 VDC power distribution at up to 8 A across connected I/O carrier assemblies.

Suffix Breakdown & Model Matrix

Hardware Specifications

Process Control & Channel Isolation Characteristics

The Emerson KJ4001X1-NA1 12P3373X032 maintains signal integrity across extended LocalBus topologies through balanced bus termination and differential data routing. In DeltaV DCS architectures, the module enforces channel-to-channel isolation and voltage reference stabilization across the extended carrier plane. Internal copper traces reduce inductive loop impedance, which prevents differential voltage drop during high-density I/O switching operations. Furthermore, the passive physical architecture eliminates signal processing latencies, ensuring deterministic 4-20 mA HART loop data packet transfer between field I/O cards and the active controller module without requiring active software configuration or firmware flashing.

Frequently Asked Questions

Q: How does the module handle backplane power delivery across extended LocalBus racks?

A: The module routes the primary 12 VDC rail directly through dedicated heavy-gauge copper bus conduits rated up to 8 A. Technicians must calculate total downstream I/O module current draw to ensure total carrier load does not exceed the 8 A limit at the primary controller power supply terminals.

Q: Can maintenance personnel perform hot-swapping or disconnect this cable extender during active DCS operation?

A: Technicians must never disconnect the LocalBus extender while the system is energised. Interrupting the LocalBus power and data lines breaks communication with all downstream I/O modules simultaneously, which triggers a hardware fault in the DeltaV controller and forces downstream channels into their configured fail-safe state.

Field Installation Guidelines

Technicians must verify that main system power is completely isolated before inserting or removing the Emerson KJ4001X1-NA1 12P3373X032 from the LocalBus carrier slot. Mount the extender assembly firmly onto the right-hand side of the DeltaV carrier rail until the mechanical locking mechanism engages completely.

During panel wiring, engineers must maintain proper bend radii on interconnecting bus cables to prevent physical conductor stress and signal attenuation. Connect drain wires and cable shielding directly to the panel earth ground bar using short, thick grounding straps. Maintain a minimum separation of 200 mm between LocalBus ribbon cables and high-voltage AC power conductors to suppress electromagnetic interference (EMI) and cross-talk.
