Converter Display Panel ABB UNS0885A-Z,V2 3BHB006943R0002 UNITROL

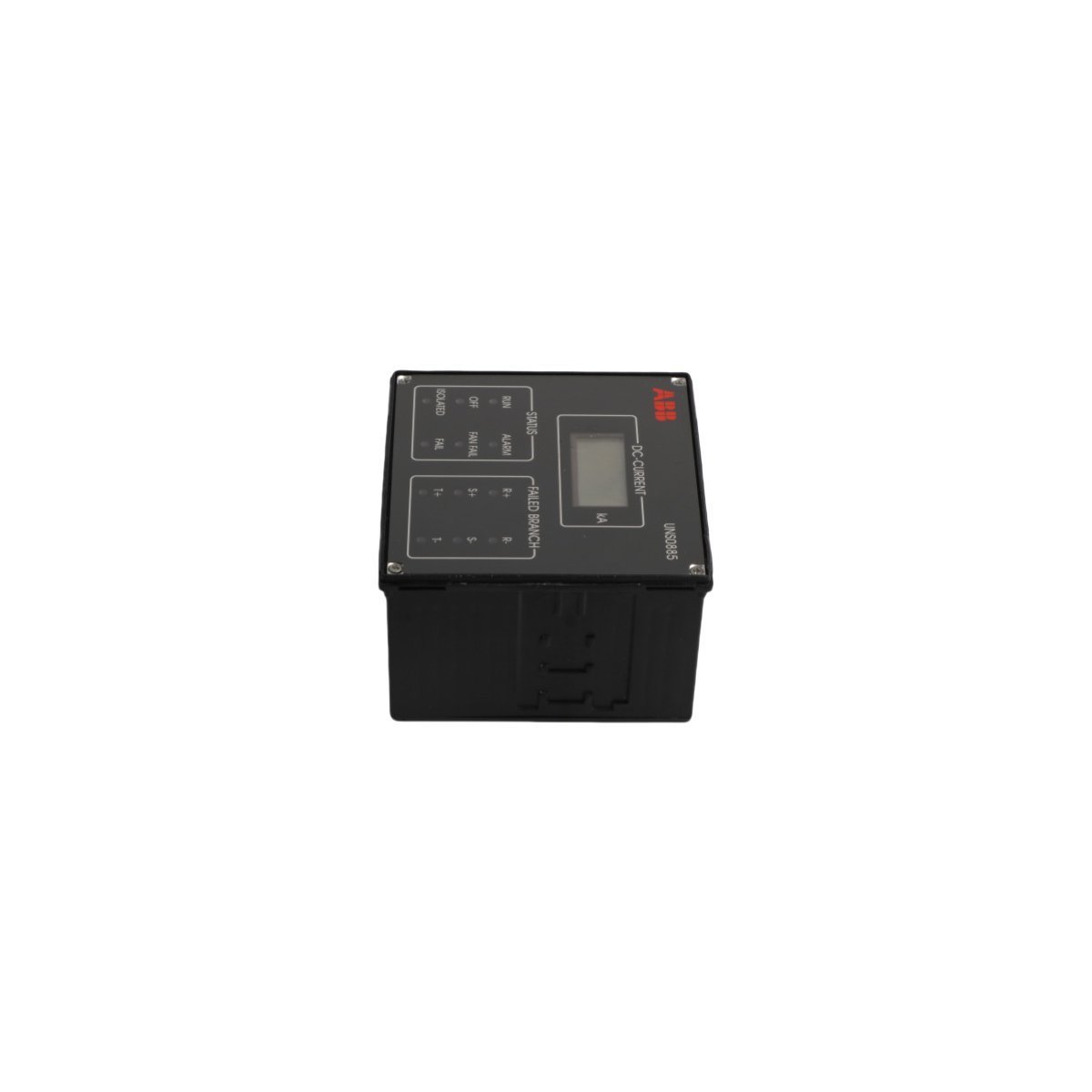

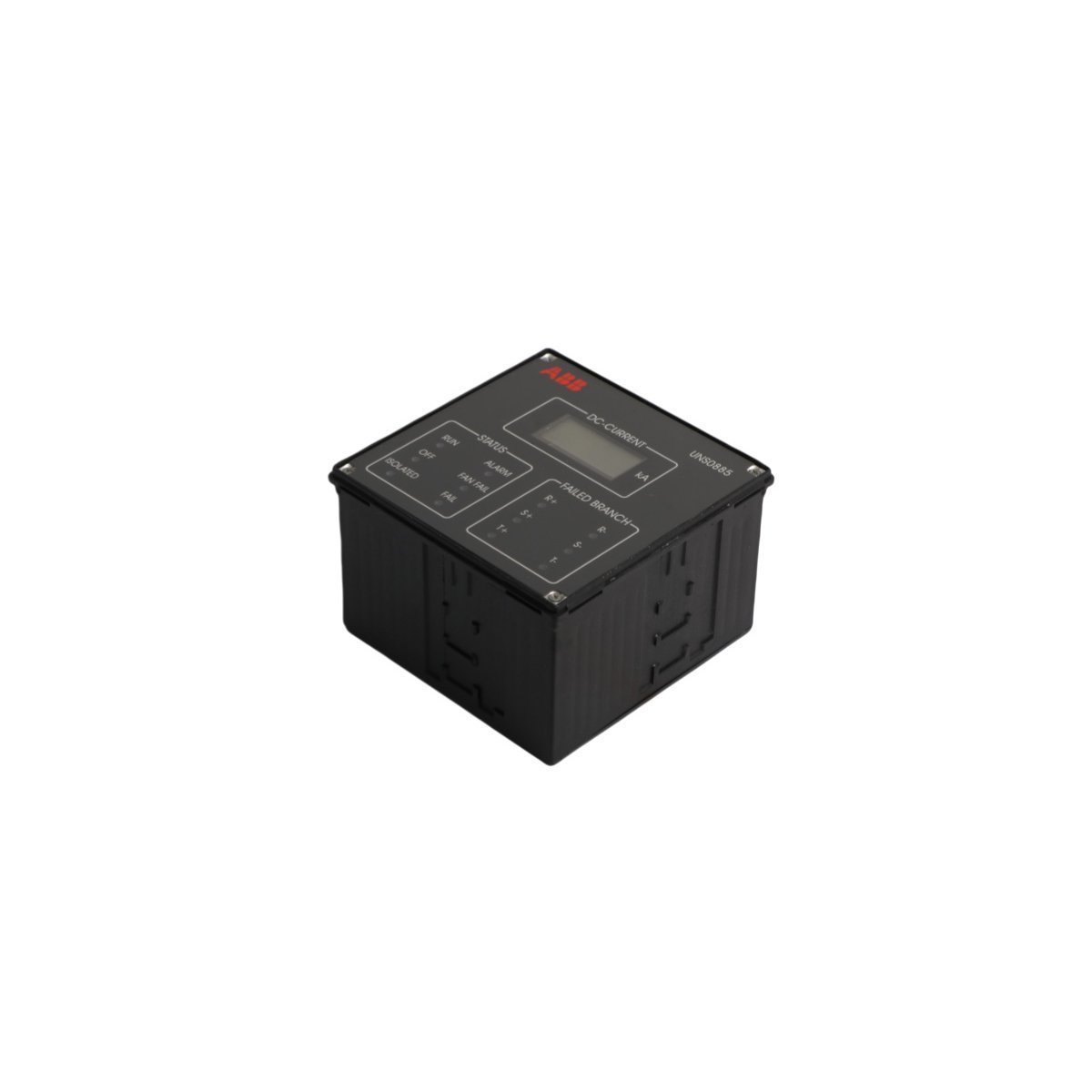

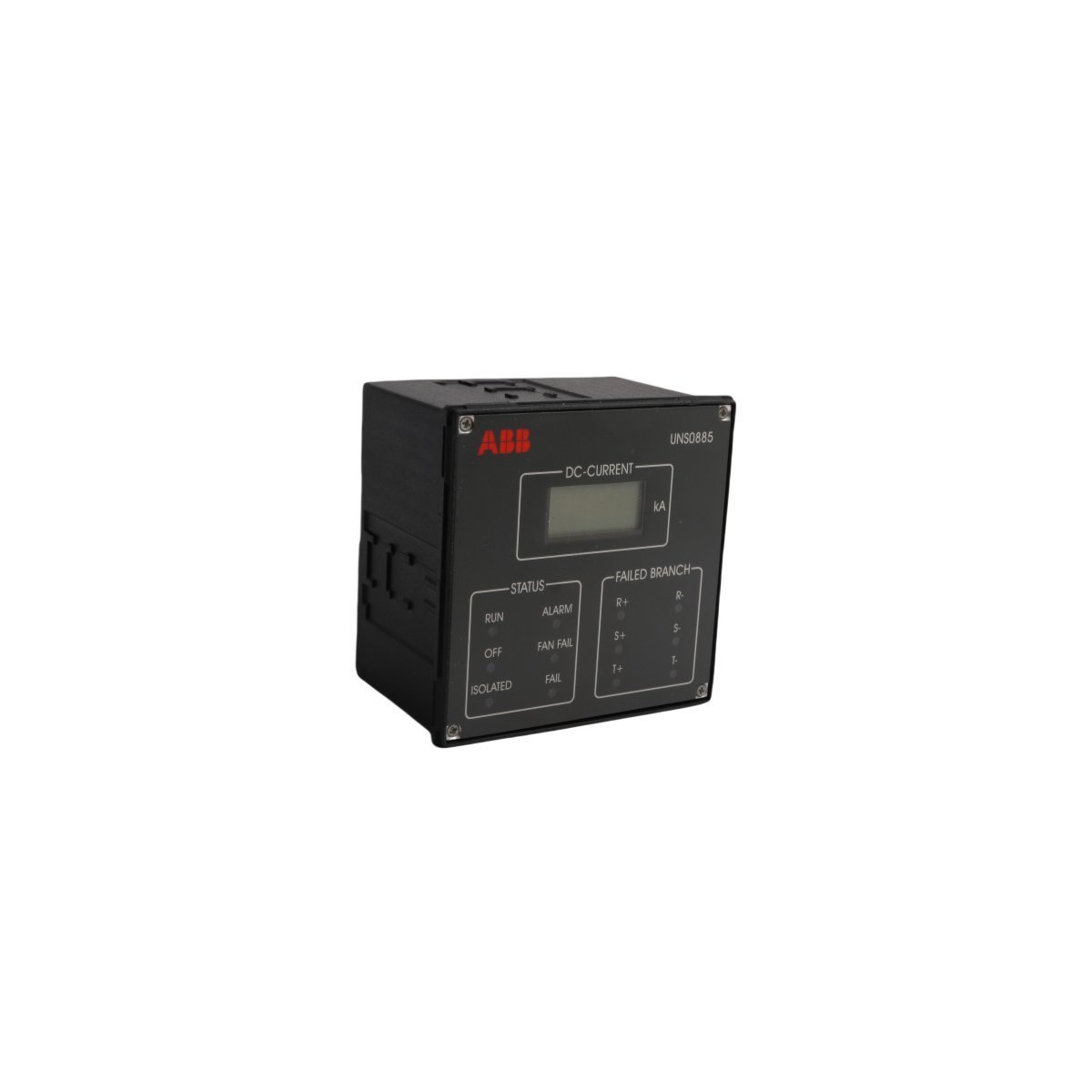

ABB 3BHB006943R0002 UNS0885A-Z,V2 Converter Display

The ABB 3BHB006943R0002, also cataloged as the UNS0885A-Z,V2 Converter Display, operates as a dedicated hardware component for system parameter visualization and operator control inputs within UNITROL Excitation Systems.

Hardware Specifications

Firmware Flash Compatibility and Host Bus Interface

The display module integrates directly with the main control processor to maintain synchronous data updates. The display controller maintains direct firmware flash compatibility with the UNITROL system backplane, which ensures correct rendering of parameters without auxiliary software translation layers. Because the module links directly to the existing control architecture, system upgrades do not require additional communication bus licenses. This internal architecture enables rapid data exchange rates, allowing real-time parameter tracking and faster diagnostic response times.

Frequently Asked Questions

Q: Does the UNS0885A-Z,V2 converter display support hot-swap replacement during system operation?

A: Yes, the host excitation controller permits the physical removal and replacement of this display module without interrupting the active control loops or causing a system trip.

Q: How does the module receive its operational screen layouts and parameters?

A: The main controller downloads the necessary display configuration parameters automatically to the board memory immediately after the communication link initializes.

Field Installation Guidelines

• Mounting Security: Insert the display module firmly into the cut-out slot on the cabinet door or mounting panel, and engage all securing clips to ensure a dust-tight seal.
• Cable Strain Relief: Secure the serial or Ethernet patch cable to the frame with tie-wraps to prevent tension on the backplane communication port pins.
• Noise Mitigation: Run the interface communication cables through dedicated wire ducts, maintaining isolation from high-current AC or DC excitation lines to prevent screen flicker and signal dropouts.
• Grounding Continuity: Connect the grounding terminal on the module housing to the cabinet common earth point using a low-impedance conductor.
