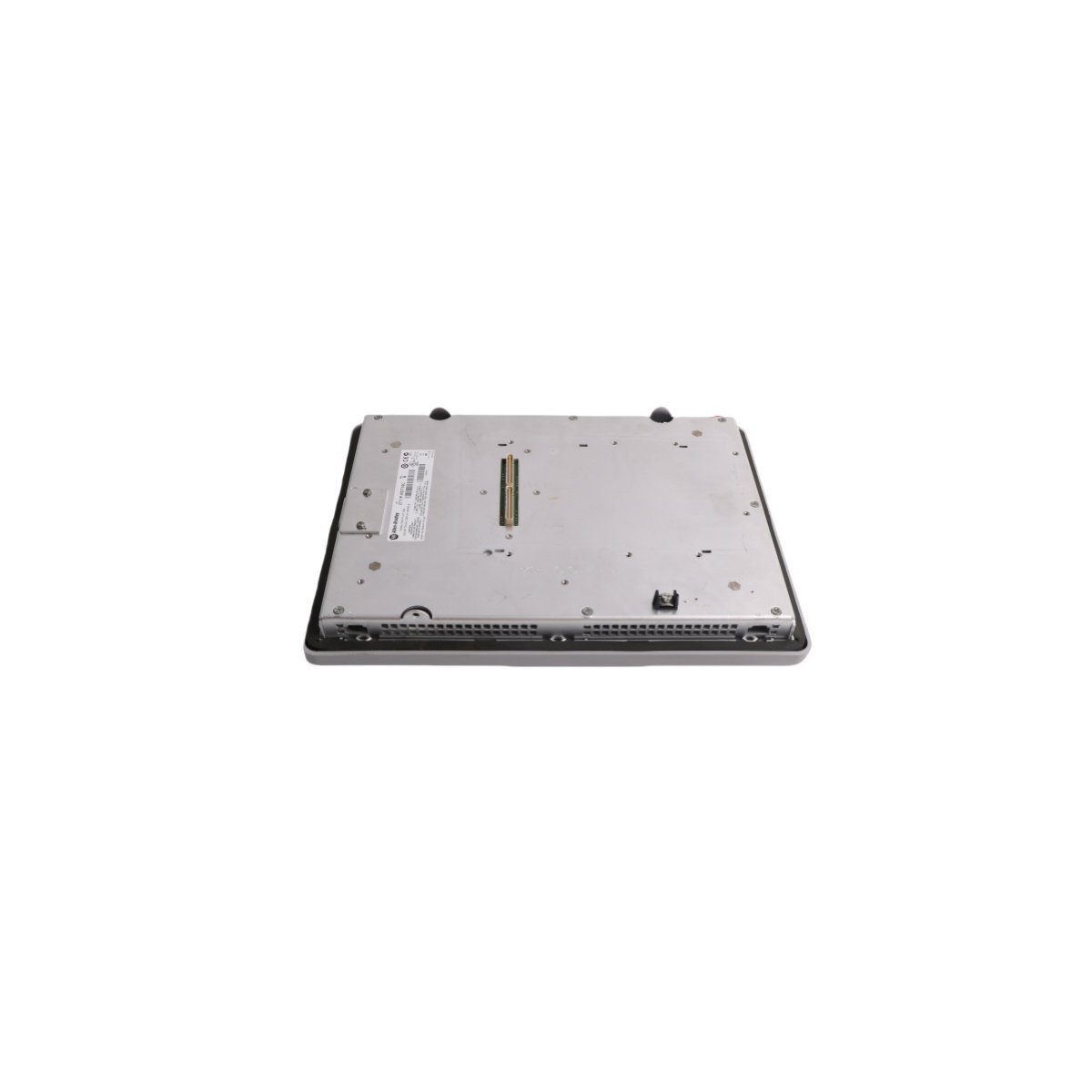

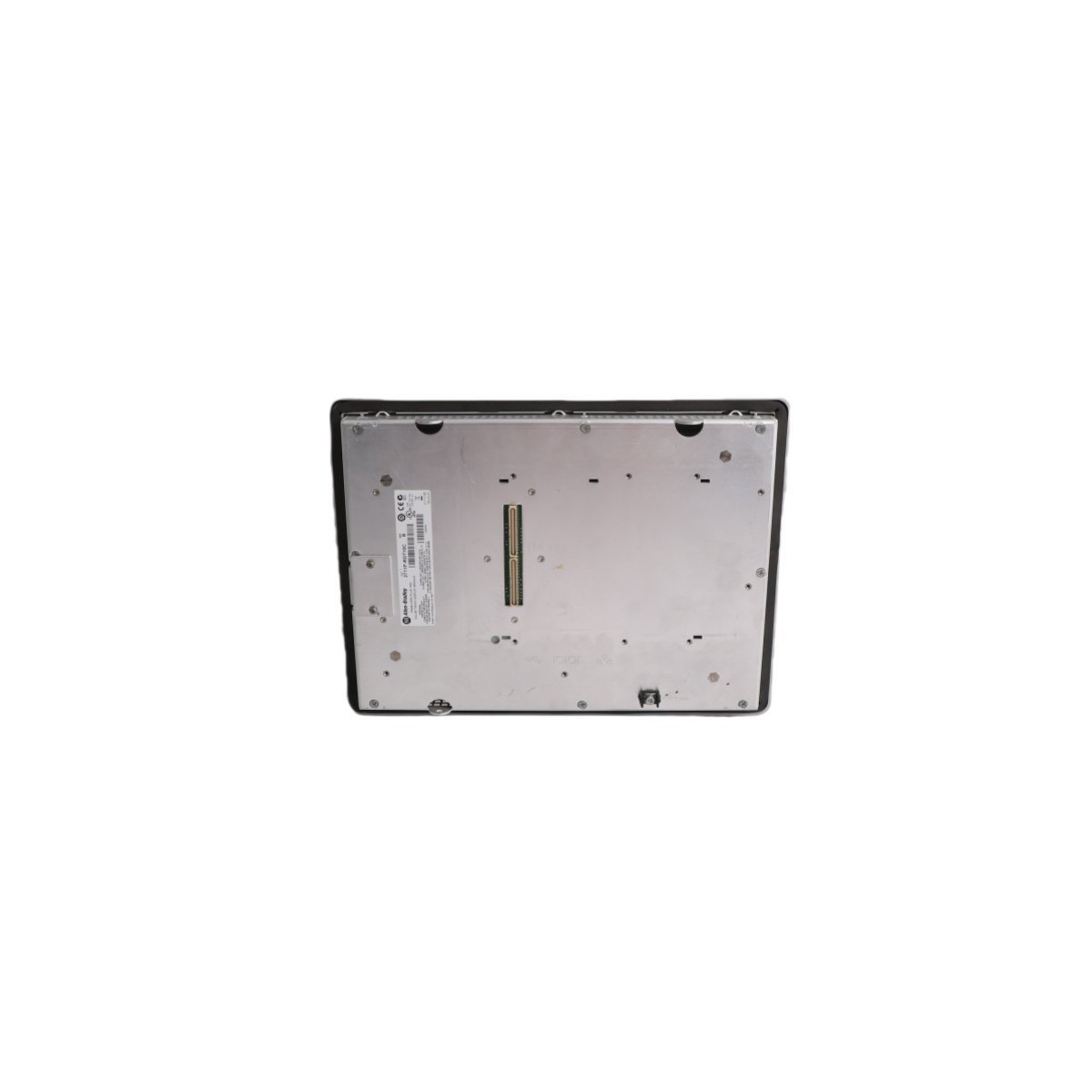

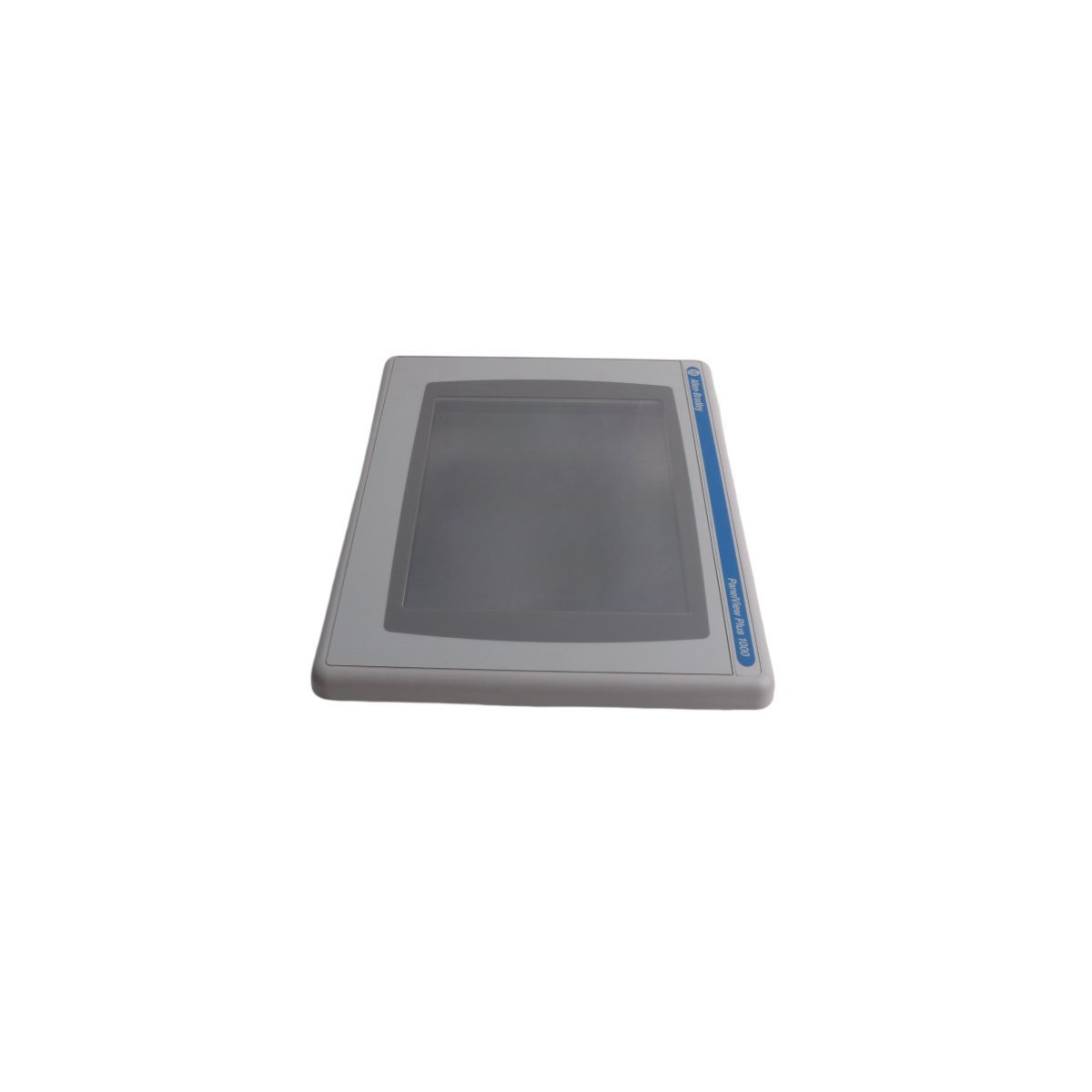

Allen-Bradley 2711P-RDT10C Touch Display Module

The Allen-Bradley 2711P-RDT10C serves as a specialized human-machine interface (HMI) component for industrial environments. This 10.4-inch touch display module belongs to the established PanelView Plus 6 Series B family. It provides operators with a high-resolution color terminal for real-time process monitoring. Furthermore, the capacitive touch technology ensures responsive user input for complex control sequences. This module acts as the primary visual hardware for integrated factory floor applications.

Technical Performance and System Integration

This display integrates seamlessly with PanelView Plus 6 logic modules to form a complete terminal. It supports the Windows CE operating system for versatile software execution. Consequently, the unit handles advanced data management and graphical animations with high efficiency. The built-in Ethernet connectivity facilitates rapid data exchange across industrial networks. This allows for centralized control and remote monitoring in large-scale manufacturing facilities. Its high-speed processing capabilities guarantee smooth transitions between different control screens.

Hardware Durability and Construction

Engineers designed the 2711P-RDT10C to endure the rigors of heavy industrial use. The 10.4-inch TFT screen features a rugged enclosure that protects against moisture and dust. Moreover, the unit operates reliably in temperatures ranging from -10°C to +55°C. This thermal resilience makes it suitable for diverse climate conditions in the field. The module remains lightweight and compact despite its robust industrial-grade construction. Its energy-efficient design also reduces overall power consumption for the control system.

Technical Specifications
