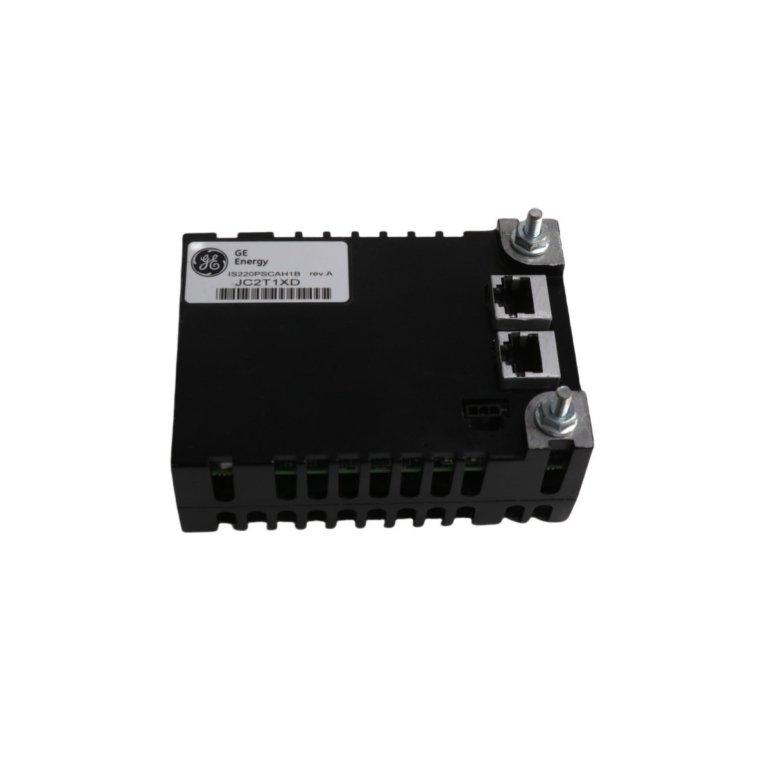

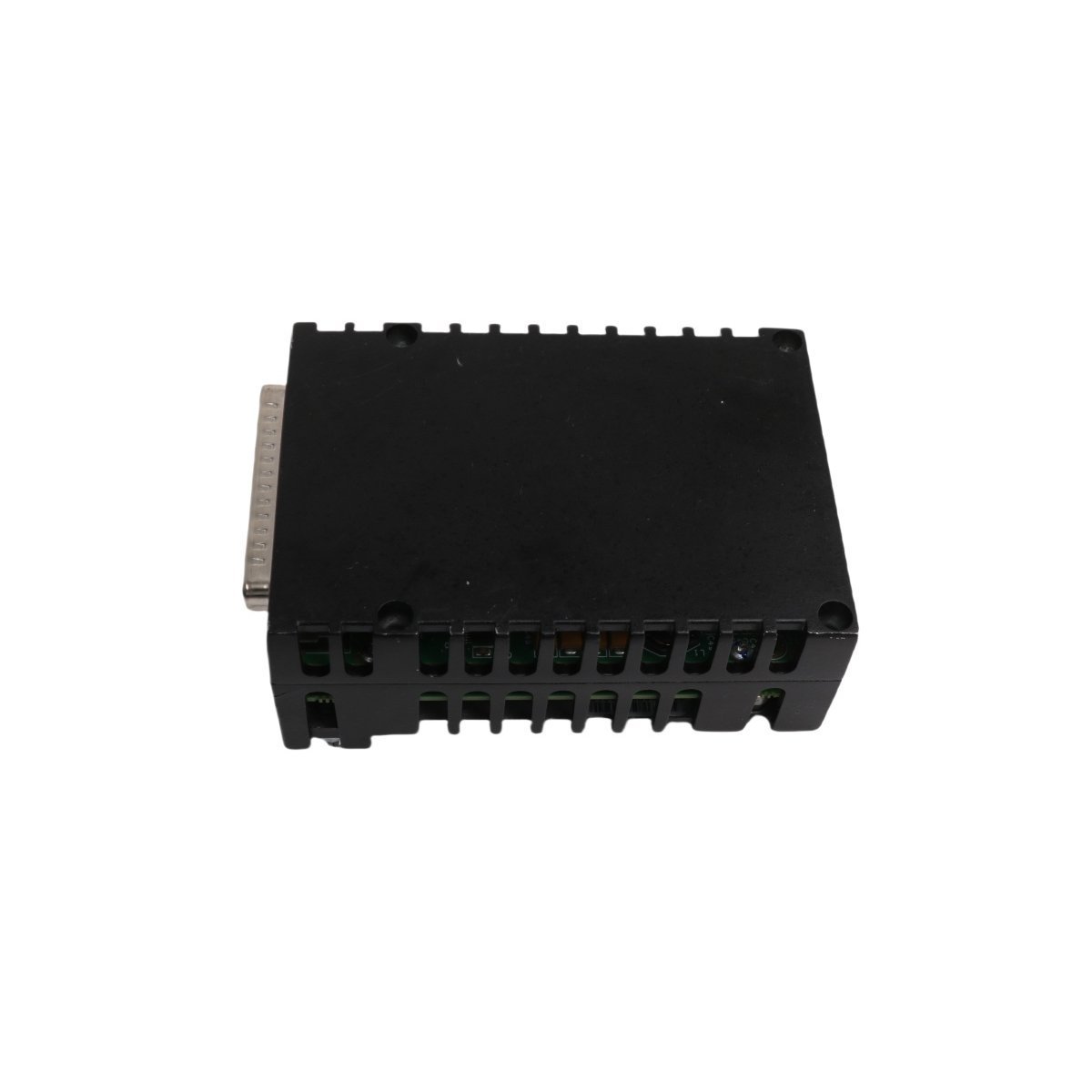

General Electric IS220PSCAH1A Communications Module

The GE IS220PSCAH1A is a specialized Serial Communication Interface Pack designed for the Mark VIe control platform. This high-performance module bridges the gap between the control system and external serial devices. Specifically, it enables seamless data exchange through the Modbus protocol across multiple physical standards. Its architecture supports critical industrial monitoring and automated turbine control tasks. Consequently, this interface pack remains a vital component for integrating third-party hardware into the GE Distributed Control System (DCS).

Versatile Serial Connectivity

The IS220PSCAH1A provides three distinct port channels to accommodate various industrial wiring standards. It supports RS-485 half-duplex configurations alongside standard RS-232 and RS-422 interfaces. Users can configure the Serial Modbus Master Service to meet specific site requirements. For instance, the module allows adjustment of baud rates, parity settings, and station addresses. These flexible options ensure compatibility with a wide array of smart field instruments and PLCs.

Network Integration and Redundancy

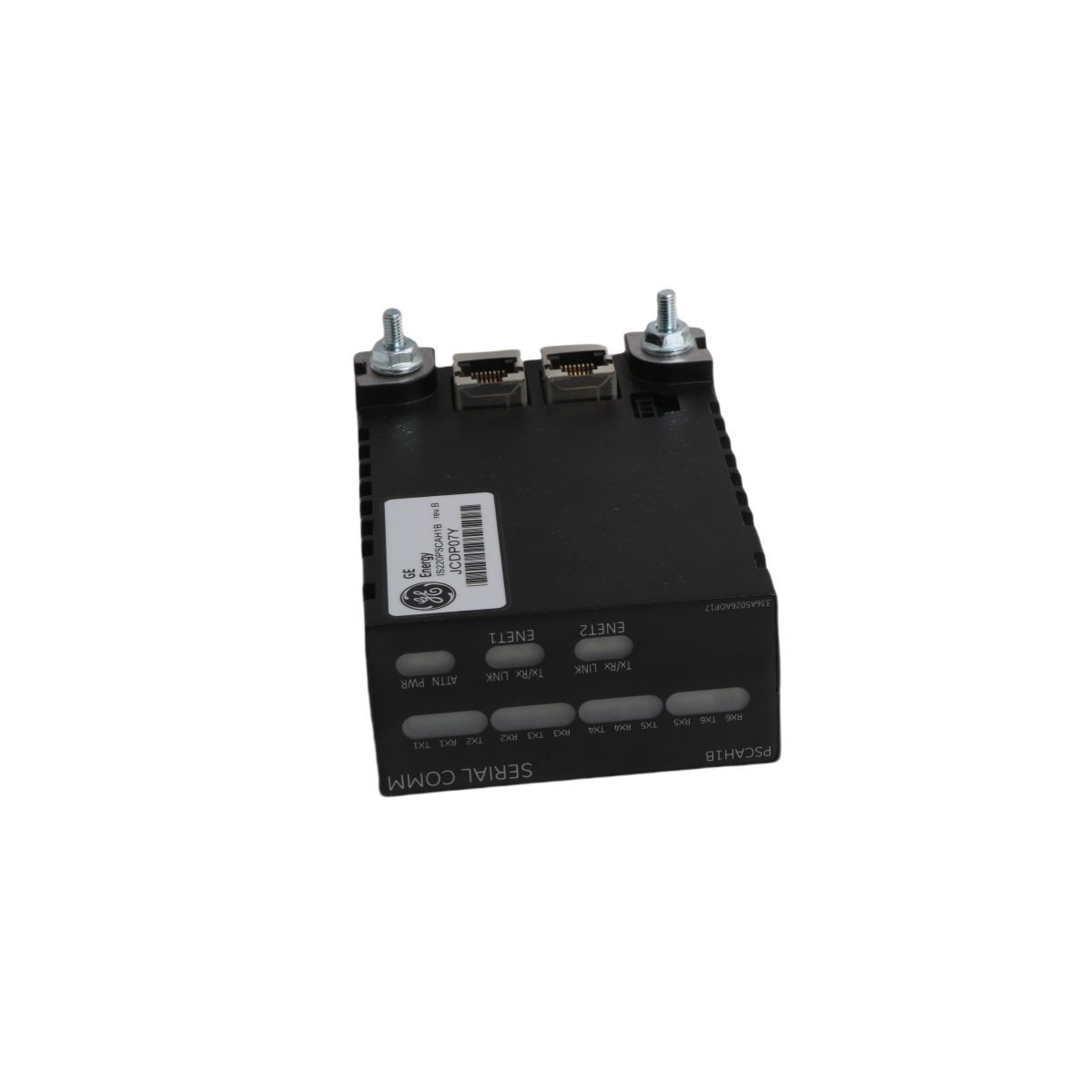

This communication pack interfaces with the control system through dual Ethernet ports. This redundant connection capability ensures continuous data flow even if one network path fails. The module works in tandem with a dedicated serial communication terminal board for electrical termination. Furthermore, the compact 4.5 cm wide housing allows for high-density mounting in standard Mark VIe control cabinets. This streamlined design reduces the footprint while maximizing communication throughput.

Technical Specifications
