Bently Nevada 330908-22-31-10-01-05 3300 NSv Proximity Probe 8mm Sensor

Bently Nevada 330908-22-31-10-01-05 3300 NSv Proximity Probes

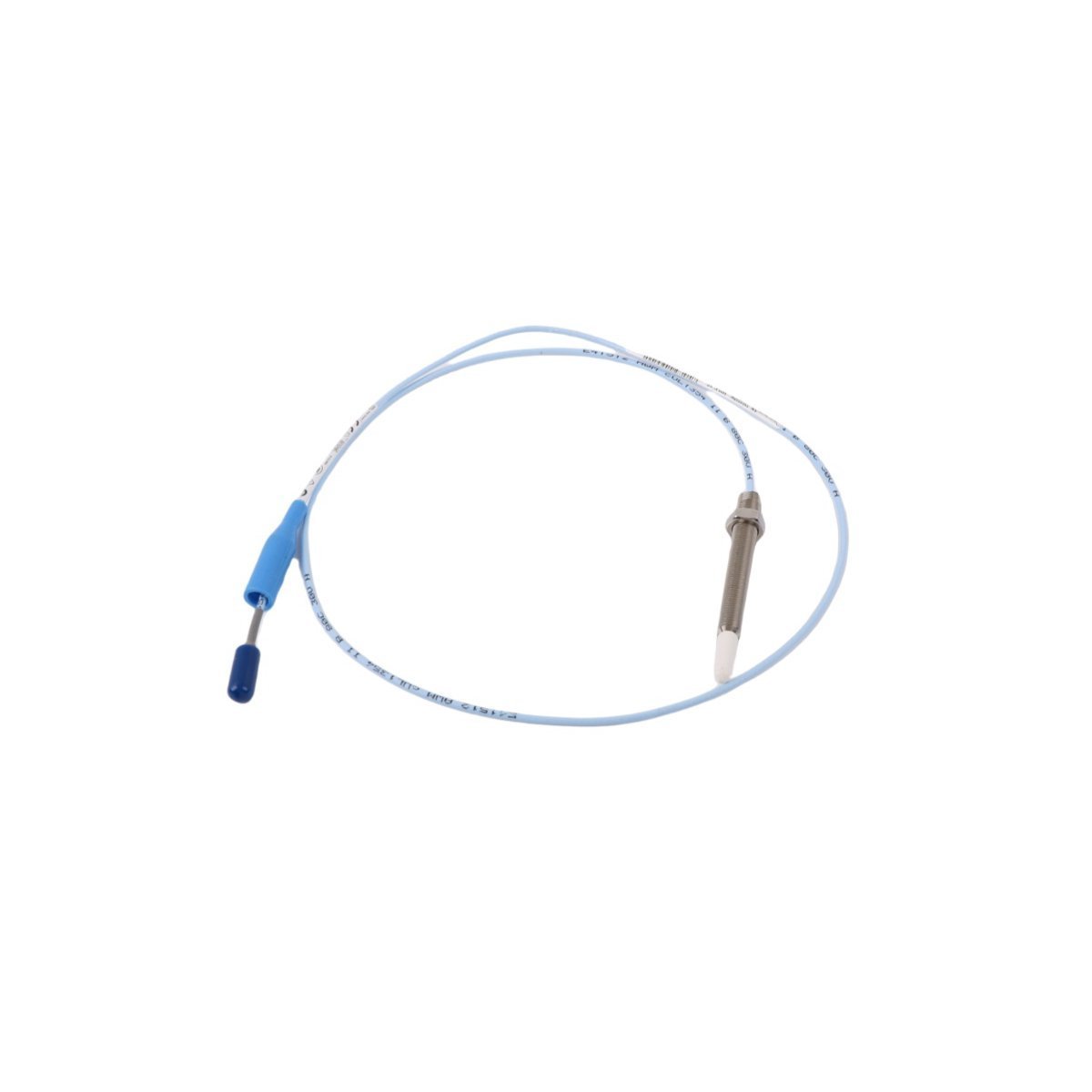

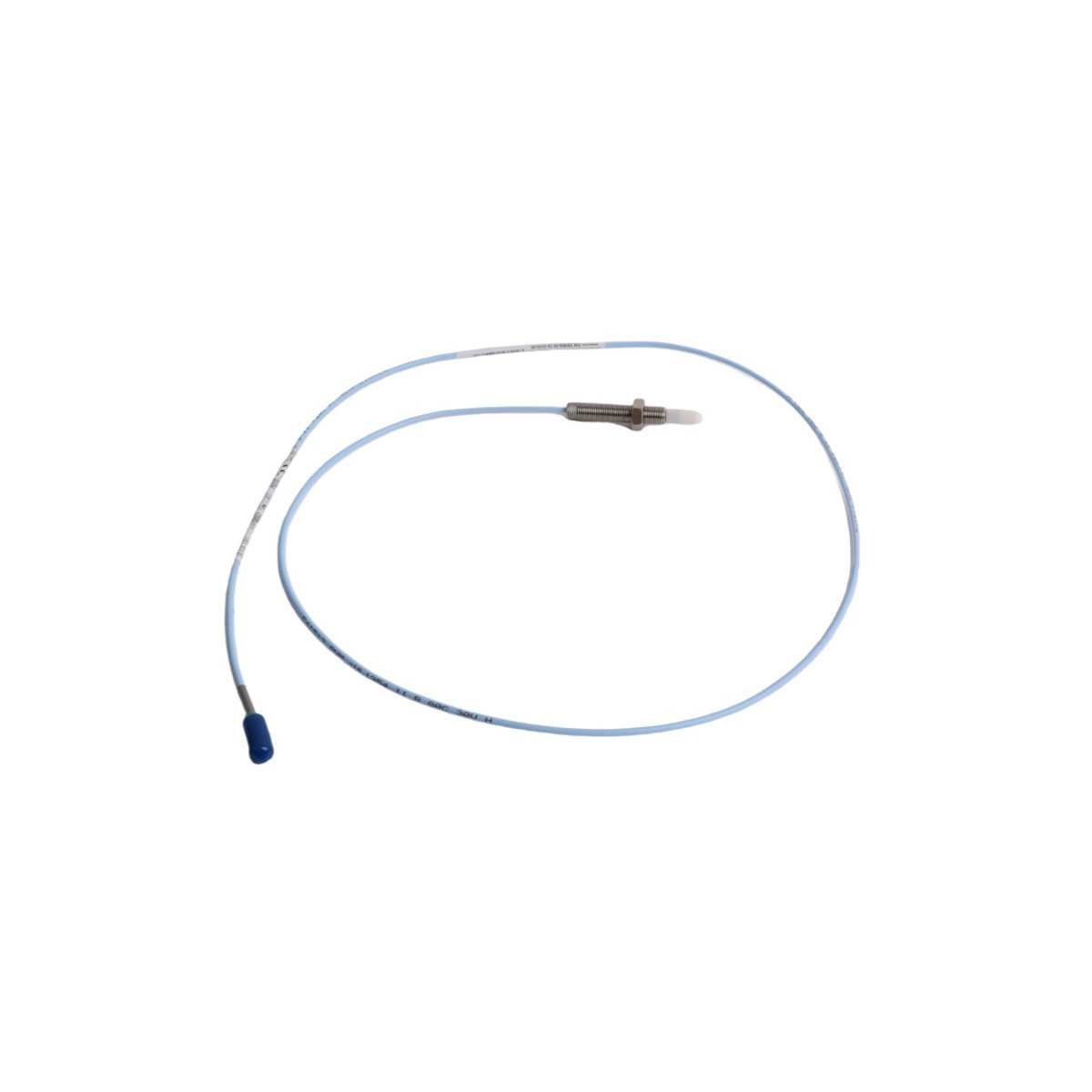

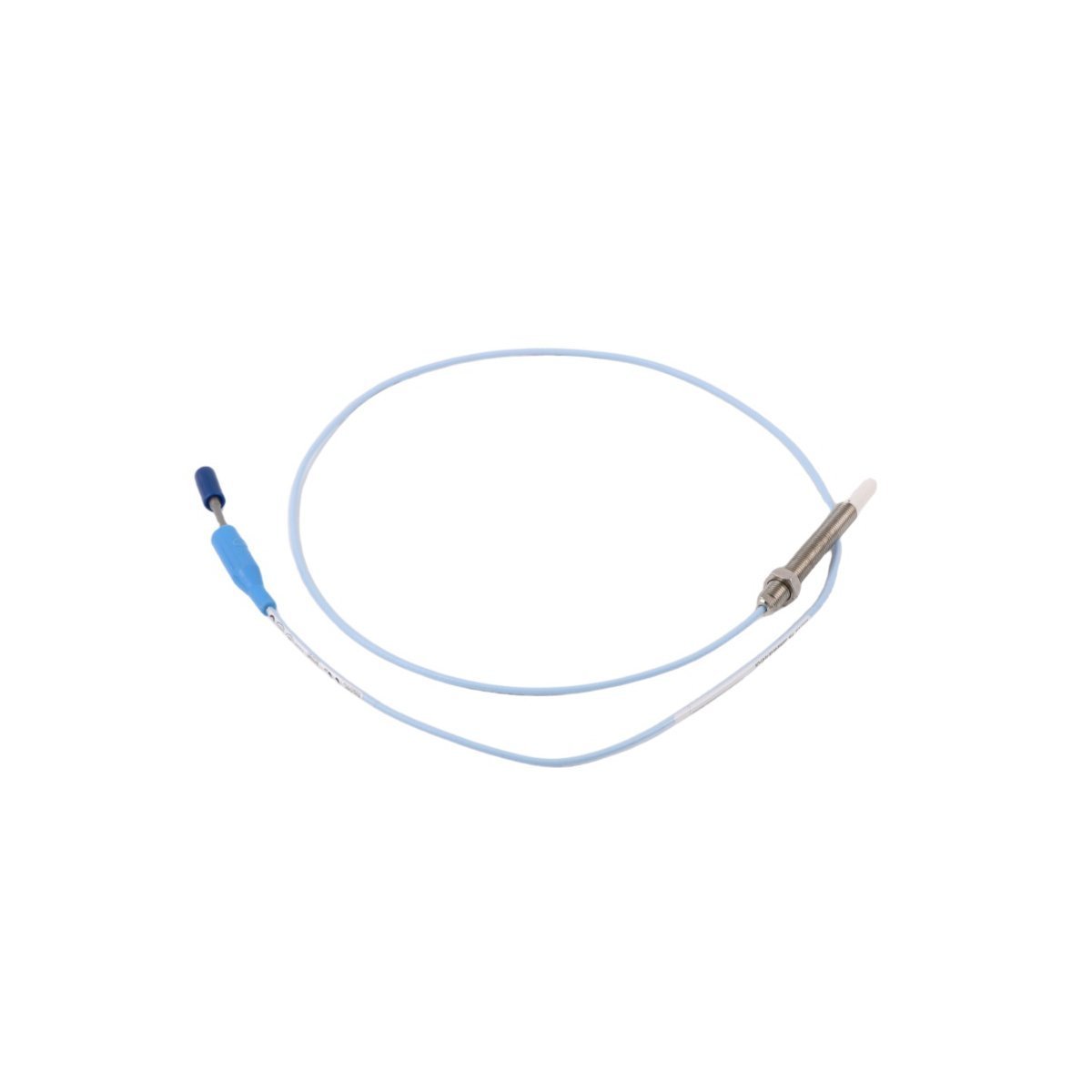

Configured for precision vibration monitoring in TSI (Turbine Supervisory Instrumentation) systems, the Bently Nevada 330908-22-31-10-01-05 (330908 Proximity Probe) provides direct physical/electrical execution. This hardware component operates as a specialized 8 mm eddy-current sensor that tracks dynamic shaft movement and axial position. The design utilizes an integrated 1.0 meter cable terminated via a miniature ClickLoc connector to route high-frequency signal outputs to localized proximity transducer electronics.

Hardware Specifications

Mechanical Monitoring & TSI Product Attributes

The sensor utilizes precise eddy-current probe scaling to convert physical gap displacement into proportional electrical voltage. Engineers verify system calibration by tracking gap voltage validation, targeting baseline operational positions around -10 VDC within the linear field. The probe geometry delivers enhanced side-view capabilities, which optimize small target detection and minimize structural interference from surrounding machine walls. Advanced internal construction enforces strict cross-talk suppression between adjacent units, ensuring clean signal resolution for high-accuracy rotor dynamics analysis.

Frequently Asked Questions

Q: What indicates a correct static installation gap before commissioning the probe?

A: Technicians verify the static installation gap by reading the DC voltage output from the connected proximitor driver. A steady signal reading near -10 VDC indicates the probe sits precisely at the midpoint of its 1.5 mm linear range.

Q: How do the miniature ClickLoc connectors affect signal transmission across the system?

A: The gold-plated miniature ClickLoc connectors lock the electrical connection mechanically to eliminate high-frequency signal attenuation and block moisture ingress at the junction point.

Field Installation Guidelines

• Thread Engagement: Ensure the 3/8-24 UNF threaded body engages clean mating threads smoothly. Hand-tighten the housing until fully seated before locking the hardware with a calibrated torque wrench to prevent case distortion.
• Cable Routing Limits: Avoid sharp bends during cable routing. Maintain a minimum bend radius of 25.4 mm (1.0 inch) to preserve structural shielding and prevent high-frequency impedance changes.
• Shield Grounding Practice: Terminate coaxial cable shields at the instrument enclosure ground rail only. Do not ground both ends of the shield, as this creates ground loops that introduce electrical noise into the vibration readings.
• Isolation from Power Lines: Route the low-voltage sensor cables through dedicated, isolated conduits. Keep sensor lines separated from high-current AC power distribution cables to suppress external electromagnetic interference.
