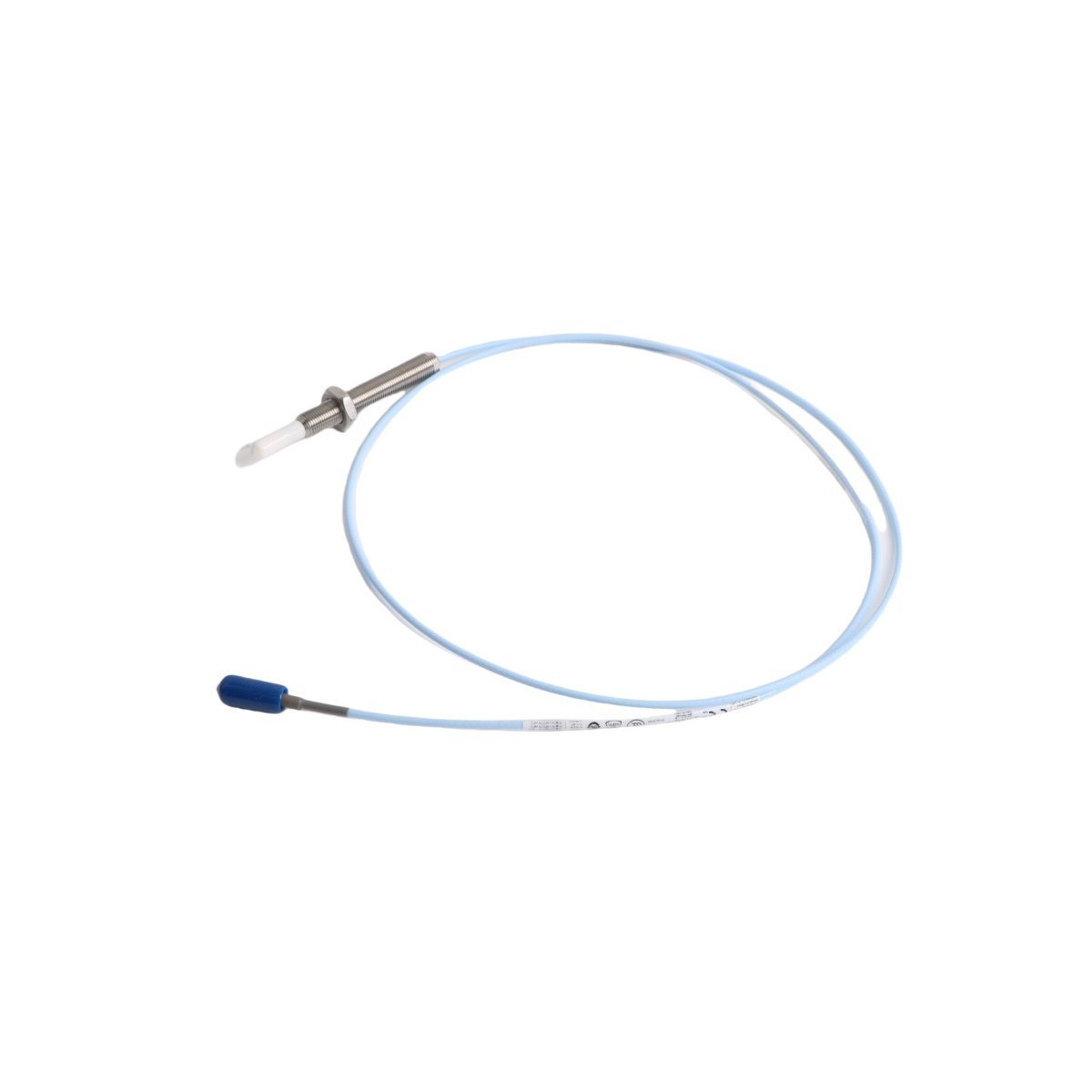

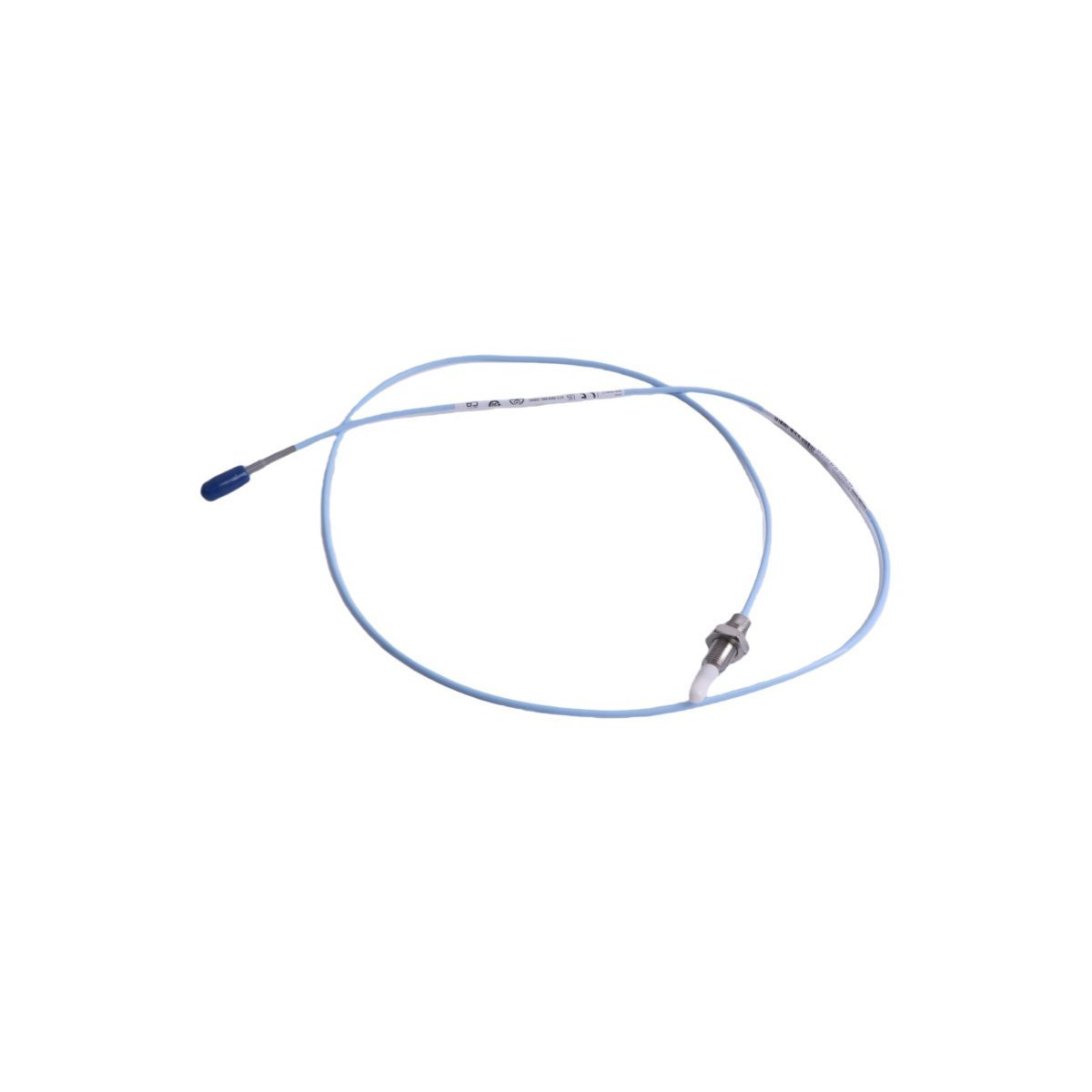

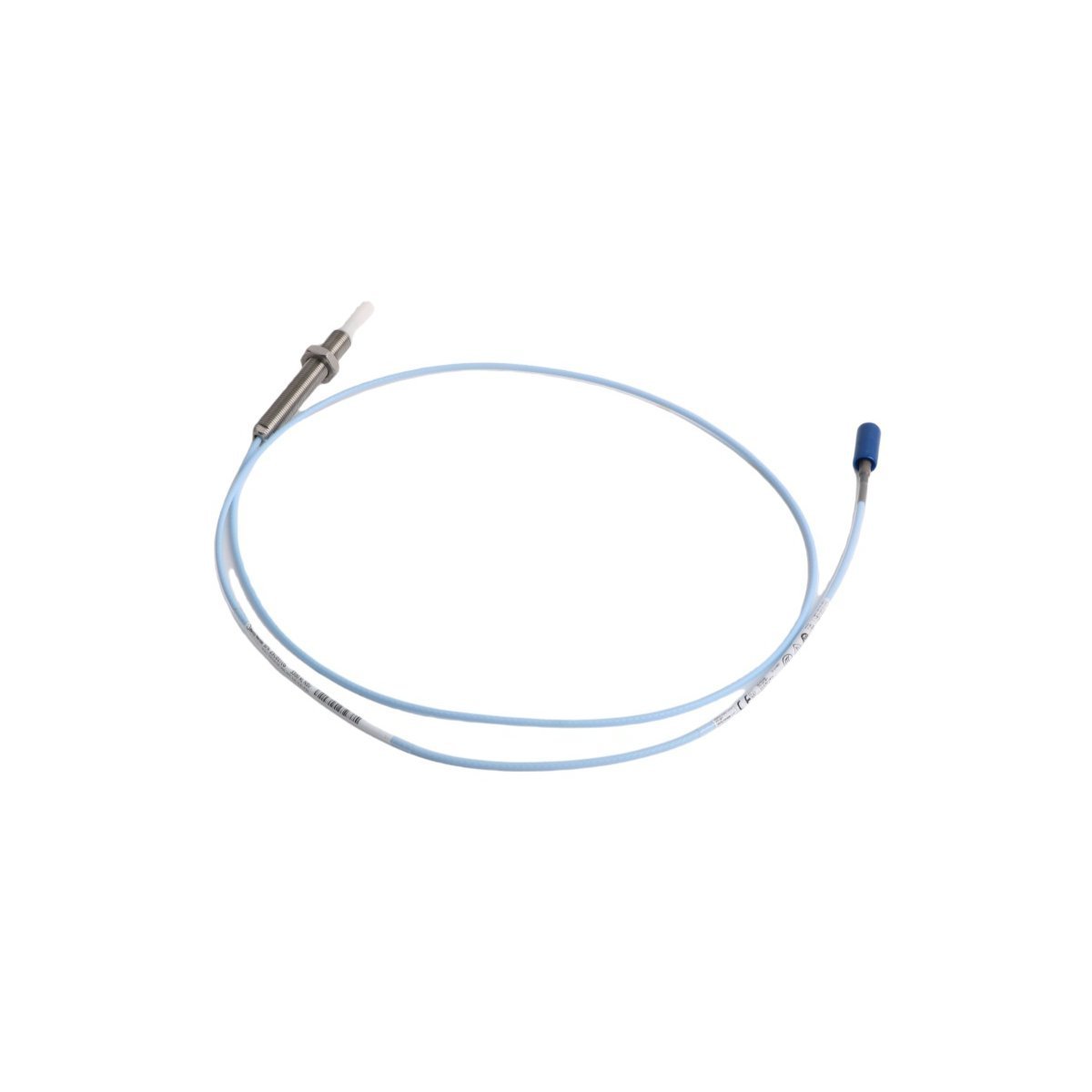

Bently Nevada 330905-00-09-05-02-05 3300 NSv Proximity Probe

The Bently Nevada 330905-00-09-05-02-05 belongs to the 3300 NSv (Narrow Side View) transducer series. This system specifically handles machinery with limited installation clearance. It excels when measuring shafts smaller than 51 mm (2 inches). The probe utilizes eddy current technology for non-contact displacement monitoring. Consequently, it provides high-resolution data without physical mechanical wear. This makes it essential for high-speed centrifugal compressors and specialized turbines.

Design and Environmental Durability

Engineers designed this probe to withstand the rigors of heavy industrial environments. The 330905-00-09-05-02-05 model features an IP67-rated construction. This ensures complete protection against dust and moisture ingress. Furthermore, the polyphenylene sulfide (PPS) tip resists corrosive chemical exposure. The probe operates reliably within a temperature range of -51°C to +177°C. These characteristics guarantee stable performance in power plants and refineries.

Technical Specifications

• Model Number: 330905-00-09-05-02-05
• Thread Size: 1/4-28 UNF
• Unthreaded Length: 0.0 inches
• Overall Case Length: 0.9 inches
• Total Length: 0.5 meter (1.6 feet)
• Connector Type: Miniature coaxial ClickLoc
• Agency Approval: Multi-agency hazardous area certifications (Option 05)

Applications in Machine Protection

This sensor plays a vital role in comprehensive machinery protection programs. It supports radial vibration monitoring and axial thrust position tracking. Additionally, it functions as a highly accurate tachometer or Keyphasor signal source. The narrow side-view design prevents interference from adjacent metal surfaces. This accuracy allows for precise fault diagnosis in rotating assets. Integrating this probe helps operators avoid costly unplanned downtime and equipment failure.

Installation and System Compatibility

The 1/4-28 UNF threaded body facilitates mounting in compact housings. This probe maintains full compatibility with the 3300 NSv series extension cables. Maintenance teams can replace probes without modifying existing mounting hardware. This standardized design simplifies spare parts management for global facilities. Because it follows strict Bently Nevada quality protocols, it ensures long-term signal stability.
